Разширителен блок Synology RX1222SAS, 12x bay 3.5"/2.5", съвместим със SA3600/SA3400

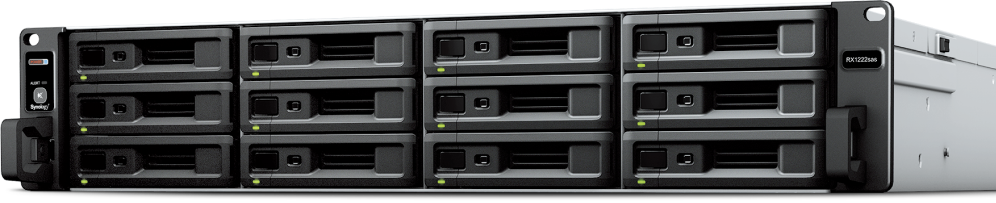

Synology RX1222SAS



Accommodate massive storage growth

Expand your Synology rackmount SAS storage 12 bays at a time, for up to 84 additional 3.5"/2.5" SAS/SATA drives with a maximum of seven Synology RX1222sas expansion units.1 Add volumes when and where needed without interrupting services, thanks to Synology DiskStation Manager (DSM)’s online volume expansion and powerful volume management options.



Easy setup and management

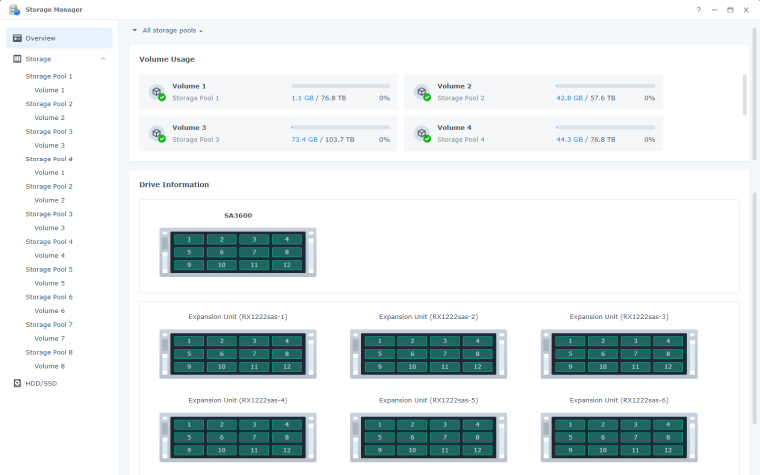

Connect the RX1222sas through the included expansion cable and start managing the additional storage in minutes with Storage Manager and other intuitive tools in Synology DSM. Online volume expansion enables you to add a new volume or expand RAID volumes without reformatting drives.



Specifications:

plied Models	Supports creating volumes across different units	SA series:SA3600, SA3400
	Notes	To have better performance, we recommend creating storage volumes physically located within the same NAS or Expansion Unit, rather than creating volumes across your NAS and Expansion Unit. DSM version requirement: 6.2.4-25556 Update 3, 7.0.1-42218 Update 2 or later versions.
Storage	Drive Bays	12
	Compatible Drive Type*	3.5" SAS HDD 2.5" SAS SSD 3.5" SATA HDD 2.5" SATA SSD
	Maximum Internal Raw Capacity	192 TB (16 TB drive x 12) (Capacity may vary by RAID types)
	Hot Swappable Drive*	Yes
	RAID Management through Synology DSM	Yes
External Ports	SAS IN-port	1
	SAS OUT-port	1
Appearance	Size (Height x Width x Depth)	88 mm x 430.5 mm x 692 mm
	Size (Height x Width x Depth) (with server ears)	88 mm x 482 mm x 724 mm
	Weight	13.5 kg
Power	Power Supply Unit / Adapter	500 W
	AC Input Power Voltage	100V to 240V AC
	Power Frequency	50/60 Hz, Single Phase
	Power Consumption	194.4 W (Access) 82.56 W (HDD Hibernation)
	British Thermal Unit	663.48 BTU/hr (Access) 281.77 BTU/hr (HDD Hibernation)
	Redundant Power Supply (for RP model)	Yes
	Notes	Power consumption is measured when it is fully loaded with Synology HAS5300-8T hard drive(s).
Temperature	Operating Temperature	0°C to 35°C (32°F to 95°F)
	Storage Temperature	-20°C to 60°C (-5°F to 140°F)
	Relative Humidity	5% to 95% RH
Others	System Fan	80 mm x 80 mm x 4 pcs
	Easy Replacement System Fan	Yes
	Noise Level*	54.5 dB(A)
	Notes	Noise Level Testing Environment: Fully loaded with Synology SAT5200-480G SSD in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Certification	FCC CE BSMI UKCA EAC VCCI RCM KC
