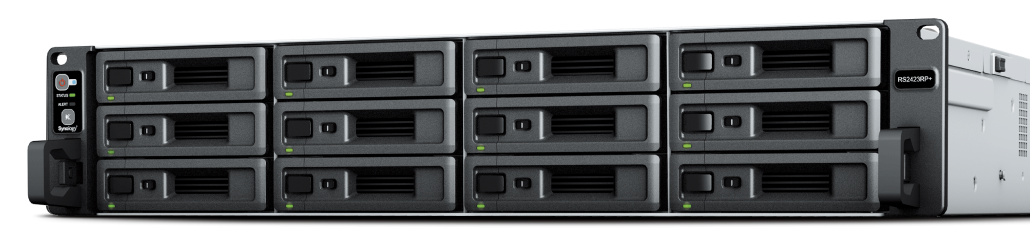

Synology RS2423+
Designed for reliability
The RS2423+ and RS2423RP+ come with one 10GbE RJ-45 port and two Gigabit RJ-45 ports, which can be bonded with Link Aggregation to enable automatic network failover and load balancing.
Two RS2423+/RS2423RP+ units can be paired using Synology High Availability to form a reliable active-passive server cluster, maximizing service uptime.
The RS2423RP+ also features redundant and hot-swappable power supply units to protect service continuity in case there are issues with one power source.
Specifications:
CPU
|
CPU Model | AMD Ryzen V1780B |
---|---|---|
CPU Quantity | 1 | |
CPU Architecture | 64-bit | |
CPU Frequency | 4-core 3.35 (base) / 3.6 (turbo) GHz | |
Hardware Encryption Engine (AES-NI) | Yes | |
Memory
|
System Memory | 8 GB DDR4 ECC UDIMM |
Memory Module Pre-installed | 8 GB (8 GB x 1) | |
Total Memory Slots | 2 | |
Maximum Memory Capacity | 32 GB (16 GB x 2) | |
Storage
|
Drive Bays | 12 |
Maximum Drive Bays with Expansion Unit | 24 (RX1223RP x 1) | |
Compatible Drive Type* |
|
|
Hot Swappable Drive* | Yes | |
External Ports
|
RJ-45 1GbE LAN Port* | 2 (with Link Aggregation / Failover support) |
RJ-45 10GbE LAN Port | 1 | |
USB 3.2 Gen 1 Port* | 2 | |
Expansion Port | 1 | |
Notes |
|
|
PCIe
|
PCIe Expansion | 1 x Gen3 x8 slot (x4 link) |
File System
|
Internal Drives |
|
External Drives |
|
|
Appearance
|
Form Factor (RU) | 2U |
Size (Height x Width x Depth) | RS2423+ : 88 mm x 482 mm x 552 mmRS2423RP+ : 88 mm x 482 mm x 578 mm | |
Weight | RS2423+ : 11.5 kgRS2423RP+ : 11.9 kg | |
Notes | The rail kit is sold separately | |
Others
|
System Fan | 60 mm x 60 mm x 3 pcs |
Fan Speed Mode |
|
|
Easy Replacement System Fan | Yes | |
Power Recovery | Yes | |
Noise Level* | RS2423+ : 52.3 dB(A)RS2423RP+ : 56.2 dB(A) | |
Scheduled Power On / Off | Yes | |
Wake on LAN / WAN | Yes | |
Power Supply Unit / Adapter | RS2423+ : 500 WRS2423RP+ : 350 W | |
Redundant Power Supply | RS2423+ : -RS2423RP+ : | |
AC Input Power Voltage | 100 V to 240 V AC | |
Power Frequency | 50/60 Hz, Single Phase | |
Power Consumption | RS2423+ : 119.95 W (Access) 46.21 W (HDD Hibernation) RS2423RP+ : 114.86 W (Access) 42.33 W (HDD Hibernation) |
|
British Thermal Unit | RS2423+ : 409.56 BTU/hr (Access) 157.78 BTU/hr (HDD Hibernation) RS2423RP+ : 392.18 BTU/hr (Access) 144.53 BTU/hr (HDD Hibernation) |
|
Temperature
|
Operating Temperature | 0°C to 35°C (32°F to 95°F) |
Storage Temperature | -20°C to 60°C (-5°F to 140°F) | |
Relative Humidity | 5% to 95% RH | |
Certification
|
|
