Сървър Synology HD6500, десетядрен Cascade Lake Intel Xeon Silver 4210R 2.4/3.2 GHz, 64GB RDIMM DDR4, без твърд диск, No OS, 1600W PSU

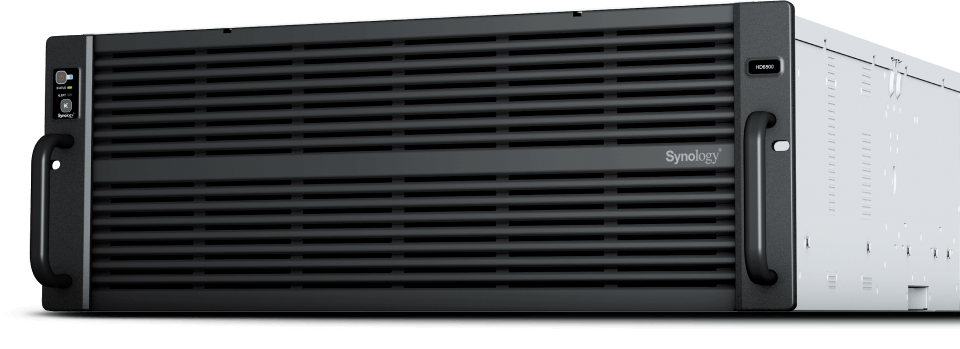

Synology HD6500



Designed for high reliability

The HD6500 is built to keep mission-critical data and services accessible, so that vital work can continue even when disaster strikes.





Powerful networking options

The HD6500 supports a wide variety of networking interfaces, protocols, and configurations, whether you need fast sequential transfer, support for simultaneous connections, or high network redundancy.



Specifications:

CPU	CPU Model	Intel Xeon Silver 4210R
	CPU Quantity	2
	CPU Architecture	64-bit
	CPU Frequency	10-core 2.4 (base) / 3.2 (turbo) GHz
	Hardware Encryption Engine (AES-NI)	Yes
Memory	System Memory	64 GB DDR4 ECC RDIMM
	Memory Module Pre-installed	64 GB (32 GB x 2)
	Total Memory Slots	16
	Maximum Memory Capacity	512 GB (32 GB x 16)
Storage	Drive Bays	60
	Maximum Drive Bays with Expansion Unit	300 (RX6022sas x 4)
	SAS multipathing	Yes
	Compatible Drive Type*	3.5" SAS HDD 2.5" SATA SSD
	Hot Swappable Drive*	Yes
External Ports	RJ-45 1GbE LAN Port	2 (with Link Aggregation / Failover support)
	RJ-45 10GbE LAN Port	2 (with Link Aggregation / Failover support)
	Management LAN Port	1
	Max. number of LAN ports	15
	USB 3.2 Gen 1 Port*	2
	Expansion Port	2
	Notes	The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019. Besides the 5 built-in LAN ports, up to 10 additional LAN ports can be made available by installing compatible network interface cards (sold separately).
PCIe	PCIe Expansion	2 x Gen3 x16 slot (x16 link) 2 x Gen3 x8 slots (x8 link)
File System	Internal Drives	Btrfs
	External Drives	Btrfs EXT4 EXT3 FAT NTFS HFS+ exFAT
	Notes	exFAT Access can be installed for free from Package Center in DSM 7.0. In DSM 6.2 or earlier versions, exFAT Access needs to be purchased in Package Center.
Appearance	Form Factor (RU)	4U
	Size (Height x Width x Depth)	176 mm x 482 mm x 1020 mm
	Weight	37.9 kg
Others	System Fan	80 mm x 80 mm x 4 pcs
	Fan Speed Mode	Full-Speed Mode Cool Mode Quiet Mode
	Easy Replacement System Fan	Yes
	Power Recovery	Yes
	Noise Level*	60.8 dB(A)
	Scheduled Power On / Off	Yes
	Wake on LAN / WAN	Yes
	Power Supply Unit / Adapter	1600 W
	Redundant Power Supply	Yes
	AC Input Power Voltage	200V to 240V AC
	Power Frequency	50/60 Hz, Single Phase
	Power Consumption	1025.2 W (Access) 418 W (HDD Hibernation)
	British Thermal Unit	3495.93 BTU/hr (Access) 1425.38 BTU/hr (HDD Hibernation)
	Notes	Noise Level Testing Environment: Fully loaded with Synology HAS5300-8T hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8% Power consumption is measured when it is fully loaded with Synology 8TB HAS5300-8T hard drive(s).
Temperature	Operating Temperature	0°C to 35°C (32°F to 95°F)
	Storage Temperature	-20°C to 60°C (-5°F to 140°F)
	Relative Humidity	5% to 95% RH
Certification	FCC CE BSMI VCCI RCM UKCA EAC CCC KC UL
