Мрежови диск (NAS) Synology FS3410, осемядрен Intel Xeon D-1541 2.1/2.7GHz, без твърд диск (24x 2.5" SATA 6Gb/s), 16GB DDR4, 4x 1GbE / 2x 10GbE, 2x USB 3.2



Този продукт е тестван и одобрен от Synology

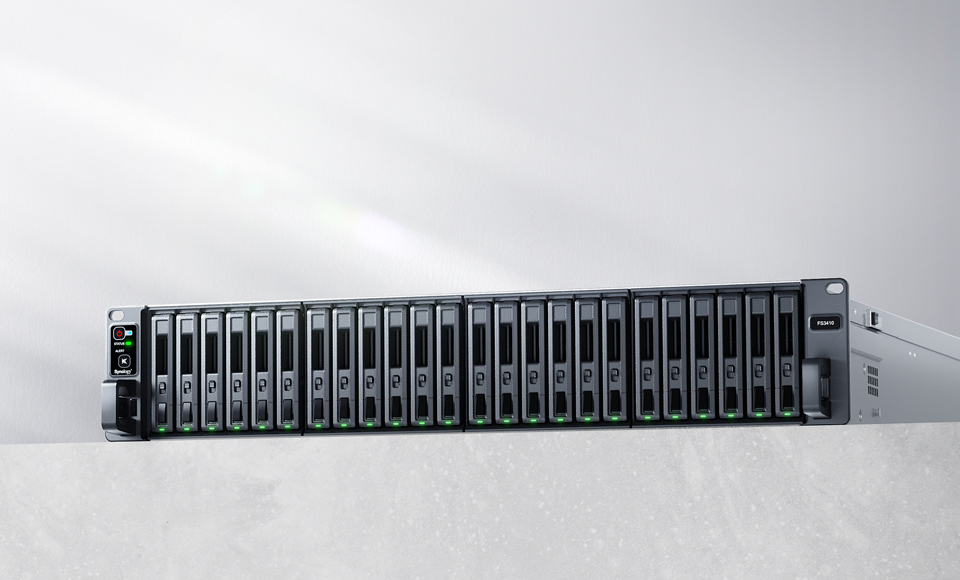

Synology FS3410



Powerful flash storage server

Combine all-flash performance with Synology systems’ ease of use and reliability. The FS3410 is designed to tackle scenarios that require high throughput and low latency.



Specifications:

CPU	CPU Model	Intel Xeon D-1541
	CPU Quantity	1
	CPU Architecture	64-bit
	CPU Frequency	8-core 2.1 (base) / 2.7 (turbo) GHz
	Hardware Encryption Engine (AES-NI)	Yes
Memory	System Memory	16 GB DDR4 ECC RDIMM
	Memory Module Pre-installed	16 GB (16 GB x 1)
	Total Memory Slots	4
	Maximum Memory Capacity	128 GB (32 GB x 4)
Storage	Drive Bays	24
	Compatible Drive Type*	2.5" SATA SSD
	Hot Swappable Drive*	Yes
External Ports	RJ-45 1GbE LAN Port*	4 (with Link Aggregation / Failover support)
	RJ-45 10GbE LAN Port	2 (with Link Aggregation / Failover support)
	Management LAN Port	1
	Max. number of LAN ports	15
	USB 3.2 Gen 1 Port*	2
	Notes	This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes. The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
PCIe	PCIe Expansion	2 x Gen3 x8 slots (x8 link)
File System	Internal Drives	Btrfs EXT4
	External Drives	Btrfs EXT4 EXT3 FAT NTFS HFS+ exFAT
	Notes	exFAT Access can be installed for free from Package Center in DSM 7.0. In DSM 6.2 or earlier versions, exFAT Access needs to be purchased in Package Center.
Appearance	Form Factor (RU)	2U
	Size (Height x Width x Depth)	88 mm x 482 mm x 724 mm
	Weight	15.0 kg
Others	System Fan	80 mm x 80 mm x 4 pcs
	Fan Speed Mode	Full-Speed Mode Cool Mode Quiet Mode
	Easy Replacement System Fan	Yes
	Power Recovery	Yes
	Noise Level*	46.1 dB(A)
	Scheduled Power On / Off	Yes
	Wake on LAN / WAN	Yes
	Power Supply Unit / Adapter	550 W
	Redundant Power Supply	Yes
	AC Input Power Voltage	100V to 240V AC
	Power Frequency	50/60 Hz, Single Phase
	Power Consumption	113.84 W (Access)
	British Thermal Unit	388.70 BTU/hr (Access)
	Notes	Noise testing was conducted with the Synology system fully installed with Synology SATA SSDs and in an idle state. Two G.R.A.S. type 40AE microphones were placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%. The power consumption of the NAS model is measured when it is fully loaded with Synology SAT5200-3840G solid-state drives.
Temperature	Operating Temperature	0°C to 35°C (32°F to 95°F)
	Storage Temperature	-20°C to 60°C (-5°F to 140°F)
	Relative Humidity	5% to 95% RH
Certification	FCC CE BSMI VCCI RCM UKCA EAC CCC KC UL
