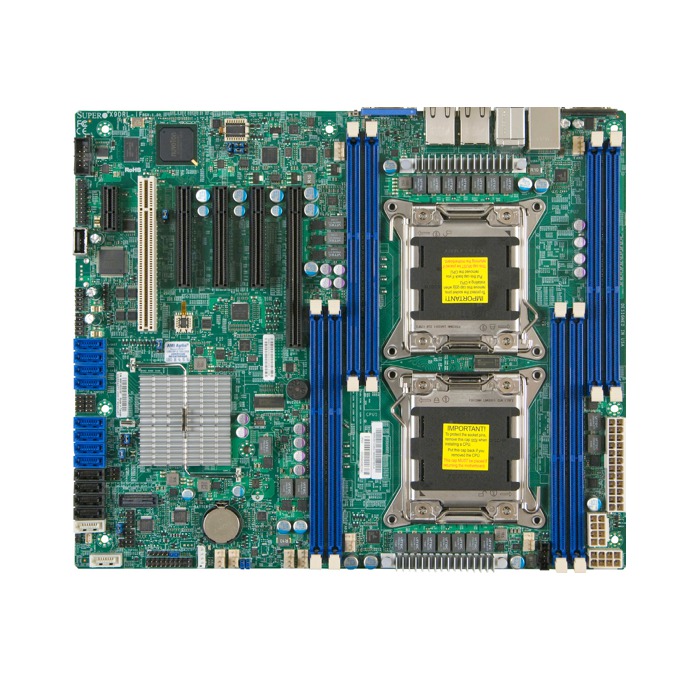

Дънна платка Supermicro X9DRL-EF, C602J, Dual Socket R (LGA 2011), DDR3 DIMM, PCIe 3.0, Lan1000, 2xSATA 3.0, ATX

SUPERMICRO X9DRL-EF

Product SKUs
MBD-X9DRL-EF-O
X9DRL-EF (Standard Retail Pack)
MBD-X9DRL-EF-B
X9DRL-EF (Bulk Pack)

Physical Stats
Form Factor
ATX
Dimensions
12" x 10" (30.48cm x 25.4cm)

Processor/Cache
CPU
Intel® Xeon® processor E5-2600 and E5-2600 v2 family† (up to 130W TDP **)
Dual Socket R (LGA 2011)
Cache
Up to 30MB
System Bus
QPI up to 8 GT/s

System Memory
Memory Capacity
8x 240-pin DDR3 DIMM sockets
Up to 512GB DDR3 ECC LRDIMM
Up to 256GB DDR3 ECC RDIMM
Up to 64GB DDR3 ECC/non-ECC UDIMM
Memory Type
1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
Support ECC and non-ECC UDIMMs
DIMM Sizes
32GB, 16GB, 8GB, 4GB, 2GB, 1GB
Memory Voltage
1.5 V, 1.35 V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset
Intel® C602J chipset
SATA
SATA 2.0 3Gb/s with RAID 0, 1, 5, 10
SATA 3.0 6Gb/s with RAID 0, 1, 10
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Nuvoton WPCM450 BMC
Network Controllers
Intel® i210 Gigabit Ethernet
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
1x Realtek RTL8201F PHY (dedicated IPMI)

Video
Matrox G200eW

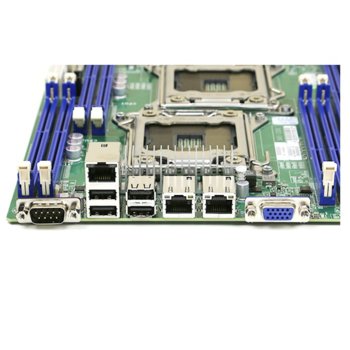

Input / Output
SATA
2 SATA 3.0 ports (6Gb/s)
4 SATA 2.0 ports (3Gb/s)

LAN
2 RJ45 Gigabit Ethernet LAN ports
1 RJ45 Dedicated IPMI LAN port
USB
7 USB 2.0 ports total(4 rear + 2 via header + 1 Type A)
Video
1 VGA port
Serial Port / Header
Total of 2 COM ports: 1 rear, 1 via header
DOM
1 DOM (Disk on Module) power connector
TPM
1 TPM 1.2 20-pin Header

Chassis ( Optimized for X9DRL-EF )
1U Chassis
CSE-813MFTQ-441CB
CSE-813MFTQ-R400CB
2U Chassis
CSE-826TQ-653B
3U Chassis
CSE-833T-653B
Mid-Tower
CSE-732i-500B
Tower / 4U Rackmount
CSE-842TQ-665B
CSE-842TQ-865B

Expansion Slots
PCI-Express
2 PCI-E 3.0 x8
1 PCI-E 2.0 x4 (in x8)
1 PCI-E 2.0 x1

System BIOS
BIOS Type
128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
Plug and Play (PnP)
APM 1.2
PCI 2.3
ACPI 1.0 / 2.0 / 3.0 / 4.0
USB Keyboard support
SMBIOS 2.7.1
UEFI 2.3.1

Management
Software
SuperDoctor® III
Watch Dog
IPMI 1.5 / 2.0
Power Configurations
ACPI / APM Power Management
Power-on mode for AC power recovery

PC Health Monitoring
Voltage
Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory Voltages.
5+1 Phase-switching voltage regulator
PCH cores (1.1V and 1.5V)
FAN
6x 4-pin fan headers with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature
Monitoring for CPU and chassis environment
CPU thermal trip support
Thermal Control for 6x Fan Connectors
Thermal Monitor 2 (TM2) support
PECI
LED
CPU / System Overheat LED
Suspend static indicator LED
UID/Remote UID
Other Features
Chassis intrusion detection
Chassis intrusion header
RoHS, Halogen Free
Dual Cooling Zones
