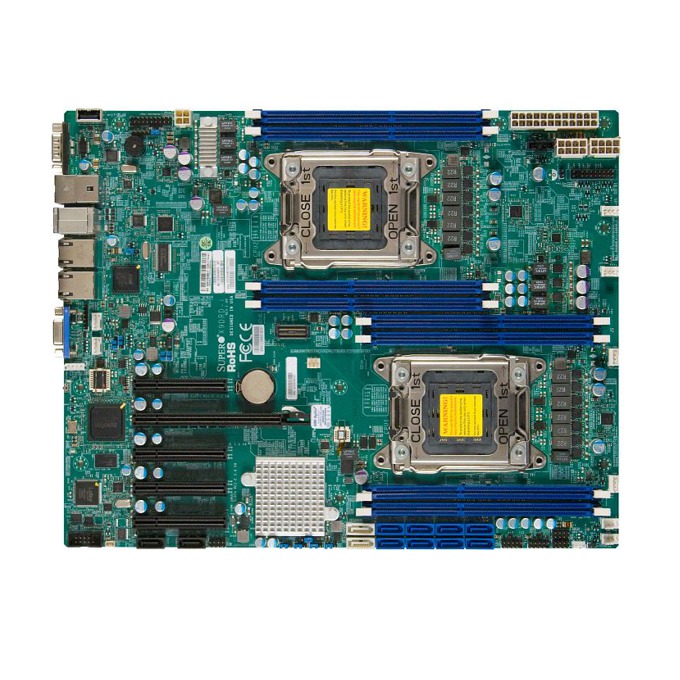

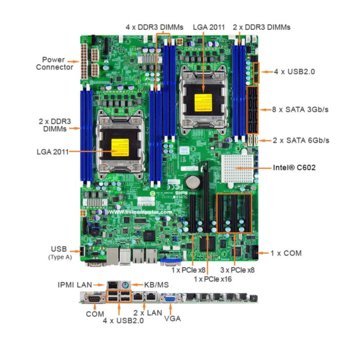

Дънна платка Supermicro X9DRD-IF, C602, Dual Socket R (LGA 2011), DDR3 DIMM, PCIe 3.0, Lan1000, 2xSATA 3.0, E-ATX

SUPERMICRO X9DRD-iF

Form Factor
E-ATX

Dimensions
10.3" x 13" (26.2cm x 33.0cm)

Processor/Cache
CPU Intel® Xeon® processor E5-2600 (up to 135W TDP **) Dual Socket R (LGA 2011)
Cache Up to 20MB
System Bus QPI up to 8 GT/s

System Memory
Memory Capacity
8x 240-pin DDR3 DIMM sockets
Supports up to 256 GB DDR3 ECC Registered memory (RDIMM)
Supports up to 64 GB DDR3 ECC/non-ECC Un-Buffered memory (UDIMM)
Memory Type
1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
Support ECC and non-ECC UDIMMs
DIMM Sizes 32GB, 16GB, 8GB, 4GB, 2GB, 1GB
Memory Voltage 1.5 V, 1.35 V

On-Board Devices
Chipset Intel® C602 chipset
AHCI SATA
SATA 2.0 3Gbps with RAID 0, 1, 5, 10
SATA 3.0 6Gbps with RAID 0, 1, 5, 10
SCU SATA
SATA 2.0 3Gbps with RAID 0, 1, 5, 10
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Nuvoton WPCM450 BMC
Network Controllers
Intel® i350 Dual Port Gigabit Ethernet
Virtual Machine Device Queues reduce I/O overhead
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
1x Realtek RTL8201F PHY (dedicated IPMI)
Video Matrox G200eW

Input / Output
AHCI SATA
2x SATA 3.0 ports (6Gbps)
4x SATA 2.0 ports (3Gbps)
SCU SATA 4x SATA 2.0 ports (3Gbps)
LAN
2 RJ45 Gigabit Ethernet LAN ports
1 RJ45 Dedicated IPMI LAN port
USB
9 USB 2.0 ports total
(4 rear + 4 via header + 1 Type A)
Video 1 VGA port
Serial Port / Header
2 Fast UART 16550 ports (rear/header)
DOM 1 DOM (Disk on Module) power connector
TPM 1 TPM 1.2 20-pin Header

Chassis ( Optimized for X9DRi-F )
1U Chassis
CSE-813LT-R500CB
CSE-813T-441CB
2U Chassis
CSE-823TQ-650B
CSE-823TQ-653B
CSE-825TQ-600LPB
CSE-825TQ-R740LPB

Expansion Slots
1 (x16) PCI-E 3.0 slot
4 (x8) PCI-E 3.0 slots
(Both CPUs need to be installed for full access to PCI-E slots. See manual for details.)

System BIOS
128Mb SPI Flash EEPROM with AMI BIOS
Plug and Play (PnP)
APM 1.2
DMI 2.3
PCI 2.3
ACPI 1.0 / 2.0 / 3.0 / 4.0
BIOS rescue hot keys
USB Keyboard support
SMBIOS 2.7.1
UEFI

PC Health Monitoring
Voltage
Monitors for CPU Cores, +1.1V, +1.5V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, 4 Memory Voltages.
5+1 Phase-switching voltage regulator
FAN
8x 4-pin fan headers
8x fans with tachometer monitoring
Status monitor for speed control
Status monitor for on/off control
Low noise fan speed control
Pulse Width Modulated (PWM) fan connectors
Temperature
Monitoring for CPU and chassis environment
CPU thermal trip support
I2C temperature sensing logic
Thermal Monitor 2 (TM2) support
PECI
LED
CPU / System Overheat LED
Suspend static indicator LED
UID/Remote UID
Other Features
Chassis intrusion detection
Chassis intrusion header
SDDC Support
RoHS
