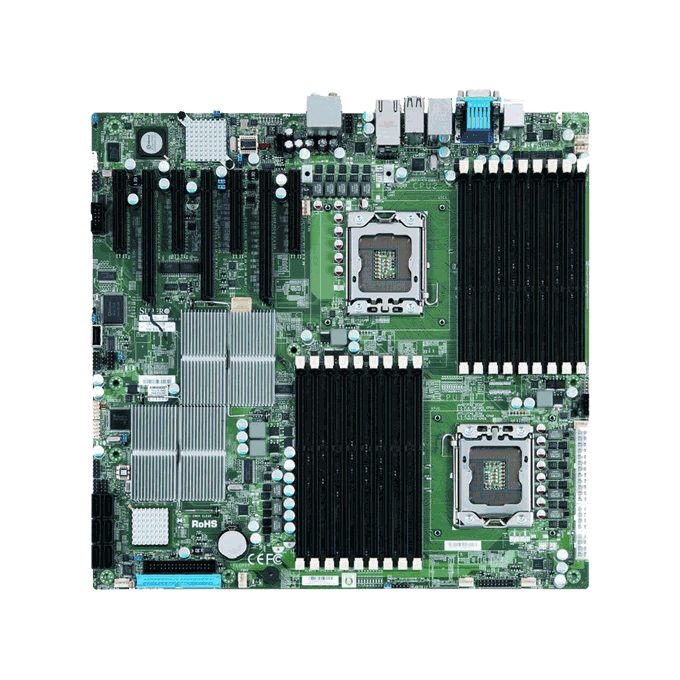

Дънна платка за сървър Supermicro X8DAH+-F, Intel® 5520, 2 x LGA1366, 18 x DDR3 Registered/ECC slots, VGA+2xPCI-E, SB7.1, 2xLan1000, 6xSATA RAID 0,1,5,10, Enhanced Extended ATX, BULK

Supermicro X8DAH+-F

Processor/Cache

CPU
* Dual 1366-pin LGA Sockets
* Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below:
o Intel®
Xeon®Processor 5600 Series (Westmere)
o Intel®
Xeon®Processor 5500 Series (Nehalem-EP)

QPI
* up to 6.4 GT/s


System Memory

Memory Capacity
* 18x 240-pin DIMM sockets
* Supports up to 192 GB 1333 / 1066 / 800MHz DDR3 ECC Registered memory
* Supports up to 48 GB 1333 / 1066 / 800MHz DDR3 ECC / Non ECC Unbuffered memory
* Memory Mirroring supported

Memory Type
* 1333 / 1066 / 800MHz ECC Registered / ECC or Non ECC Unbuffered DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs

DIMM Sizes
* 1GB, 2GB, 4GB , 8GB , 16GB

Memory Voltage
* 1.5 V / 1.35V

Error Detection
* Corrects single-bit errors
* Detects double-bit errors (using ECC memory)
* Supports Intel® x4 and x8 Single Device Data Correction (SDDC)


On-Board Devices

Chipset
* Intel® 5520 (Tylersburg) chipset
* ICH10R +2x IOH-36D

SATA
* Intel ICH10R SATA 3.0Gbps Controller
* RAID 0, 1, 5, 10 support (Windows)
* RAID 0, 1, 10 support (Linux)

IPMI
* Support for Intelligent Platform Management Interface v.2.0
* IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
* Winbond® WPCM450 BMC

Network Controllers
* Intel® 82576 Dual-Port Gigabit Ethernet Controller
* Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
* Intel® I/OAT 3 support for fast, scaleable, and reliable networking
* VMDq support for better performance of virtualization
* 1x Realtek RTL8201N PHY (dedicated IPMI)

Audio
* Realtek ALC888 7.1 HD audio

Graphics
* Matrox G200eW

Super I/O
* Winbond 83827HF chip


Input / Output

Serial ATA
* Six Serial ATA ports
* Six SATA hard drives supported

IDE
* Single EIDE channel supports up to two UDMA IDE devices (IDE-M, IDE-S) including CF(Compact Flash) Card
* Supports UDMA Mode 5, PIO Mode 4, and ATA/100

Floppy
* 1 Floppy controller; 1.44 MB

LAN
* 2x RJ45 LAN ports
* 1x RJ45 Dedicated IPMI LAN port

USB
* 6x USB rear ports
* 1x USB on-board
* 2x USB internal headers (3 ports)
* Total 10 USB 2.0 Compliant

Audio
* Realtek ALC888 7.1 HD audio

VGA
* 1x VGA Port

Keyboard / Mouse
* PS/2 keyboard and mouse ports

Serial Port / Header
* 1 Fast UART 16550 serial port
* 1 Fast UART 16550 serial header (Option)

IEEE 1394a
* 2x IEEE 1394a ports (1x header)


Expansion Slots

PCI-Express
* 2 (x16) PCI-E 2.0 slots
* 4 (x8) PCI-E 2.0 slots (1 in x16 slot)
* 1 (x4) PCI-E 2.0 slot

System BIOS

BIOS Type
* 32Mb SPI Flash EEPROM with AMI® BIOS

BIOS Features
* Plug and Play (PnP)
* PCI 2.2
* ACPI up to 3.0
* USB Keyboard support


Management

Software
* IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
* Super Doctor III

Power Configurations
* ACPI / ACPM Power Management


PC Health Monitoring

CPU
* Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
* 6-Phase-switching voltage regulator

FAN
* Total of eight fan headers supporting up to 8 fans
* Eight 4-pin fan headers
* 8x fans with tachometer status monitoring
* Support 3-pin fans (w/o speed control)
* Low noise fan speed control (4-pin fan only)

Temperature
* Monitoring for CPU and chassis environment
* Thermal Control for 8x fan connectors
* PECI

Other Features
* Chassis intrusion detection
* Chassis intrusion header


Operating Environment / Compliance

RoHS
RoHS 6/6
* RoHS Compliant 6/6, Pb Free

Environmental Spec.
* Operating Temperature: 10° to 35° C (50° to 95°F)
* Non-operating Temperature: -40° to 70° C (-40° to 158° F)
* Operating Relative Humidity: 8% to 90% (non-condensing)
* Non-operating Relative Humidity: 5 to 95% (non-condensing)

Physical Stats

Form Factor - Enhanced Extended ATX
Dimensions - 13.68"""" x 13"""" (34.7cm x 33cm)

* BULK - частта е предназначена за ОЕМ ( Original Equipment Manifacturer / системни интегратори ) - компонентът се предлага в антистатично пликче, и е възможно към него да не са включени диск с драйвери, картонена опаковка, кабели и др.
