Product SKUs:

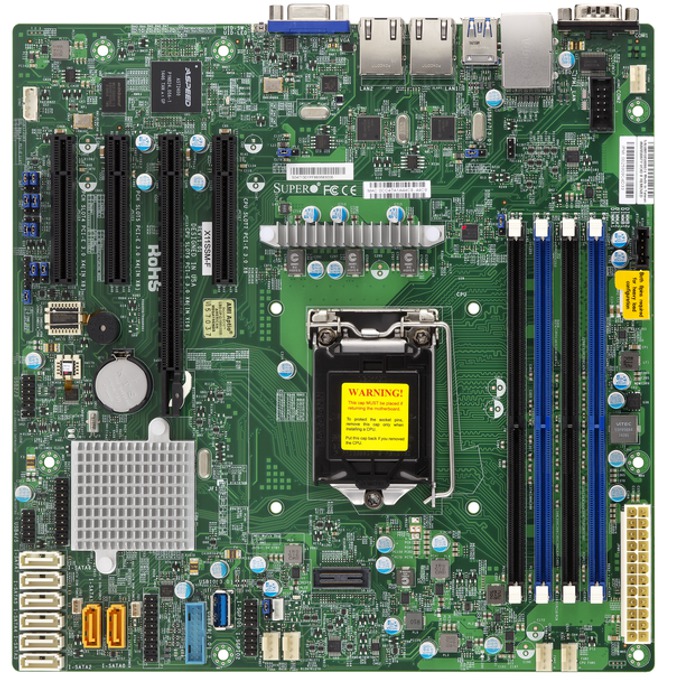

MBD-X11SSM-F
X11SSM-F
(Bulk Pack)
Physical Stats:
Form Factor
Micro-ATX
Dimensions
9.6" x 9.6" (24.38cm x 24.38cm)
Processor/Cache:
CPU
Intel® 6th Generation Core™ i3 series
Intel® Celeron®
Intel® Pentium®
Intel® Xeon® processor E3-1200 v5 series
Socket H4 (LGA 1151) supported; CPU TDP support 80W
System Memory:
Memory Capacity:
64GB Unbuffered ECC UDIMM, DDR4-2133MHz, in 4 DIMM slots
Memory Type:
2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
DIMM Sizes:
4GB, 8GB, 16GB
Memory Voltage
1.2 V
Error Detection:
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices:
Chipset:
Intel® C236
SATA:
Intel® C236 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Network Controllers
Dual LAN with Intel® Ethernet Controller I210-AT
Graphics:
Aspeed AST2400 BMC
Input / Output:
USB:
6 USB 2.0 ports (2 rear, 4 via header)
5 USB 3.0 ports (2 rear, 2 via header, 1 Type A)
Video Output:
1 VGA
1 Aspeed AST2400 BMC
Serial Port / Header
2 COM Ports (1 rear, 1 header)
TPM
Heade
Expansion Slots:
PCI-E:
1 PCI-E 3.0 x8 (in x16 slot)
1 PCI-E 3.0 x8
2 PCI-E 3.0 x4 (in x8 slot)
System BIOS:
BIOS Type:
128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
Plug and Play (PnP)
APM 1.2
DMI 2.3
PCI 2.3
ACPI 1.0 / 2.0 / 3.0 / 4.0
USB Keyboard support:
Hardware BIOS Virus protection
SMBIOS 2.7.1
UEFI 2.3.1
RTC (Real Time Clock) Wakeup
Management:
Software:
Intel® Node Manager, IPMI2.0, NMI, SPM, SSM, SUM, SuperDoctor® 5, Watchdog
Power Configurations
ACPI Power Management
Power-on mode for AC power recovery
PC Health Monitoring:
Voltage:
+12V, +3.3V, +5V, +5V standby, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, System level control, VBAT
FAN:
Total of 5 fan headers supporting up to 5 fans
Fan speed control:
Overheat LED indication
Thermal control tachometer fan connectors
Temperature:
Monitoring for CPU and chassis environment
CPU thermal trip support
Thermal Monitor 2 (TM2) support
PECI
LED:
CPU / System Overheat LED
UID/Remote UID
Other Features
Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Node Manager Support, WOL
Виж още Дънни платки за Intel процесори Supermicro
Виж всички Дънни платки за Intel процесори в категорията
MBD-X11SSM-F
X11SSM-F
(Bulk Pack)
Physical Stats:
Form Factor
Micro-ATX
Dimensions
9.6" x 9.6" (24.38cm x 24.38cm)
Processor/Cache:
CPU
Intel® 6th Generation Core™ i3 series
Intel® Celeron®
Intel® Pentium®
Intel® Xeon® processor E3-1200 v5 series
Socket H4 (LGA 1151) supported; CPU TDP support 80W
System Memory:
Memory Capacity:
64GB Unbuffered ECC UDIMM, DDR4-2133MHz, in 4 DIMM slots
Memory Type:
2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
DIMM Sizes:
4GB, 8GB, 16GB
Memory Voltage
1.2 V
Error Detection:
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices:
Chipset:
Intel® C236
SATA:
Intel® C236 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Network Controllers
Dual LAN with Intel® Ethernet Controller I210-AT
Graphics:
Aspeed AST2400 BMC
Input / Output:
USB:
6 USB 2.0 ports (2 rear, 4 via header)
5 USB 3.0 ports (2 rear, 2 via header, 1 Type A)
Video Output:
1 VGA
1 Aspeed AST2400 BMC
Serial Port / Header
2 COM Ports (1 rear, 1 header)
TPM
Heade
Expansion Slots:
PCI-E:
1 PCI-E 3.0 x8 (in x16 slot)
1 PCI-E 3.0 x8
2 PCI-E 3.0 x4 (in x8 slot)
System BIOS:
BIOS Type:
128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
Plug and Play (PnP)
APM 1.2
DMI 2.3
PCI 2.3
ACPI 1.0 / 2.0 / 3.0 / 4.0
USB Keyboard support:
Hardware BIOS Virus protection
SMBIOS 2.7.1
UEFI 2.3.1
RTC (Real Time Clock) Wakeup
Management:
Software:
Intel® Node Manager, IPMI2.0, NMI, SPM, SSM, SUM, SuperDoctor® 5, Watchdog
Power Configurations
ACPI Power Management
Power-on mode for AC power recovery
PC Health Monitoring:
Voltage:
+12V, +3.3V, +5V, +5V standby, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, System level control, VBAT
FAN:
Total of 5 fan headers supporting up to 5 fans
Fan speed control:
Overheat LED indication
Thermal control tachometer fan connectors
Temperature:
Monitoring for CPU and chassis environment
CPU thermal trip support
Thermal Monitor 2 (TM2) support
PECI
LED:
CPU / System Overheat LED
UID/Remote UID
Other Features
Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Node Manager Support, WOL
Виж още Дънни платки за Intel процесори Supermicro
Виж всички Дънни платки за Intel процесори в категорията
Технически характеристики
| Процесор сокет: | LGA 1151 |
|---|---|
| Чипсет: | C236 |
| Поддържана памет: | DDR4 |
| Брой слотове за RAM памет: | 4 |
| Storage интерфейси: | SATA 6Gbit/s |
| RAID: | Да |
| Безжични мрежи: | Не |
| Bluetooth: | Не |
| Видео слот: | PCI-E |
| Multi-Graphics технология: | Няма |
| Видео изход: | VGA (D-Sub) |
| Форм фактор: | Micro ATX |
