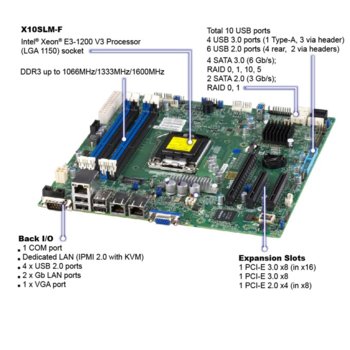

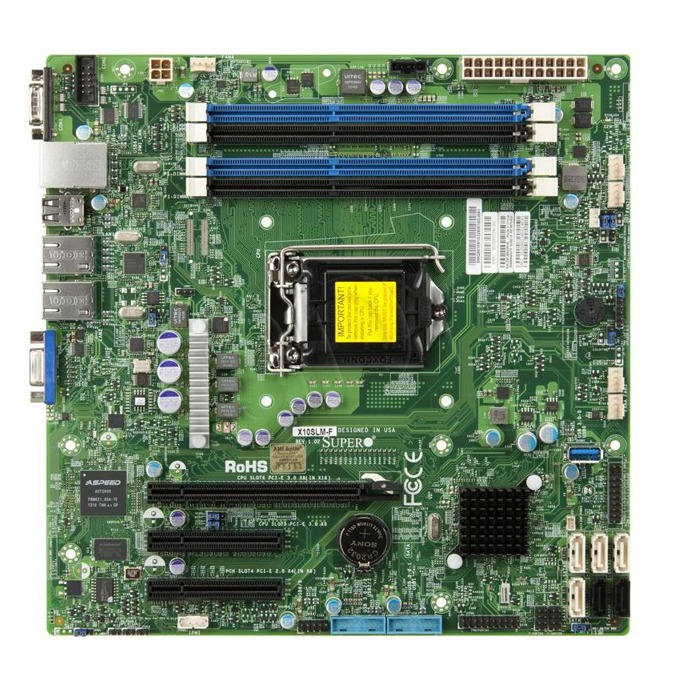

Дънна платка Supermicro X10SLM-F, C224, LGA 1150, DDR3 DIMM, Lan1000, 4xSATA 3.0, uATX

Supermicro X10SLM-F

Чипсет: Intel C224 Express PCH

Процесор: Intel Xeon processor E3-1200 v3 and 4th Gen Core i3, Pentium, Celeron processors, Single Socket H3 (LGA 1150)

Памет: 4x 240-pin DDR3 DIMM sockets Supports up to 32 GB DDR3 ECC Un-Buffered memory (UDIMM), Memory Type 1600MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs, DIMM Sizes 8GB, 4GB, 2GB, 1GB, Memory Voltage 1.5V, 1.35V

Портове: Serial ATA: 4x SATA3 (6Gbps) ports, 2x SATA2 (3Gbps) ports, LAN: 2x Gigabit Ethernet LAN ports, 1x RJ45 Dedicated IPMI LAN port, USB: 4x USB 3.0 ports (1 Type-A, 2+1 via header), 6x USB 2.0 ports (4 rear, 2 via header), VGA 1x VGA D-Sub Connector

Слотове: 1x PCI-E 3.0 x8 (in x16) slot, 1x PCI-E 3.0 x8 slot, 1x PCI-E 2.0 x4 (in x8) slot

Видео: BMC integrated Aspeed AST2400

LAN: Intel i217LM + Intel i210AT Controllers, Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output, 1x
Realtek RTL8211E PHY (dedicated IPMI)

BIOS: BIOS Type 128Mb SPI Flash EEPROM with AMI BIOS, BIOS Features DMI (SMBIOS) 2.7, ACPI 5.0 USB Keyboard support

Форм фактор: uATX, Dimensions 9.6" x 9.6", (24.4cm x 24.4 cm)
