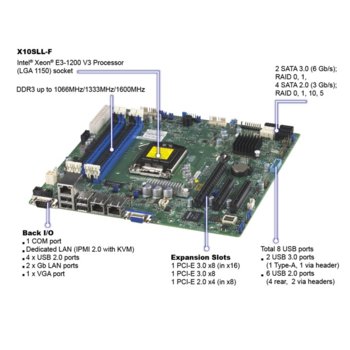

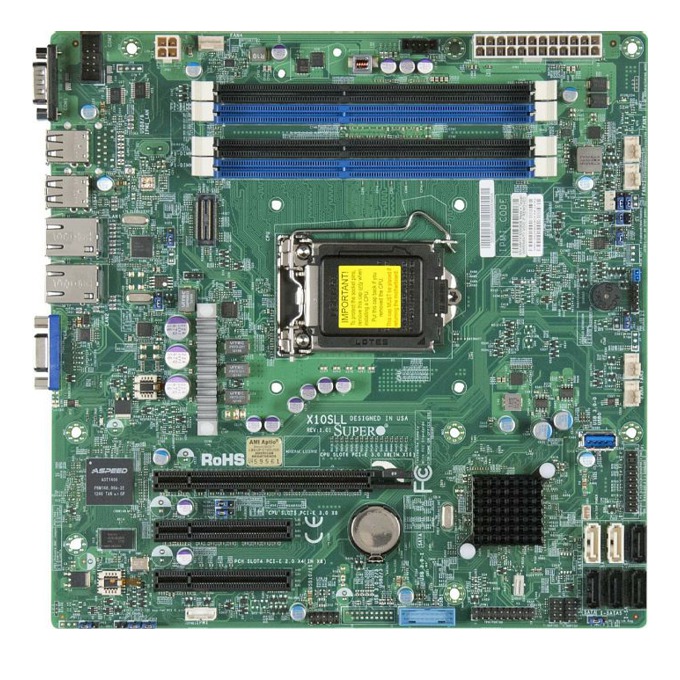

Дънна платка Supermicro X10SLL-F, C222, LGA 1150, DDR3 DIMM, PCIe 3.0, Lan1000, SATA 3.0, uATX

SUPERMICRO X10SLL-F

Product SKUs
MBD-X10SLL-F
X10SLL-F (Bulk Pack)

Physical Stats
Form Factor
uATX
Dimensions
9.6" x 9.6", (24.4cm x 24.4 cm)

Processor/Cache
CPU
Intel® Xeon® processor E3-1200 v3 and 4th Gen Core i3, Pentium, Celeron processors
Single Socket H3 (LGA 1150)

System Memory
Memory Capacity
4x 240-pin DDR3 DIMM sockets
Supports up to 32 GB DDR3 ECC Un-Buffered memory (UDIMM)
Memory Type
1600MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes
8GB, 4GB, 2GB, 1GB
Memory Voltage
1.5V, 1.35V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset
Intel® C222 Express PCH
SATA
SATA3 (6Gbps) w/ RAID 0, 1
SATA2 (3Gbps) w/ RAID 0, 1, 5, 10
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Aspeed AST2400 with 10/100/1000M bps MAC
Network Controllers
Intel® i217LM + Intel® i210AT Controllers
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
1x Realtek RTL8201N PHY (dedicated IPMI)
VGA
BMC integrated Aspeed AST2400

Input / Output
Serial ATA
2x SATA3 (6Gbps) ports
4x SATA2 (3Gbps) ports
LAN
2x Gigabit Ethernet LAN ports
1x RJ45 Dedicated IPMI LAN port
USB
2x USB 3.0 ports (1 Type-A, 1 via header)
6x USB 2.0 ports (4 rear, 2 via header)
VGA
1x VGA D-Sub Connector
Serial Port / Header
2x COM ports (1 rear, 1 header)
DOM
SATA DOM (Disk on Module) power connector support
TPM
1x TPM 1.2 20-pin Header

Chassis ( Optimized for X10SLL-F )
1U Chassis
CSE-113MTQ-330CB
CSE-113MTQ-R400CB
CSE-512F-350B
CSE-512F-441B
CSE-811TQ-441B
CSE-813MTQ-350C
CSE-813MTQ-441CB
CSE-813MTQ-R400CB
Mid-Tower
CSE-731i-300B
CSE-732D4-500B
CSE-732D4-865B
CSE-732D4-903B
CSE-733TQ-500B
CSE-733TQ-665B

Expansion Slots
PCI-Express
1x PCI-E 3.0 x8 (in x16) slot
1x PCI-E 3.0 x8 slot
1x PCI-E 2.0 x4 (in x8) slot

System BIOS
BIOS Type
128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
DMI (SMBIOS) 2.7
ACPI 5.0
USB Keyboard support

Management
Software
IPMI (Intelligent Platform Management Interface) v2.0 with KVM support
SuperDoctor® III
Watch Dog
NMI
Power Configurations
ACPI / ACPM Power Management
Main Switch Override Mechanism
Power-on mode for AC power recovery
Internal/External modem ring-on

PC Health Monitoring
Voltage
Monitors for CPU Cores, +12V, +3.3V, +5V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
5-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
FAN
Total of five 4-pin fan headers supporting up to 5 fans
5x fans with tachometer status monitoring
Status monitor for speed control
Status monitor for on/off control
Support 3-pin fans (w/o speed control)
Low noise fan speed control
Pulse Width Modulated (PWM) fan connectors
Temperature
Monitoring for CPU and chassis environment
CPU thermal trip support
FC temperature sensing logic
Thermal Monitor 2 (TM2) support
PECI
LED
CPU / System Overheat LED
+5V Standby alert LED
Other Features
Chassis intrusion detection
Chassis intrusion header
