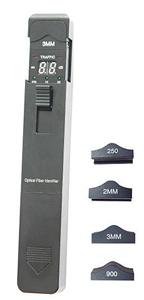

ST820B - Optical Fiber Identifier

id s551259
  • Наличност: Не е наличен
    Описание
    • Adapters:Ø0.25, Ø0.9, Ø2.0 and Ø3.0 mm
    • Easy-to-use with “ONE KEY” operation.
    • Efficiently identifies the traffic direction and frequency tone (270Hz, 1KHz, 2KHz) with audible warning.
    • Displays the relative core power
    • More accurate test with sunshade
    • Easy-to-replace adaptors
    • Durable metal housing and quality construction
    • Low power indication
    • 800-1700 nm
    • Detector Type Ø1mm InGaAs 2pcs
    • Identified Signal Type: CW、270Hz,1kHz、2kHz
    • Detection sensitivity: -40dBm
    • Adapter Type: H 0.9/0.25 for bare fiber; H 2.0/3.0 for pigtail
    • Insertion Loss: H 0.25~H 0.9: 0.1dB, H 2.0~H 2.5: 0.5dB, H 2.5~H3.0: 1.0 dB
    • Signal Direction Left & Right LED
    • Signal Intensity: 3 Levels of signal intensity
    • Power Supply: AAA 1.5V(2pcs batteries)
    • Operating Temperature: -10-+50℃
    • Storage Temperature: -20-+70℃
    • Weight(g): 210
    • Dimension (mm): 200*30*27mm
