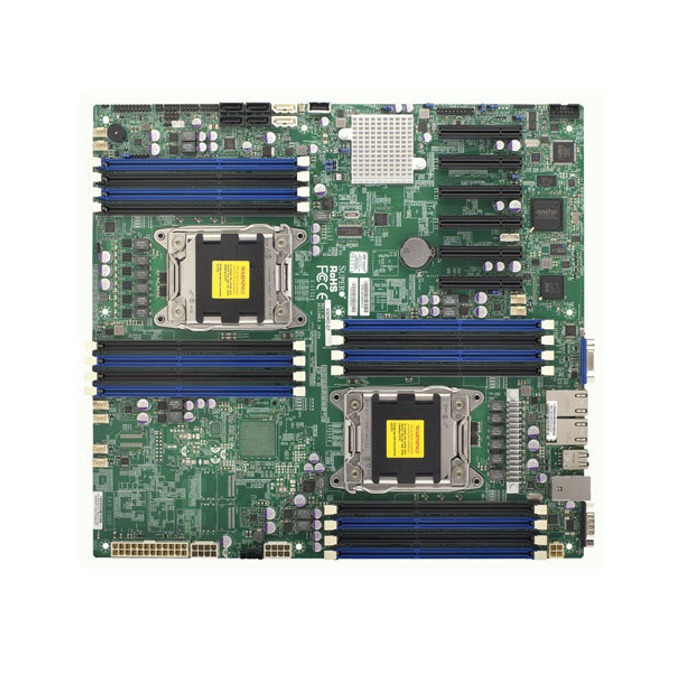

Дънна платка Supermicro X9DRD-EF, C602J, Dual Socket R (LGA 2011), DDR3 DIMM, PCIe 3.0, Lan1000, 2xSATA 3.0, E-ATX

SUPERMICRO X9DRD-EF

Form Factor
E-ATX

Dimensions
12" x 13" (30.5cm x 33.0cm)

Processor/Cache
CPU Intel® Xeon® processor E5-2600 (up to 135W TDP **) Dual Socket R (LGA 2011)
Cache Up to 20MB
System Bus QPI up to 8 GT/s
** Motherboard supports this maximum TDP. Please verify your system can thermally support.

System Memory
Memory Capacity
16x 240-pin DDR3 DIMM sockets
Supports up to 512 GB DDR3 ECC Registered memory (RDIMM)
Supports up to 128 GB DDR3 ECC/non-ECC Un-Buffered memory (UDIMM)
Memory Type 1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
Support ECC and non-ECC UDIMMs
DIMM Sizes 32GB, 16GB, 8GB, 4GB, 2GB, 1GB
Memory Voltage 1.5 V, 1.35 V
Error Detection Corrects single-bit errors Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset Intel® C602J chipset
SATA 2.0 3Gbps with RAID 0, 1, 5, 10
SATA 3.0 6Gbps with RAID 0, 1, 5, 10
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Nuvoton WPCM450 BMC
Network Controllers
Intel® i350 Dual Port Gigabit Ethernet
Virtual Machine Device Queues reduce I/O overhead
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
1x Realtek RTL8201F PHY (dedicated IPMI)
Video Matrox G200eW

Input / Output
2 SATA 3.0 ports (6Gbps)
4 SATA 2.0 ports (3Gbps)
2 RJ45 Gigabit Ethernet LAN ports
1 RJ45 Dedicated IPMI LAN port
9 USB 2.0 ports total
(4 rear + 4 via header + 1 Type A)
1 VGA port
2 Fast UART 16550 ports (rear/header)
1 DOM (Disk on Module) power connector
1 TPM 1.2 20-pin Header

Expansion Slots
6 (x8) PCI-E 3.0 slots
(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram for details.)

System BIOS
BIOS Type 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
Plug and Play (PnP)
APM 1.2
DMI 2.3
PCI 2.3
ACPI 1.0 / 2.0 / 3.0 / 4.0
BIOS rescue hot keys
USB Keyboard support
SMBIOS 2.7.1
UEFI

PC Health Monitoring
Voltage Monitors for CPU Cores, +1.1V, +1.5V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, 4 Memory Voltages.
5+1 Phase-switching voltage regulator
FAN
8x 4-pin fan headers
8x fans with tachometer monitoring
Status monitor for speed control
Status monitor for on/off control
Low noise fan speed control
Pulse Width Modulated (PWM) fan connectors
Temperature
Monitoring for CPU and chassis environment
CPU thermal trip support
I2C temperature sensing logic
Thermal Monitor 2 (TM2) support
PECI
LED
CPU / System Overheat LED
Suspend static indicator LED
UID/Remote UID
Other Features
Chassis intrusion detection
Chassis intrusion header
SDDC Support
RoHS
