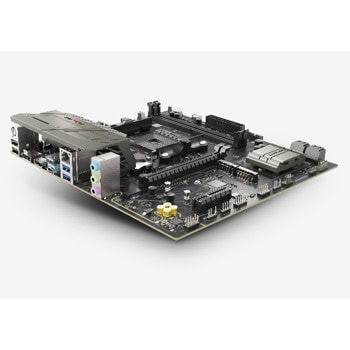

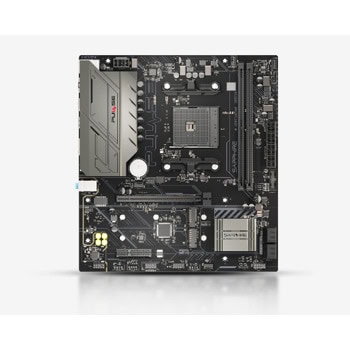

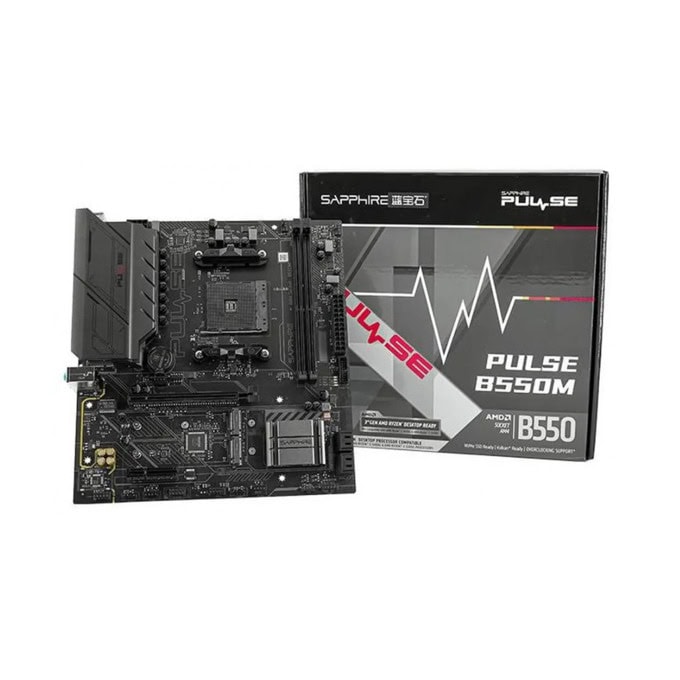

Дънна платка Sapphire Pulse B550M, B550, AM4, DDR4, PCI-E 4.0 (DP&HDMI), 4x SATA 6Gb/s, 2x M.2, 3x USB 3.2 Gen 1 Type-A, 1x USB 3.2 Gen 1 Type-C, Micro ATX

Chipset
AMD B550

CPU Support
Supports AMD Socket AM4 Processors including Ryzen 5000 / 4000 / 3000 Series Desktop
Processors

Memory Support
2x DIMMS, Dual Channel DDR4, Maximum Memory Capacity 64GB(2x 32GB), up to 4000+ MHz(OC)

PCI-E Expansion Slots
1x PCIe 4.0 x16, 1x PCIe 3.0 x4

Display Connector
DisplayPort x1, HDMI x1

Audio
Realtek ALC897 HD Audio, 5.1 Channel

Network
Realtek RTL8125 2.5 Gigabit Ethernet

Front USB Headers
1x USB 3.2 Gen1 (2 x Type-A), 1x USB 2.0 (2 x Type-A)

Rear Ports
1× HDMI, 1× DisplayPort, 1× PS/2
2× USB 2.0, 3× USB 3.2 Gen 1 Type-A, 1× USB 3.2 Gen 1 Type-C
1× LAN (RJ45)
3× Audio Jacks

Storage
1x PCIe 4.0 M.2, 1x PCIe 3.0 M.2, 4x SATA

Dimensions
Micro-ATX, 245 x 225mm

Debug LED
DRAM: Yellow, CPU: Red, GPU: White, Boot: Green
