Интерактивен дисплей Samsung WA65FX, 65" (165.1 cm) 4K/UHD IPS сензорен дисплей, HDMI, USB, Jack 3.5mm, RS232, Wi-Fi, Bluetooth, LAN

Samsung WA65FX

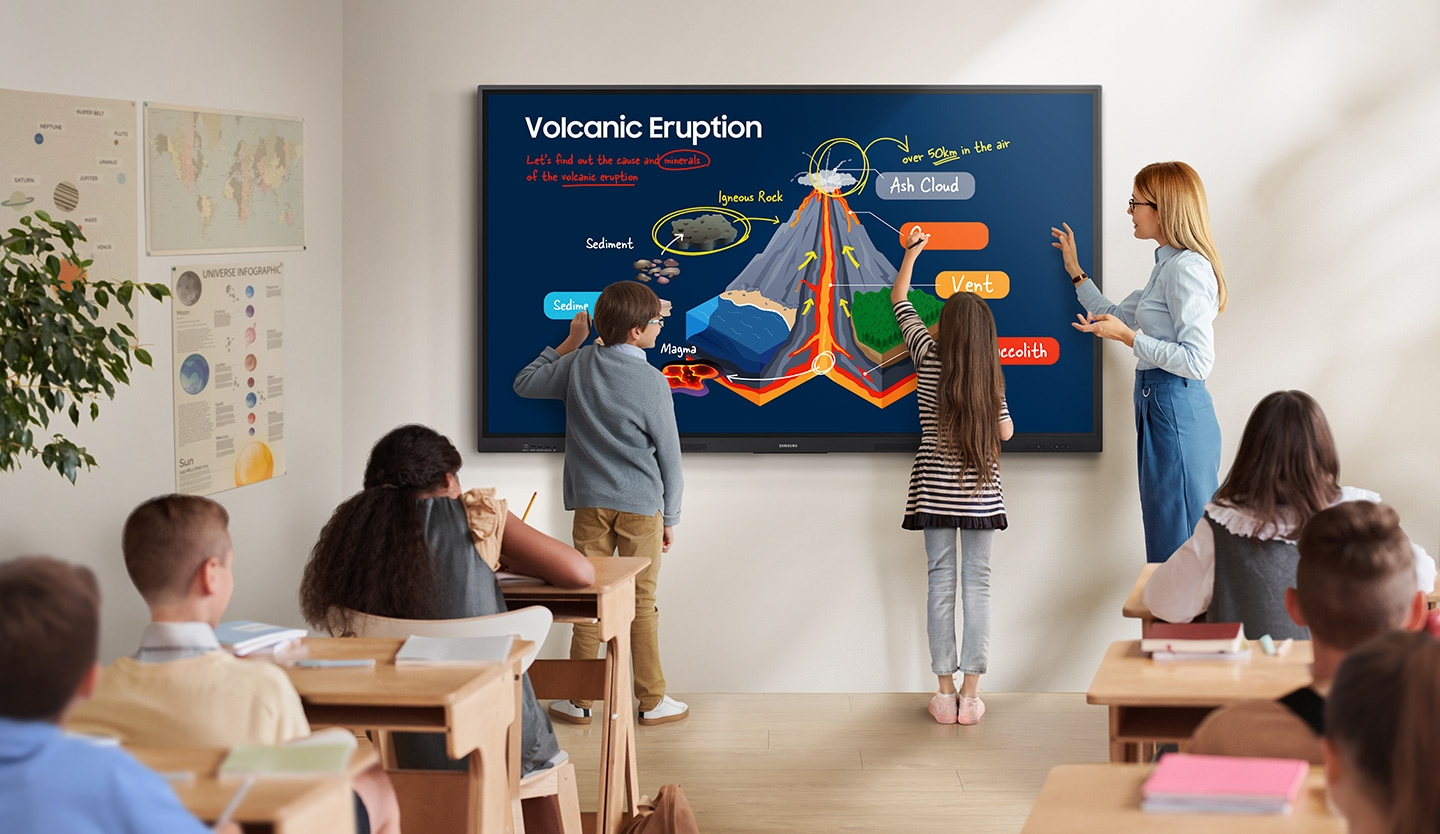

Unlimited Learning Possibilities

The interactive display WAF series, powered by Android OS, enhances education with Google services and a seamless annotation function. Instantly take notes at any moment and empower students to collaborate independently in separate zones, ushering in a new era of interactive education.

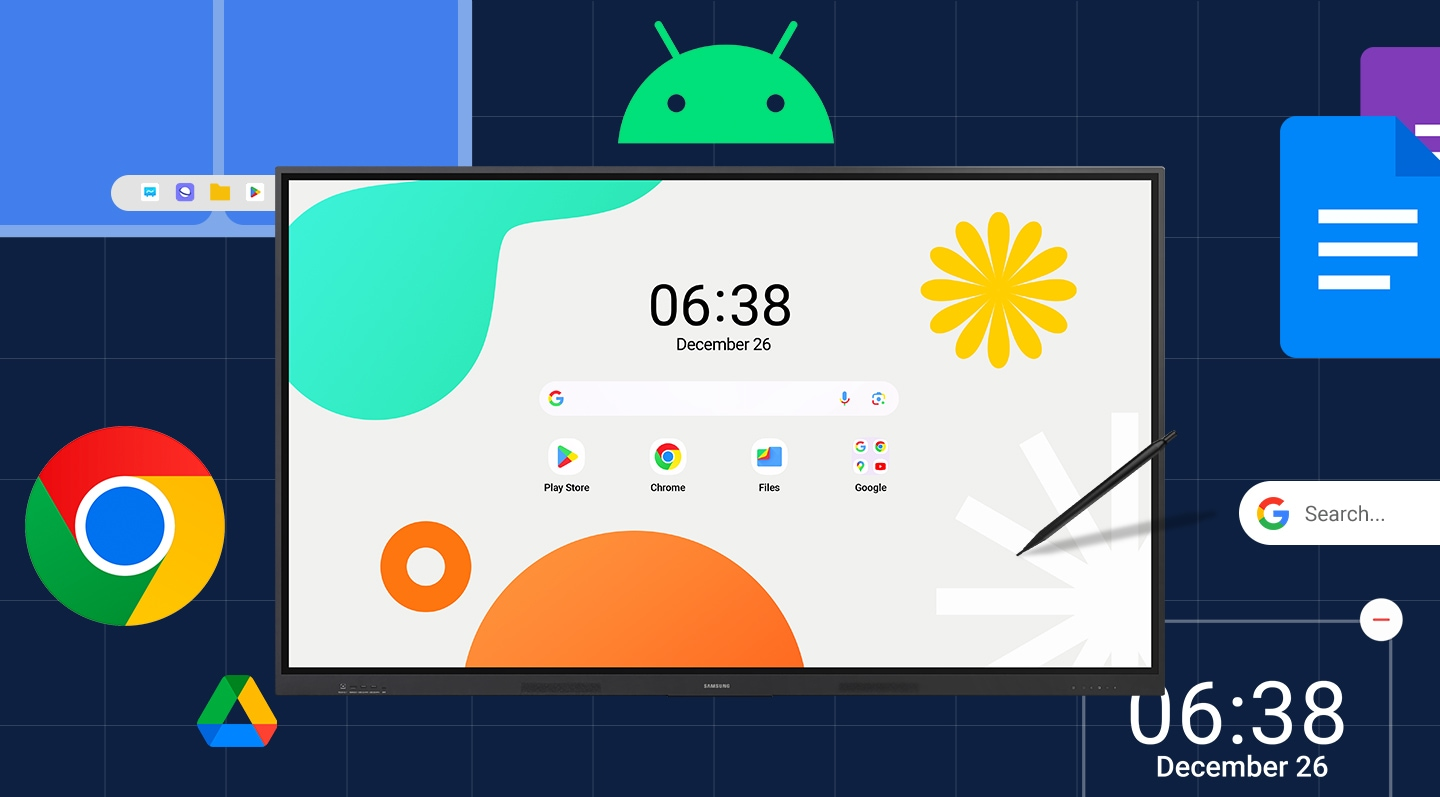

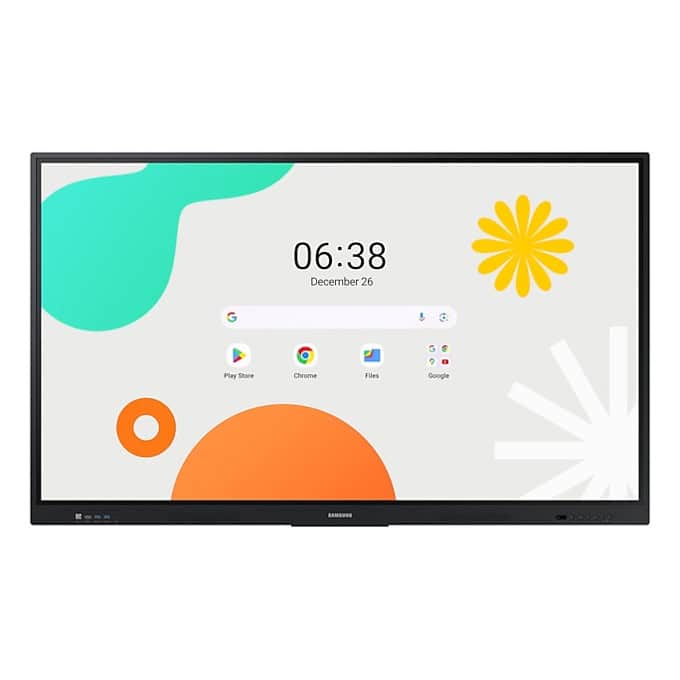

An intuitive UX that fits your needs

Powered by Android

The WAF series offers familiarity to its users. It's compatible with other Android devices and provides a variety of widgets and an easily customizable home screen. These features create more flexibility in building an environment that suits various learning needs.

Effortless access to Google services

EDLA Certification

With an EDLA certification, the WAF series supports a variety of Google services like Google Play and YouTube. This access to major educational apps like Google Classroom leads to increased efficiency and enhanced communication with students.

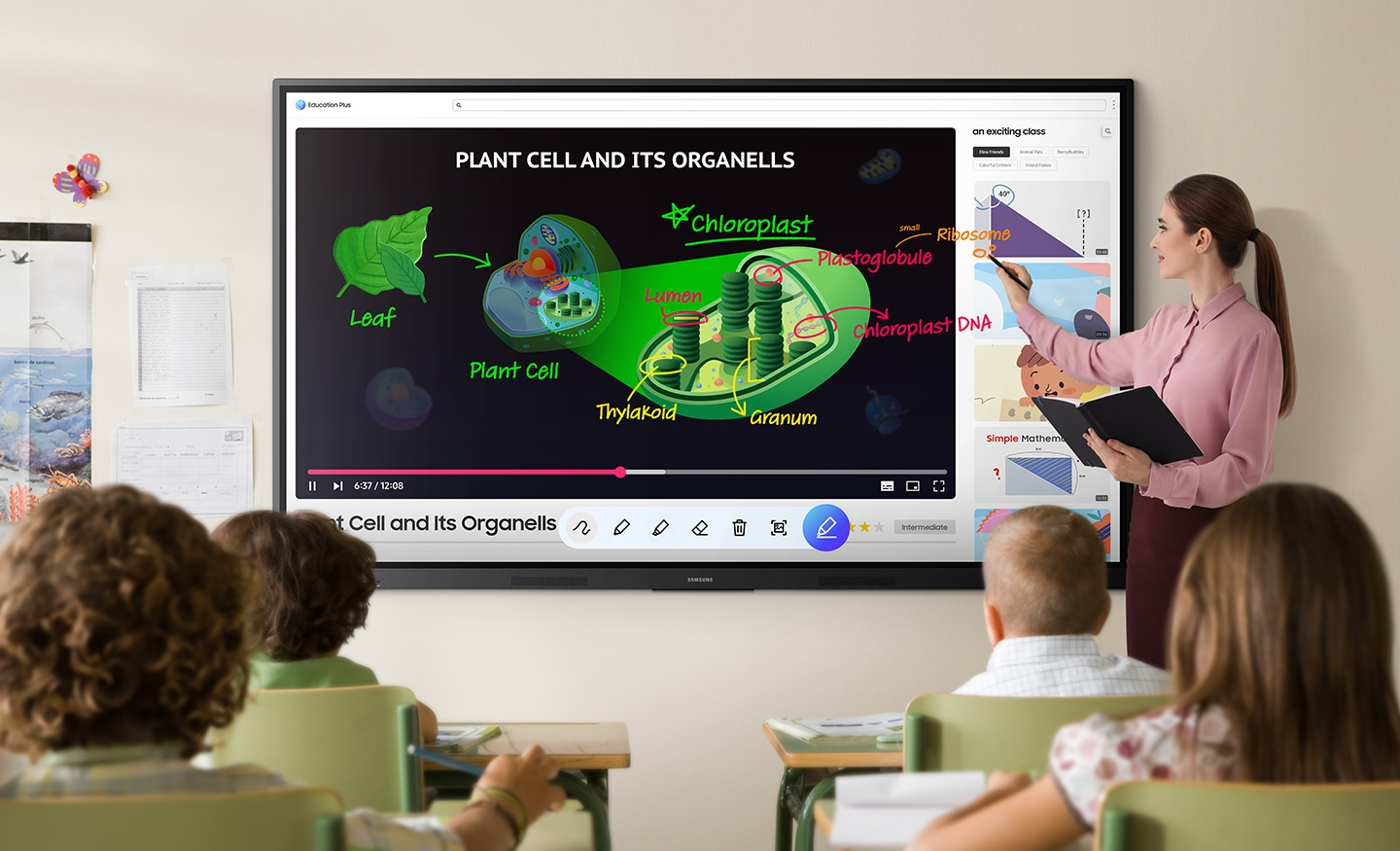

Take notes instantly, anywhere on the screen

Annotation On

The WAF series lets users take notes anytime with a simple press of the always-visible Annotation button. Whether watching a video or viewing any content, users can seamlessly annotate without interruptions, avoiding the need to capture images first and enhancing productivity.

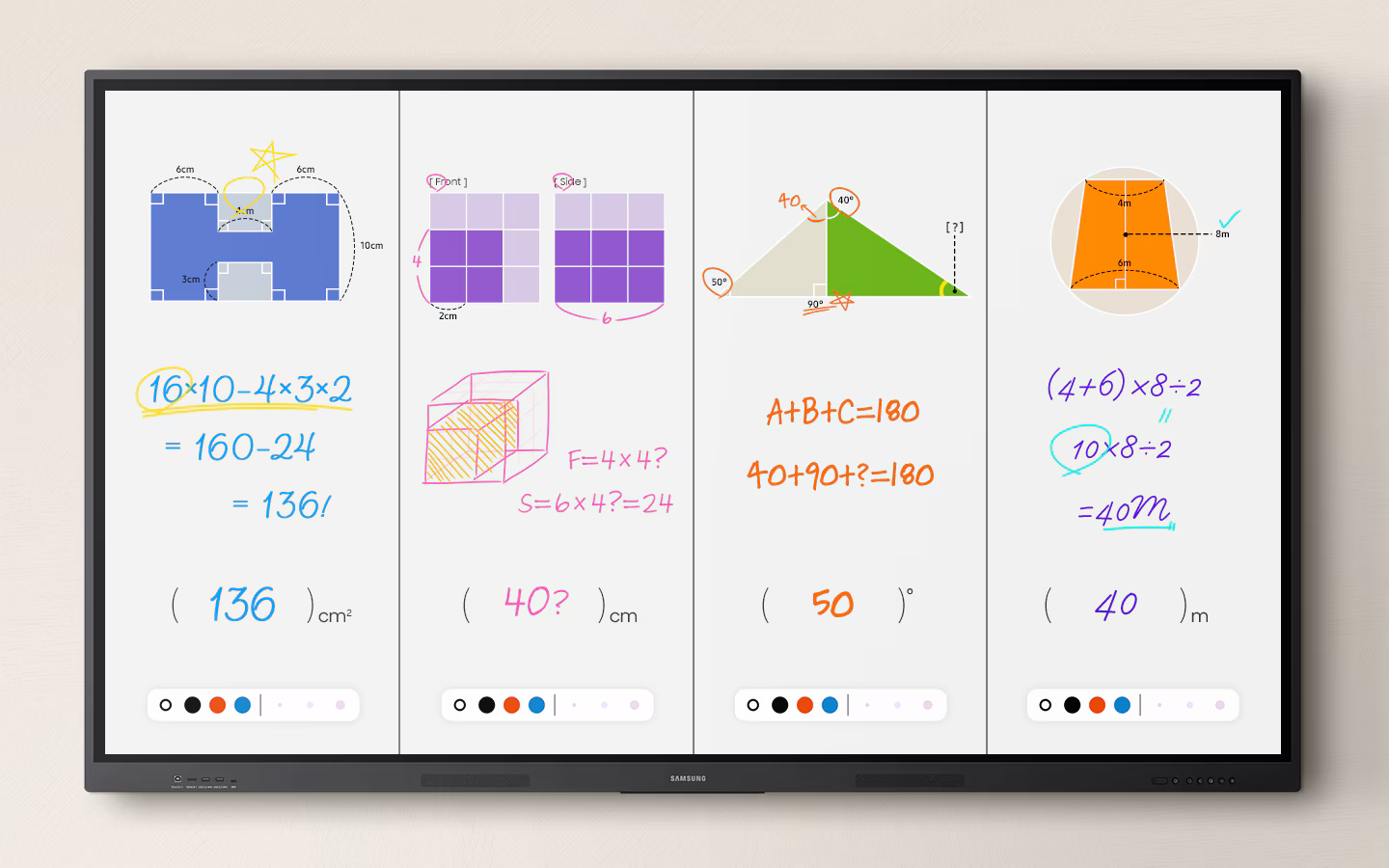

Write independently, learn together

Split Note Mode

The upgraded Note app allows up to four independent note zones on a single page, enabling multiple students to use the whiteboard simultaneously. Students can work in their own zones without affecting others, fostering both collaboration and individual learning.

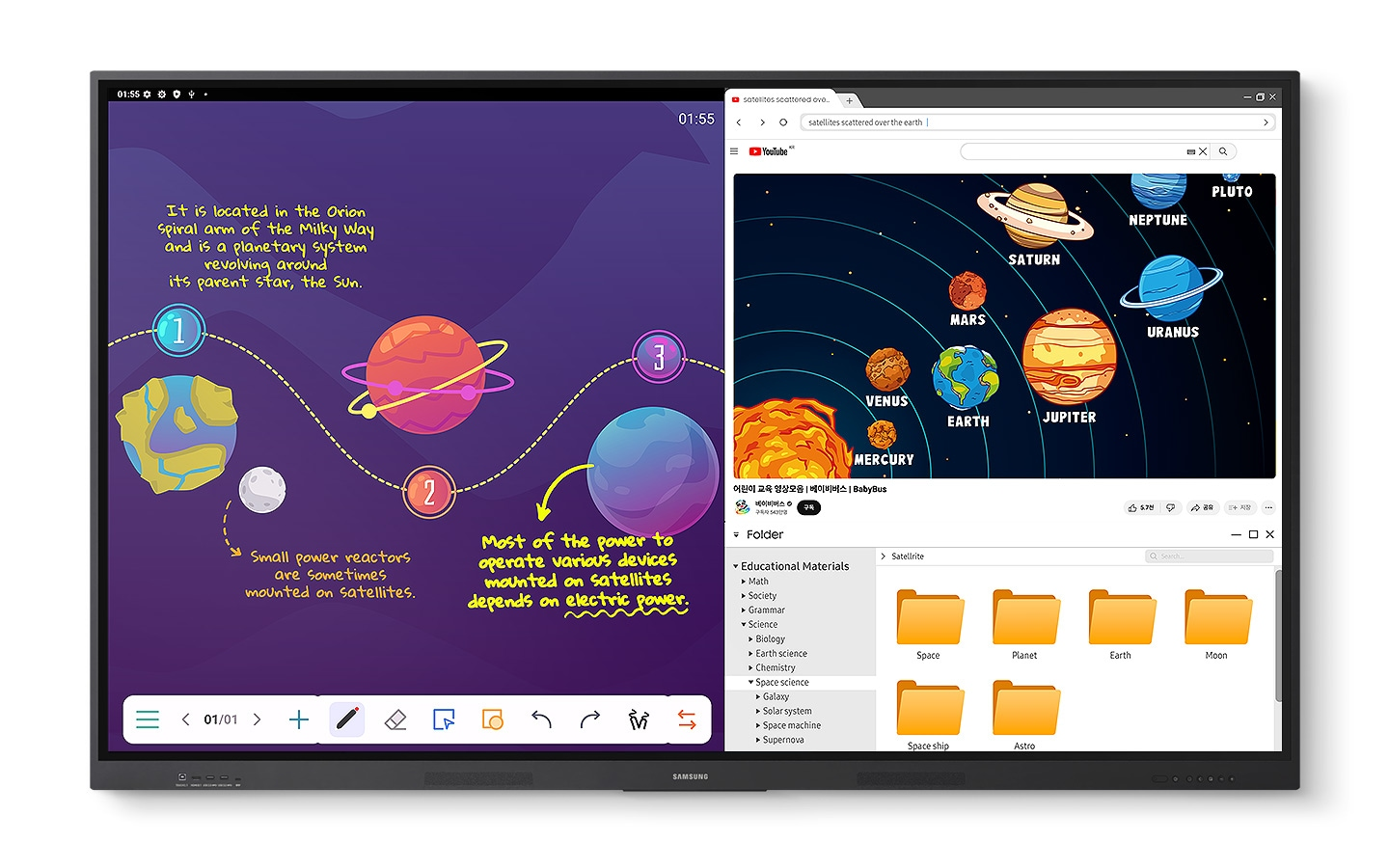

Display multiple screens simultaneously

Easy Multitasking

The split screen and multi-window, enable teachers to easily display information and multitask at the same time on the WAF series. This flexibility provides convenient access to all the screens required to create engaging learning environments.

Specifications

Display

• Diagonal Size 65"
• Panel Type IPS
• Resolution 3,840 x 2,160
• Pixel Pitch (HxV) 372(H)x372(V)
• Brightness (Typ) 400 nit
• Contrast Ratio 1,200:1
• Viewing Angle (Horizontal/Vertical) 178/178
• Response Time 8ms
• Colour Gamut 72%
• Glass Haze 25%
• H-Scanning Frequency 135 kHz
• Maximum Pixel Frequency 78MHz
• V-Scanning Frequency 60Hz
• Operation Time Support 12/7

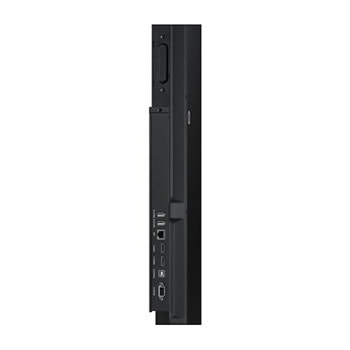

Connectivity

• HDMI In 2
• Version of HDMI 2.1
• Version of HDCP 2.1
• USB 4
• Audio In Stereo Mini Jack
• Audio Out Stereo Mini Jack
• Video Out Yes
• RS232 In Yes
• RJ45 In Yes
• WiFi Wi-Fi 5: 802.11ac
• Bluetooth Yes

Power

• Power Supply AC100-240V 50/60Hz
• Power Consumption (On Mode) 409 W
• Power Consumption (Sleep Mode) 0.5 W

Dimension

• Set Dimension (WxHxD) 1482.1 x 897.5 x 87.7 mm

Weight

• Set Weight 36.2 kg

Operation Conditions

• Temperature 0℃~40℃
• Humidity 10 ~ 80%, non-condensing

Mechanical Specification

• VESA Mount 600 x 400 mm
• Bezel Width 14.0mm
• Bezel Color Black
• Frame Material Aluminium

Optional Feature

• Touch Yes

SoC

• OS Version Android-14
• Flash Memory Size 64GB

Touch

• Touch Technology IR

Certification and Compliance

• EMC FCC CFR Title 47, Part 15, Subpart B/EN55032:2015+A11:2020
• Safety IEC62368-1/UL62368-1/IEC60950-1 / IS13252
