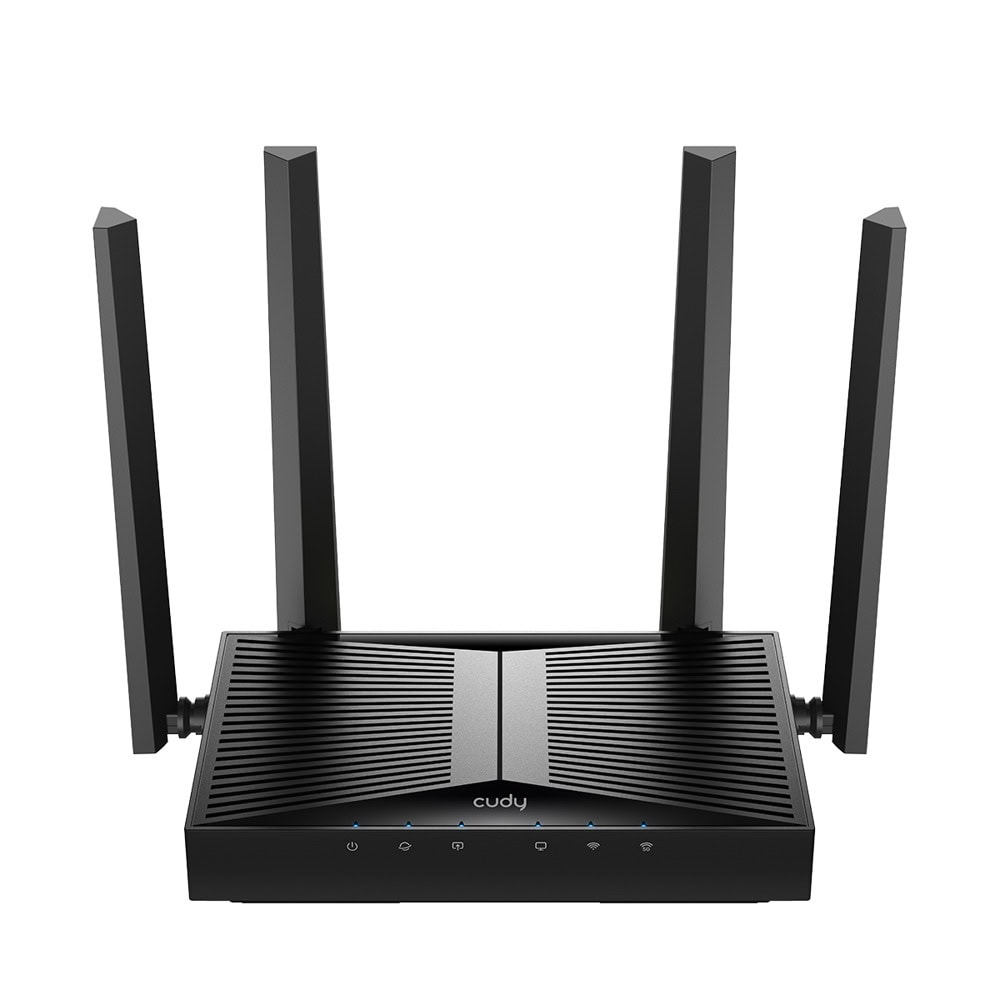

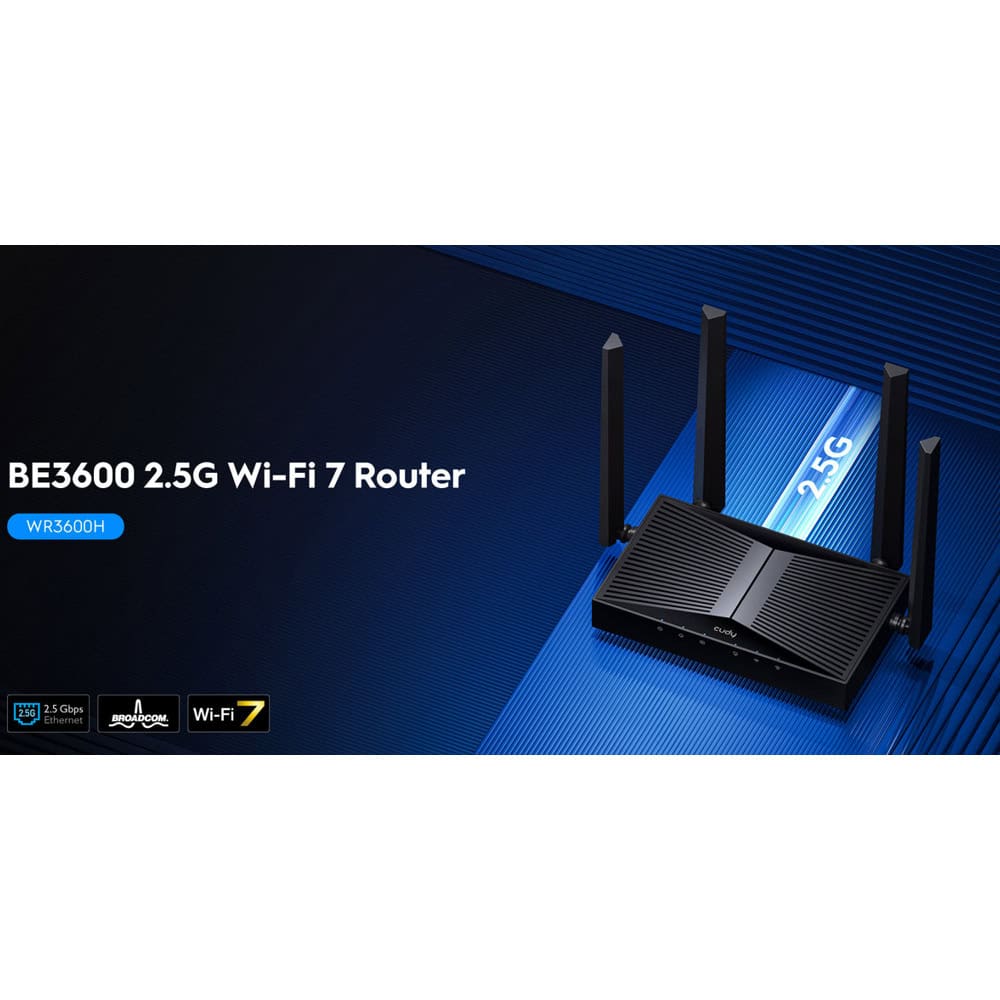

Name: Рутер Cudy WR3600H, 3600Mbps, 2.4GHz(688Mbps)/ 5GHz(2882Mbps), Wireless BE, 4x 10/100/1000Mbps LAN, 1x 10/100/1000/2500Mbps WAN, 4x външни антени
Brand: Cudy
SKU: NTWRCUDYWR3600H
Price: 70.05 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Документация Вземи на изплащане

Cudy WR3600H

Easy Setup and Versatile Management

Easy to Use

Upgrade your network with ease. An intuitive setup wizard guides you to config your new network.

Parental Controls

Create user profiles, set online times, and regulate online content for your loved ones.

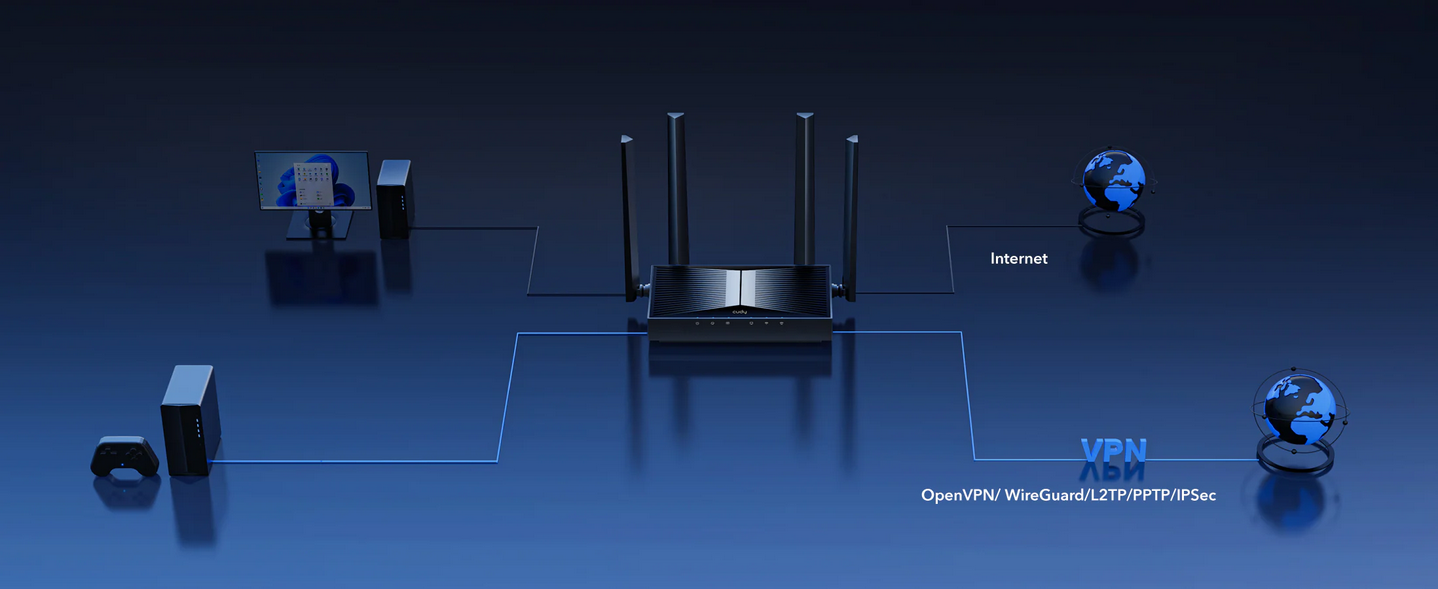

VPN Server and Client

Enables work from home and secure remote access with the support of popular VPN protocols.

Cudy App

Features Cudy App and Cudy Cloud to facilitate your network management.

Specifications

Hardware Specs

CPU	CPU Details	2.0 GHz Quad-Core, ARM Cortex-A7
Memory/Storage	Flash/ROM	128 MB (1 Gbit) NAND
	DDR/RAM	512 MB (4 Gbit) DDR3L
Wireless	5 GHz Wi-Fi Speed	2882 Mbps
	2.4 GHz Wi-Fi Speed	688 Mbps
	5 GHz Wi-Fi Streams	2 Spatial Streams
	2.4 GHz Wi-Fi Streams	2 Spatial Streams

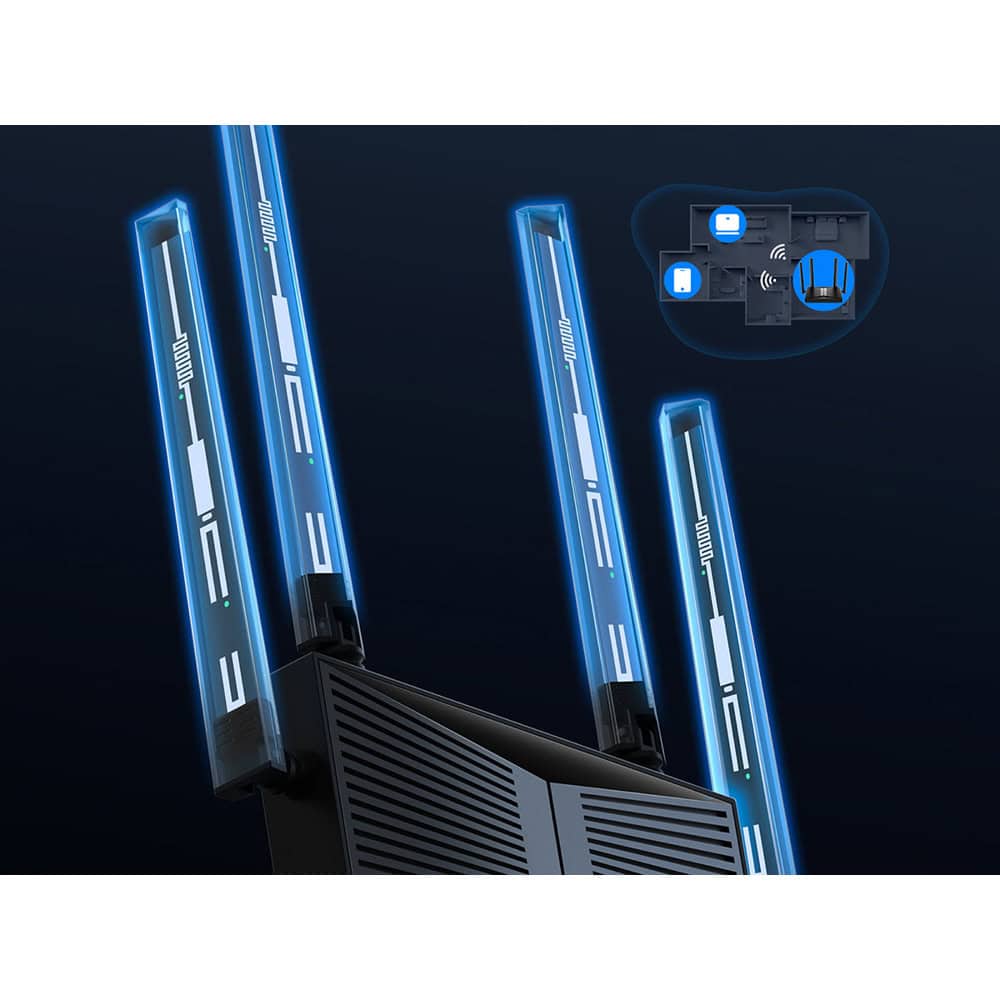

	Wi-Fi Antennas	4× Fixed
	FEM or PA/LNA	5 GHz: 2× External 2.4 GHz: 2× Internal
	Beamforming
	Range Performance	Max: 220 m (722 ft) Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
	Wall Performance	Two wooden walls with thickness < 10 cm (4'') One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'')

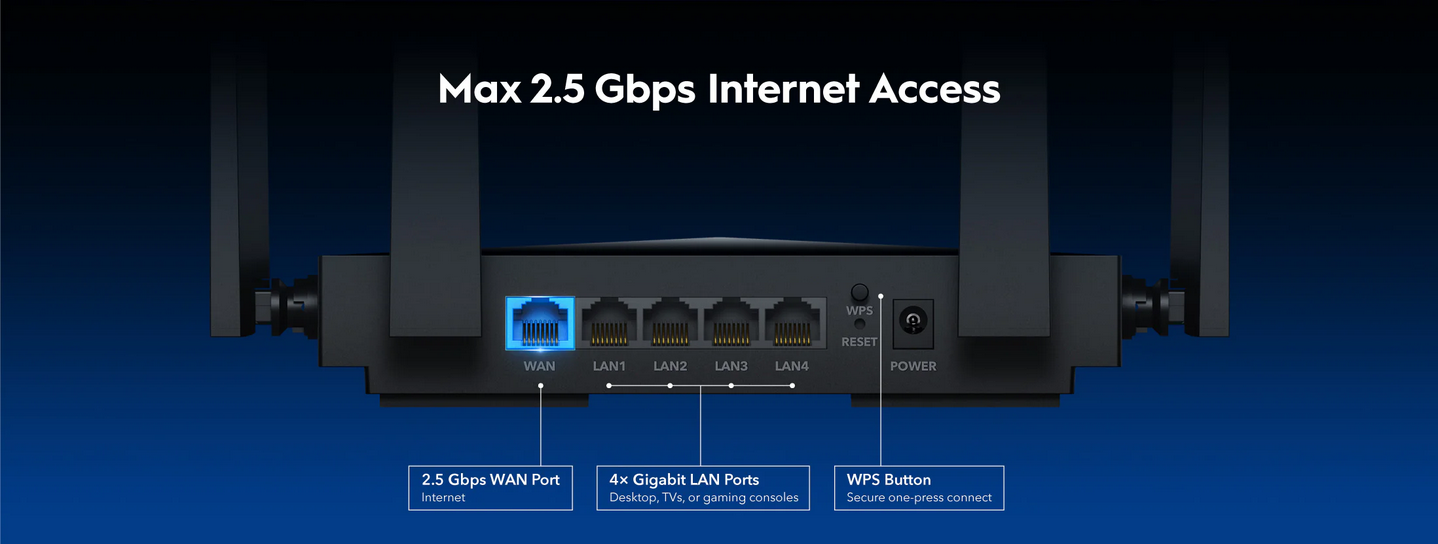

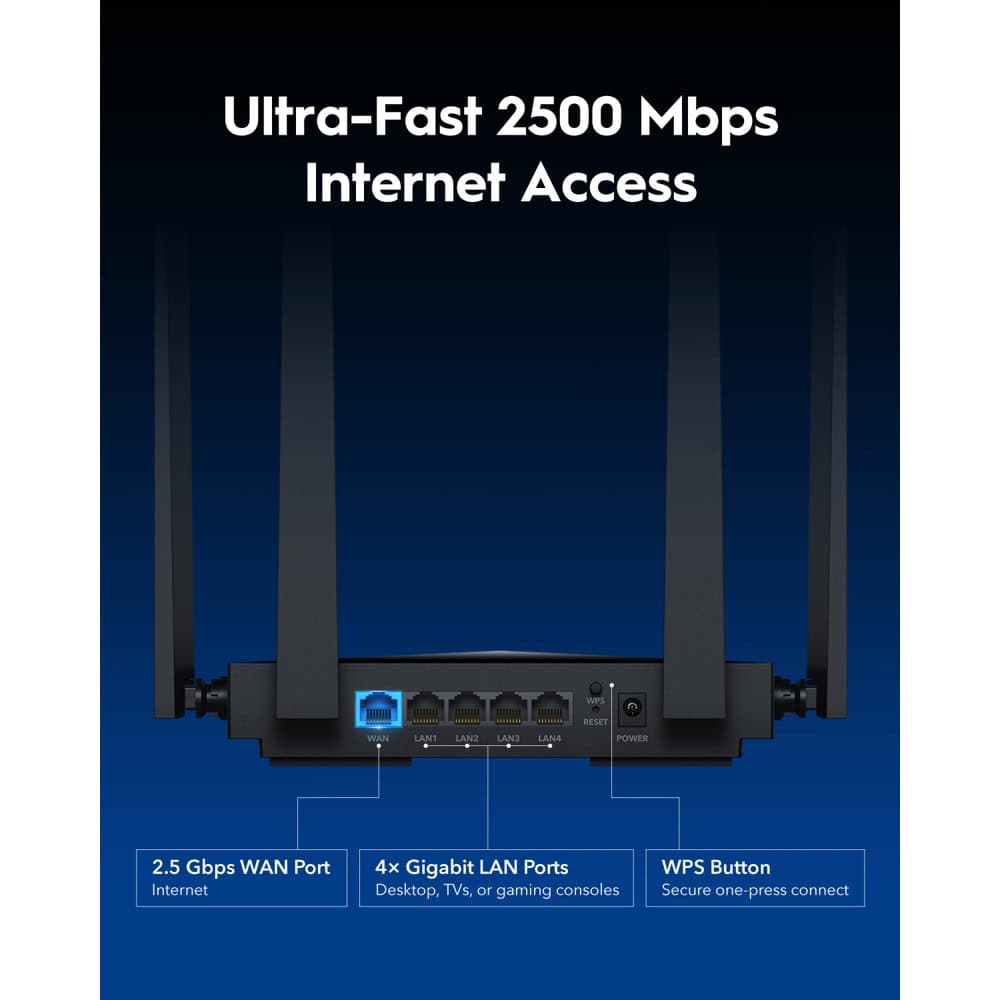

Interfaces	2.5G RJ45 Ports	1
	Gigabit RJ45 Ports	4
	Ethernet Notes	The 2.5G port is WAN port, the Gigabit ports are LAN ports
	LED	Power Internet WAN LAN 2.4 GHz Wi-Fi 5 GHz Wi-Fi
	Physical Buttons	WPS Button Reset Button
	Power Interfaces	DC Jack
Power	Power Methods	DC
	Power Input	12V⎓1A
	Power Adapter In the Box	Input: 100-240V~, 50/60Hz Output: 12V⎓1A
	Max Power Consumption (W)	10W
Reliability	Environment	Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 95% non-condensing
Certifications	FCC, CE
Mechanical	Installation	Desktop Wall-mount
	Dimension	Device: 183.3×109×38 mm 7.22×4.29×1.5 inches Each Antenna: 175 mm 6.89 inches
	Product Weight	332.0 g (11.71 oz.)

Software Specs

Wireless	Wi-Fi Standards	Wi-Fi 7
	Max Wi-Fi Modulation	4K-QAM
	Wi-Fi Efficiency	MLO MRU Puncturing OFDMA MU-MIMO BSS Color
	Max Capacity	512
	Recommended Client Upper Limit	200
	Max Wi-Fi Channel Width	160 MHz
	Wi-Fi Security	WPA/WPA2/WPA3
	Guest Network	2.4 GHz, 5 GHz
	WPS
General	Operation Modes	Wi-Fi Router Access Point Range Extender
	Mesh	Cudy Mesh
	Mesh Backhaul	Wireless Backhaul Wired Backhaul
	Multi-Band Backhaul
	WAN Mode	DHCP Static IP PPPOE PPTP L2TP
	Notes	Cudy Mesh and related backhaul features will be available with later firmware upgrade.
Network	QoS	Per-User Rate Limiting
	DHCP	Address Reservation DHCP Client List Server
	IP Versions	IPv4/IPv6
	IPv6 Protocols	Relay Dynamic (SLAAC/DHCPv6) Static (Fixed IP) Passthrough 464XLAT MAP-E DS-Lite
	Multicast
	IPTV/VLAN	Bridge Tag VLAN VoIP VLAN IPTV VLAN
	TTL Customization	Extend Spoof Custom
	IGMP	IGMP Proxy IGMP Snooping
	Forwarding	Port Forwarding Port Triggering UPnP DMZ
	Firewall	SPI Firewall DoS Protection Block PING
	Application Layer Gateway	IPSec Passthrough L2TP Passthrough PPTP Passthrough FTP Passthrough TFTP Passthrough H323 Passthrough SIP Passthrough RTSP Passthrough
Utilities	VPN Server	WireGuard OpenVPN IPsec Zerotier PPTP L2TP
	VPN Client	WireGuard OpenVPN IPsec Zerotier PPTP L2TP
	VPN Performance	OpenVPN Client (UL/DL): 66 / 66 Mbps OpenVPN Server (UL/DL): 65 / 64 Mbps WireGuard Client (UL/DL): 150 / 223 Mbps WireGuard Server (UL/DL): 251 / 177 Mbps
	DNS Options	DNS over TLS Manual DNS Rebind Protection Override Clients' DNS
	DNS over TLS Providers	Cloudflare Google Quad9 Custom
	Wake on LAN
	Online Detection
Management	Parental Controls	Profiles Settings Offline Time Online Time Pause the Internet Web Filter
	All Devices Management	Wi-Fi Time Schedule MAC Filter IP/MAC Binding
	Per-Devices Management	Internet On/Off VPN On/Off Online Time Schedule Device Rename
	Content Management	Domain Filter IP Filter
System	LED Control
	Local Control Method	Config Web Page App Control
	Remote Control Method	Config Page via HTTPS App Control TR069/TR098/TR111/TR143/TR181
	Firmware Upgrade	Local Update App (Over the Air) Online Update
	Reliability	Timed Reboot Backup and Restore
	Diagnostic Tools	Diagnosis Ping Traceroute NSLookup System Log
	Languages	English Bengali Catalan Czech German Greek Spanish French Hebrew Croatian Hungarian Italian Japanese Khmer Korean Dutch Norwegian Polish Portuguese Romanian Russian Slovak Swedish Thai Turkish Ukrainian Vietnamese Simplified Chinese Traditional Chinese
Dashboard	Panel	Internet Status Mesh Status Devices Management WAN Status LAN Status Wi-Fi Status VPN Status DHCP Server Status System Version
	Charts	Internet Speed Wi-Fi Speed Mesh Topology

Виж още Рутери Безжични Cudy
Виж всички Рутери Безжични в категорията

Документация

Технически характеристики

Безжична скорост:	3600 Mbps
Wi-Fi Стандарт:	Wi-Fi 7 (802.11be)
LAN портове:	4 x 1000 Mbps
WAN портове:	1 x 2500 Mbps
Честота:	2.4 + 5 GHz
Антени:	4 Външни
USB портове:	Няма
3G/4G:	Не
Преносим:	Не
Други:	Няма
Жична скорост:	10/100/1000/2500 Mbps
