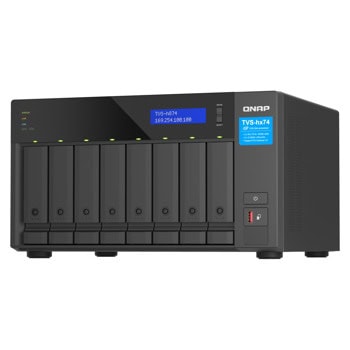

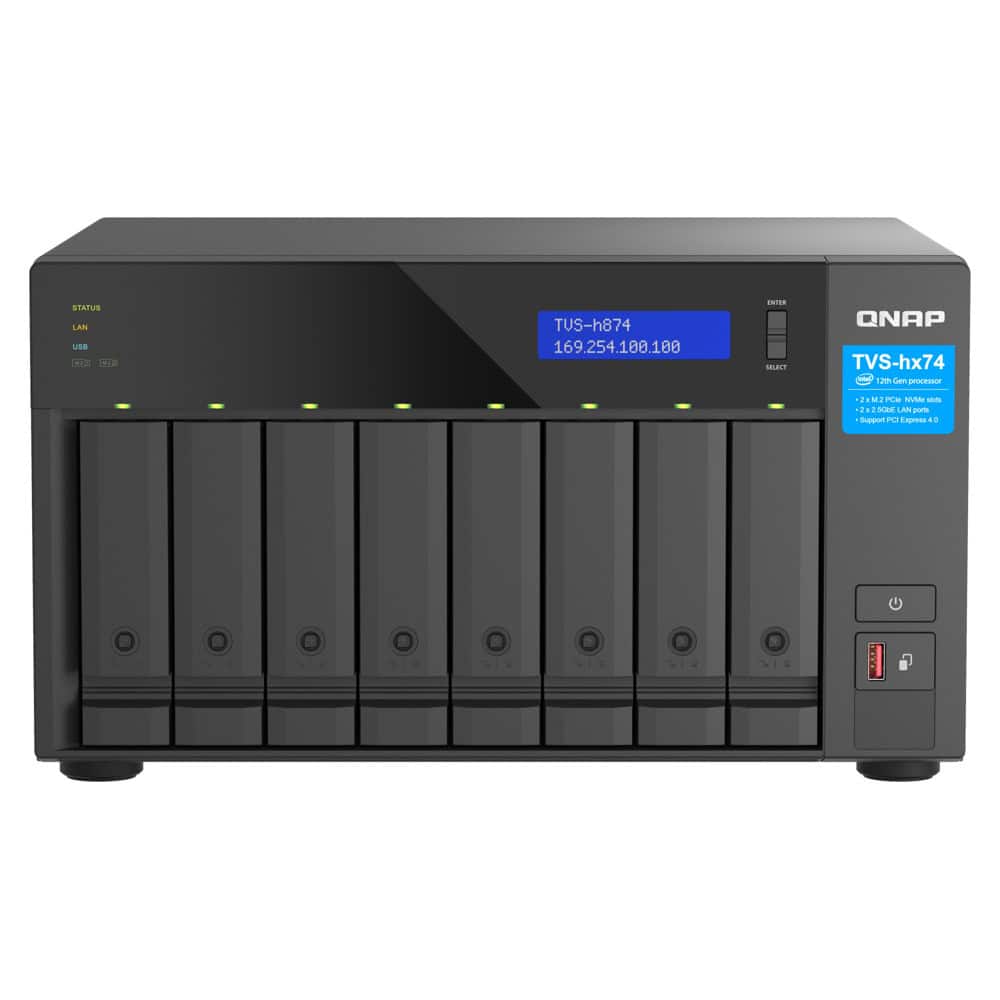

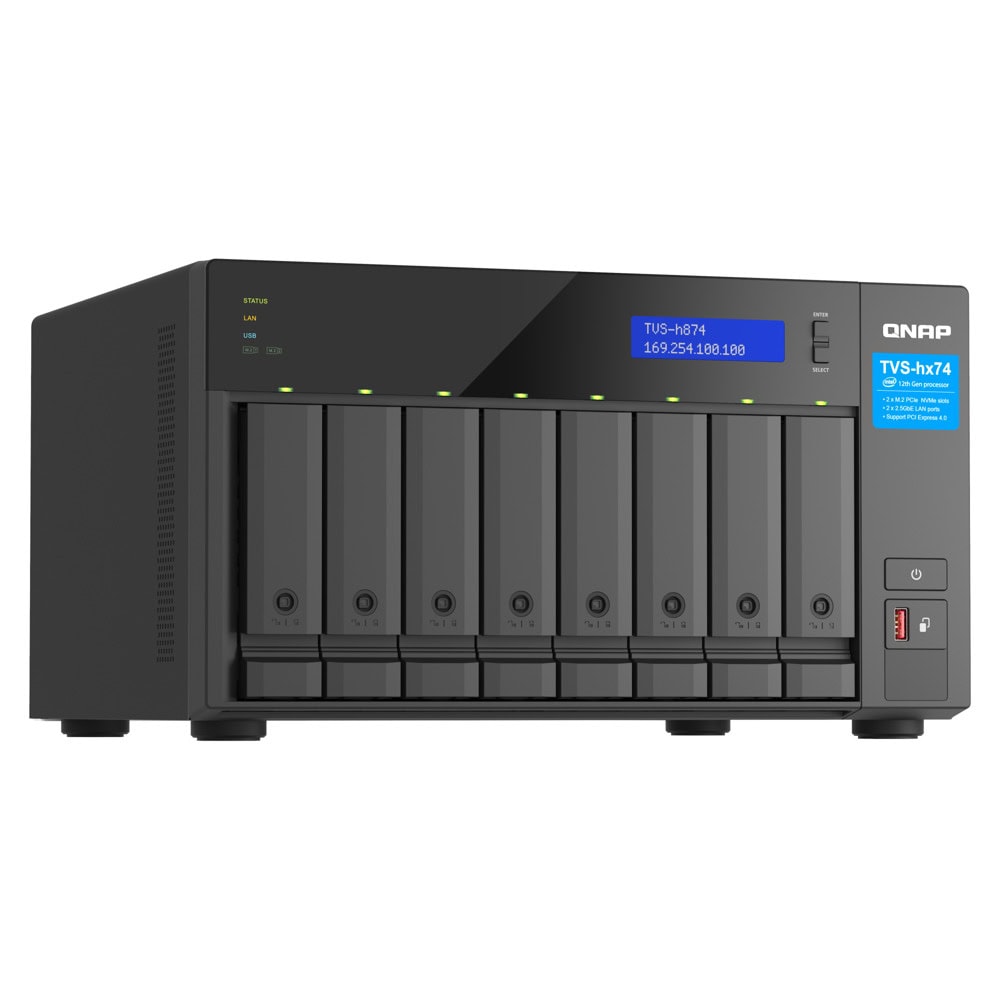

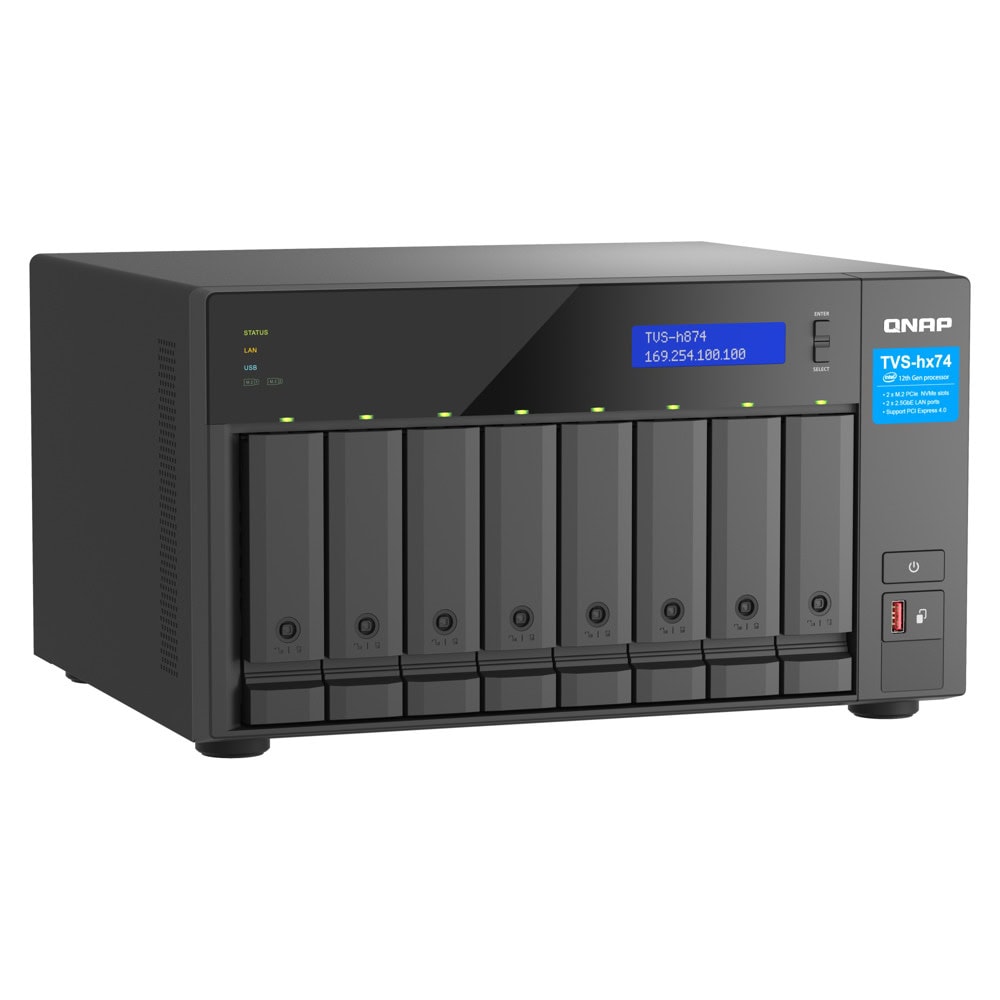

TVS-h874
Highly-reliable ZFS-based storage with PCIe Gen 4 expandability for 10/25GbE connectivity, M.2 NVMe SSD caching and multi-threads processors for virtualization applications
With an Intel® Core™ multicore-core Processor to support the ZFS-based QuTS hero operating system, the TVS-h874 SMB NAS ensures data integrity and supports block-level inline data deduplication and compression, near-limitless snapshots, real-time SnapSync, and SSD optimization. Whether for mission-critical file servers, virtualization servers, collaborative video editing, or efficient data backup and recovery applications, the TVS-h874 delivers an ideal NAS solution. The high-performance TVS-h874 provides PCIe Gen 4 (up to twice the transmission speed of Gen 3) expandability, M.2 NVMe SSD caching, and 2.5GbE/10GbE connectivity for high-speed virtualization network environments.

| Category | Specification |
|---|---|
| CPU | Intel® Core™ i9 16-core (8P+8E) / 24-thread Processor |
| CPU Architecture | 64-bit x86 |
| Graphic Processor | Intel® UHD Graphics 770 |
| Floating Point Unit | Supported |
| Encryption Engine | AES-NI |
| Hardware-accelerated Transcoding | Supported |
| System Memory | 64 GB SODIMM DDR4 |
| Maximum Memory | 64 GB (2 × 32 GB) |
| Memory Slot | 2 × SODIMM DDR4 |
| Flash Memory | 5 GB (Dual boot OS protection) |
| Drive Bay | 8 × 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5" SATA HDD, 2.5" SATA SSD |
| Hot-swappable | Not supported for M.2 SSD |
| M.2 Slot | 2 × M.2 2280 PCIe Gen 4 ×4 (NVMe Gen 3 and above) |
| SSD Cache Acceleration | Supported |
| GPU Pass-through | Supported |
| 2.5GbE Ethernet Port | 2 × 2.5G/1G/100M/10M |
| 10GbE Ethernet Port | 2 × 10GBASE-T (10G/5G/2.5G/1G/100M) |
| Wake on LAN (WOL) | Supported |
| Jumbo Frame | Supported |
| PCIe Slot | Slot 1: PCIe Gen 4 ×16 (preinstalled 10GbE adapter) Slot 2: PCIe Gen 4 ×4 |
| USB 3.2 Gen 2 Ports | 1 × Type-C, 2 × Type-A (10 Gbps) |
| HDMI Output | 1 × HDMI 1.4b (4096 × 2160 @ 30Hz) |
| Form Factor | Tower |
| LED Indicators | HDD 1–8, Status, LAN, USB, M.2 |
| LCD Display / Button | Supported |
| Buttons | Power, Reset, USB Copy |
| Dimensions (H × W × D) | 180.2 × 329.3 × 279.6 mm (excluding foot pad) |
| Weight (Net) | 7.34 kg |
| Weight (Gross) | 8.99 kg |
| Operating Temperature | 0–40°C (32–104°F) |
| Storage Temperature | -20–70°C (-4–158°F) |
| Relative Humidity | 5–95% RH (non-condensing), wet bulb 27°C |
| Power Supply Unit | 350W (PWR-PSU-350W-DT01), 100–240V |
| Power Consumption (Disk Standby) | 72.331 W |
| Power Consumption (Typical Operating) | 96.247 W (fully populated with WD10EFRX drives) |
| Fan | System: 2 × 120mm (12VDC), CPU: 1 × 60mm (12VDC) |
| System Warning | Buzzer |
