Name: Мрежови диск (NAS) Qnap TS-h987XU-RP-E2334-16G, четириядрен Intel Xeon E-2334 3.4/4.8 GHz, без твърд диск (9x (4 x 3.5-inch SATA + 5 x 2.5-inch U.2 PCIe / SATA)), 16GB RAM, 2x 10/100/1000/2500 LAN, 2x 10/100/1000/10000 LAN, 4x USB 3.2 Gen 2
Brand: Qnap
SKU: NASQNAPTSH987XURPE233416G
Price: 5940.82 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси

S-h987XU-RP

The best-in-class hybrid storage solution unleashes superb server-grade ZFS system

The TS-h987XU-RP is powered by the next-gen Intel® Xeon® E-2344 quad-core processor, supports up to 128 GB DDR4 ECC memory, and provides an HDD/SSD hybrid storage architecture that balances performance and cost to deliver reliable server-grade performance. Running the ZFS-based QuTS hero operating system, the TS-h987XU-RP emphasizes data integrity with inline data deduplication, near-limitless snapshots, real-time SnapSync, and QSAL (QNAP SSD Antiwear Leveling) – providing an ideal storage solution that meets today’s business requirements for file servers, virtualization servers, VDI, and backup/restore.


CPU	Intel® Xeon® E-2334 4C 8T 3.4GHz, up to 4.8GHz
CPU Architecture	64-bit x86
Floating Point Unit	Yes
Encryption Engine	(AES-NI)
System Memory	16 GB ECC DDR4
Maximum Memory	128GB (4 x 32 GB)
Memory Slot	4 x ECC UDIMM DDR4 For dual-DIMM configuration, you must use a pair of identical DDR4 modules.
Flash Memory	5GB (Dual boot OS protection)

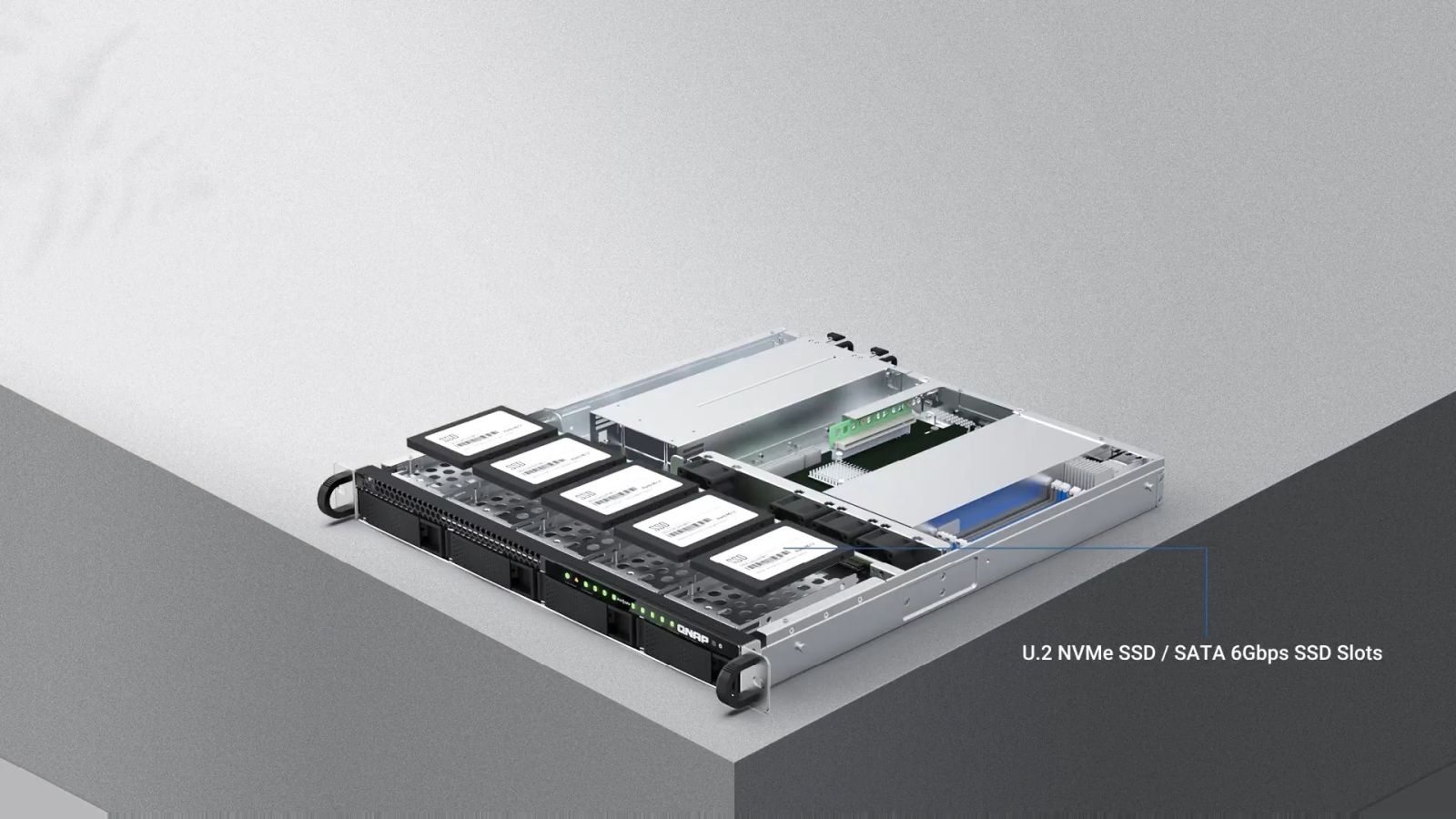

Drive Bay	9 (4 x 3.5-inch SATA + 5 x 2.5-inch U.2 PCIe / SATA) 2.5-inch bays: #1: PCIe Gen3 x2 & SATA 6Gbps #2: PCIe Gen3 x2 & SATA 6Gbps #3: PCIe Gen3 x2 & SATA 6Gbps #4: PCIe Gen4 x4 & SATA 6Gbps #5: PCIe Gen4 x4 & SATA 6Gbps
Drive Compatibility	3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives 2.5-inch bays: 2.5-inch U.2/U.3 NVMe PCIe solid state drives 2.5-inch SATA solid state drives The 2.5-inch bay only support maximum 7mm height drives.
Hot-swappable	(Not supported M.2 SSD)
M.2 Slot	Optional via a QM2 PCIe adapter
SSD Cache Acceleration Support	Yes
2.5 Gigabit Ethernet Port (2.5G/1G/100M)	2 (2.5G/1G/100M)
10 Gigabit Ethernet Port	2 x 10GBASE-T (10G/5G/2.5G/1G/100M)
25 Gigabit Ethernet Port	Optional via a PCIe adapter
Wake on LAN (WOL)	Yes
PCIe Slot	1 x Gen4 x8 Card dimensions for PCIe slot：215 x 68.9x 18.76 mm / 8.46 x 2.71 x 0.74 inches
USB 3.2 Gen 2 (10Gbps) Port	4 x Type-A USB 3.2 Gen 2 5V/1A 10Gbps
Form Factor	1U Rackmount
LED Indicators	Status (Green/Red) LAN (Green) HDD status (Green/Red)
Buttons	Power, Reset
Dimensions (HxWxD)	43.3 × 430 × 479 mm
Weight (Net)	9.5 kg
Weight (Gross)	11.5 kg
Operating Temperature	0 - 40 °C (32°F - 104°F)
Storage Temperature	-20 - 70°C (-4°F - 158°F)
Relative Humidity	5~95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit	300W (x2) PSU
Power Consumption: Disk Standby Mode	114.6 W
Power Consumption: Operating Mode, Typical	120.58 W
Fan	4 x 40mm, 12VDC
