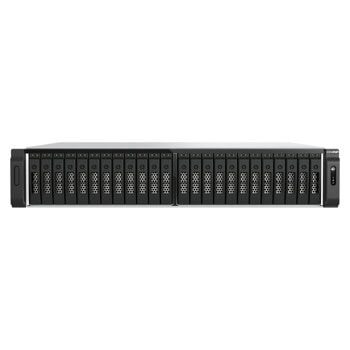

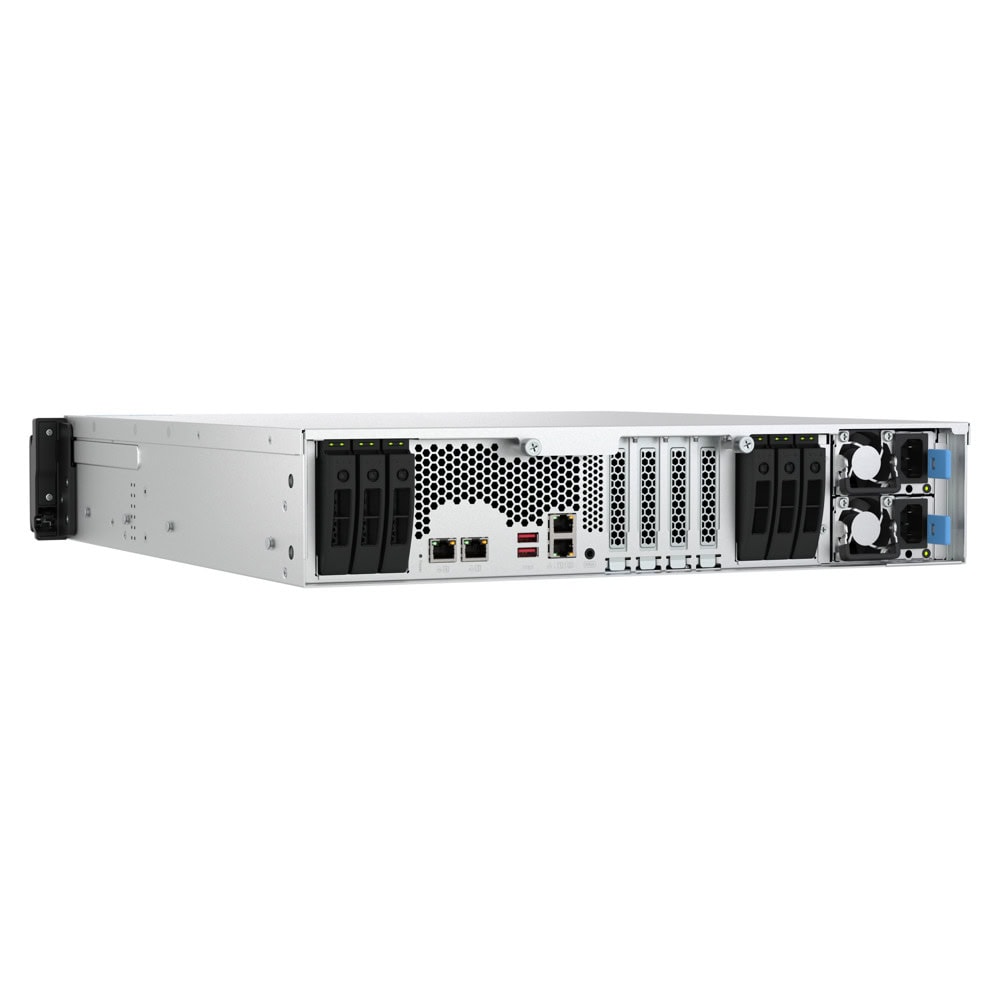

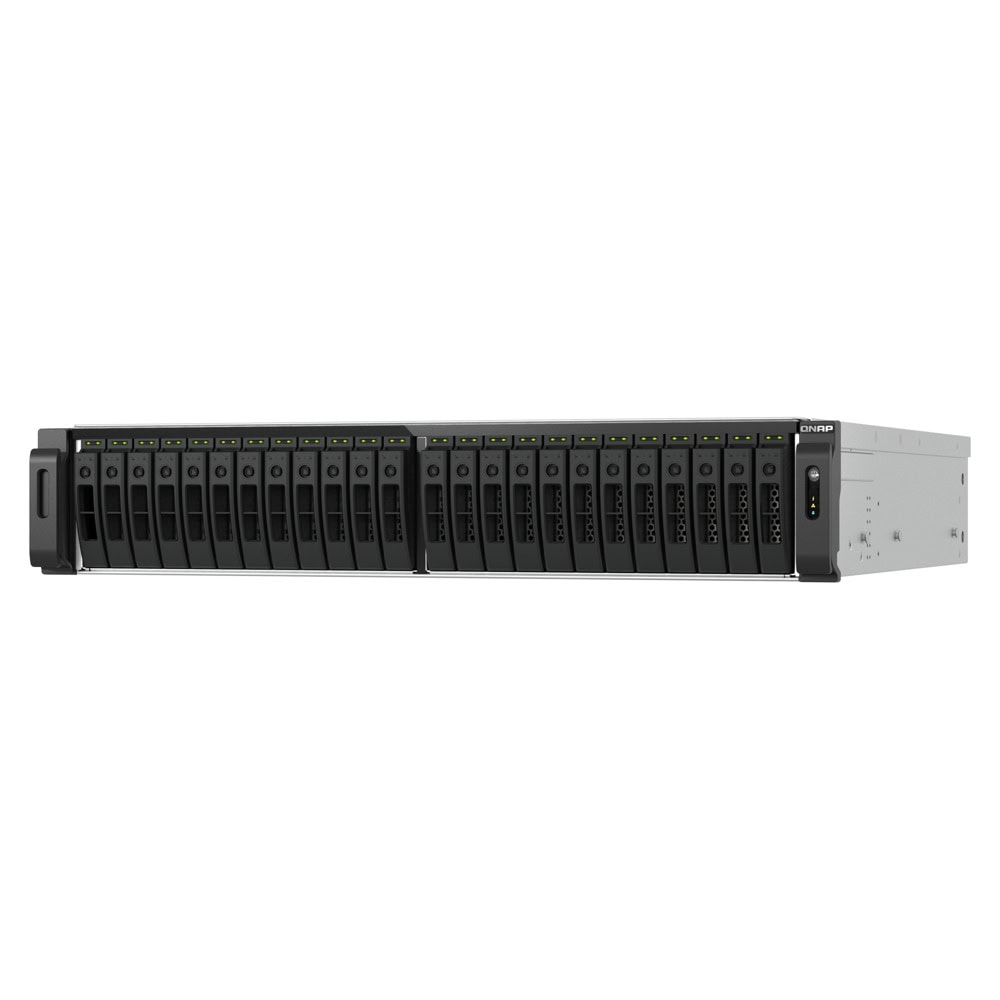

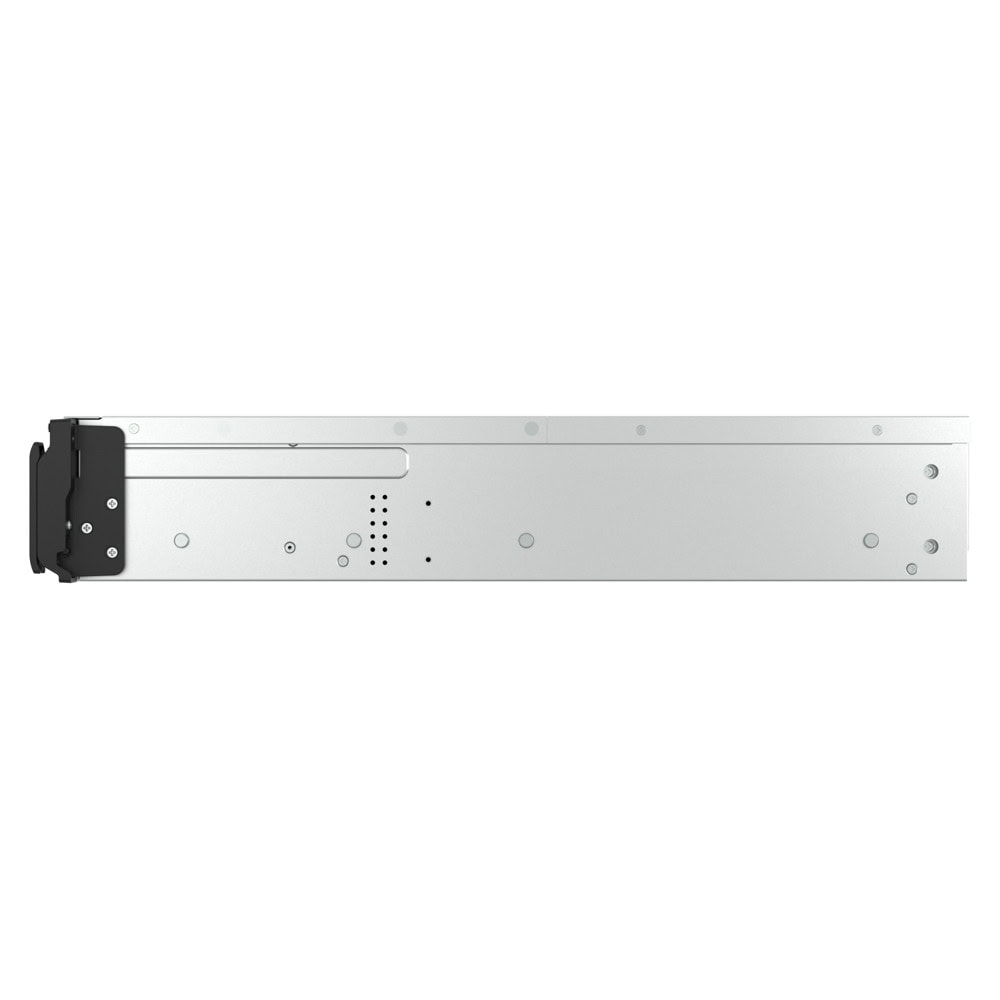

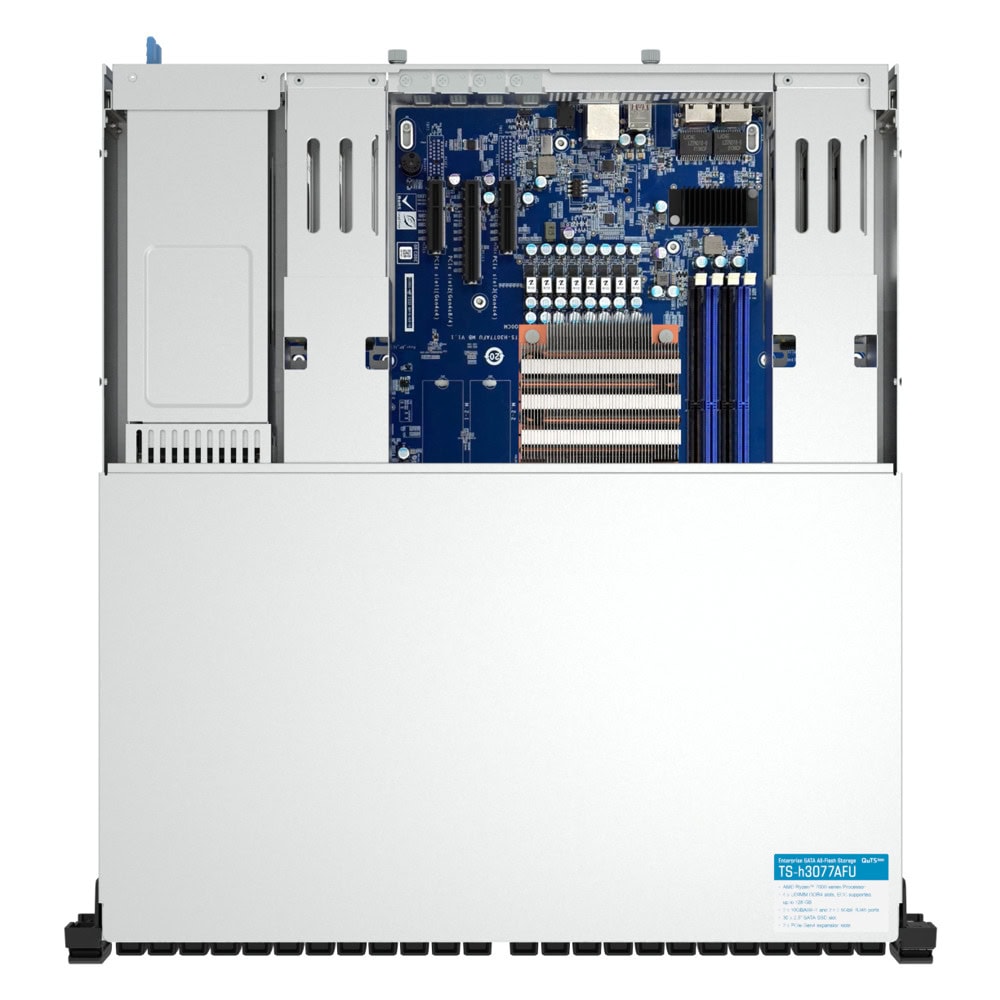

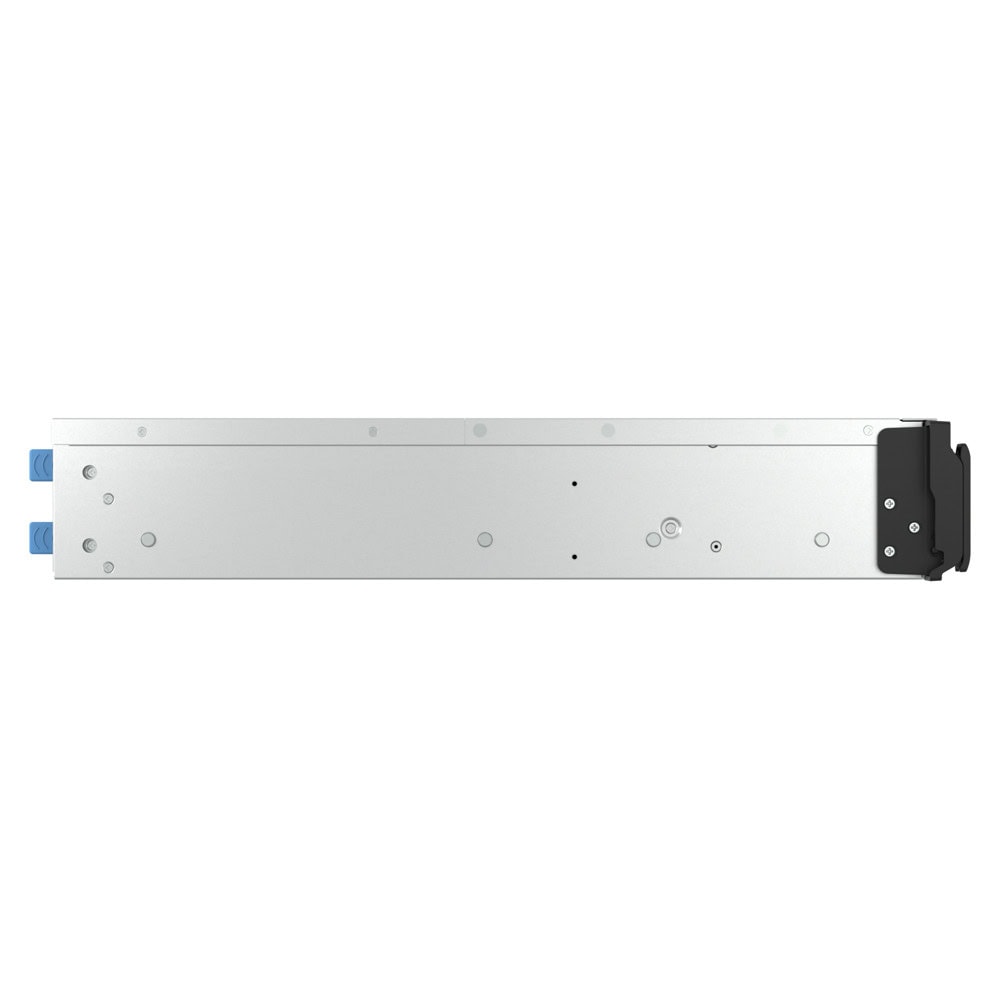

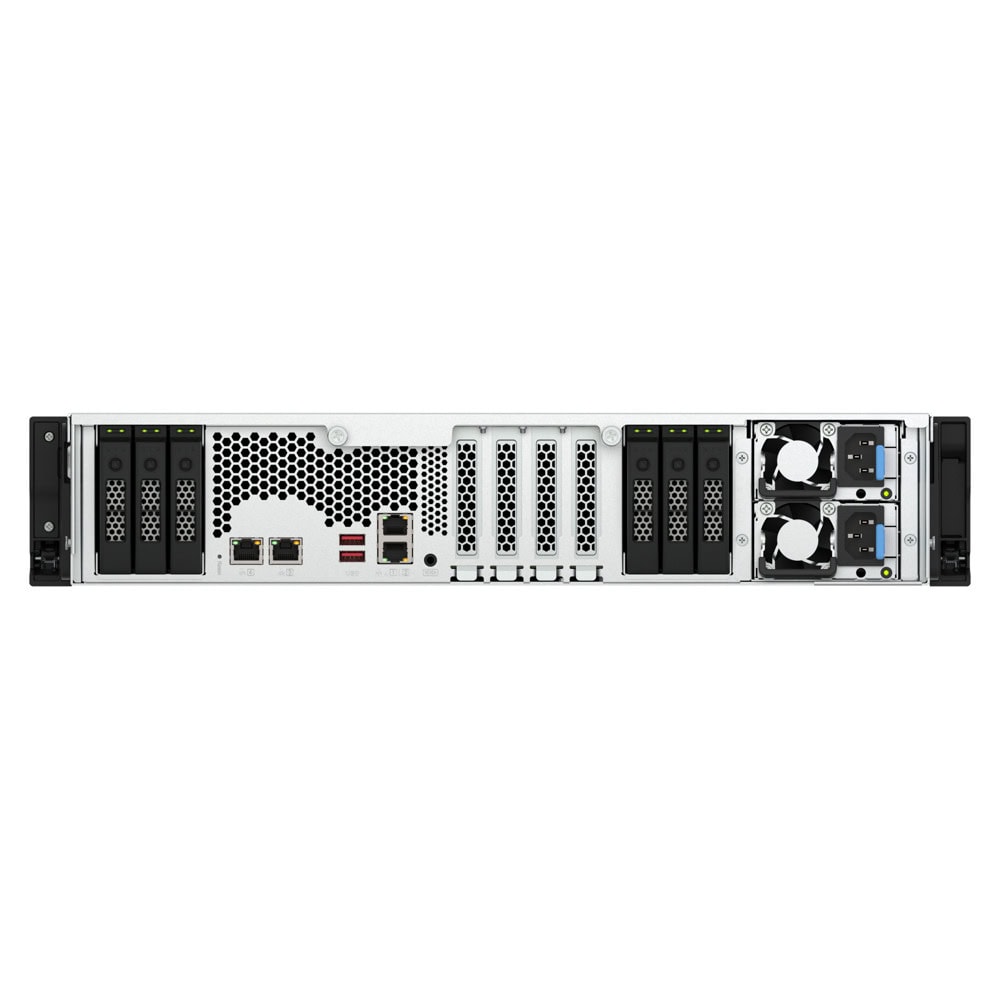

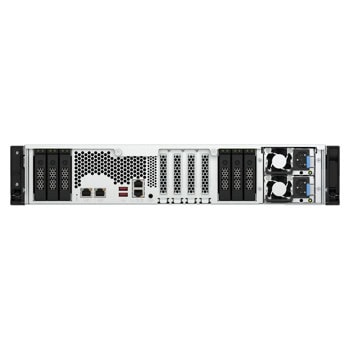

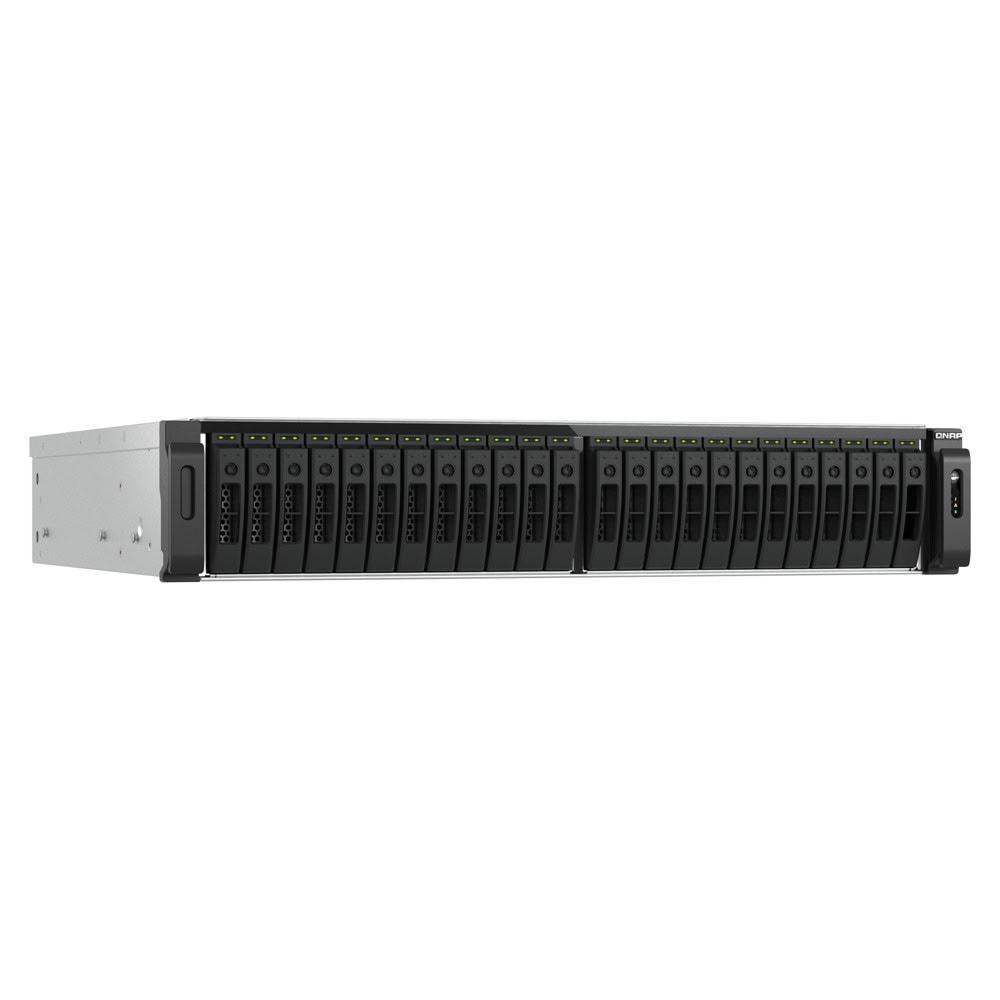

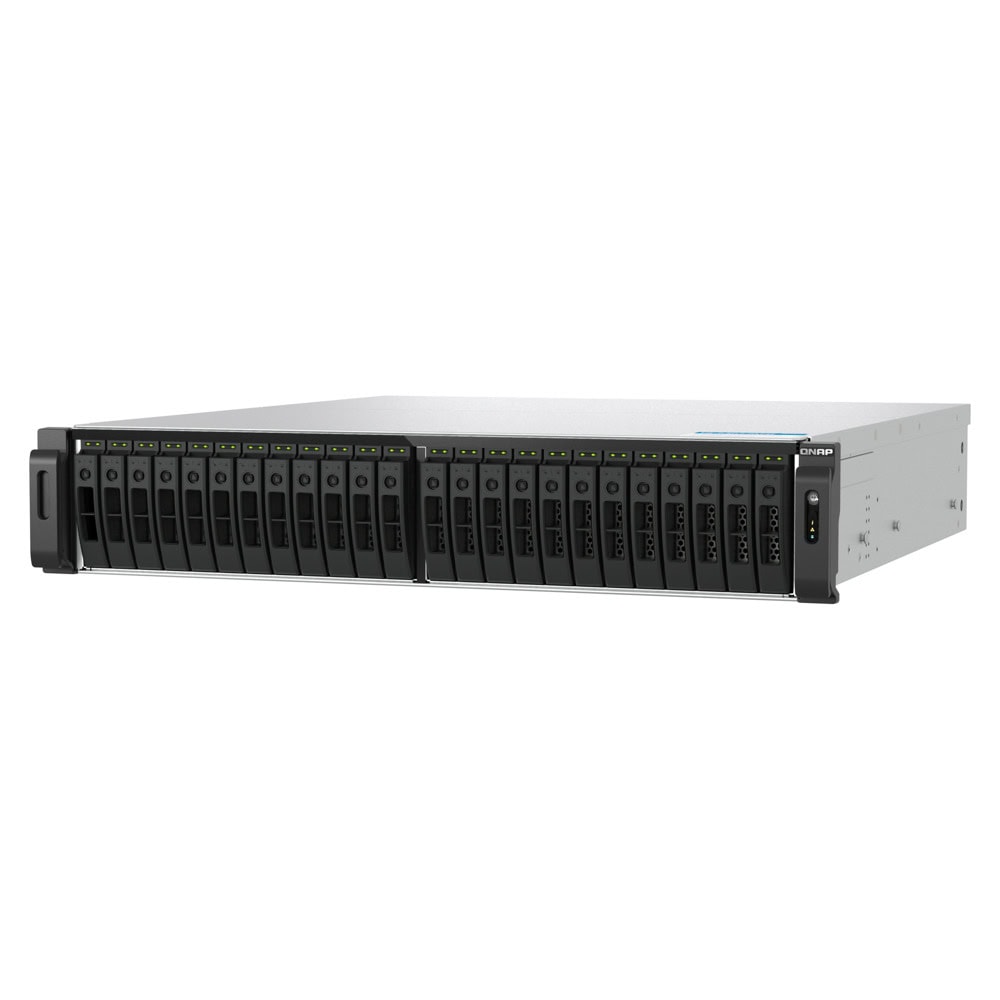

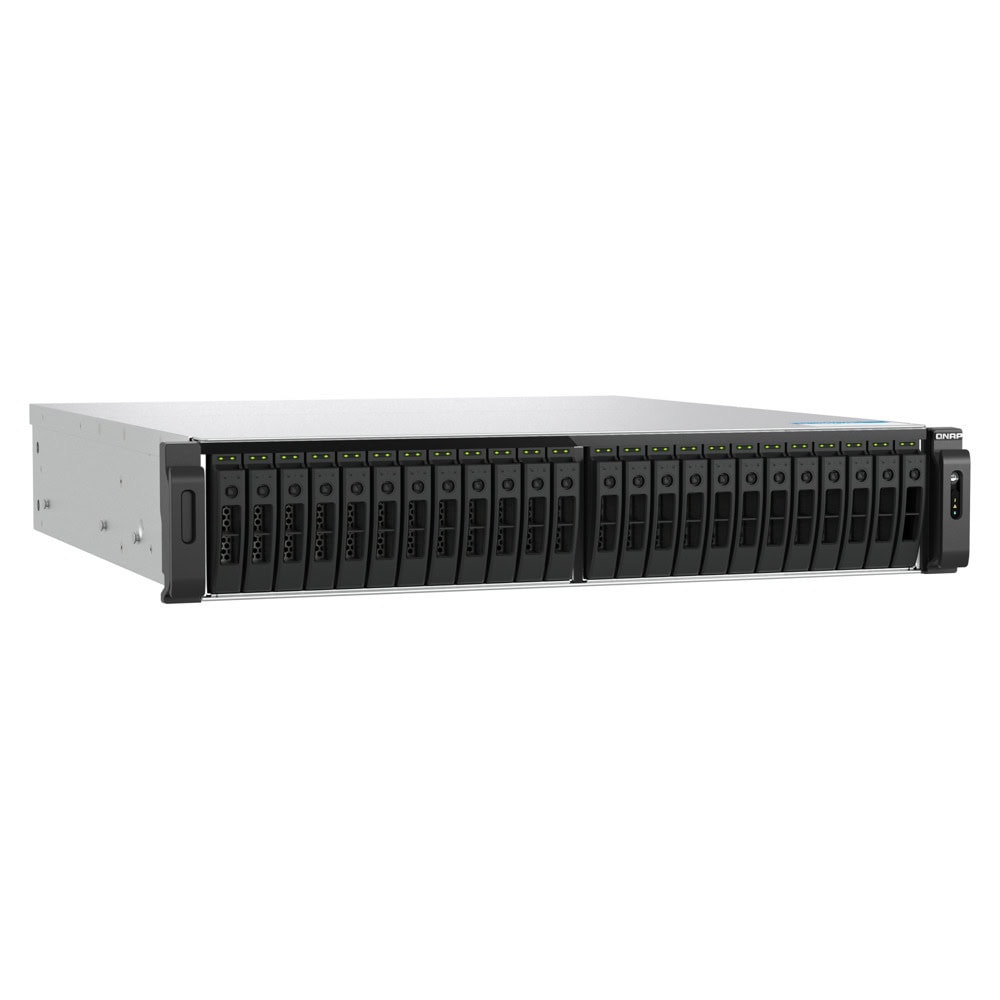

Name: Мрежови диск (NAS) Qnap TS-h3077AFU-R5-32G, шестядрен AMD Ryzen 5 7000 series 5.1GHz, без твърд диск (30x 2.5-inch SATA 6Gb/s, 3Gb/s ), 32GB RAM, 2x 10/100/1000/2500 LAN, 2x 10/100/1000/10000 LAN, 2x USB 3.2 Gen 2
Brand: Qnap
SKU: NASQNAPTSH3077AFUR532G
Price: 17696.88 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси

TS-h3077AFU

Highly reliable ZFS-based all-flash NAS with AMD Ryzen™ 7000 series processor – boosting all-round business with petabyte-scale storage and 100 GbE potential

Gain a competitive advantage by deploying an AMD Ryzen™ 7000 series-powered SATA SSD all-flash storage with 30 drive bays. The TS-h3077AFU is ideal for media production companies, enterprises, and science research institutions that require high-performance large capacity storage for storing recordings, business assets, Big Data, and virtual machines.


CPU	AMD Ryzen™ 5 7000 series 6-core/12-thread processor, burst up to 5.1 GHz AMD Radeon Graphics
CPU Architecture	64-bit x86
Graphic Processors	AMD Radeon™ Graphics
Floating Point Unit	Yes
Encryption Engine	(AES-NI)
Hardware-accelerated Transcoding	Yes
System Memory	32 GB UDIMM DDR5
Maximum Memory	192 GB (4 x 48 GB)
Memory Slot	4 x UDIMM DDR5 Support optional ECC memory For dual-DIMM configurations, you must use a pair of identical DDR5 modules.
Flash Memory	5GB (Dual boot OS protection)
Drive Bay	30 x 2.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility	2.5-inch SATA solid state drives
Hot-swappable	Yes
SSD Cache Acceleration Support	Yes
GPU pass-through	Yes
2.5 Gigabit Ethernet Port (2.5G/1G/100M)	2 (2.5G/1G/100M/10M)
10 Gigabit Ethernet Port	2 x 10GBASE-T (10G/5G/2.5G/1G/100M)
Wake on LAN (WOL)	Yes
Jumbo Frame	Yes
PCIe Slot	3 Slot 1: Gen 4 x 4 Slot 2: Gen 4 x 8 or Gen 4 x 4* Slot 3: Gen4 x 4 *Slot 2 provides the width of PCIe Gen4 x8 when Slot 1 is not in use, and provides the width of PCIe Gen4 x4 when Slot 1 is in use. Card dimensions for PCIe slot 1：250 x 111.15 x 18.76 mm / 9.84 x 4.38 x 0.74 inches Card dimensions for PCIe slot 2：250 x 111.15 x 18.76 mm / 9.84 x 4.38 x 0.74 inches Card dimensions for PCIe slot 3：200 x 111.15 x 23.76 mm / 9.84 x 4.38 x 0.94 inches Wider cards can be installed if the next PCIe slot will not be used.
USB 3.2 Gen 2 (10Gbps) Port	2 x Type-A USB 3.2 Gen 2 10Gbps
Form Factor	2U Rackmount
LED Indicators	Power Status, SSD 1-30, Status, LAN, storage expansion port status
Buttons	Power, Reset
Dimensions (HxWxD)	88.3 × 442.6 × 485.2 mm Excludes ear hook and the protruding part of the Power Supply Unit.
Weight (Net)	12.73 kg
Weight (Gross)	18.69 kg
Operating Temperature	0 - 40 °C (32°F - 104°F)
Storage Temperature	-20 - 70°C (-4°F - 158°F)
Relative Humidity	5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit	550W(x2), 100-240V
Power Consumption: Operating Mode, Typical	380.23 W Tested with drives fully populated.
Fan	System fan: 3 x 60mm, 12VDC
System Warning	Buzzer
