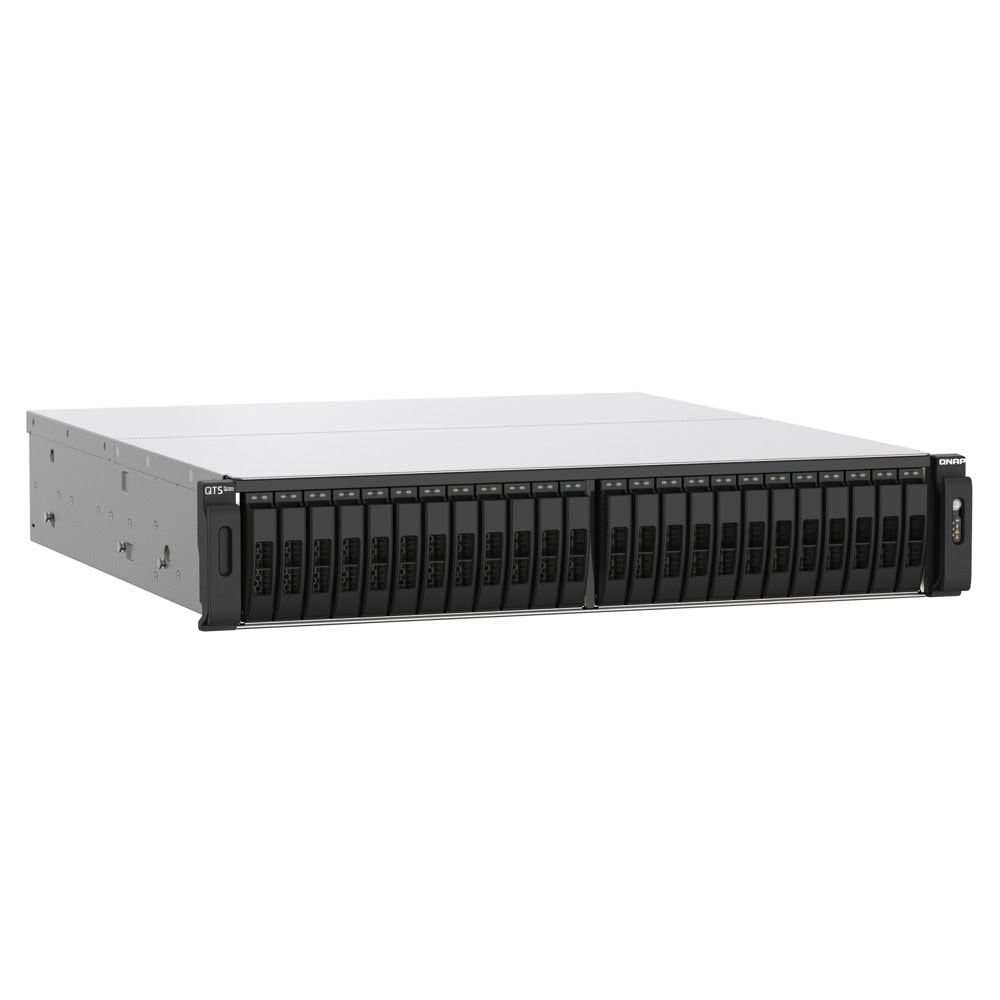

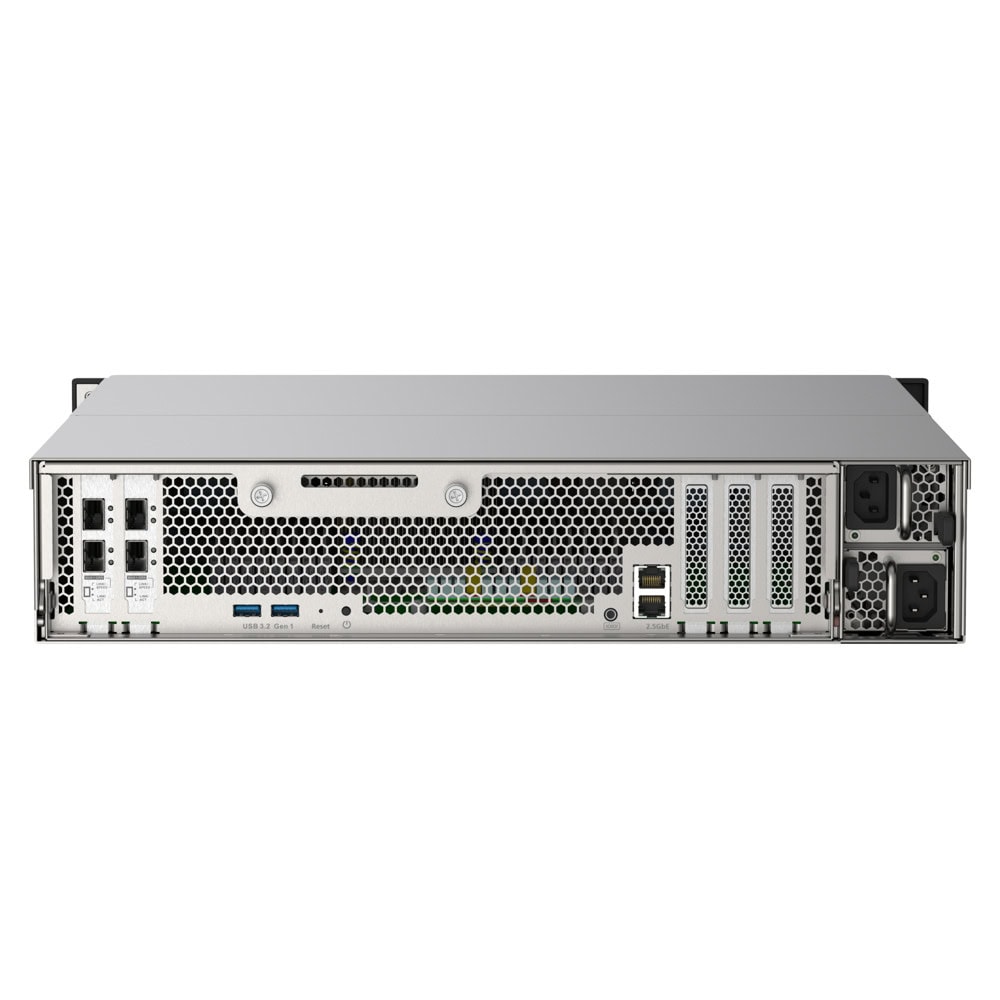

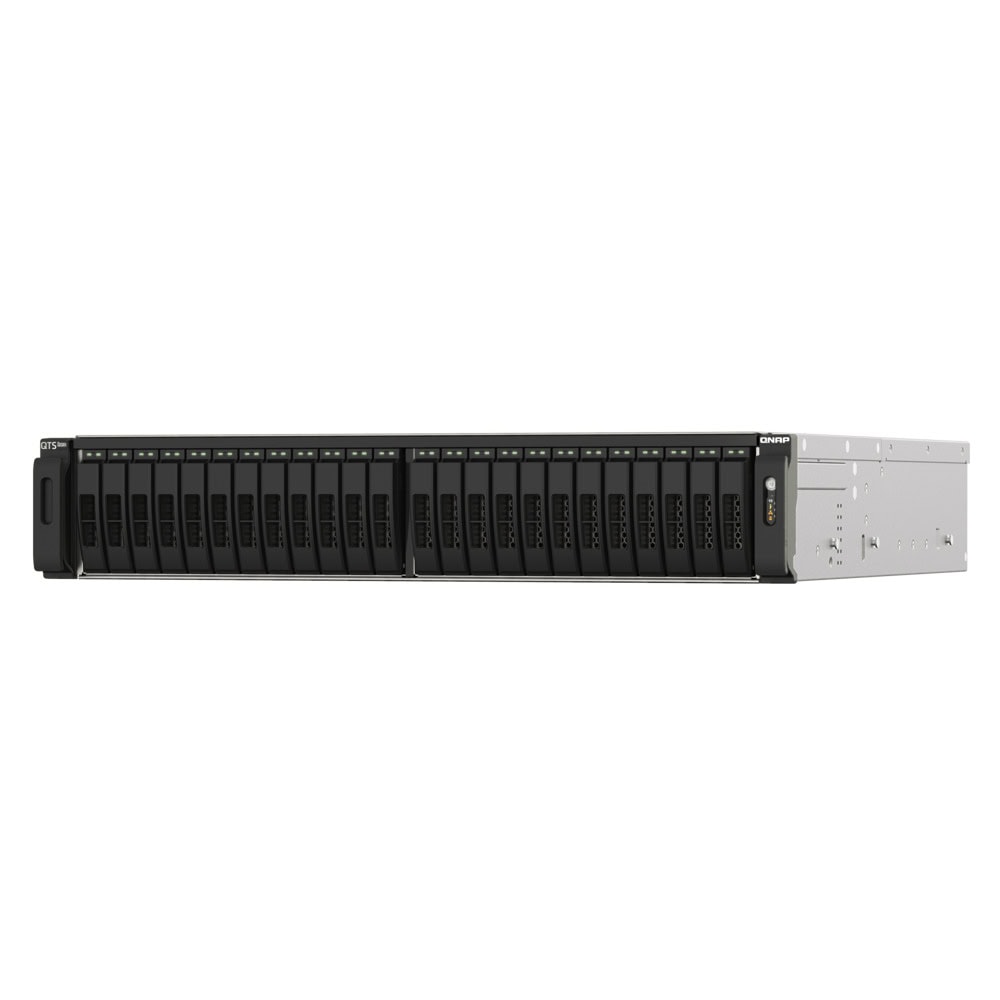

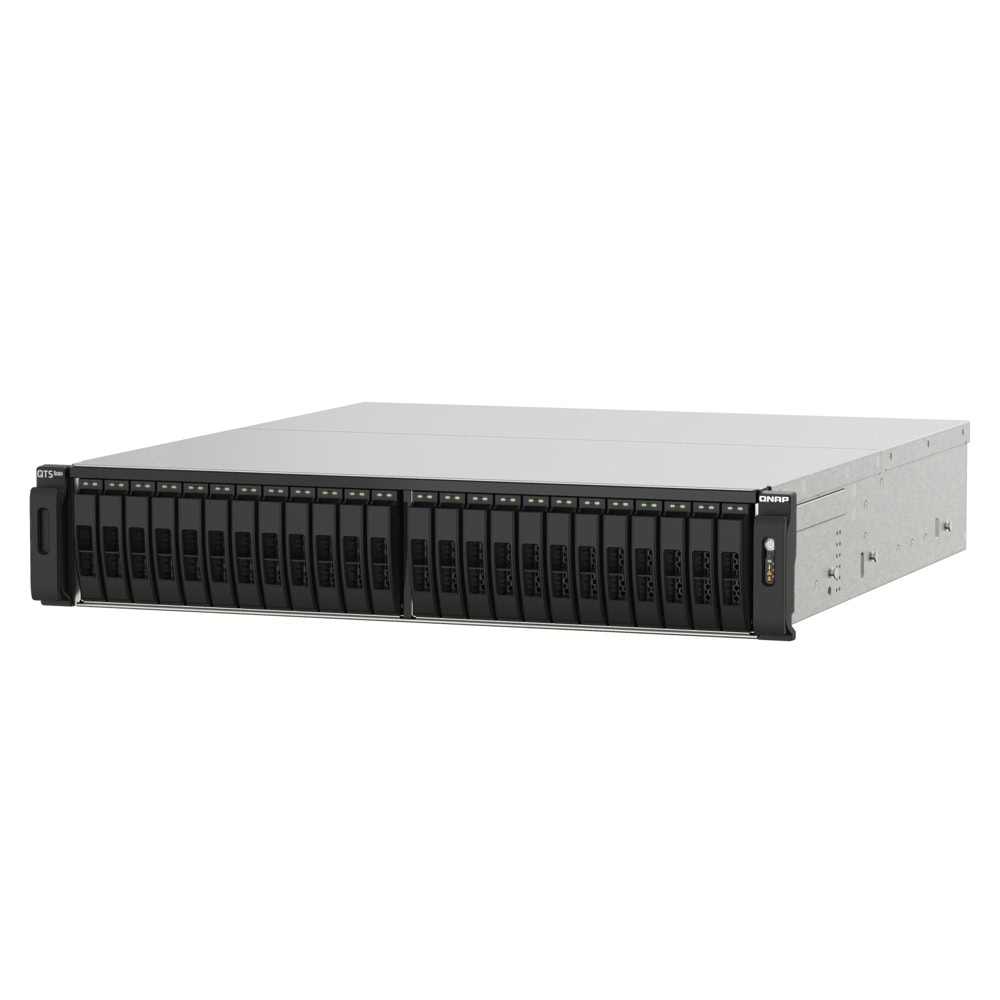

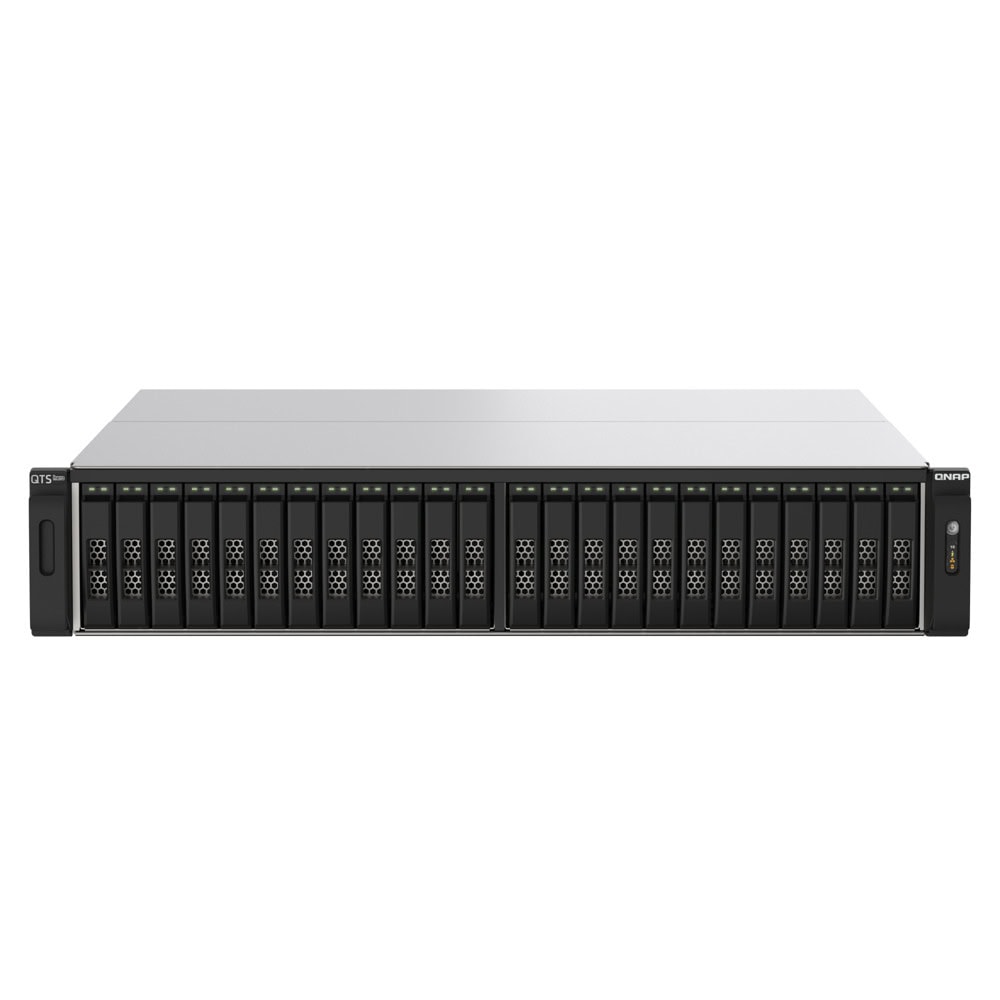

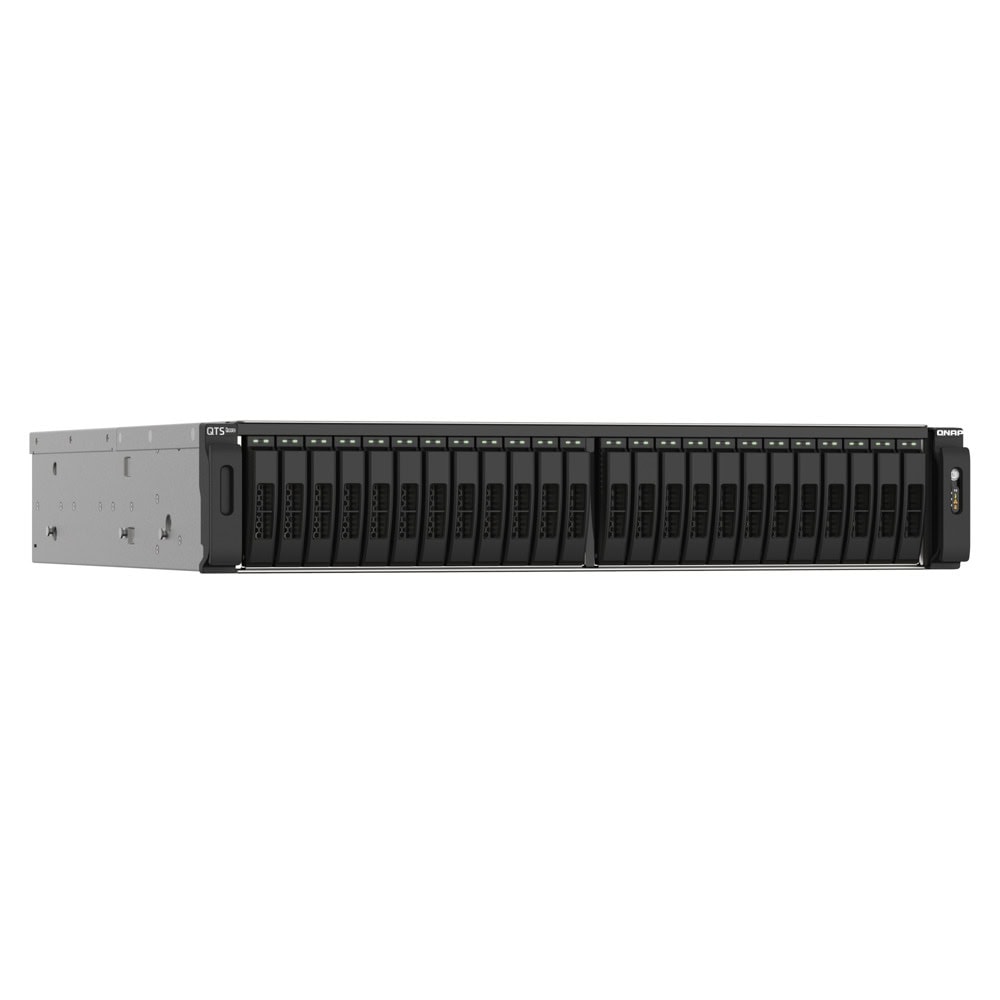

TS-h2490FU
ZFS-based, 24-bay U.2 NVMe all-flash storage built for high-performance and low-latency virtualized workloads, data centers, and 8K streams
The NVMe all-flash TS-h2490FU is designed for providing extreme performance with high cost-efficiency. Featuring 24 U.2 NVMe Gen 3 x4 SSD bays, the TS-h2490FU delivers up to 661K / 245K random read/write IOPS with ultra-low latency. The ZFS-based QuTS hero operating system supports inline data deduplication and compression for reducing I/O and SSD storage consumption, which significantly extends SSD lifespan with a higher price-performance ratio for all-flash storage arrays. Coupled with near-unlimited snapshots, real-time SnapSync, and petabyte-scale storage expansion capabilities, the TS-h2490FU is ideal for I/O-intensive and latency-sensitive applications, and eliminates productivity bottlenecks in modern data centers, virtualization, and mission-critical backup/restore tasks.
| Category | Specification |
|---|---|
| CPU | AMD EPYC™ 7232P / 7252 8-core / 16-thread processor, up to 3.2 GHz |
| CPU Architecture | 64-bit x86 |
| Encryption Engine | AES-NI |
| System Memory | 64 GB RDIMM DDR4 ECC |
| Maximum Memory | 4 TB (16 × 256 GB) |
| Memory Slots | 16 × RDIMM DDR4 |
| Flash Memory | 5 GB (Dual boot OS protection) |
| Drive Bays | 24 × 2.5-inch U.2 PCIe NVMe |
| Drive Compatibility | 2.5-inch U.2 NVMe Gen3 x4 SSD |
| Hot-swappable | Yes |
| SSD Cache Acceleration Support | Yes |
| SR-IOV Support | Yes |
| 2.5 Gigabit Ethernet Ports | 2 × 2.5G/1G/100M/10M |
| 25 Gigabit Ethernet Ports | 2 × 25GbE SFP28 SmartNIC ports |
| Wake on LAN (WOL) | Supported on 2.5GbE ports only |
| Jumbo Frame | Supported |
| PCIe Slots | Slot 1: PCIe Gen4 x4Slot 2: PCIe Gen4 x8 or x4*Slot 3: PCIe Gen4 x4Slot 4: PCIe Gen4 x8Slot 5: PCIe Gen4 x16 or x8** |
| PCIe Slot Notes | Slot 5 preinstalled with 25GbE adapter. Slot 2 and Slot 5 lane width depends on adjacent slot usage. Wider cards supported if adjacent slot unused. |
| USB Ports | 2 × USB 3.2 Gen 1 |
| Form Factor | Rackmount |
| LED Indicators | HDD, Status, 10GbE, LAN, Storage Expansion Status |
| Buttons | Power, Reset |
| Dimensions (H × W × D) | 88.3 × 480.97 × 510.23 mm |
| Weight (Net) | 16.77 kg |
| Weight (Gross) | 20.95 kg |
| Operating Temperature | 0 – 40 °C (32°F – 104°F) |
| Storage Temperature | -20 – 70 °C (-4°F – 158°F) |
| Relative Humidity | 5–95% RH (non-condensing), wet bulb: 27°C (80.6°F) |
| Power Supply Unit | Dual 1100W PSU (100–240Vac) |
| Max Power Output | 1100W @ 200–240Vac / 850W @ 100–240Vac |
| Power Consumption (Typical) | 277.64 W (drives fully populated) |
| Cooling Fans | 4 × 60 mm, 12VDC |
