Name: Мрежови диск (NAS) Qnap TS-h2287XU-RP-E2336-32G, шестядрен Intel Xeon E-2336 2.9/4.8 GHz, без твърд диск (22x (16 x 3.5-inch SATA + 6 x 2.5-inch SATA) ), 32GB RAM, 2x 10/100/1000/2500 LAN, 2x 10/100/1000/10000 LAN, 4x USB 3.2 Gen 2
Brand: Qnap
SKU: NASQNAPTSH2287XURPE233632G
Price: 10238.51 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Документация

TS-h2287XU-RP

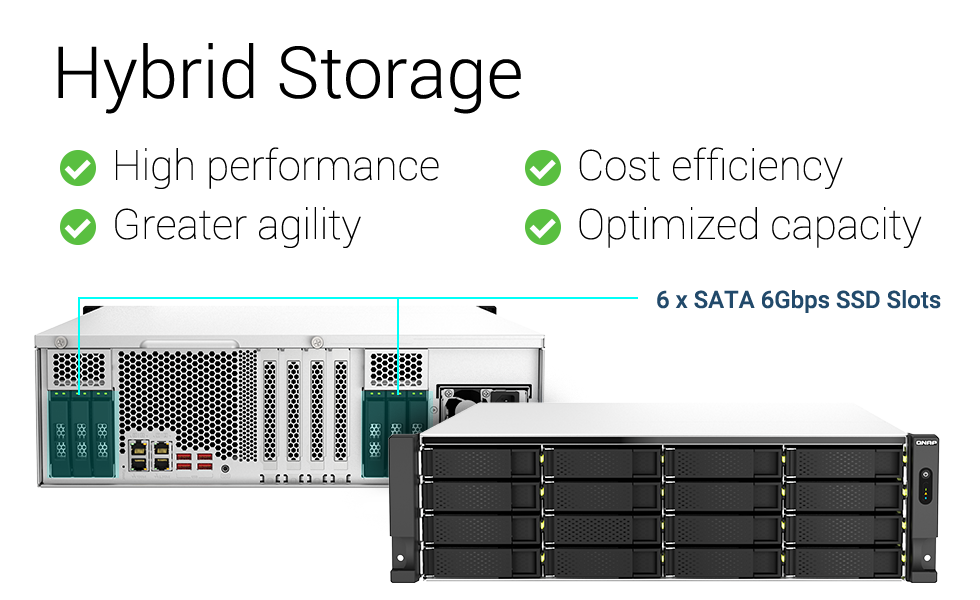

The best-in-class hybrid storage solution unleashes superb server-grade ZFS system

The high-capacity TS-h2287XU-RP is powered by a next-gen Intel® Xeon® E-2300 series processor, supports up to 128 GB DDR4 ECC memory, and provides an HDD/SSD hybrid storage architecture that balances performance and cost to deliver reliable server-grade performance. Running the ZFS-based QuTS hero operating system, the TS-h2287XU-RP emphasizes data integrity with inline data deduplication, near-limitless snapshots, real-time SnapSync, and QSAL (QNAP SSD Antiwear Leveling) – providing an ideal storage solution that meets today’s business requirements for file servers, virtualization servers, VDI, and backup/restore.


CPU	Intel® Xeon® E-2336 6C 12T 2.9GHz, up to 4.8GHz
CPU Architecture	64-bit x86
Graphic Processors	Optional via a PCIe adapter
Floating Point Unit
Encryption Engine	(AES-NI)
System Memory	32 GB ECC DDR4
Maximum Memory	128GB (4 x 32 GB)
Memory Slot	4 x ECC UDIMM DDR4 For dual-DIMM configuration, you must use a pair of identical DDR4 modules.
Flash Memory	5GB (Dual boot OS protection)
Drive Bay	22 (16 x 3.5-inch SATA + 6 x 2.5-inch SATA)
Drive Compatibility	3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives 2.5-inch bays: 2.5-inch SATA solid state drives
Hot-swappable	(Not supported M.2 SSD)
M.2 Slot	Optional via a QM2 PCIe adapter
SSD Cache Acceleration Support
GPU pass-through
2.5 Gigabit Ethernet Port (2.5G/1G/100M)	2 (2.5G/1G/100M)
10 Gigabit Ethernet Port	2 x 10GBASE-T (10G/5G/2.5G/1G/100M)
25 Gigabit Ethernet Port	Optional via a PCIe adapter
Wake on LAN (WOL)
PCIe Slot	3 (2 x Gen4 x4 +1 x Gen 4 x8) Card dimensions for PCIe slot 1：250 x 111.15 x 23.76 mm / 9.84 x 4.38 x 0.94 inches. Card dimensions for PCIe slot 2：250 x 111.15 x 18.76 mm / 9.84 x 4.38 x 0.74 inches. Card dimensions for PCIe slot 3：250 x 111.15 x 18.76 mm / 9.84 x 4.38 x 0.74 inches. Wider cards can be installed if the next PCIe slot will not be used.
USB 3.2 Gen 2 (10Gbps) Port	4 x Type-A USB 3.2 Gen 2 5V/1A 10Gbps
HDMI™ Output	Optional via a PCIe adapter
Form Factor	3U Rackmount
LED Indicators	Status (Green/Red) LAN (Green) USB (Blue) HDD status (Green/Red)
Buttons	Power, Reset
Dimensions (HxWxD)	131.3 × 432 × 511.5 mm
Weight (Net)	17.47 kg
Weight (Gross)	21.84 kg
Operating Temperature	0 - 40 °C (32°F - 104°F)
Storage Temperature	-20 - 70°C (-4°F - 158°F)
Relative Humidity	5~95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit	550W (x2) PSU
Power Consumption: Disk Standby Mode	165.39 W
Power Consumption: Operating Mode, Typical	228 W
Fan	3 x 60mm + 1 x 80mm, 12VDC
