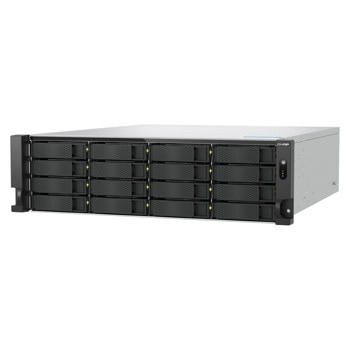

Name: Мрежови диск (NAS) Qnap TS-h1677AXU-RP-R7-32G, осемядрен AMD Ryzen 7 7000 series 5.3 GHz, без твърд диск (16x 3.5-inch SATA 6Gb/s, 3Gb/s), 32GB RAM, 2x 10/100/1000/2500 LAN, 2x 10/100/1000/10000 LAN, 2x USB 3.2 Gen 2
Brand: Qnap
SKU: NASQNAPTSH1677AXURPR732G
Price: 8100.00 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси

TS-h1677AXU-RP

Experience exceptional enterprise performance with the power of AMD Ryzen™ 7000 Series processors, DDR5, and M.2 PCIe Gen 5

Powered by AMD Ryzen™ 7000 Series processors based on the cutting-edge AMD socket AM5 platform, the ZFS-based TS-h1677AXU-RP storage and backup solution unleashes superb performance and enterprise-level potential. With a revolutionary multi-core processor, DDR5 RAM, M.2 PCIe Gen 5, and redundant power supplies, the TS-h1677AXU-RP delivers excellent performance, ultra-large bandwidth, and trusted reliability for performance-demanding Tier 2 storage, virtualization, 4K video editing, and PB-level storage applications.

Category	Specification
CPU	AMD Ryzen™ 7 7000 series 8-core / 16-thread processor, boost up to 5.3 GHz
Integrated Graphics	AMD Radeon™ Graphics
CPU Architecture	64-bit x86
Floating Point Unit	Yes
Encryption Engine	AES-NI
Hardware-Accelerated Transcoding	Supported
System Memory	32 GB DDR5 UDIMM
Maximum Memory	192 GB (4 × 48 GB)
Memory Slots	4 × DDR5 UDIMM (optional ECC supported)
Memory Configuration Requirement	Dual-DIMM requires identical DDR5 modules
Flash Memory	5 GB (Dual boot OS protection)
Drive Bays	16 × 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility	3.5" SATA HDDs, 2.5" SATA SSDs
Hot-Swappable Drives	Supported (M.2 SSD not hot-swappable)
M.2 Slots	2 × M.2 2280 PCIe Gen5 x2 (NVMe Gen3 and above compatible)
SSD Cache Acceleration	Supported
GPU Pass-Through	Supported
2.5GbE Ports	2 × 2.5G/1G/100M/10M
10GbE Ports	2 × 10GBASE-T (10G/5G/2.5G/1G/100M)
25GbE Ports	Optional via adapter
Wake on LAN (WOL)	Supported
Jumbo Frame	Supported
PCIe Slots	Slot 1: Gen4 x4Slot 2: Gen4 x8 or x4 (depends on Slot 1 usage)Slot 3: Gen4 x4
PCIe Card Dimensions	Slot 1 & 2: 250 × 111.15 × 18.76 mmSlot 3: 200 × 111.15 × 23.76 mm
USB Ports	2 × USB 3.2 Gen 2 Type-A (10Gbps)
Form Factor	3U Rackmount
LED Indicators	Power, Status, LAN, HDD 1–16, M.2 SSD 1–2, Expansion Port
Buttons	Power, Reset
Dimensions (H × W × D)	131.3 × 482.2 × 550.8 mm
Weight (Net)	15.64 kg
Weight (Gross)	22.08 kg
Operating Temperature	0–40 °C (32–104 °F)
Storage Temperature	-20–70 °C (-4–158 °F)
Relative Humidity	5–95% RH non-condensing (wet bulb 27 °C)
Power Supply Unit	2 × 550W, 100–240V
Power Consumption (Disk Standby)	99.99 W
Power Consumption (Typical Operating)	349.96 W (fully populated drives)
Cooling Fan	3 × 60 mm system fans (12VDC)
System Warning	Buzzer
