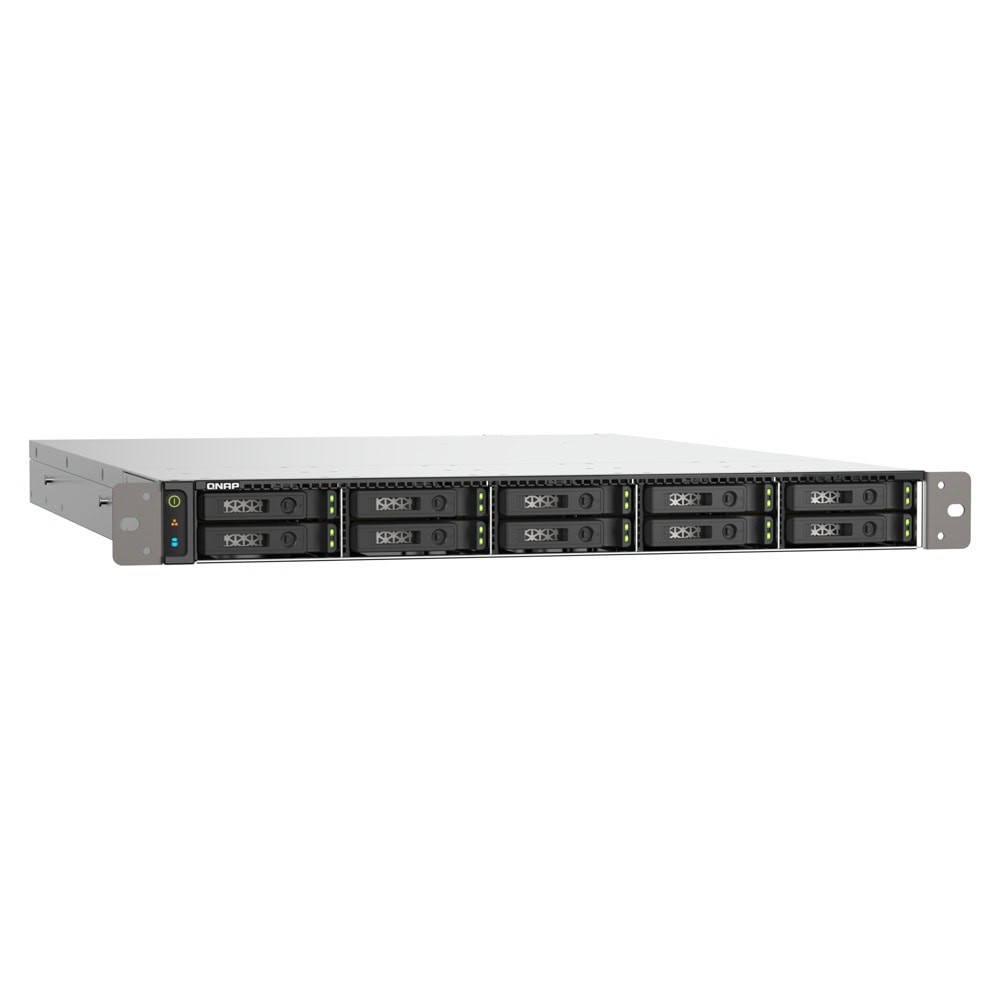

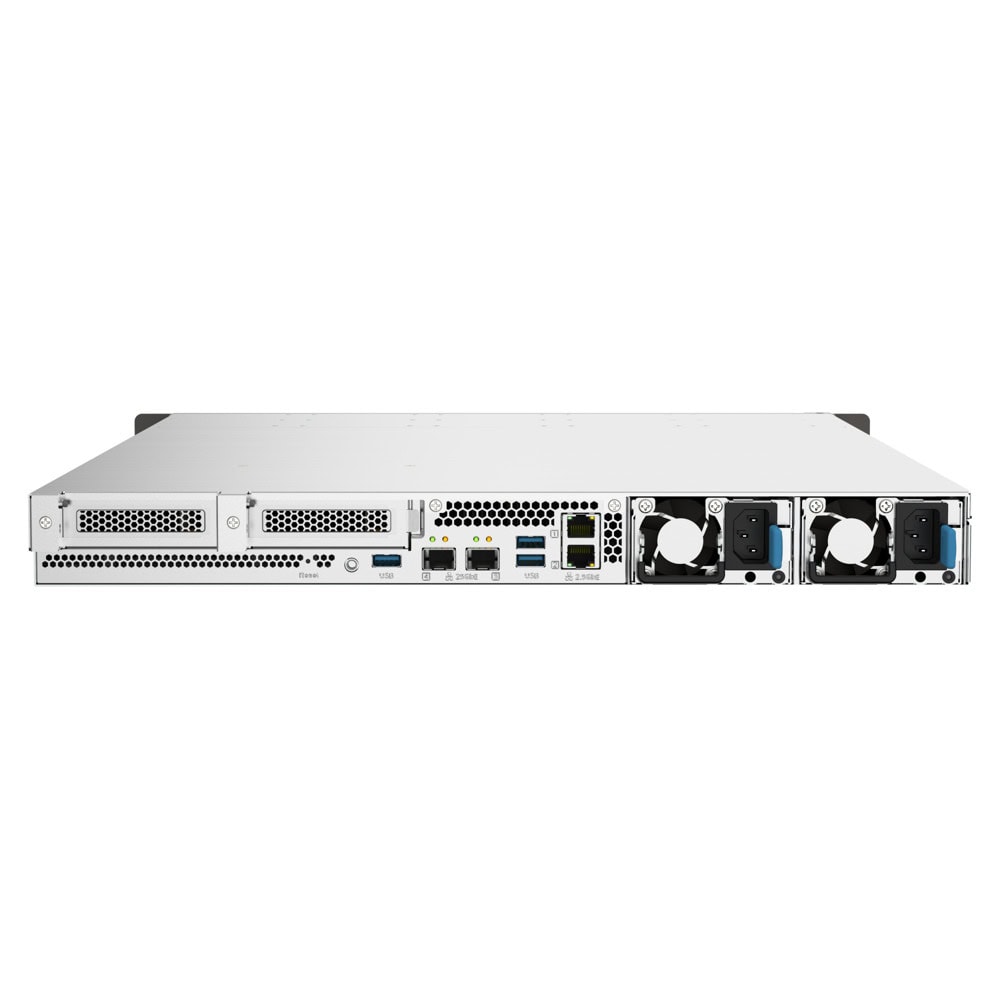

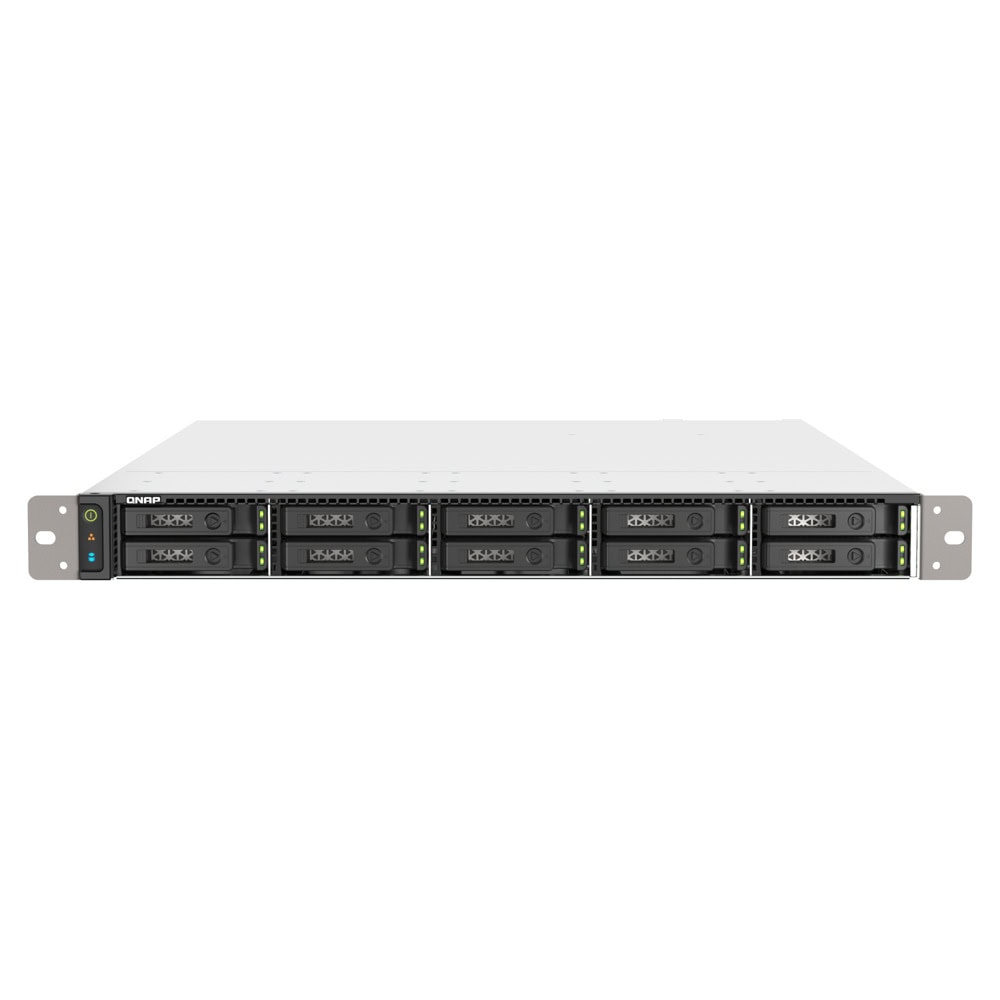

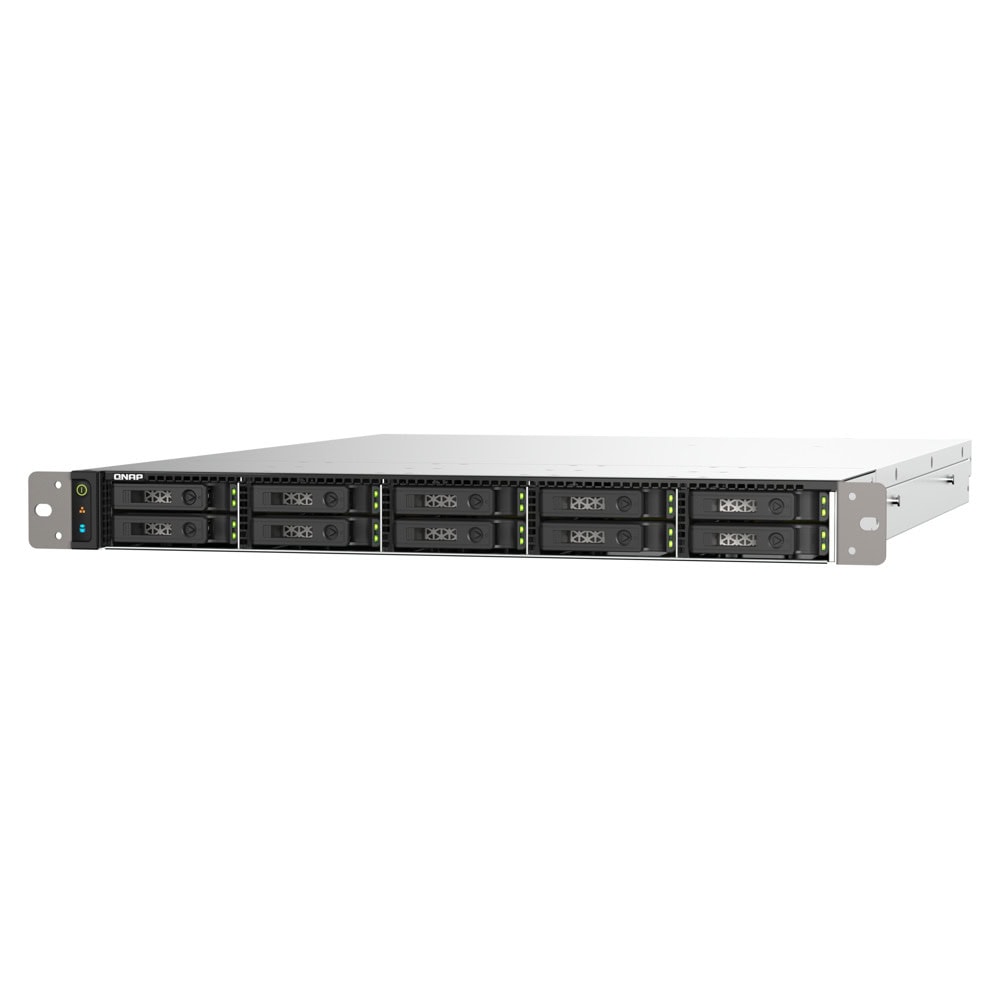

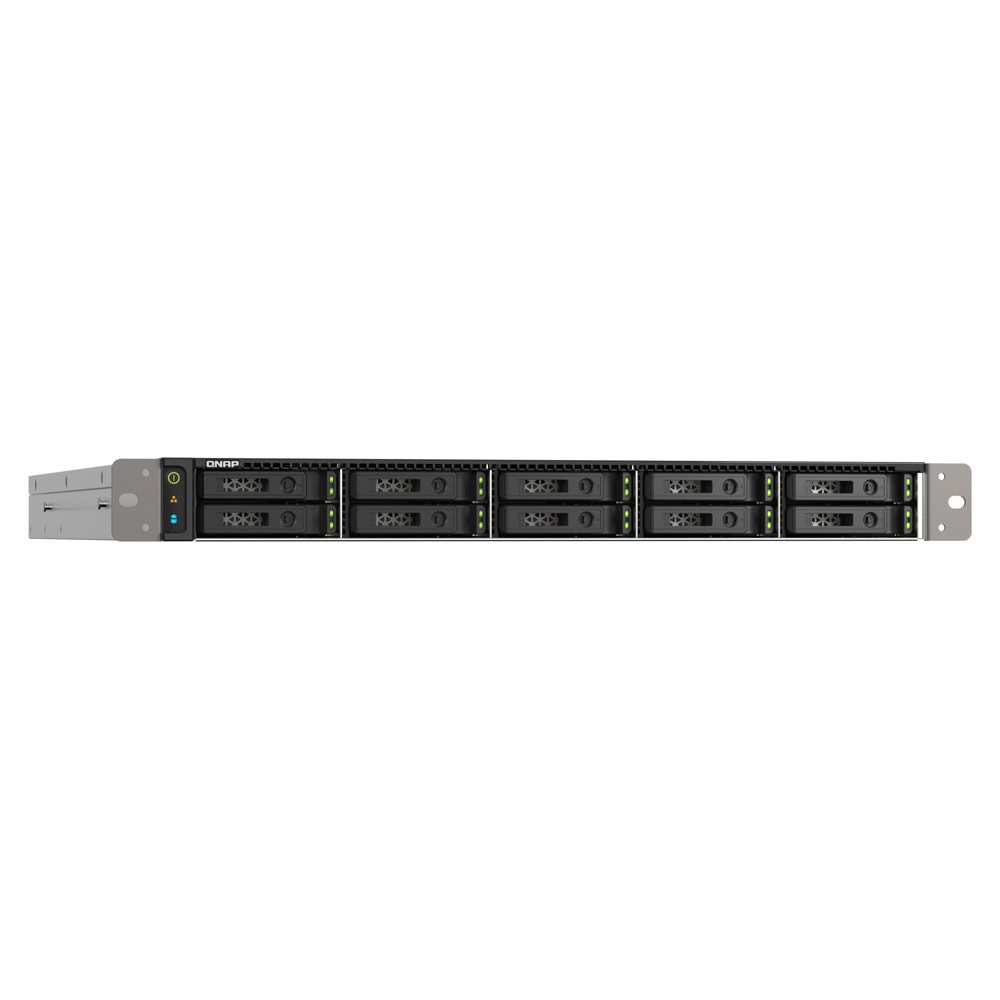

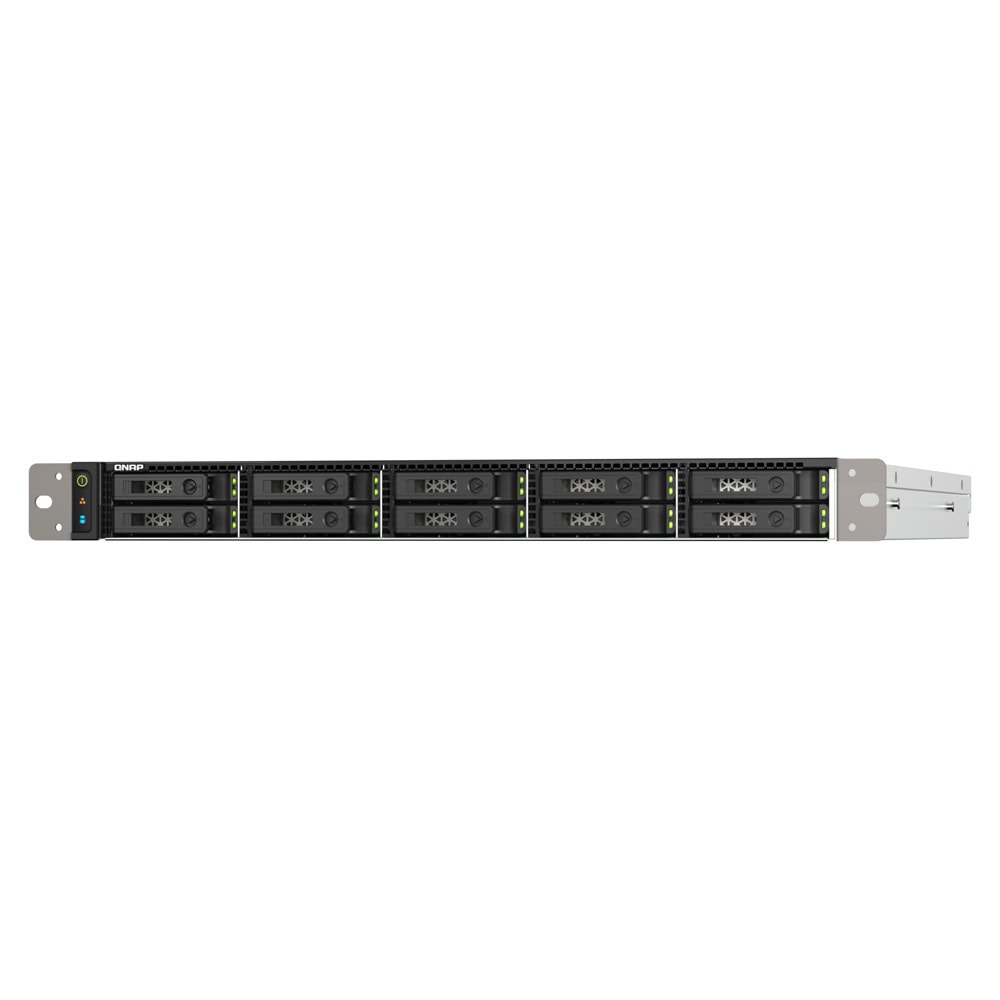

Name: Мрежови диск (NAS) Qnap TS-h1090FU-7302P-128G, шестнадесетядрен AMD EPYC 7302P 3.0/3.3 GHz, без твърд диск (10x 2.5-inch U.2 PCIe NVMe / SATA 6Gbps), 128GB DDR4, 2x 10/100/1000/2500 LAN, 3x USB 3.2 Gen 1
Brand: Qnap
SKU: NASQNAPTSH1090FU7302P128G
Price: 20658.67 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Документация

TS-h1090FU

ZFS-based, 1U high-density U.2 NVMe PCIe Gen 4 / SATA 6Gbps SSD all-flash storage built for low-latency file servers, virtualized workloads, data centers, and 4K/8K streams

The TS-h1090FU high-density NVMe all-flash storage is designed for providing extreme performance with high cost-efficiency. Featuring ten U.2 NVMe Gen 4 x4 SSD bays, the TS-h1090FU delivers remarkable random read/write IOPS with ultra-low latency. The ZFS-based QuTS hero operating system supports inline data deduplication and compression for reducing I/O and SSD storage consumption, which significantly extends SSD lifespan with a higher price-performance ratio for all-flash storage arrays. Ideal for I/O-intensive and latency-sensitive applications, the TS-h1090FU eliminates productivity bottlenecks in virtualization, modern data centers, multimedia storage, and mission-critical backup/restore tasks－suitable for Tier 2 storage workloads with an ideal low cost-per-GB.


CPU	AMD EPYC™ 7302P 16-core/32-thread processor, up to 3.3 GHz
CPU Architecture	64-bit x86
Encryption Engine	(AES-NI)
System Memory	128 GB RDIMM DDR4 ECC
Maximum Memory	1 TB+ (12 x 128 GB)
Memory Slot	12 x RDIMM DDR4
Flash Memory	5GB (Dual boot OS protection)
Drive Bay	10 x 2.5-inch U.2 PCIe NVMe / SATA 6Gbps
Drive Compatibility	2.5-inch U.2 NVMe Gen 4 x4 solid state drives 2.5-inch SATA solid state drives
Hot-swappable	Yes
SSD Cache Acceleration Support	Yes
SR-IOV	Yes
2.5 Gigabit Ethernet Port (2.5G/1G/100M)	2 (2.5G/1G/100M/10M)
25 Gigabit Ethernet Port	2 x 25GbE SFP28 SmartNIC port
Wake on LAN (WOL)	Only the 2.5GbE port
Jumbo Frame	Yes
PCIe Slot	2 Slot 1: PCIe Gen4 x16 Slot 2: PCIe Gen4 x16 For low profile PCIe cards only. Card dimensions for PCIe slot 1：198 x 68.9 x 18.76 mm / 7.8 x 2.71 x 0.74 inches. Card dimensions for PCIe slot 2：250 x 68.9x 18.76 mm / 9.84 x 2.71 x 0.74 inches. Wider cards can be installed if the next PCIe slot will not be used.
USB 3.2 Gen 1 port	3
Form Factor	Rackmount
LED Indicators	Disk, Status, LAN, storage expansion port status
Buttons	Power, Reset
Dimensions (HxWxD)	44 × 430 × 582 mm
Weight (Net)	11.6 kg
Weight (Gross)	13.4 kg
Operating Temperature	0 - 40 °C (32°F - 104°F)
Storage Temperature	-20 - 70°C (-4°F - 158°F)
Relative Humidity	5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit	550W PSU (x2), AC 100-240 V
Power Consumption: Operating Mode, Typical	157.97 W Tested with drives fully populated.
Fan	5 x 60mm, 12VDC
System Warning	Buzzer
