Name: Мрежови диск (NAS) Qnap TS-855eU-RP-8G, осемядрен Intel Atom C5125 2.8 GHz, без твърд диск (8 x 3.5-inch SATA 6Gb/s, 3Gb/s), 8GB RAM, 2x 10/100/1000/2500 LAN, 4x USB 3.2 Gen 1
Brand: Qnap
SKU: NASQNAPTS855EURP8G
Price: 2713.72 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Документация

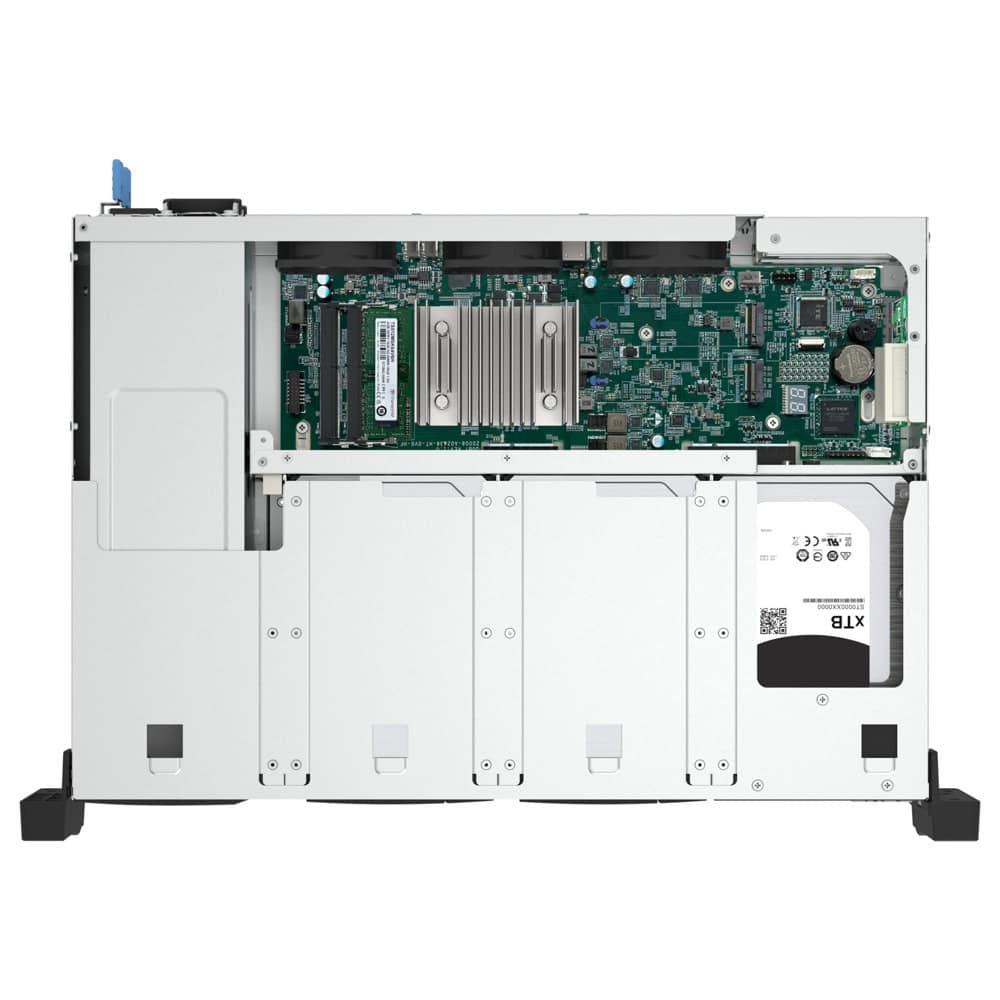

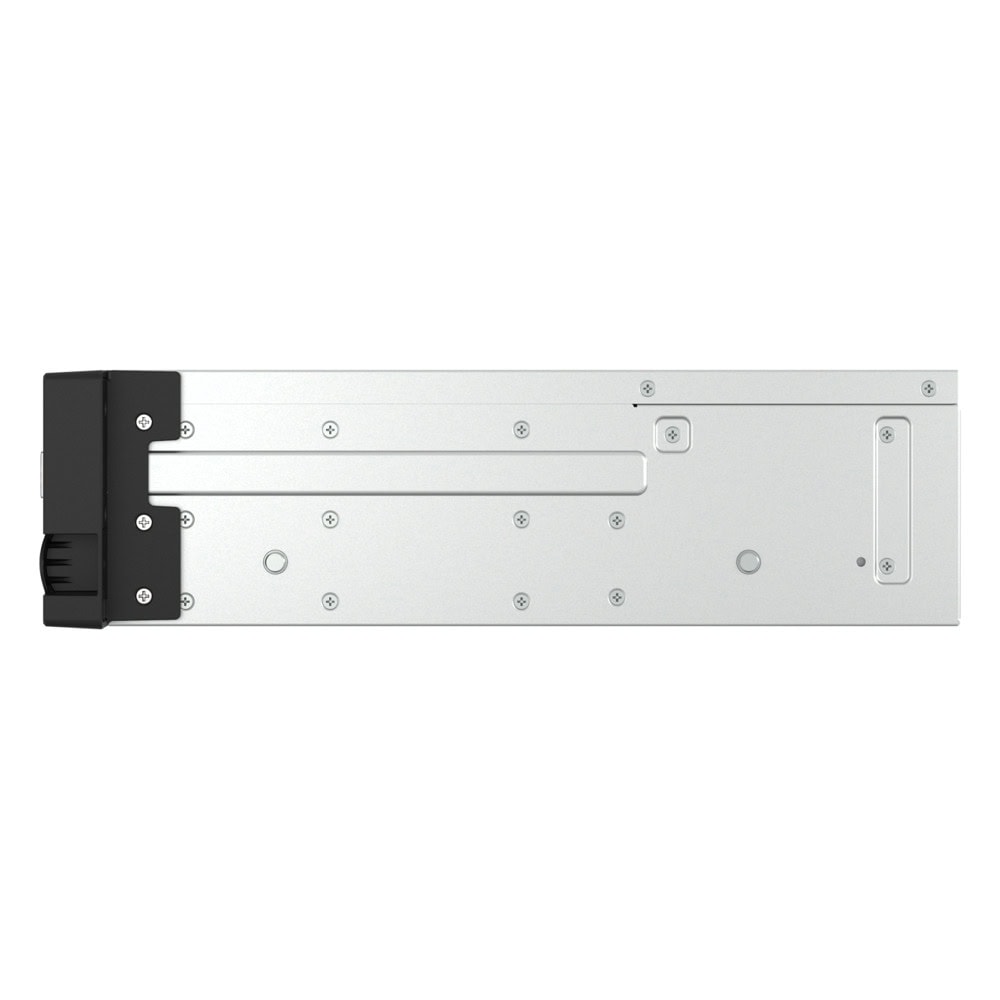

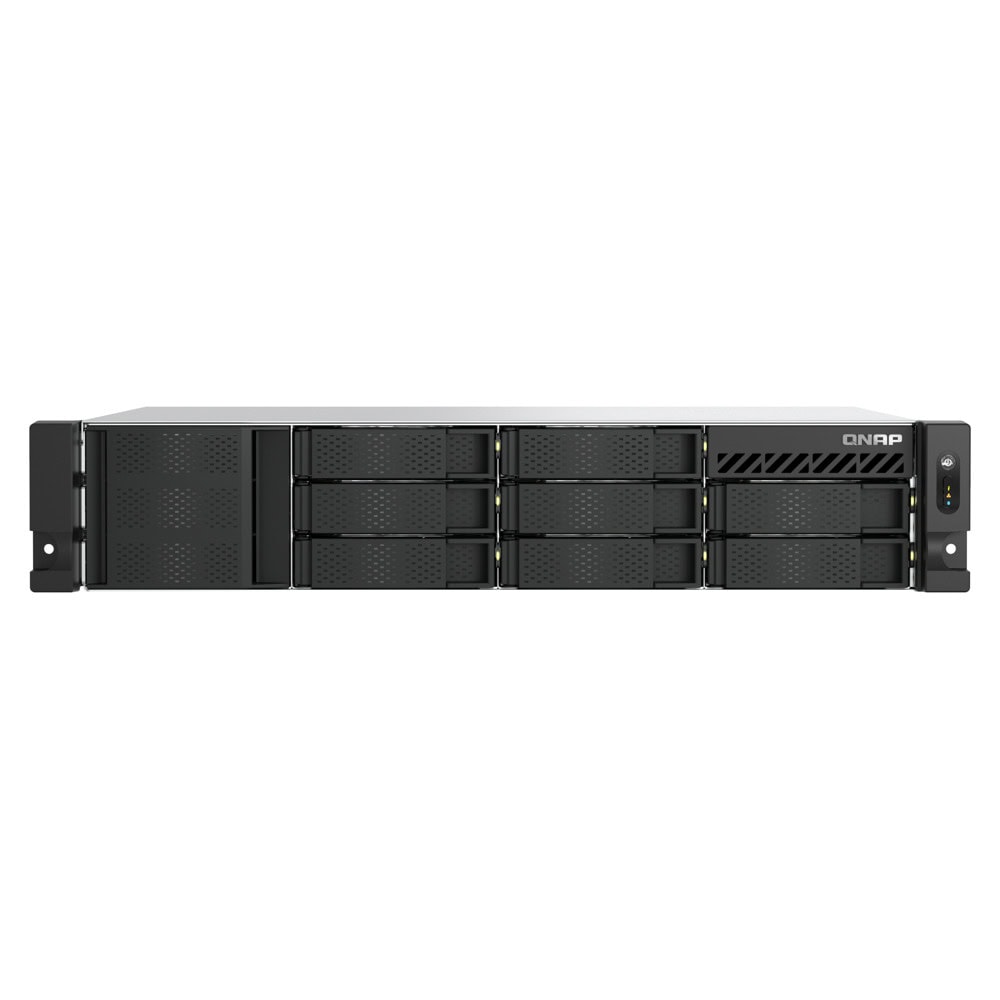

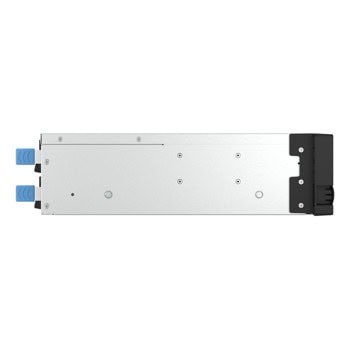

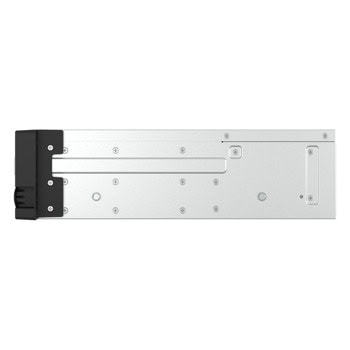

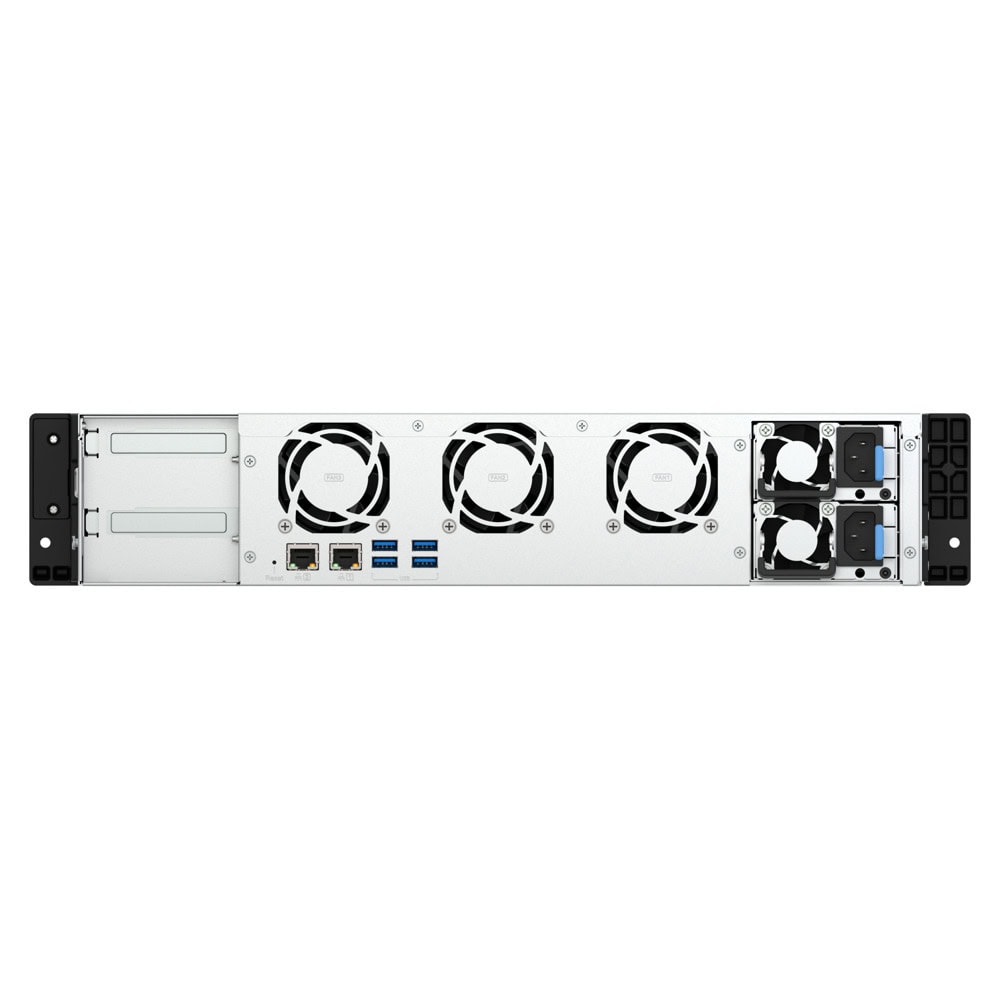

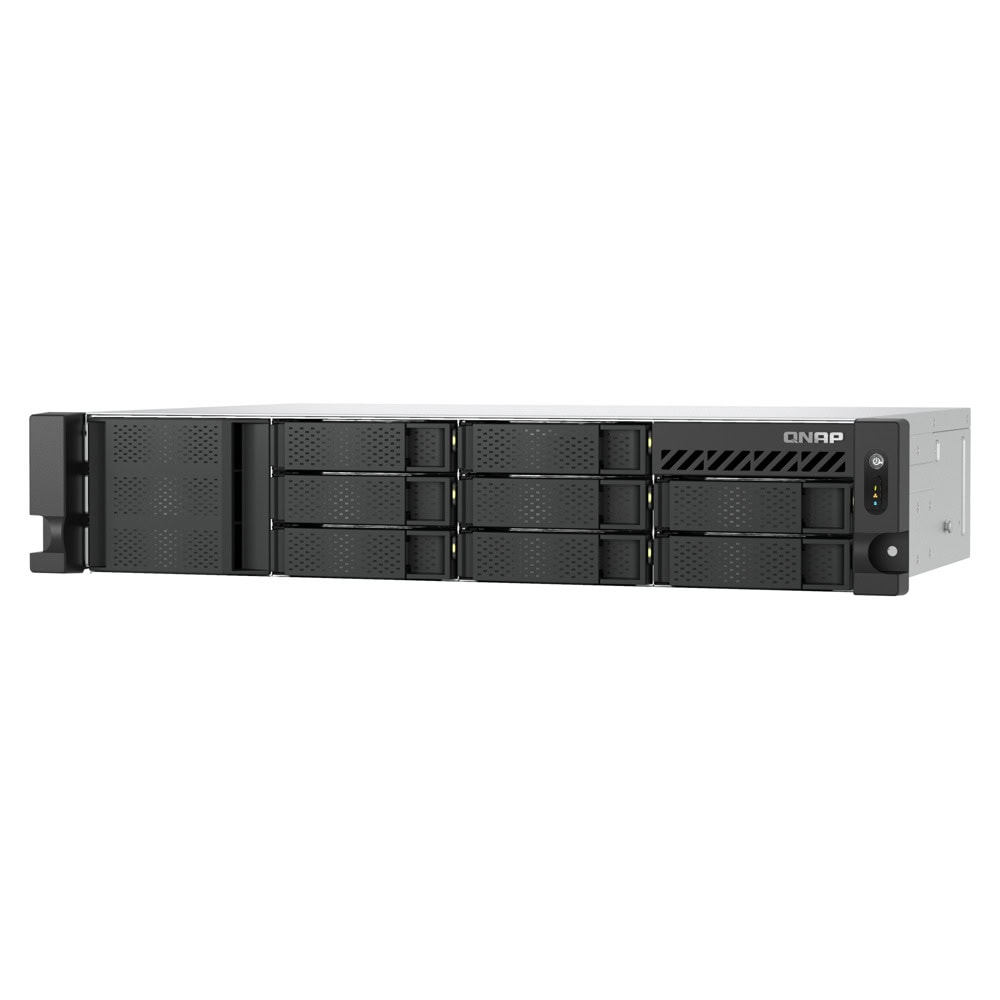

Qnap TS-855eU-RP-8G

2U short-depth rackmount NAS with 8-core computing power for optimized virtualization

Designed for flexible IT deployment and comprehensive virtualization applications, the short-depth TS-855eU-RP 2.5GbE NAS can easily fit in a compact rack in offices or audiovisual rooms. Powered by an Intel® 8-core processor, the TS-855eU-RP packs excellent performance and computing benefits to empower fast data access, backup/restoration, file server, and virtualization applications, while including redundant power supplies to ensure maximum system uptime. Running the QTS operating system as standard, the TS-855eU-RP can be switched to use the ZFS-based QuTS hero operating system based on your requirements. The TS-855eU-RP will be available and supported by QNAP for an extended period (up to 2030) , ideal for businesses requiring matching NAS models deployed for long-term projects.

2U short-depth design for up to 38% reduction in size

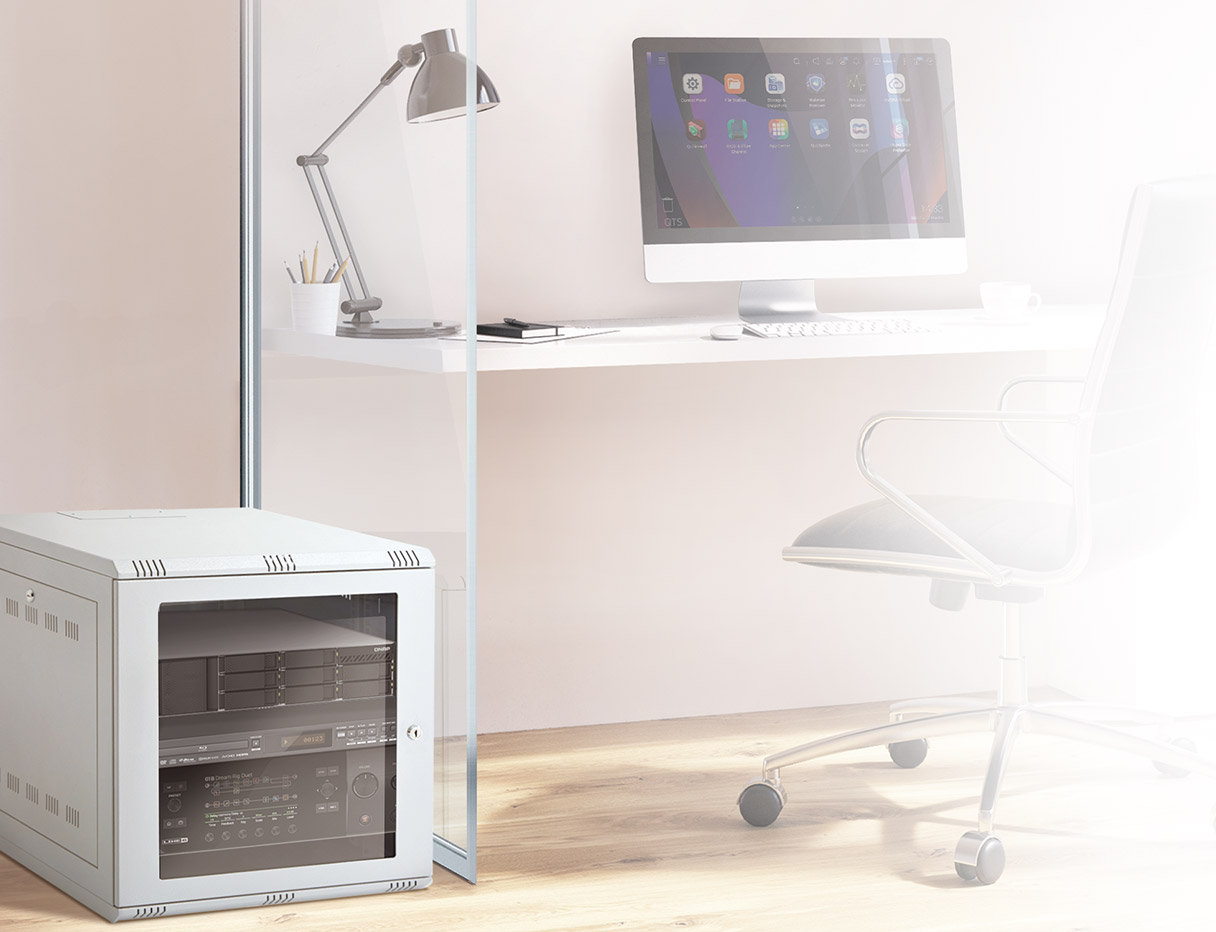

The rackmount TS-855eU-RP has a short depth design of only 11.7 inches (297.4 mm), making it an excellent choice for smaller racks, wall-mount AV rack cabinets, and network rack cabinets. The space saved by the short depth design can be reserved for cabling or ventilation. The TS-855eU-RP is space-saving for flexible deployment and is especially suitable for compact offices, audiovisual rooms, and security surveillance recording.

M.2 PCIe slots for SSD caching and accelerated AI-powered image recognition

The TS-855eU-RP comes with two M.2 PCIe Gen 3 slots that allow for installing M.2 2280 NVMe SSDs or Edge TPU (sold separately) to boost NAS performance.

Reliable, high-performance storage for virtualization

The TS-855eU-RP supports block-based iSCSI LUN as a reliable, high-performance, and affordable storage solution for mainstream virtualization environments. It supports VMware® VAAI and Microsoft® ODX to increase performance by offloading server loading for ESXi server and Hyper-V respectively.

TS-855eU-RP-8G


CPU	Intel ® Atom® C5125 8-core processor, 2.8GHz
CPU Architecture	64-bit x86
Floating Point Unit
Encryption Engine	(AES-NI)
System Memory	8 GB non-ECC SODIMM DDR4
Maximum Memory	64 GB ( 2 x 32 GB)
Memory Slot	2 x SODIMM DDR4 Support ECC memory For dual-DIMM configuration, you must use a pair of identical DDR4 modules.
Flash Memory	5GB (Dual boot OS protection)
Drive Bay	8 x 3.5-inch SATA 6Gb/s, 3Gb/s The system is shipped without HDD.
Drive Compatibility	3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives
Hot-swappable	(Not supported M.2 SSD)
M.2 Slot	2 x M.2 2280 (PCIe Gen 3 x 4) Compatible with NVMe SSD PCIe Gen 3 and above.
SSD Cache Acceleration Support
SR-IOV
2.5 Gigabit Ethernet Port (2.5G/1G/100M)	2 (2.5G/1G/100M/10M)
5 Gigabit Ethernet Port (5G/2.5G/1G/100M)	Optional via a network adapter
10 Gigabit Ethernet Port	Optional via a network adapter
25 Gigabit Ethernet Port	Optional via a network adapter
Wake on LAN (WOL)	Only the 2.5GbE port
Jumbo Frame
PCIe Slot	2 x PCIe Gen3 (x4) Slot 1: PCIe Gen 3 (x4) Slot 2: PCIe Gen 3 (x4) Card dimensions for PCIe slot 1：97 x 68.9x 18.76 mm / 3.82 x 2.71 x 0.74 inches. Card dimensions for PCIe slot 2：210 x 68.9 x 18.76 mm / 8.27 x 2.71 x 0.74 inches.
USB 3.2 Gen 1 port	4
HDMI™ Output	Optional via a PCIe graphics card
Form Factor	2U Short Depth Rackmount
LED Indicators	HDD 1-8, Status, LAN, USB, Power
Buttons	Power, Reset
Dimensions (HxWxD)	88.6 × 432 × 297.4 mm
Weight (Net)	9.47 kg
Weight (Gross)	10.94 kg
Operating Temperature	0 - 40 °C (32°F - 104°F)
Storage Temperature	-20 - 70°C (-4°F - 158°F)
Relative Humidity3	5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit	Minimum 300W (x2) PSU, 100-240VAC
Power Consumption: Disk Standby Mode	54.331 W
Power Consumption: Operating Mode, Typical	78.73 W Tested fully populated with WD10EFRX hard drives.
Fan	3 x 60mm, 12VDC
System Warning	Buzzer
