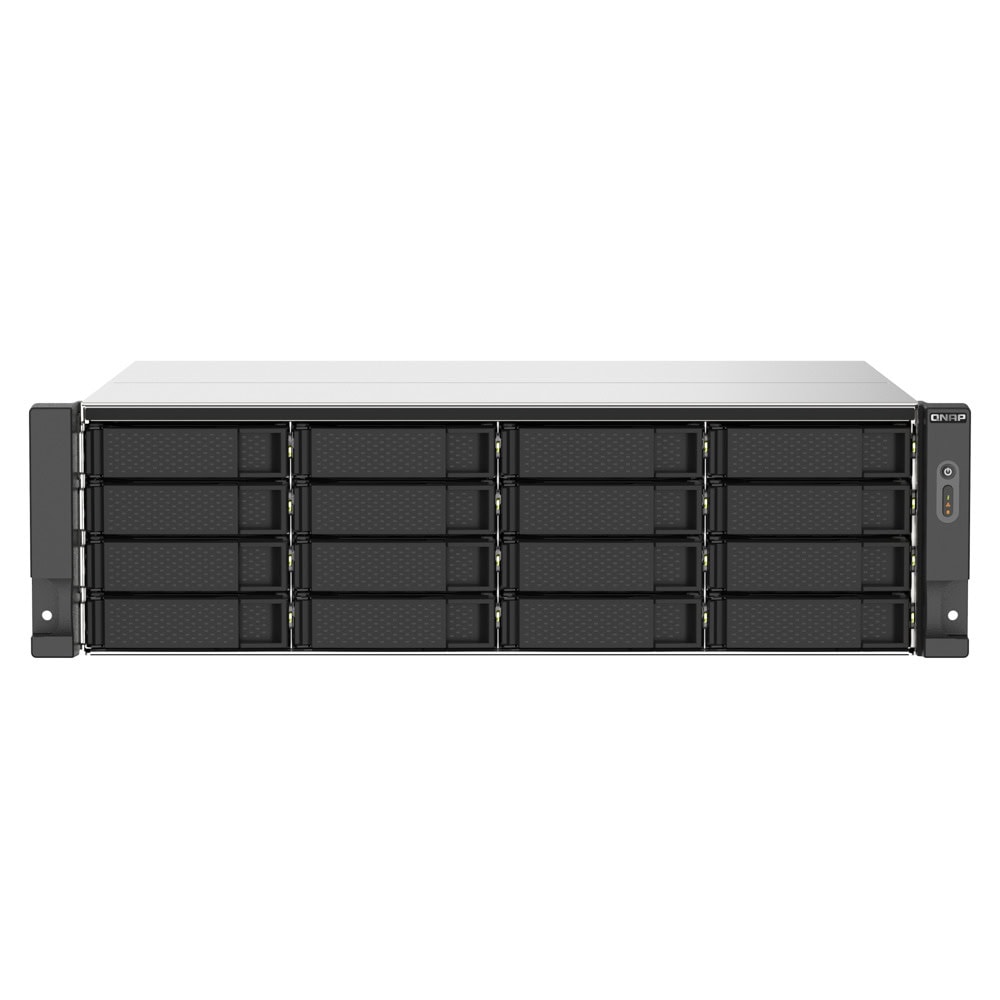

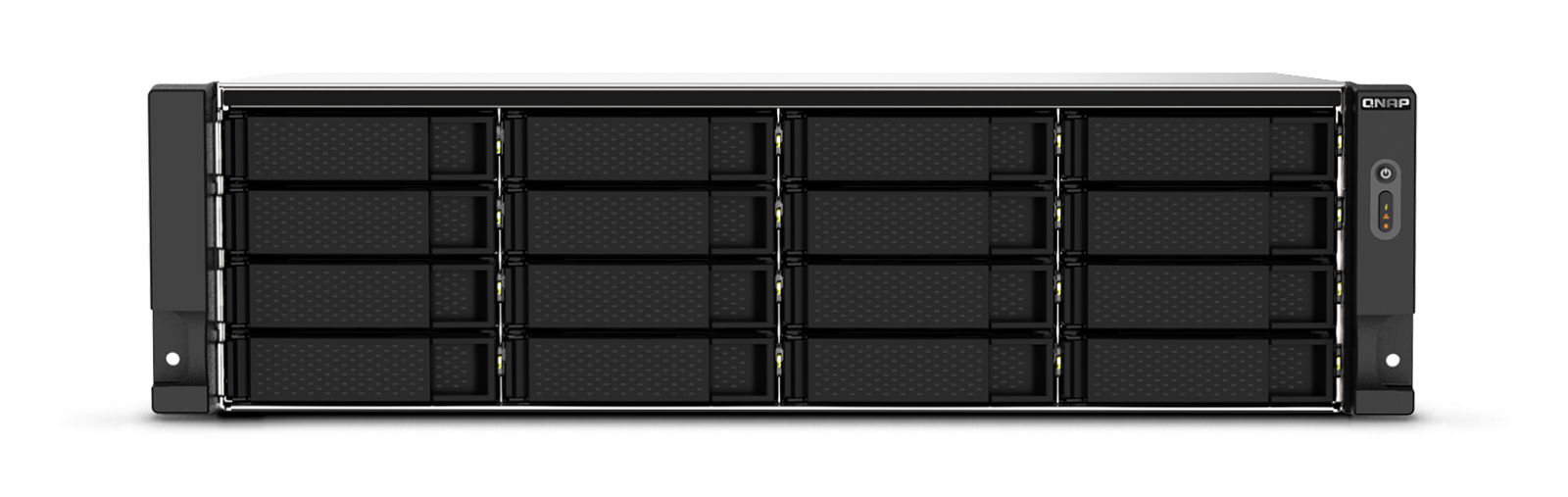

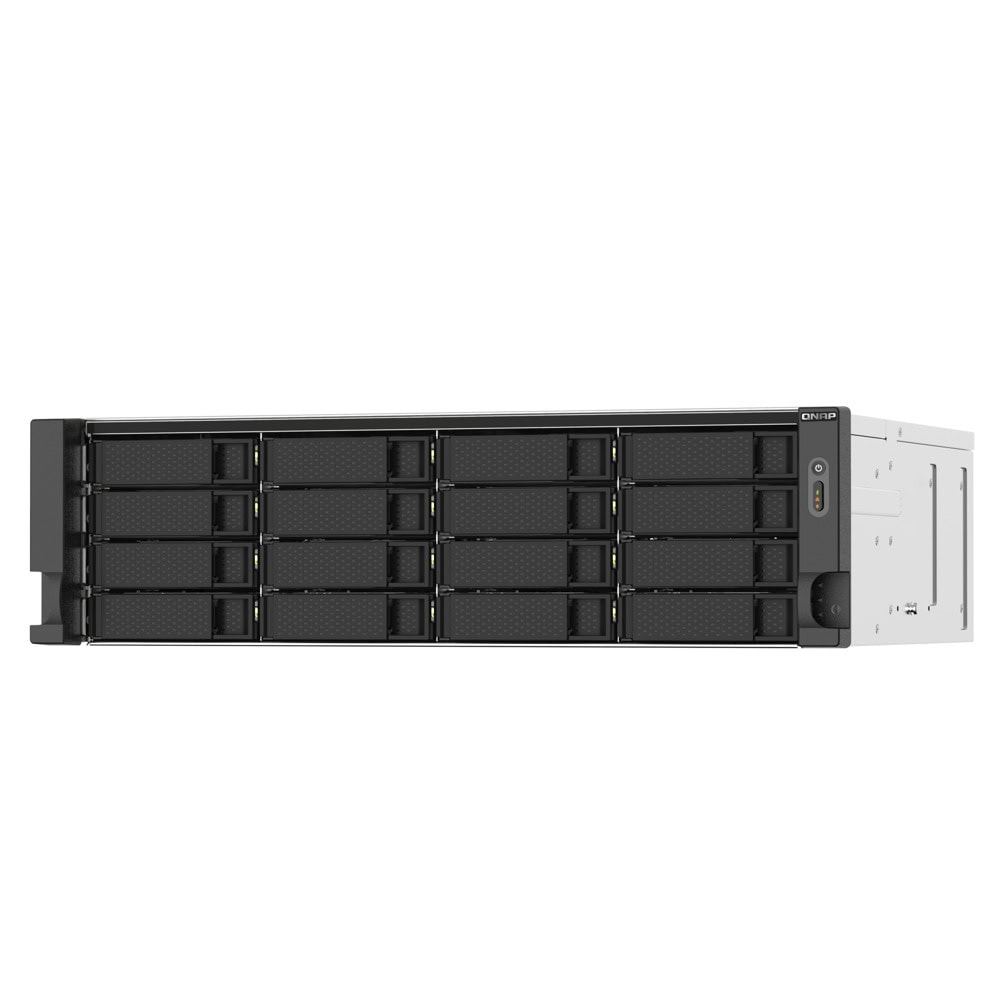

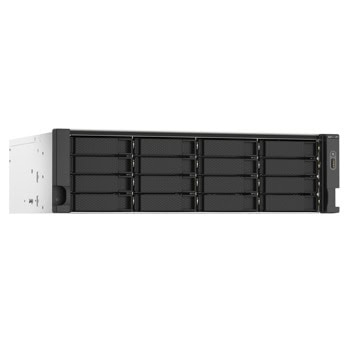

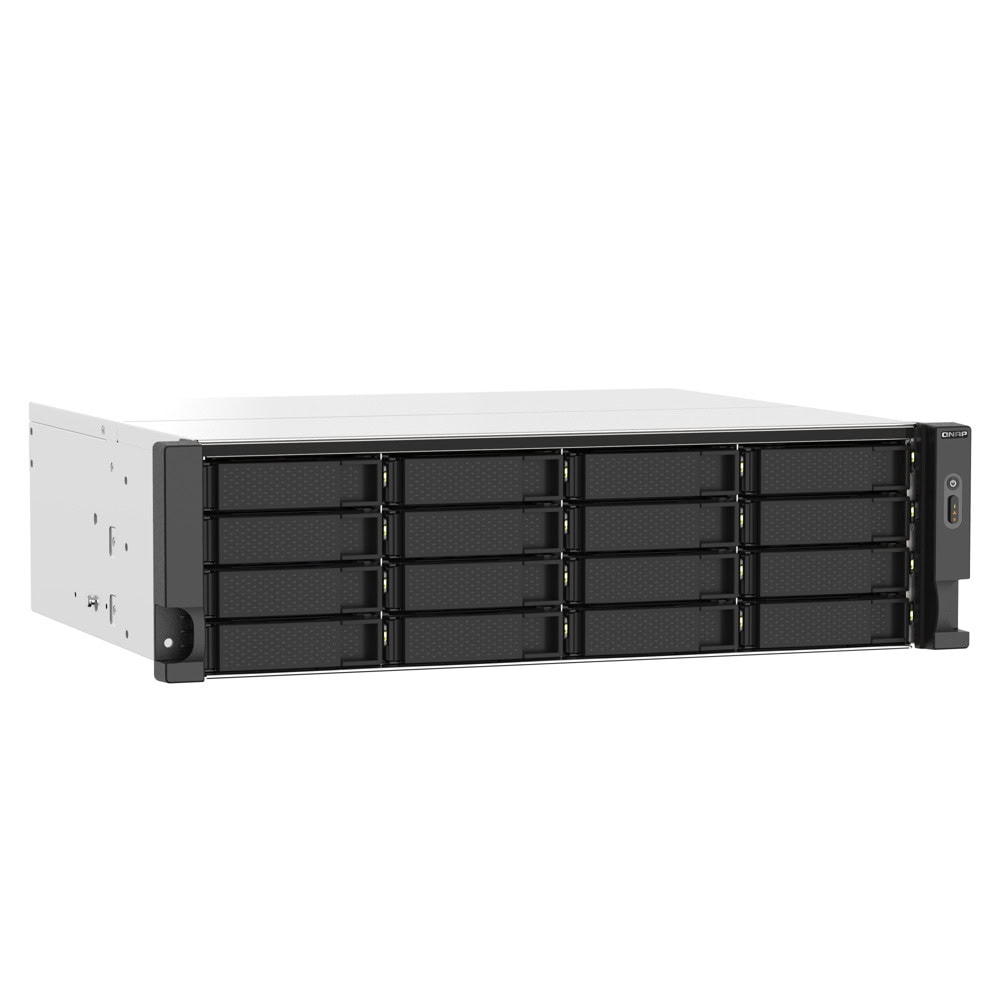

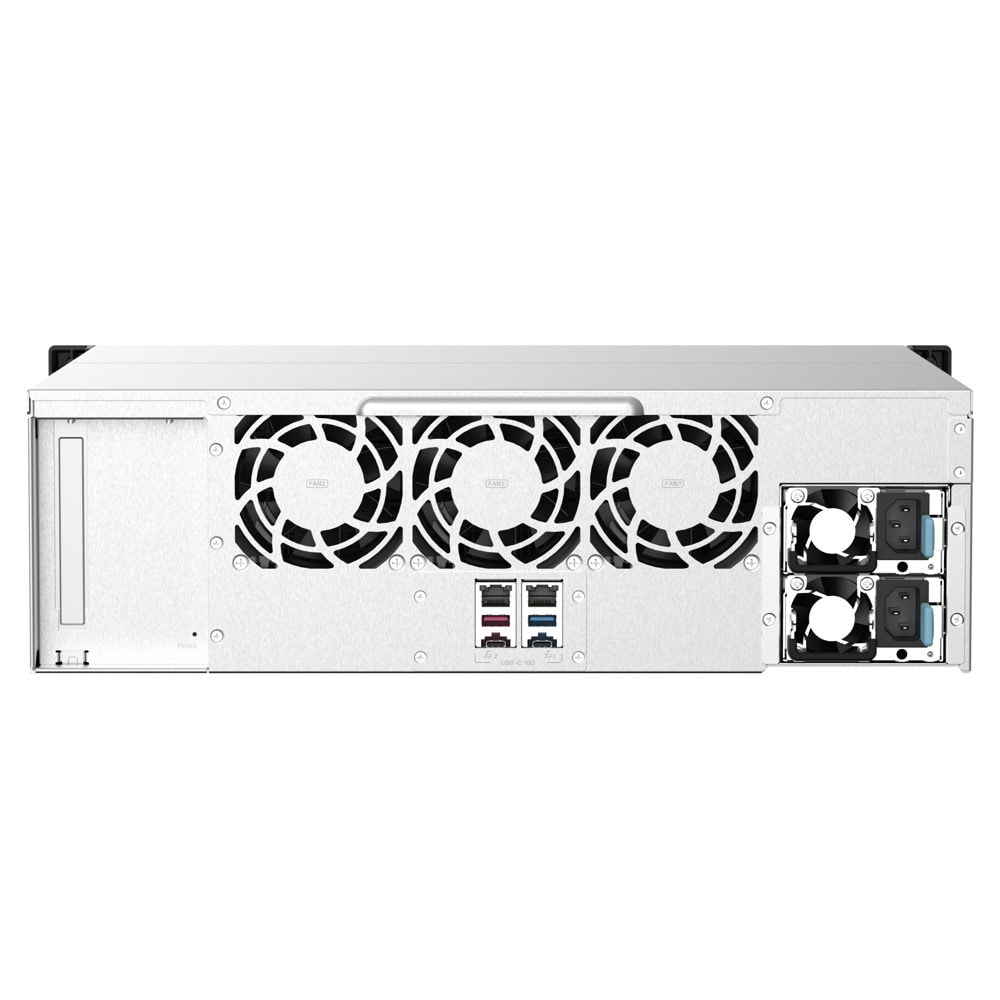

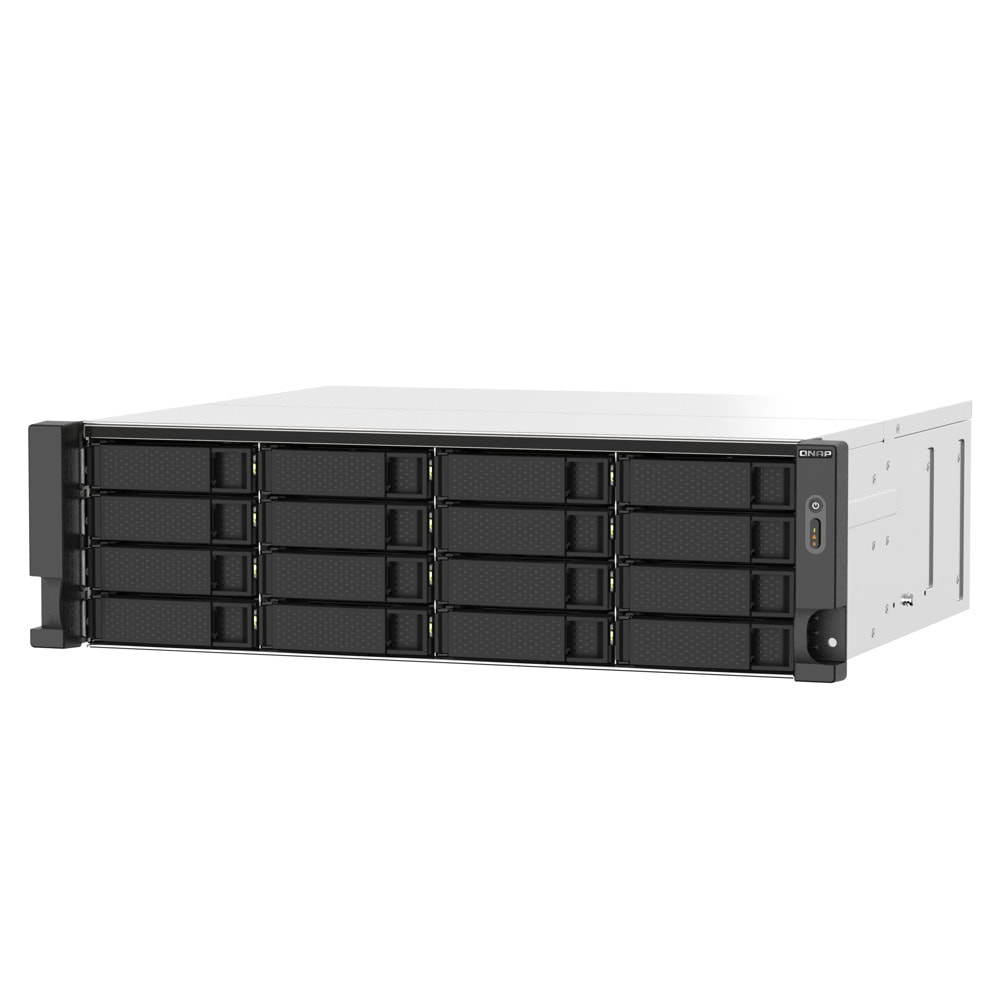

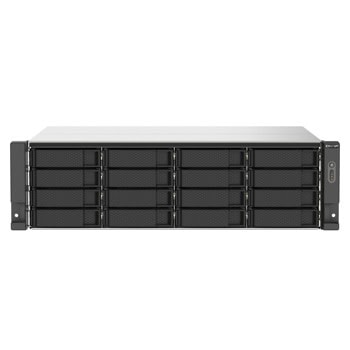

TS-1673AU-RP
High-performance dual-2.5GbE NAS Powered by a Quad-core AMD Ryzen™ processor, supporting 10GbE or M.2 SSD caching PCIe expandability for virtual applications
(Supports QTS or QuTS hero system)
With its powerful AMD Ryzen™ V1000 series V1500B Quad-core processor, the TS-1673AU-RP is capable of boosting virtual machine performance with up to 4 cores/8 threads at 2.2GHz. The TS-1673AU-RP includes two 2.5GbE ports and two PCIe Gen 3 slots, providing you with fast network connectivity and the ability to add extra functionality and additional application potential. The TS-1673AU-RP also features a redundant power supply to ensure maximum system uptime. Cutting-edge hardware integrated with comprehensive software solutions makes the TS-1673AU-RP the preeminent choice to tackle resource-demanding applications and tasks. The TS-1673AU-RP supports QTS and QuTS hero, allowing users to flexibly switch operating system based on their requirements.
| CPU | AMD Ryzen™ Embedded V1500B 4-core/8-thread 2.2 GHz processor |
| CPU Architecture | 64-bit x86 |
| Floating Point Unit | Yyes |
| Encryption Engine | (AES-NI) |
| Hardware-accelerated Transcoding | Optional via a PCIe graphics card |
| System Memory | 16 GB UDIMM DDR4 |
| Maximum Memory | 64 GB (2 x 32 GB) |
| Memory Slot | 2 x UDIMM DDR4 For dual-DIMM configurations, you must use a pair of identical DDR4 modules. |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 16 x 3.5-inch SATA 6Gb/s, 3Gb/s The system is shipped without HDD. |
| Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | (Not supported M.2 SSD) |
| M.2 Slot | Optional via a QNAP QM2 PCIe card |
| SSD Cache Acceleration Support | Yes |
| GPU pass-through | Yes |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
| 5 Gigabit Ethernet Port (5G/2.5G/1G/100M) | Optional via a network adapter |
| 10 Gigabit Ethernet Port | Optional via a network adapter |
| Wake on LAN (WOL) | Only the 2.5GbE port |
| Jumbo Frame | Yes |
| PCIe Slot | 2 x PCIe Gen3 x4 With a riser card (two PCIe slots): |
| USB 3.2 Gen 1 port | 1 x Type-A |
| USB 3.2 Gen 2 (10Gbps) Port | 2 x Type-C 1 x Type-A |
| HDMI™ Output | Optional via a PCIe graphics card |
| Form Factor | 3U Rackmount |
| LED Indicators | HDD 1-16, Status, LAN, USB, Power |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 131.3 × 432 × 370.9 mm Excludes ear hook and the protruding part of the Power Supply Unit. |
| Weight (Net) | 13.53 kg |
| Weight (Gross) | 17.15 kg |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 550W (x2), 100-240V AC, 50-60Hz, 7-3.5A |
| Power Consumption: Disk Standby Mode | 47.75 W |
| Power Consumption: Operating Mode, Typical | 97.34 W Tested fully populated with WD10EFRX hard drives. |
| Fan | 3 x 80mm, 12VDC |
| System Warning | Buzzer |
