Name: Мрежови диск (NAS) Qnap ES2486dc-2142IT-96G, осемядрен Intel Xeon D-2142IT 1.9GHz, без твърд диск (24 x 2.5-inch SAS 12Gb/s, 6Gb/s), 48GB RAM, 3x 10/100/1000 LAN, 2x USB 3.2 Gen 1
Brand: Qnap
SKU: NASQNAPES2486DC2142IT96G
Price: 23090.59 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси

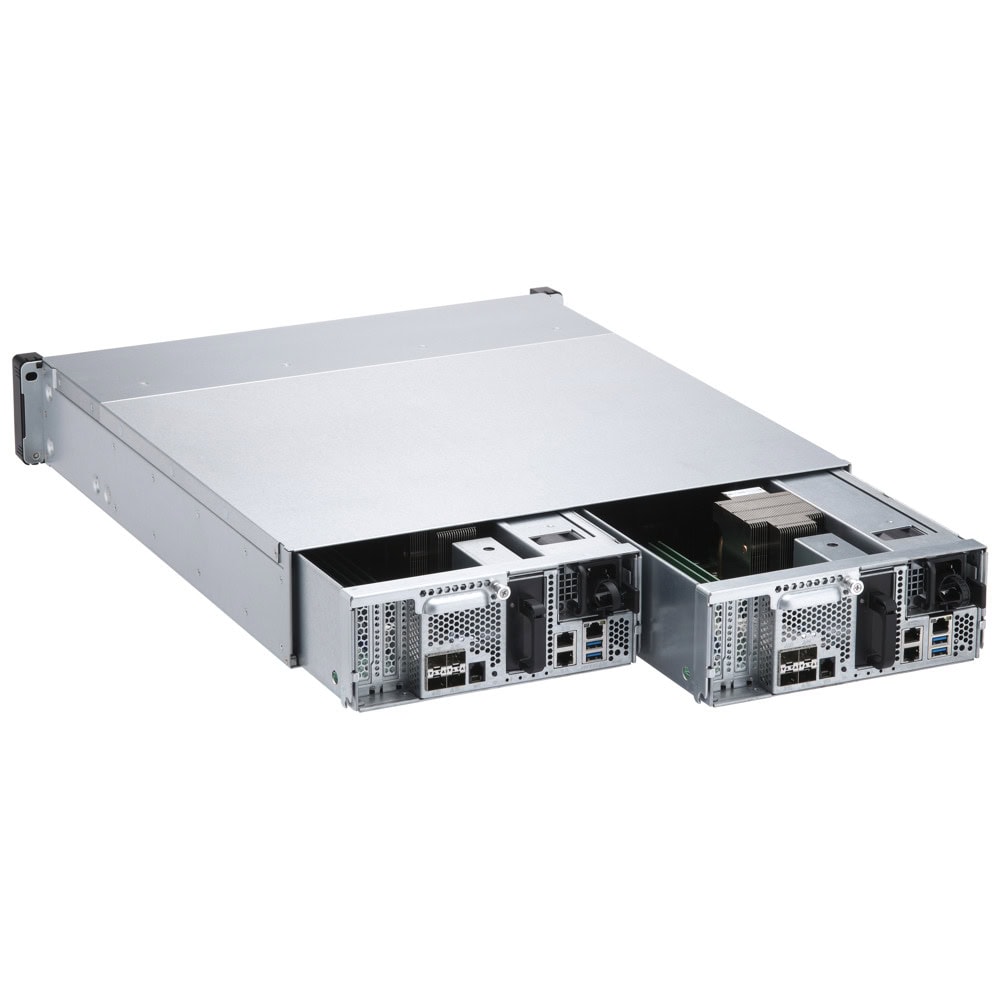

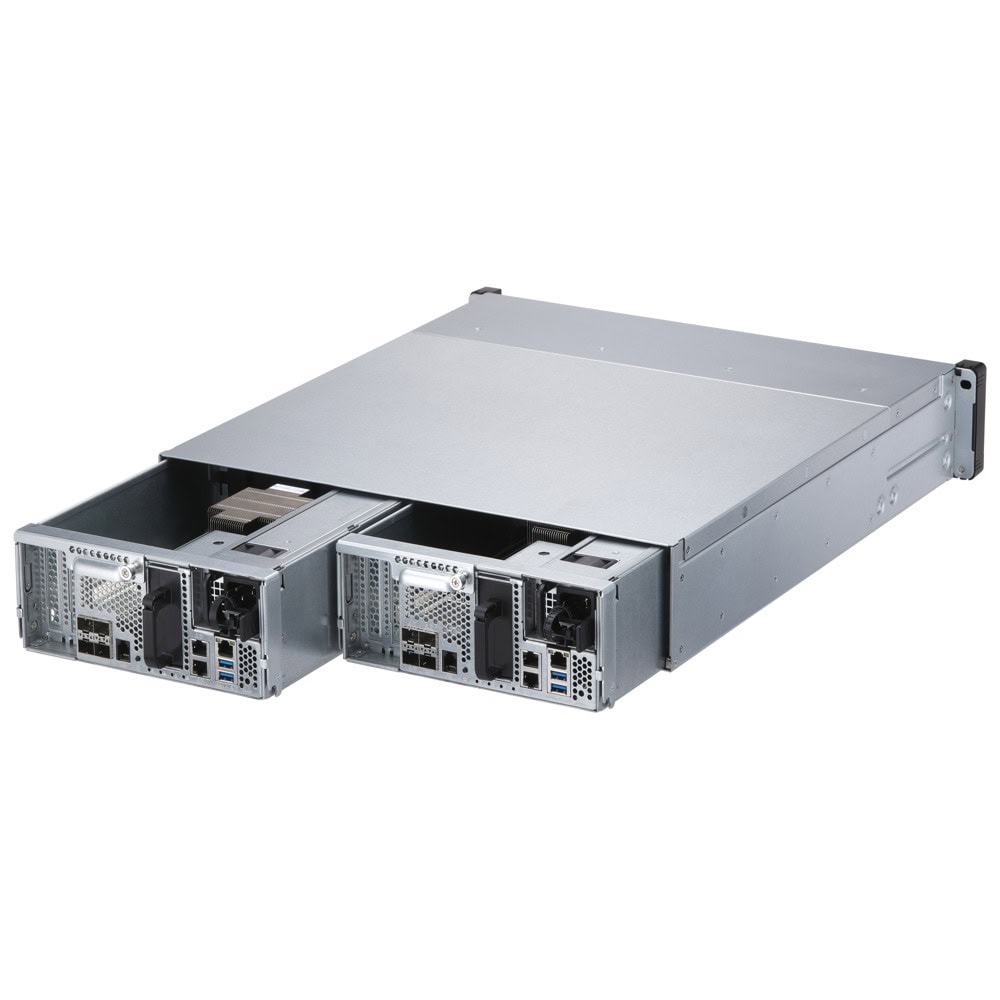

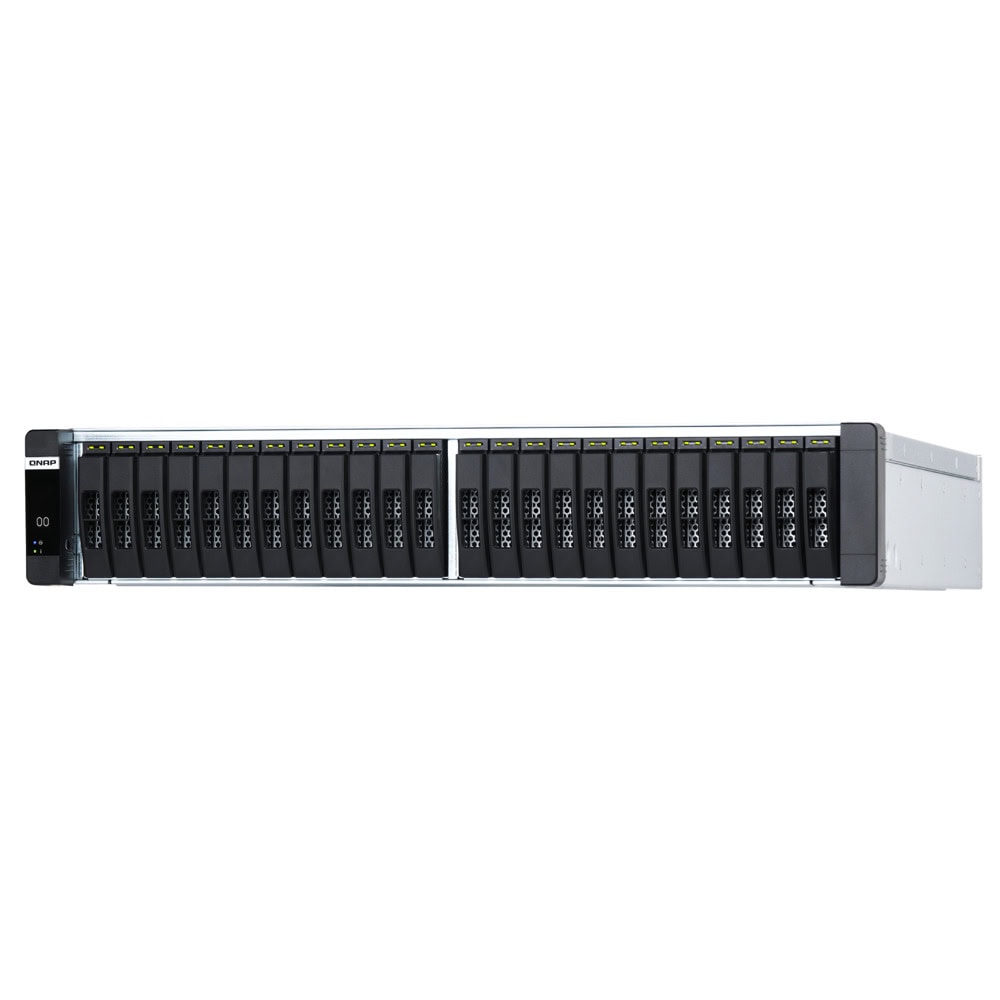

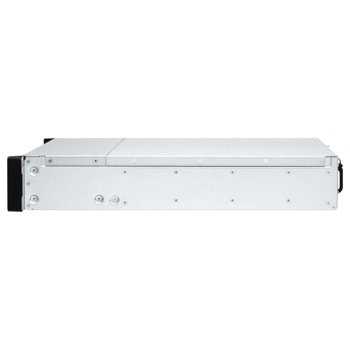

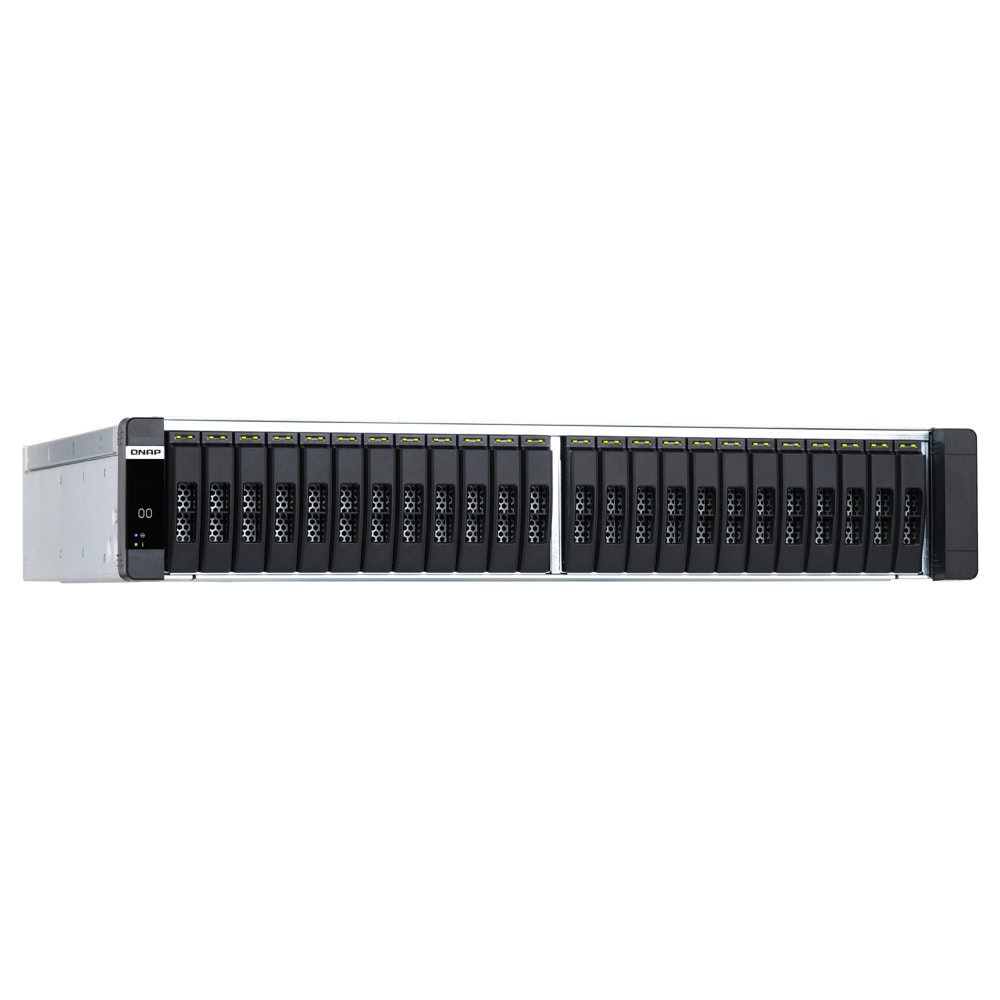

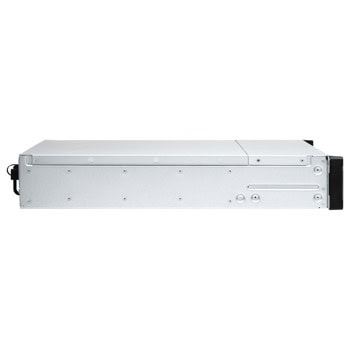

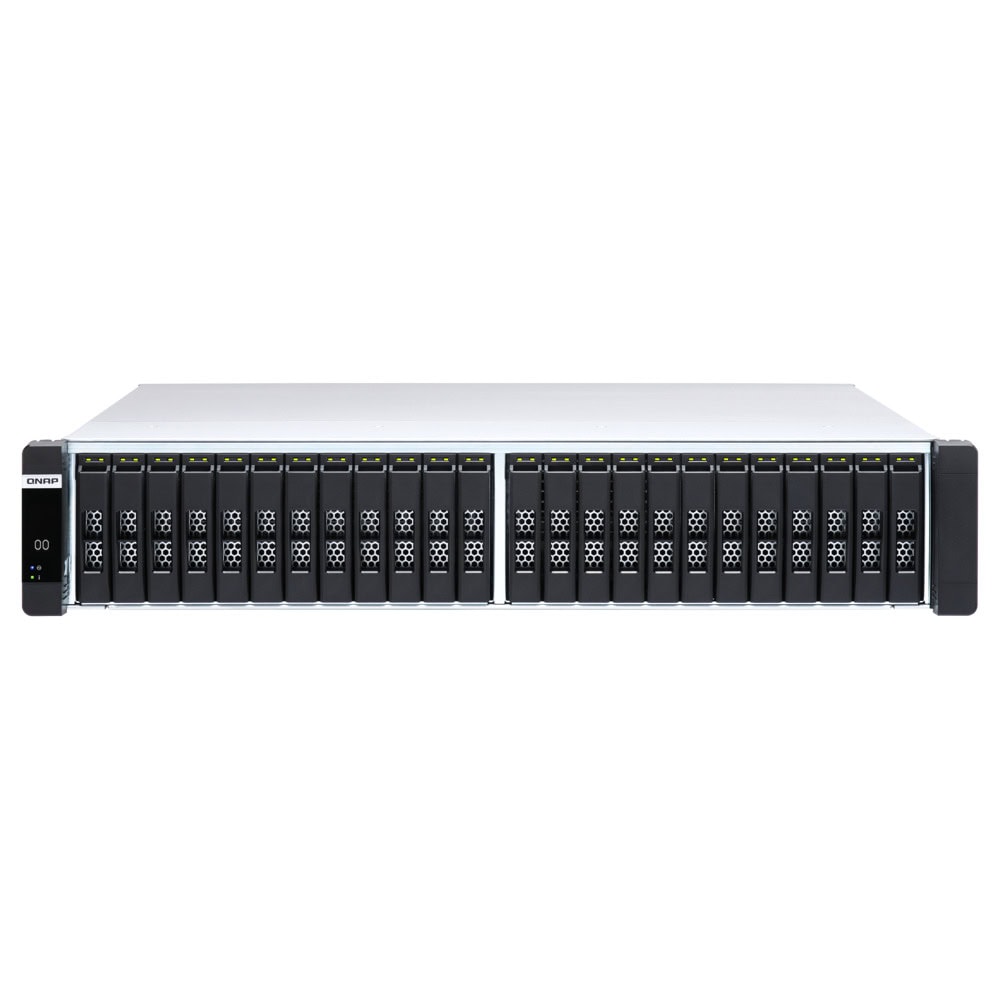

Qnap ES2486dc-2142IT-96G

ES2486dc

Powerful and cost-efficient Intel® Xeon® D based Enterprise ZFS NAS, optimized for inline deduplication and all-flash applications

The ES2486dc Enterprise ZFS NAS is QNAP’s first high-availability NAS with all-flash arrays and dual active controllers. Powered by an Intel® Xeon® D-2142IT 8 cores/16 threads processor, the ES2486dc supports up to 24 x 2.5-inch SAS 12Gbps SSDs and provides excellent I/O throughputs. Random write performance for all-flash arrays is further driven by the flash-optimized QES 2.1.1 operating system that comes pre-installed on the ES2486dc. The QES uses ZFS to support logical volume management; block-based inline data deduplication and inline compression reduce I/O and SSD storage consumption, which significantly extends SSD lifespan with higher price-performance ratio for all-flash storage arrays. Coupled with near-limitless snapshots and SnapSync for data protection, the QES-based ES2486dc fulfills demanding business applications, such as mission-critical file servers, virtualization servers, VDI, medium-sized data center, video streaming, surveillance storage, and efficient file backup and recovery.

Component	Specification
Number of Controller Module	2
CPU	Intel® Xeon® D-2142IT 8-core 1.90 GHz processor, up to 3.0 GHz
CPU Architecture	64-bit x86
Floating Point Unit	Yes
Encryption Engine	AES-NI

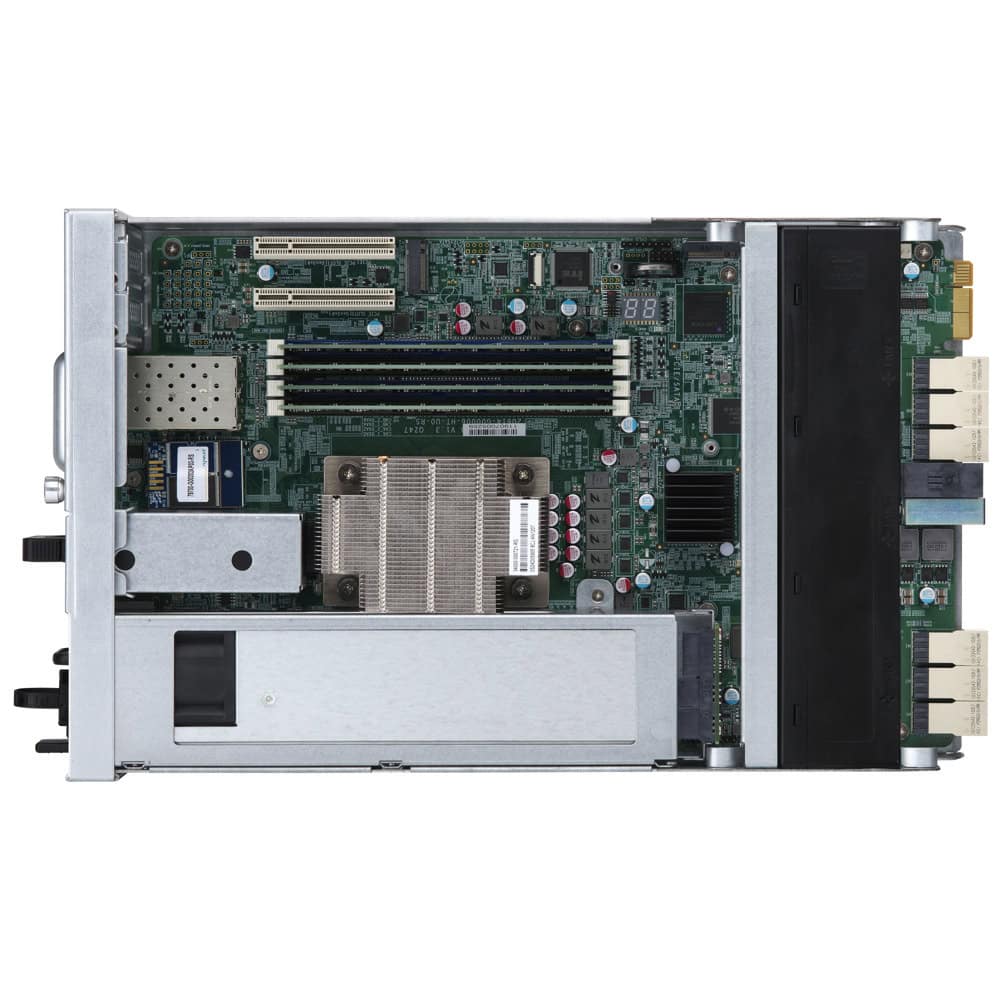

System Memory	48 GB RDIMM DDR4 ECC per controller
Maximum Memory	1024 GB (16 x 64GB) or 512 GB (8 x 64GB) per controller
Memory Slot	16 x R-DIMM/LR-DIMM DDR4 or 8 x R-DIMM/LR-DIMM DDR4 per controller Note: Only one type of DIMM can be used at a time (RDIMM or LRDIMM).
Flash Memory	4GB (Dual boot OS protection)

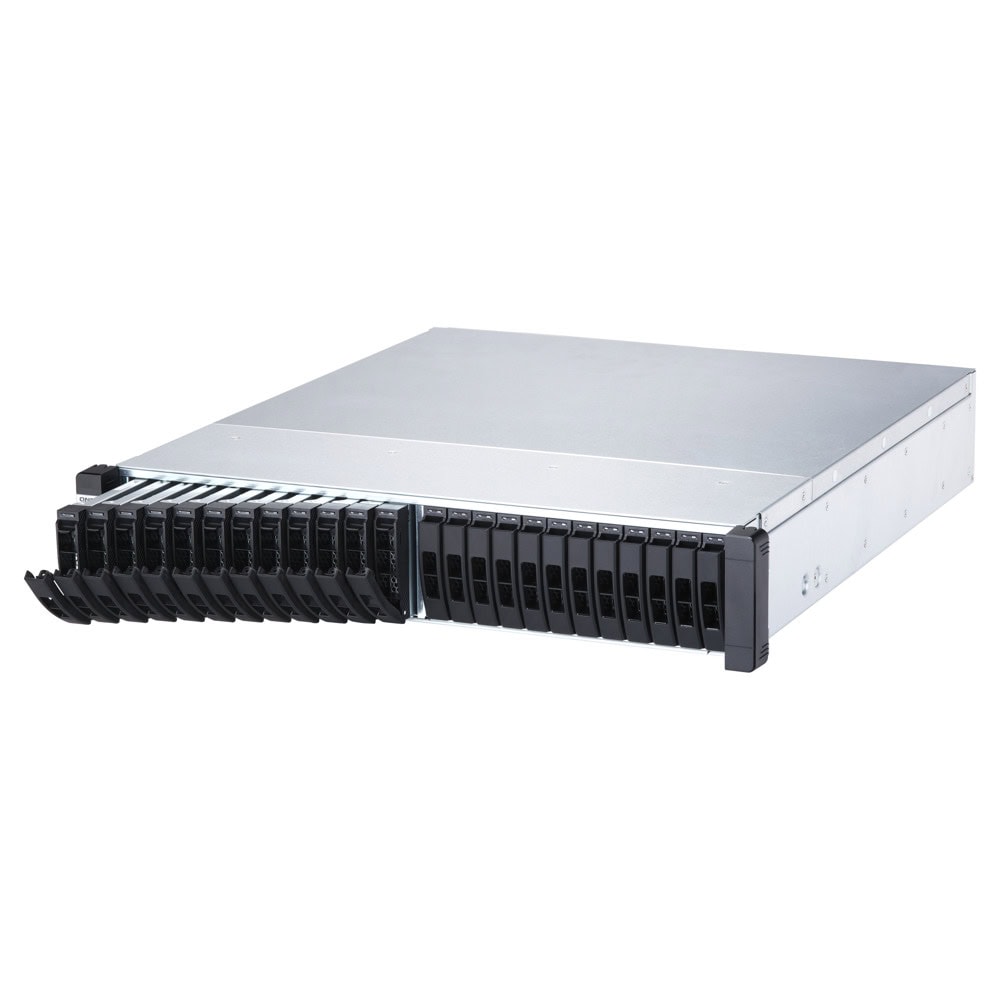

Drive Bay	24 x 2.5-inch, SAS 12Gb/s, backward-compatible to SAS 6Gb/s
Drive Compatibility	2.5-inch SAS/SATA HDD or SSD Note: SATA HDD/SSD requires QDA-SA3 adapter for SAS bay.
Hot-swappable	Yes
SSD Cache Acceleration Support	L1 ARC Read Cache: RAM L2 ARC Read Cache: SSD ZIL Write Cache: NVRAM (C2F)
Cache for Copy To Flash (C2F)	1 per controller (64GB M.2 SSD)

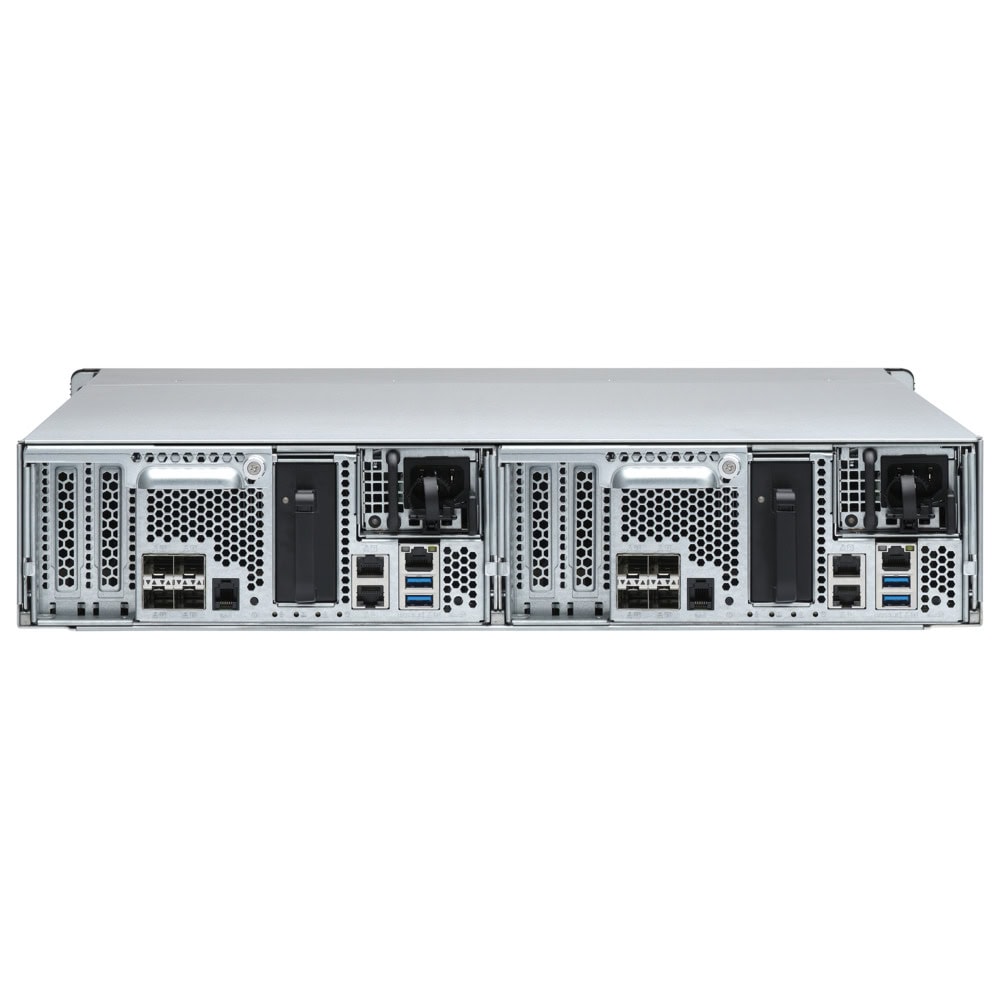

Gigabit Ethernet Port (RJ45)	3 per controller (1 reserved for remote management)
10 Gigabit Ethernet Port	4 x 10GbE SFP+ per controller
Wake on LAN (WOL)	Supported
Jumbo Frame	Supported
PCIe Slot	2 per controller Slot 1: PCIe Gen 3 x8 (CPU) Slot 2: PCIe Gen 3 x8 (CPU) Card dimensions: 215 x 68.9 x 18.76 mm / 8.46 x 2.71 x 0.74 inches. Wider cards allowed if next slot is unused.
USB 3.2 Gen 1 port	2 per controller Note: For engineering purposes only; external storage/UPS not supported.
Form Factor	2U Rackmount
LED Indicators	System Power LED (Green): on/off System Status (Green/Red): operation, errors, low power, degraded RAID, memory failure, fan/power supply failure, temperature warnings, storage threshold, takeover, PSU unplugged LCD Status Display (Two-digit number): JBOD connection status
Buttons	Power, Reset
Dimensions (HxWxD)	88.3 × 446.2 × 504.1 mm
Weight (Net)	23.4 kg
Weight (Gross)	27.4 kg
Operating Temperature	0 - 40 °C (32°F - 104°F)
Storage Temperature	-20 - 70 °C (-4°F - 158°F)
Relative Humidity	5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit	Redundant/Hot Swap, Vin: 90~264 VAC, 700 W
Power Consumption (Typical)	579.59 W (tested with fully populated drives)
Fan	Hot-swappable fan module (60x60x38mm; 16000 RPM/12V/2.8A x 3)
System Warning	Buzzer
