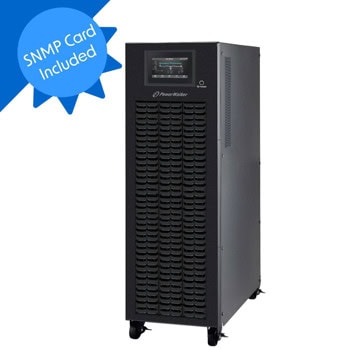

Name: UPS PowerWalker VFI 20K CPG PF1 3/3 BI, 20000VA/20000W, On-line, Tower, включена SNMP карта
Brand: PowerWalker
SKU: UPSPOWERWALKER10122154
Price: 3867.46 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Вземи на изплащане

Unity Power Factor 1.0 (kVA = kW)
Very Low Total Harmonic Distortion on Output Voltage
Three-Phase or Single-Phase Input
Parallel operation, up to 3 units
Dual input and Adjustable Charging Current
SNMP Manager included!
A Touch-Panel was added to the Unit!

The PowerWalker VFI CPG 3/3 PF1 series is a professional commercial solution built in double conversion Online technology with power factor 1.0. Equipped with three-level inverter topology, it results in high efficiency, reaching 95.5% in Line Mode and even 98.5% in ECO Mode. The series ensures low harmonic distortions and precise voltage regulation (1%). All phases have Active Power Factor Correction.

Thanks to its modern design, the VFI CPG series reaches a very high power density (kVA output in relation to the size/volume of the unit). All models of this series offer generator support, dual input and allow parallel operation up to three units.

For this model battery numbers can be adjusted (between 32 and 40pcs), allowing more flexibility and compatibility with existing battery banks. The three stage extendable charging design also enhances battery performance over its life time.

General Features
Type	Online Three Phase (VFI)
Phases (IN-OUT)	3-3
Form Factor	Tower
Power Capacity	20000VA / 20000W
Output Power Factor	1.00
Input
Input Voltage Range	305-478 VAC (3-phase) @100% load 190-520 VAC (3-phase) @50% load
Max THDi	≤4% Full Linear Load; ≤6% Half Load
Frequency Range	46Hz – 54Hz or 56Hz – 64Hz
Frequency (Synchronized Range)	46Hz – 54Hz or 56Hz – 64Hz
DC Input (PV)
Input Power Factor	≥ 0.99 at full load
Output
Waveform	Pure Sine Wave
VA	20000
Load Crest Ratio	3:1 (max)
Nominal Output Voltage	3x 400V (3Ph+N); (208)/220/230/240VAC(Ph-N)
THDv	≤2% @ 100% linear load, ≤4% @ 100% non-linear load
Frequency (Battery Mode)	±0.1Hz
Output Power Factor	1.00
Input & Output Connectors
Input Connector	Terminal
Terminal Output	Yes
Technical Details
LINE Mode Efficiency [%] (Full Load)	95.5
Battery Mode Efficiency [%] (Full Load)	94.5
ECO Mode Efficiency [%] (Full Load)	98.5
Transfer Time (AC / Line Mode or Battery Mode to ECO Mode) [ms]	<10ms
Transfer Time (AC / Line Mode to Battery Mode) [ms]	0ms
Transfer Time (ECO Mode to AC / Line Mode or Battery Mode) [ms]	<10ms
Transfer Time (Line Mode or Battery Mode to Bypass Mode) [ms]	0ms typical (4ms max)
Load Crest Ratio	3:1 (max)
Bypass	Manual – Bypass
Additional Features	Battery Pack Available, Dual Input Option, ECO Mode Available, EPO – Emergency Power Off, Generator Compatible, HID – Human Interface Device, Input Breaker, Parallel Connectivity, Touch-Display, Unity Power Factor 1.0, External Battery Compatible, Battery-Sharing
IEC 62040-3 classification	VFI-SS-111
Batteries and Autonomy
Batteries	32x 12.0V/9.0Ah
DC Voltage	32x 12.0V
Adjustable Batteries in String	32-40
Recharge Time	9h to 90%
Full Load Backup Time [min]	1.5
Half Load Backup Time [min]	6.5
Charger	1-12A
Recharge Time	9h to 90%
Communication
Communication	Dry contact, USB Type B – for Monitoring Software, RS-232, Management Card Slot
Software	ViewPower
Parallel Operation [Units]	3
Management and Environment
Software	ViewPower
Communication	Dry contact, USB Type B – for Monitoring Software, RS-232, Management Card Slot
Noise Level	< 60dB
Fan Logic	Always on, automatic speed control
Temperature	0°C – 40°C
Humidity	0% – 95% RH (non-condensing)
IP	IP 20
Logistics
Package Height [mm]	940
Package Width [mm]	370
Package Depth [mm]	690
Package Weight [kg]	149.0
Product Height [mm]	827
Product Width [mm]	250
Product Depth [mm]	627
Product Weight [kg]	139.0
Package Content	Manual, UPS
EAN	4260074981346
Product Dimensions (DxWxH) [mm]	627 x 250 x 827 mm
Package Dimensions (DxWxH) [mm]	690 x 370 x 940 mm
Outer Carton Weight [kg]	146.0
Pcs. per Outer Carton	1
Pcs. per Layer	3
Pcs. per Pallet [Oversized]	3
