Name: UPS Eaton 9SX 5000i RT3U G2, 5000VA/5000W, ON Line, Rack/Tower
Brand: Eaton
SKU: UPSEATON9SX5KIRT3UG2
Price: 3733.03 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси

9SX5KIRT3UG2

Eaton 9SX 5000i RT3U G2

Eaton 9SX Gen2 UPS, 5000 VA, 5000 W, Input: Hardwired, Outputs: (8) C13, (3) C19, Hardwired, Rack/tower, 3U, Rack-mounting kit included

Specification	Value
Auto shutdown function	Yes
Color	Black
Construction type	482.6 mm (19 inch) device
Efficiency at max. load	96.7
Hot swap power	No
Internal bypass	Yes
Package contents	UPS, (2) cable glands, (2) IEC-IEC output cables (1,2m), USB cable (1,8m), Cable locking systems, Supports for tower mounting, Rack-mounting kit with brackets and slides for UPS, Safety instructions, Quickstart guide
Rack mounting kit	Yes
Battery management	ABM+ (Predictive battery life) & Temperature compensated charging method (user selectable), Automatic battery test, Deep discharge protection, Automatic recognition of external battery units
Battery quantity	15
Battery rating	12 V / 5 Ah
Battery replacement	Hot-swappable internal batteries and extended battery modules (EBMs)
Battery type	Sealed, lead-acid
Extended battery capability	Yes
Runtime graph	View runtime graph
Communication	USB port (HID compliant), Serial port (RS232), Mini terminal block for remote On/Off, Mini-terminal block for remote power off, Mini-terminal block for dry contacts outputs (2 contacts)
Ethernet interface	No
Expansion slots	One slot
Includes network card	No
Potential free switch contact	Yes
Software compatibility	Eaton Brlightlayer Software suite
Type of interface	Other

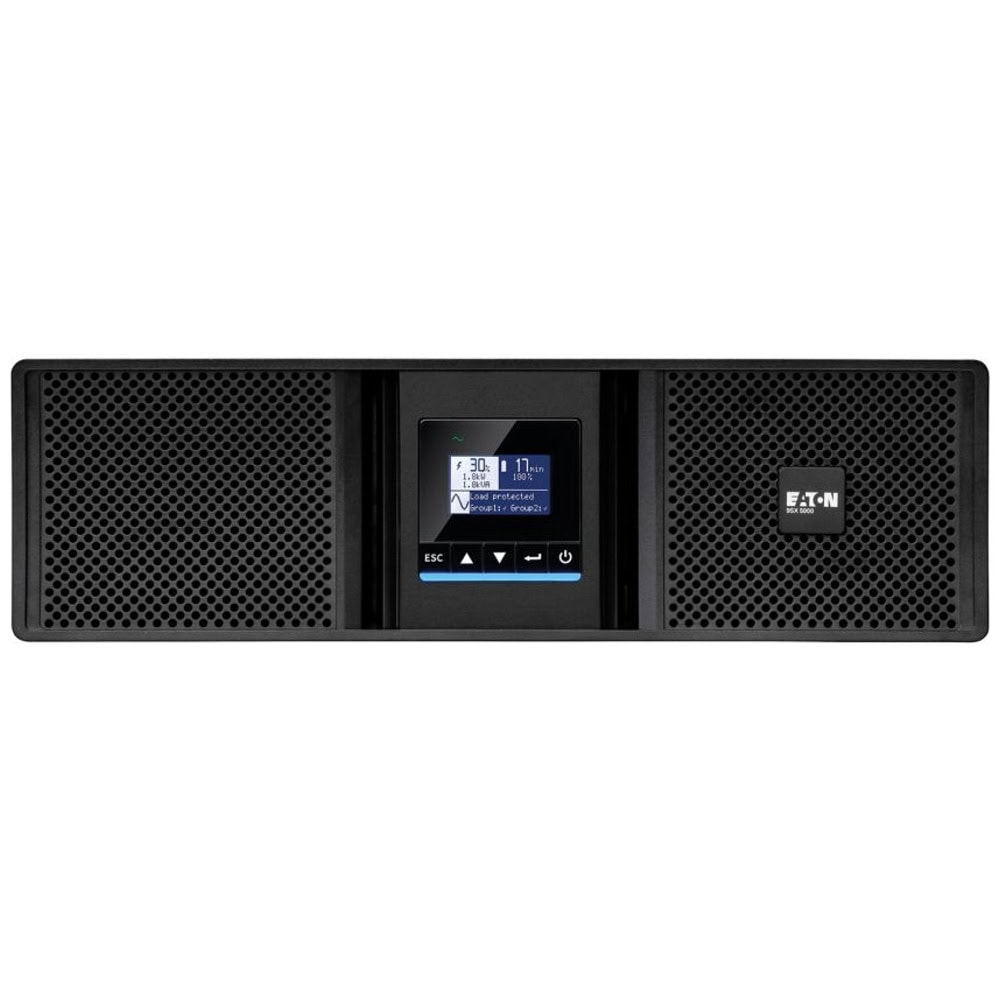

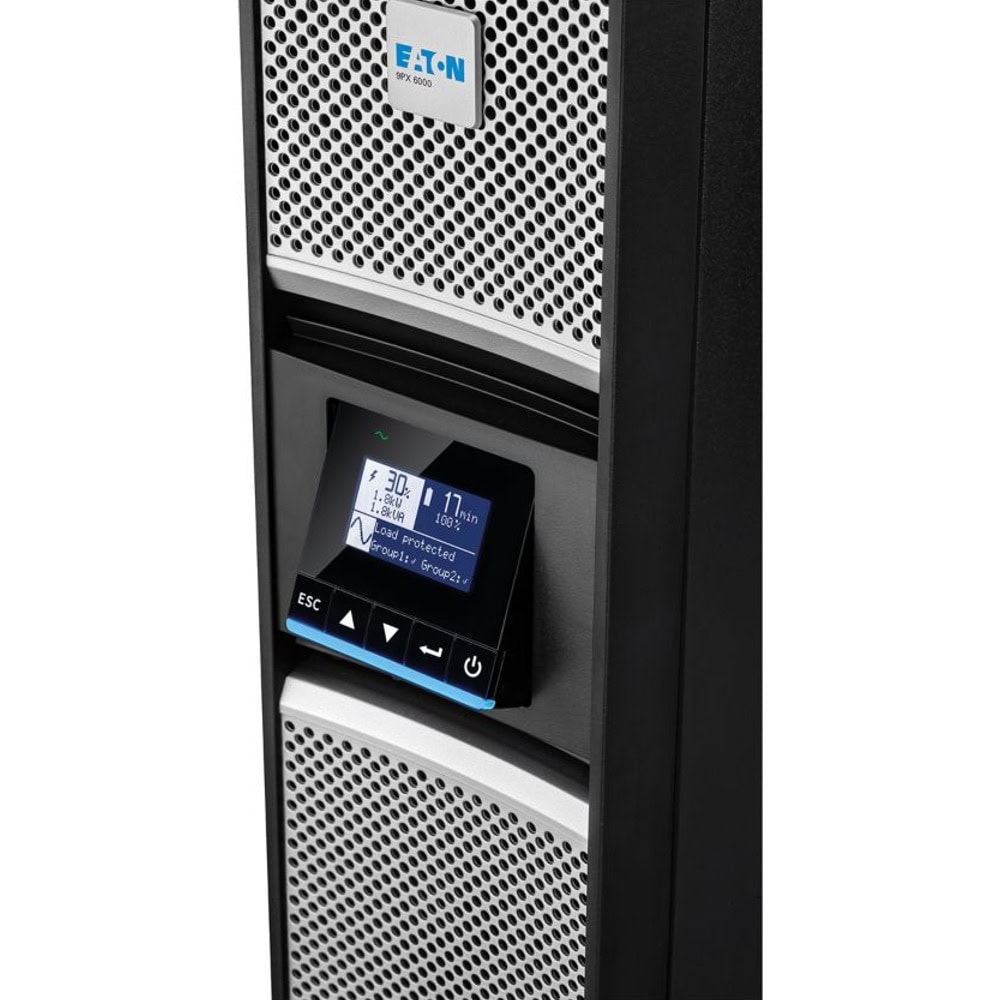

User interface	Multilingual graphical LCD display
Input frequency range	40-70 Hz
Input power factor	>.99
Input voltage range	176-276 V (100-276 V with derating)
Nominal frequency	50/60 Hz
Feed type	1
Output nominal voltage	230V default (200/208/220/230/240V)
Output power factor	1
Output waveform	Sine wave

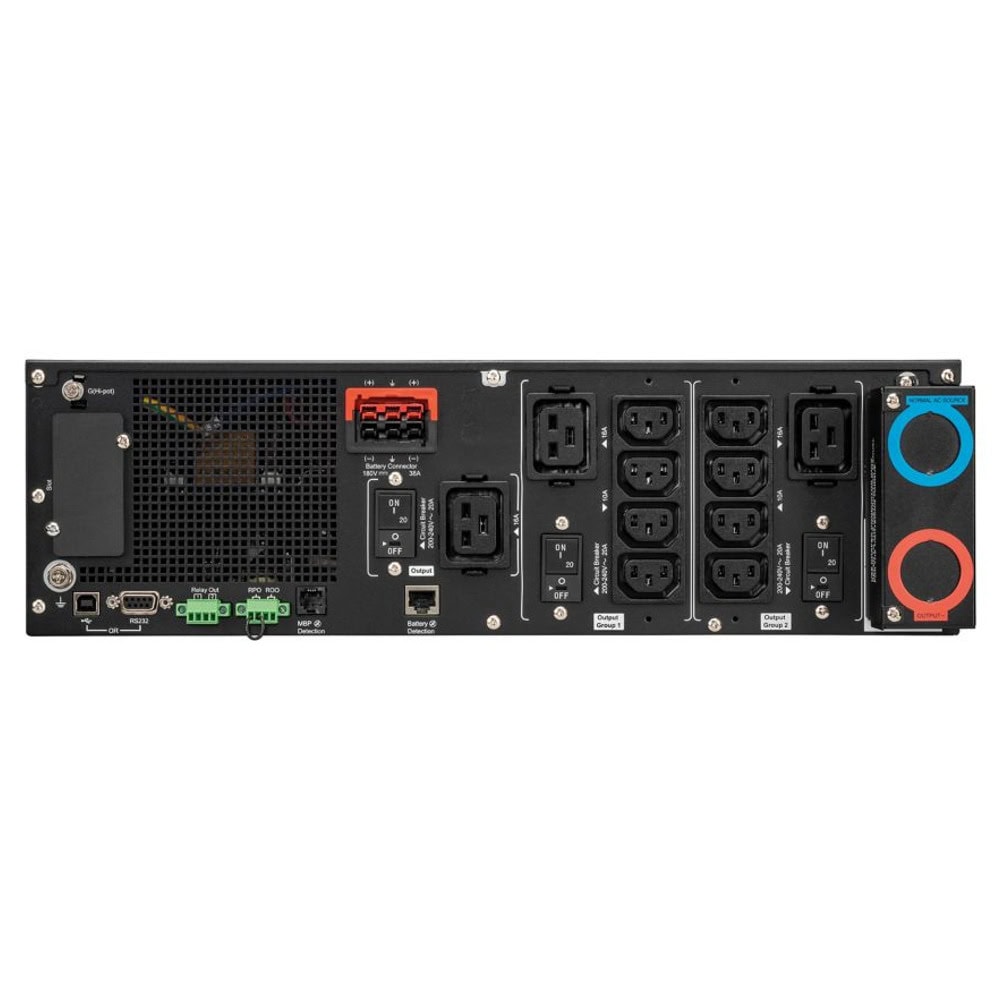

Receptacle	(8) C13, (3) C19, Hardwired
Topology	Online/Double-conversion
VA rating	5000 VA
Voltage	230V
Voltage distortion output (linear load) - max	1
Wattage	5000W
Altitude	3000 m
Noise level	<40 dB at 1 meter
Relative humidity	0-95% non-condensing
Temperature range	0° to 40°C (32° to 104°F)
