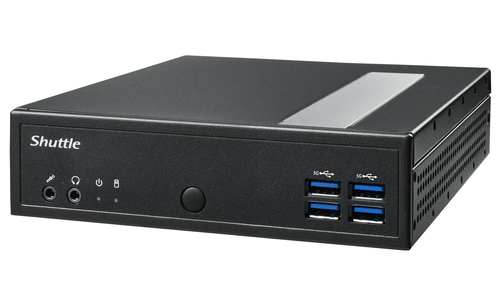

Name: Полуготова система Shuttle DL40N N150, Intel Intel® Graphics, No
Price: 290.86 EUR
Availability: InStock

Описание

Audio
Built-in speaker(s)	No
Design
Chassis type	1.35L sized PC

Cable lock slot	Yes

LED indicators	HDD, Power

Product colour	Black

Panel mounting interface	100 x 75 mm

Housing material	Steel

On/off switch	Yes

Cooling type	Passive

Product type	Mini PC barebone

Cable lock slot type	Kensington

VESA mounting	Yes
General Information
Marketing Information	Silence meets performance. The Shuttle XPC slim Barebone DL40N is the sophisticated successor to the proven DL30N, engineered for environments where reliability and silence are non-negotiable. Powered by the energy-efficient Intel Twin Lake-N N150 processor, this fanless 1.35-litre PC is the ideal foundation for slimline workstations, robust edge computing, or high-availability client/server setups. Connectivity is at the heart of the DL40N. Featuring dual Intel 2.5G LAN ports for high-speed networking and an optional 4G upgrade, it ensures seamless integration even in mobile or remote applications. The integrated Intel UHD Graphics supports hardware acceleration for 4K video playback across three independent displays (HDMI, DisplayPort, VGA), making it a versatile choice for digital signage and multi-monitor office environments. Designed for 24/7 continuous operation and encased in a durable metal chassis, the DL40N remains noiseless when paired with an SSD. Whether it’s for industrial control, point-of-sale, or silent office use – the DL40N delivers professional-grade performance in a compact, maintenance-free form factor.
Graphics
Maximum resolution	4096 x 2160 pixels

Graphics card family	Intel

On-board graphics card model	Intel® Graphics

Discrete graphics card model	Not available

On-board graphics card	Yes

Number of displays supported	3
Logistics data
Harmonized System (HS) code	84733080
Memory
Maximum internal memory	16 GB

Non-ECC	Yes

Memory voltage	1.1 V

Supported memory clock speeds	4800 MHz

Supported memory types	DDR5-SDRAM

Memory channels	Single-channel

Memory slots type	SO-DIMM

Number of memory slots	1

Internal memory installed	No
Network
Ethernet LAN	Yes

LAN controller	Intel I226-LM

Wi-Fi	No
Operational conditions
Operating relative humidity (H-H)	10 - 90%

Operating temperature (T-T)	0 - 40 °C
Packaging content
AC adapter included	Yes

Quick start guide	Yes

Power cord included	Yes

Drivers included	Yes
Performance
BIOS type	UEFI AMI

Number of processors supported	1

Audio chip	Realtek ALC888S
Ports & interfaces
Serial ports quantity	2

USB 2.0 ports quantity	0

Ethernet LAN (RJ-45) ports	2

Headphone outputs	1

Microphone in	Yes

DC-in jack	Yes

VGA (D-Sub) ports quantity	1

HDMI ports quantity	1

HDMI version	2.0b

DisplayPorts quantity	1

DisplayPort version	1.4a

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	8
Power
Power supply type	External AC adapter

Number of power supply units	1

AC adapter output voltage	19 V

AC adapter output current	3.42 A

Power supply	65 W

AC input frequency	50/60 Hz

AC input voltage	100 - 240 V
Processor
Processor model	N150

Processor manufacturer	Intel

Processor cores	4

Processor threads	4

Built-in processor	Yes

Processor boost frequency	3.6 GHz

Processor cache	6 MB

ECC supported by processor	No
Software
Operating system installed	No

Windows operating systems supported	Windows 10, Windows 11 x64

Linux operating systems supported	Yes
Storage
Card reader integrated	No

Storage drive interface	PCI Express, Serial ATA III

Number of storage drives supported	2

Storage drive sizes supported	2.5,M.2

Storage drives installed	No

Supported storage drive types	HDD & SSD
Sustainability
Sustainability compliance	Yes

Sustainability certificates	ENERGY STAR, ErP
Weight & dimensions
Weight	800 g

Package weight	2.1 kg

Height	43 mm

Width	165 mm

Depth	190 mm
