Полуготова система Raspberry RASPBERRY PI, ARM Cortex A53
Икона в кампания
empty image 1empty image 2empty image 3

Полуготова система Raspberry RASPBERRY PI, ARM Cortex A53

id s4203287
  • Наличност: Не е наличен
    Продукта вече не се предлага Абонирай се за бюлетина
    Описание
    General Information
    Marketing Information

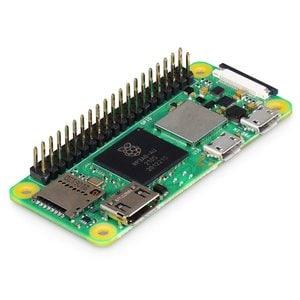

    Raspberry Pi Zero 2 W is the latest product in our most affordable range of single-board computers. The successor to the breakthrough Raspberry Pi Zero W, Raspberry Pi Zero 2 W is a form factor-compatible drop-in replacement for the original board.

    The board incorporates a quad-core 64-bit Arm Cortex-A53 CPU, clocked at 1GHz. At its heart is a Raspberry Pi RP3A0 system-in-package (SiP), integrating a Broadcom BCM2710A1 die with 512MB of LPDDR2 SDRAM. The upgraded processor provides Raspberry Pi Zero 2 W with 40% more single-threaded performance, and five times more multi-threaded performance, than the original single-core Raspberry Pi Zero.

    Raspberry Pi Zero 2 W offers 2.4GHz 802.11 b/g/n wireless LAN and Bluetooth 4.2, along with support for Bluetooth Low Energy (BLE), and modular compliance certification.

    The board has a microSD card slot, a CSI-2 camera connector, a USB On-The-Go (OTG) port, and an unpopulated footprint for a HAT-compatible 40-pin GPIO header. It is powered via a micro USB socket. Video output is via a mini HDMI port; composite video output can easily be made available via test points if needed.

    Sharing the same form factor as the original Raspberry Pi Zero, Raspberry Pi Zero 2 W fits inside most existing Raspberry Pi Zero cases.

    Interfaces/Ports
    HDMIYes
    Total Number of USB Ports1
    Number of USB 2.0 Ports1
    Memory
    Memory Card SupportedSD
    Memory Card SupportedmicroSD
    Memory Card ReaderYes
    Network & Communication
    BluetoothYes
    Wireless LANYes
    Bluetooth StandardBluetooth 4.2
    Processor & Chipset
    Processor Speed1 GHz
    Processor TypeCortex A53
    Processor ModelBCM2710A1
    Processor CoreQuad-core (4 Core)
    Processor ManufacturerARM
    Chipset ManufacturerARM
