Интерактивен дисплей Philips 32BDL3751T/00, 31.5" (80.01 cm) FHD IPS сензорен дисплей, DisplayPort, HDMI, USB, USB-C, Wi-Fi, Bluetooth, LAN

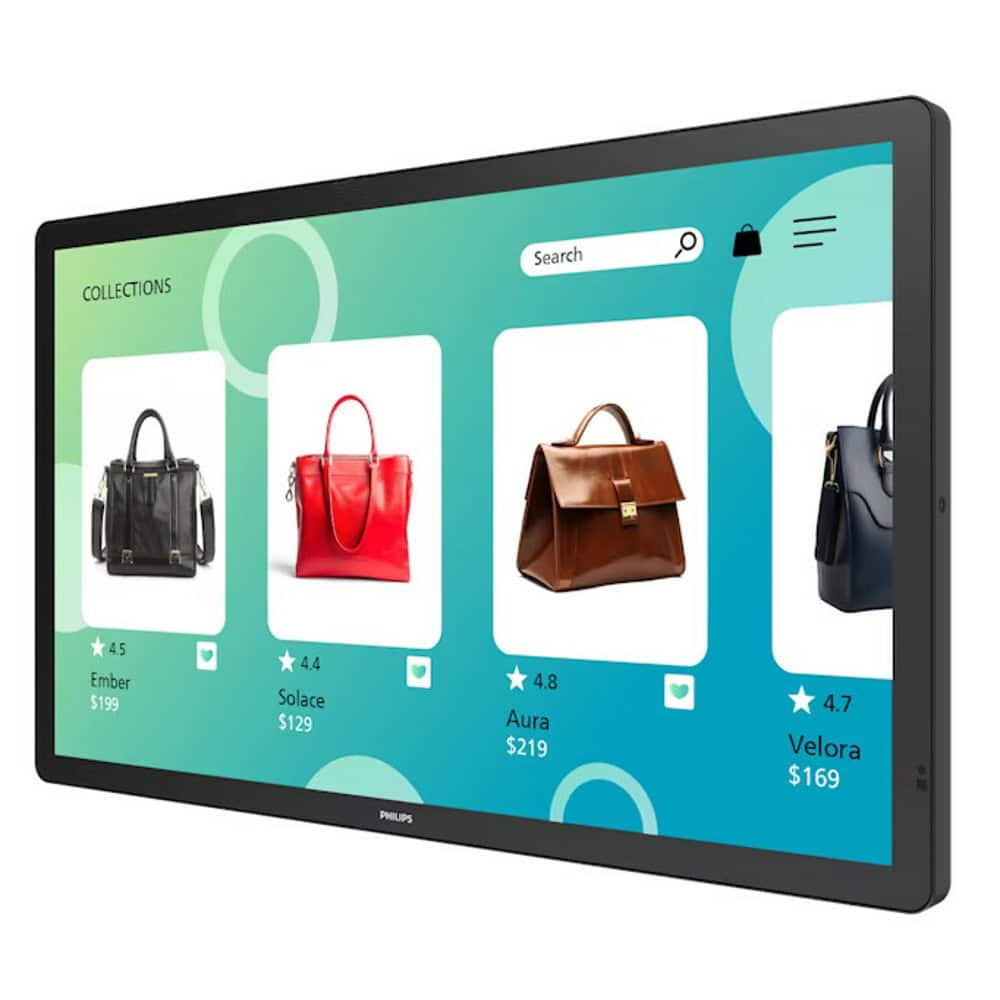

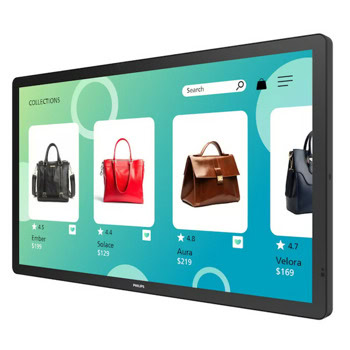

Philips 32BDL3751T/00

Signage Solutions Philips Interactive 3000 Series

Better connected – versatile multi-touch display

Delivering 24/7 operation with 350 nits brightness, this versatile PCAP display is also designed to reduce energy consumption across the range. Engage. Inspire. Connect. With Android 13, Wave ready, and no need for an external media player.

Easy to clean, with anti-glare and anti-fingerprint coating.

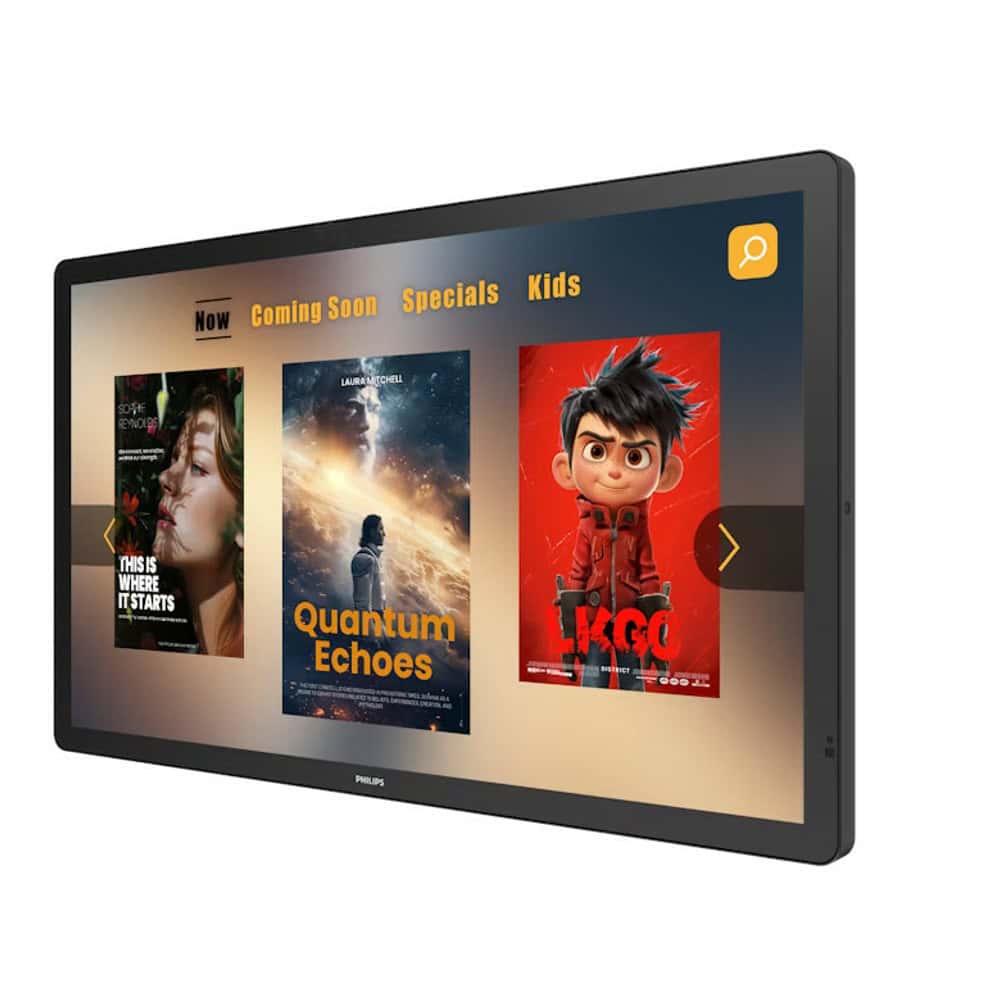

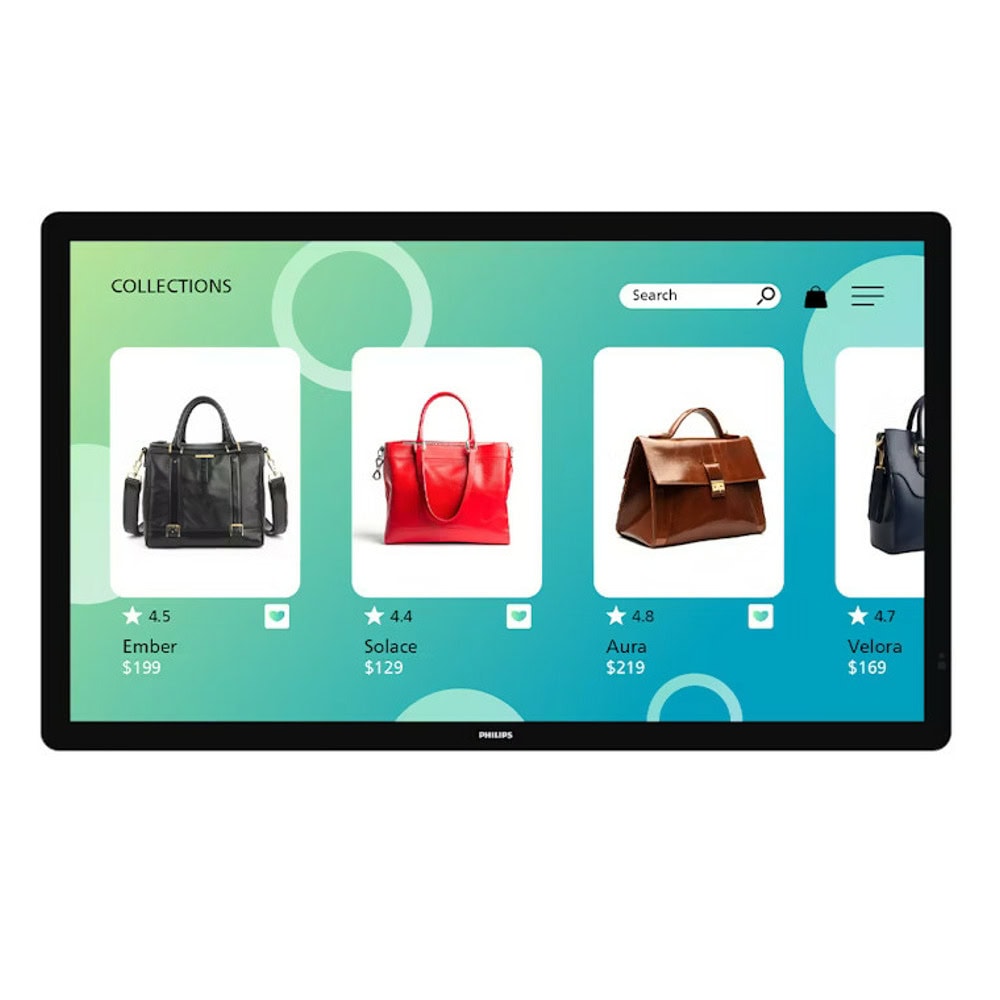

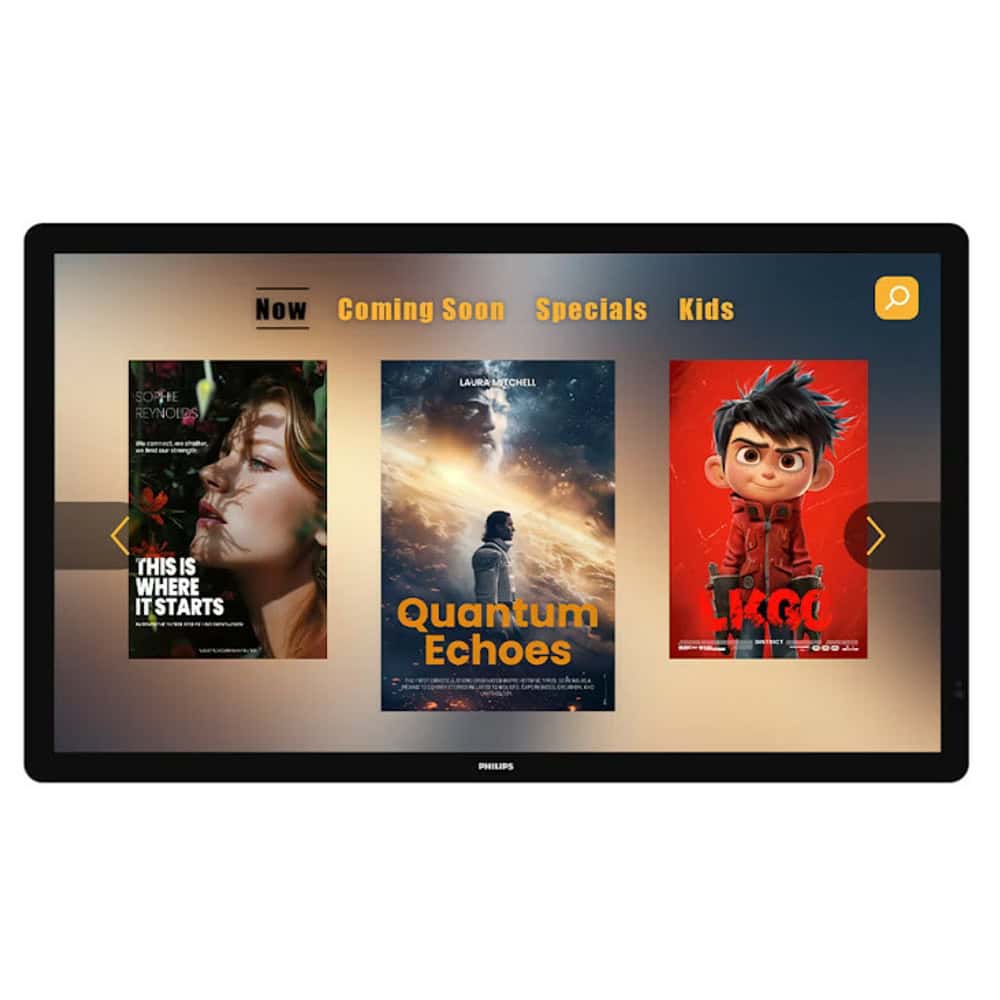

A flush design with no bezel bringing an edge to edge experience augmented with anti-glare glass. Easy to clean, these interactive touch screens also feature anti-fingerprint coating.

Also supporting 30° tilt – ideal for kiosk installations.

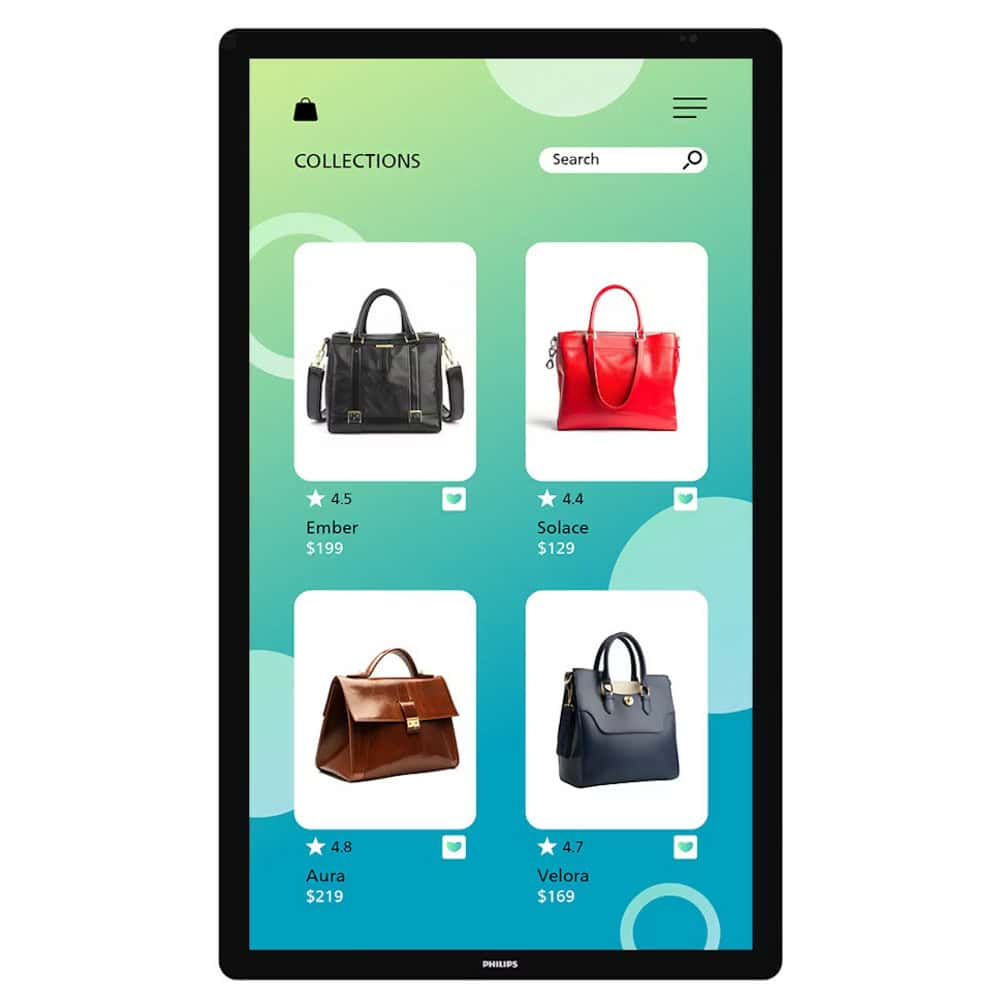

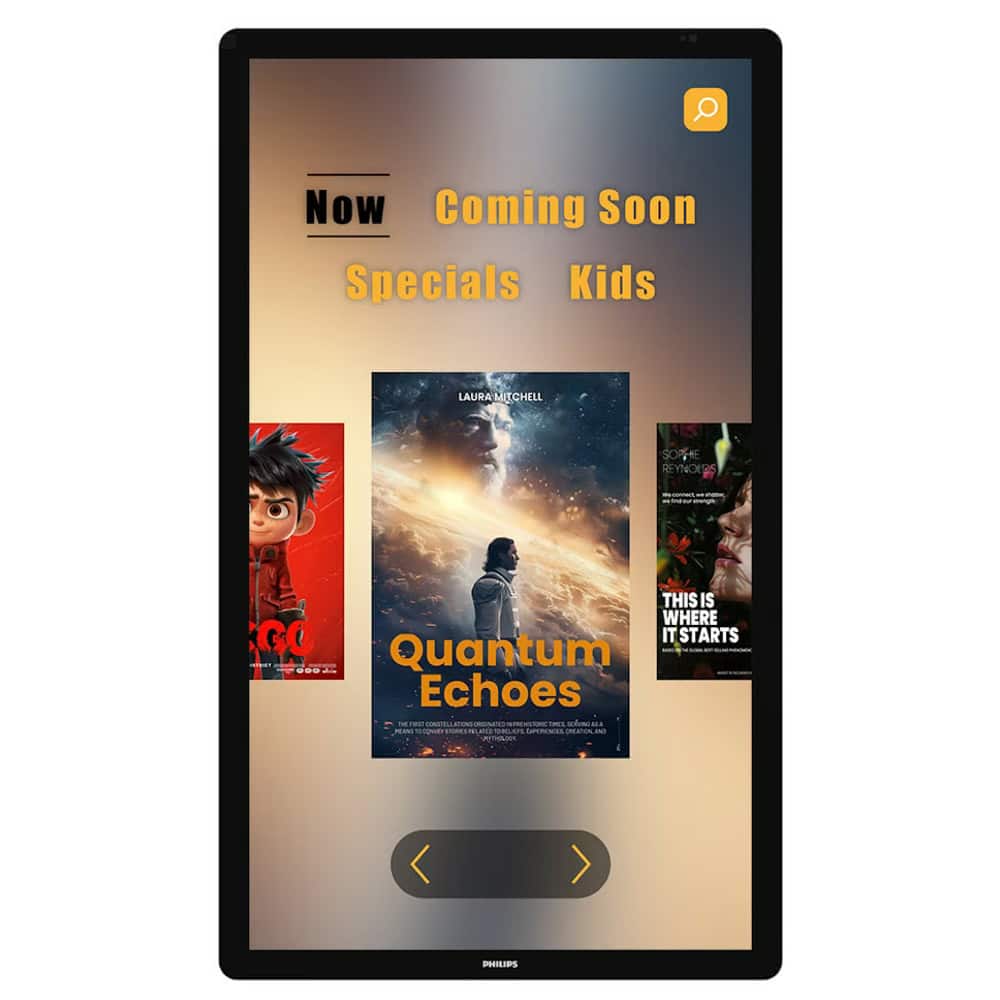

Install in portrait or landscape orientations, with the option to tilt to 30°, with size variants to suit a range of installation purposes. Whether on a shelf – ideal for the 24” – angled or upright for Point of Sale, configurators, order points and kiosks – with the 32” and 43” – or for wayfinding – think 55”.

Better visibility even in bright daylight

With 350 cd/m2 brightness for better visibility under bright lights, the Philips Interactive 3000 Series is designed to be used 24/7, making it a great selection for travel and transportation hubs, retail centers, food and beverage locations, and more. FailOver is also included enabling your display to switch automatically between primary and secondary inputs should an outage occur.

No need for external media player. 4GB RAM + 32GB ROM.

The ultimate in intuitive user experience, with a professional Android 13 SoC built in for easy apps and solutions integrations and no need for an external media player. Connections include Wifi and Bluetooth, as well as USB-C port.

Remote monitoring, maintenance, and management.

Manage your display and control content remotely with PPDS Wave Controller – your evolutionary ecosystem designed to support time, energy and cost efficiencies. Discover software applications to support your interactive vision from our network of proven partners on the PPDS ProStore.

Supporting business sustainability and energy savings.

Reduced power consumption compared to previous models, supporting business sustainability and energy savings.

Better connecting customers with content.

Allows seamless connectivity, enabling easily access and engagement with content.

Activated out of the box for hassle free peace of mind.

Reliable, worry-free protection for your displays, with a three-year warranty automatically in place from the start, eliminating any setup effort.

Technical Specifications

• Picture/Display

  Diagonal screen size (metric)

  80  cm

  Diagonal screen size (inch)

  31.5"  inch

  Aspect ratio

  16:9

  Panel resolution

  1920x1080p

  Pixel pitch

  0.364 mm

  Optimum resolution

  1920 x 1080 @ 60 Hz

  Display colors

  16.7 M

  Brightness (after glass)

  350  cd/m²

  Brightness (before glass)

  400  cd/m²

  Contrast ratio (typical)

  1200:1

  Response time (typical)

  8  ms

  Viewing angle (horizontal)

  178  degree

  Viewing angle (vertical)

  178  degree

  Picture enhancement

  • 3/2 - 2/2 motion pull down
  • 3D Combfilter
  • 3D MA deinterlacing
  • Dynamic contrast enhancement
  • Motion compens. deinterlacing
  • Progressive scan

  Panel technology

  IPS

  Operating system

  Android 13

  OS UI resolution

  FHD

  Surface treatments

  • Anti-Glare coating
  • Anti-Fingerprint coating

• Connectivity

  Audio output

  3.5mm jack

  Video input

  • HDMI 2.0 (x2)
  • Display Port1.3 (x1)
  • USB-C (with 15W power delivery)

  Other connections

  • Micro USB (x1) (OTG)
  • USB 3.0 A (x2)
  • USB 3.0 B (x1)
  • Wifi: 2T/2R 2.4/5/6 GHz
  • Bluetooth 5.2

  External control

  • Gigabit LAN RJ45
  • IR (in/out) 3.5 mm jack
  • RS232 (in/out) 2.5 mm jack

• Convenience

  Placement

  • Landscape (24/7)
  • Portrait (24/7)
  • Tilted installation up to 30° backwards

  Screen saving functions

  Pixel Shift, Low Brightness

  Keyboard control

  • Hidden
  • Lockable

  Remote control signal

  Lockable

  Signal loop through

  • IR Loopthrough
  • RS232

  Network controllable

  • RS232
  • RJ45

• Sound

  Built-in speakers

  2 x 10W

• Power

  Mains power

  100 ~ 240 VAC, 50/60Hz

  Consumption (Typical)

  35  W

  Consumption (Max)

  87 W

  Standby power consumption

  <0.5W

  Energy Label Class

  G

• Supported Display Resolution

  Computer formats

  • 720 x 400, 70Hz
  • 640 x 480, 60,67,75Hz
  • 800 x 600, 60Hz
  • 832 x 624, 75Hz
  • 1024 x 768, 60Hz
  • 1152 x 870, 75Hz
  • 1280 x 720, 60Hz
  • 1920 x 1080, 60Hz
  • 1680 x 1050, 60Hz
  • 3840 x 2160, 30, 60Hz

  Video formats

  • 480i, 60Hz
  • 480p, 60Hz
  • 576p, 50Hz
  • 576i, 50Hz
  • 720p, 50, 60Hz
  • 1080i, 50, 60Hz
  • 1080p, 50, 60Hz
  • 3840 x 2160, 30, 60Hz

• Dimensions

  Set Width

  749.1  mm

  Set Height

  443.6  mm

  Set Depth

  69.5 mm (Wall mount) / 73.5 mm (AC connector)  mm

  Set Width (inch)

  29.49"  inch

  Set Height (inch)

  17.46"  inch

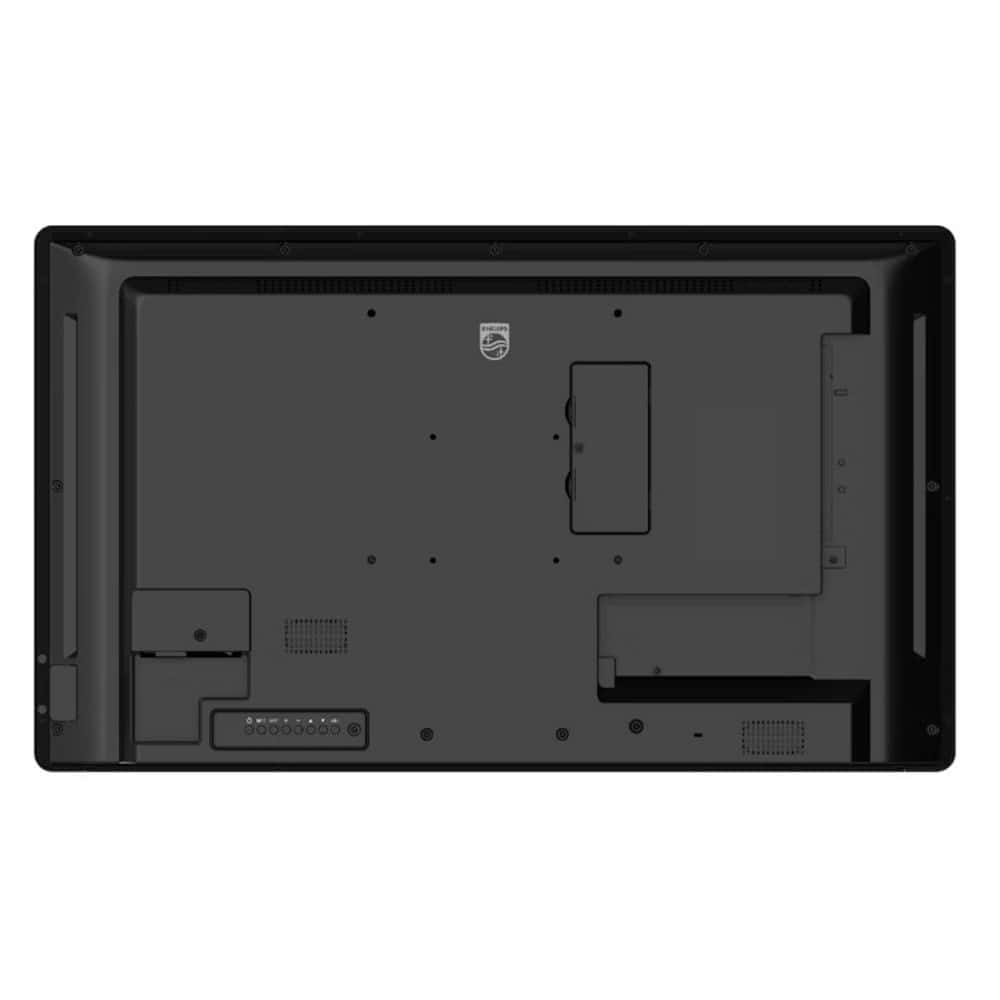

  Wall Mount

  100mm x 100mm, 200mm x 200mm , M4

  Set Depth (inch)

  2.74" (Wall mount) / 2.89" (AC connector)  inch

  Bezel width

  24.4 mm touch black border (T/R/L/B)

• Weight

  Product with packaging (kg)

  10.75  kg

  Product with packaging (lb)

  23.70  lb

  Product without packaging (kg)

  8.31 kg

  Product without packaging (lb)

  18.32 lb

• Operating conditions

  Altitude

  0 ~ 3000 m

  Temperature range (operation)

  0 ~ 40  °C

  MTBF

  50,000  hour(s)

  Temperature range (storage)

  -20~60  °C

  Humidity range (operation)[RH]

  20 ~ 80% (without condensation)

  Humidity range (storage) [RH]

  5 ~ 95% (without condensation)

• Multimedia Applications

  USB Playback Video

  • MPEG 1/2 (1080p 60Hz)
  • MPEG 4 (1080p 60Hz)
  • H.263 (1080p 60Hz)
  • H.264 (4K2K 120Hz)
  • H.265 (4K2K 120Hz)
  • VP8 (1080p 60Hz)
  • VP9 (4K2K 120Hz)

  USB Playback Picture

  • JPEG
  • PNG
  • BMP
  • WEBP

  USB Playback Audio

  • AAC
  • HEAAC
  • MPEG 1/2/2.5 Layer 3
  • MPEG 1/2 Layer 1
  • MPEG 1/2 Layer 2

• Internal Player

  CPU

  Quad Core Cortex A55

  GPU

  Multi-Core Mali-G52

  Memory

  4GB DDR3

  Storage

  32 GB eMMc
