Кутия Phanteks XT View Matrix, EATX/ATX/Micro-ATX/Mini-ITX, 2x USB 3.0, 3x 120mm вентилатора DRGB, с прозорец, черна, без захранване

Phanteks XT View Matrix

XTreme space, Cooling & Value

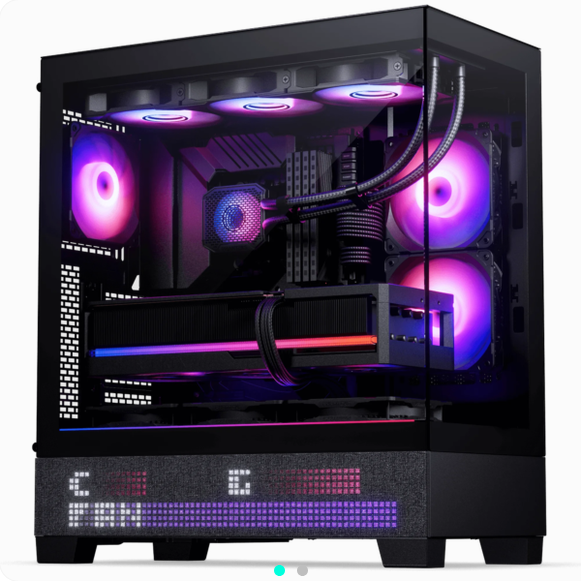

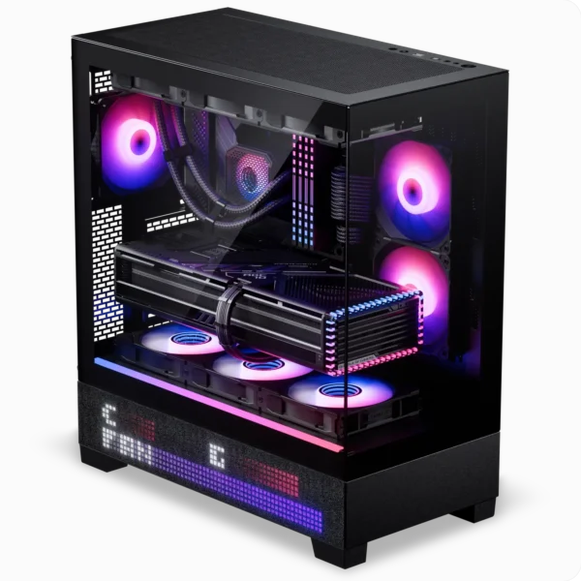

The XT View Matrix combines smart design and modern innovation with a unique 600-LED Matrix Screen elegantly hidden behind the fabric panel, bringing lighting and information to life in a subtle, integrated way.

Built for today’s powerful hardware, the XT View Matrix offers exceptional cooling capacity with support for up to 9 fans and dedicated radiator space at the top. Its spacious layout easily fits the largest GPUs, with room to spare for cable management, and supports the latest rear-connector motherboards to achieve a truly zero-cable setup.

System Information, Reimagined

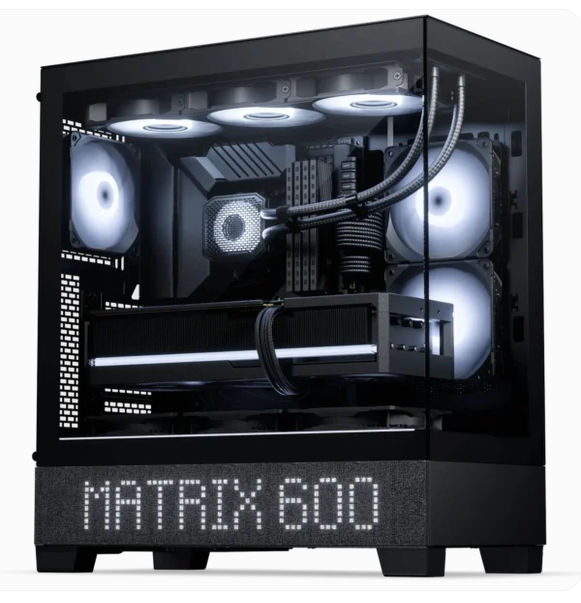

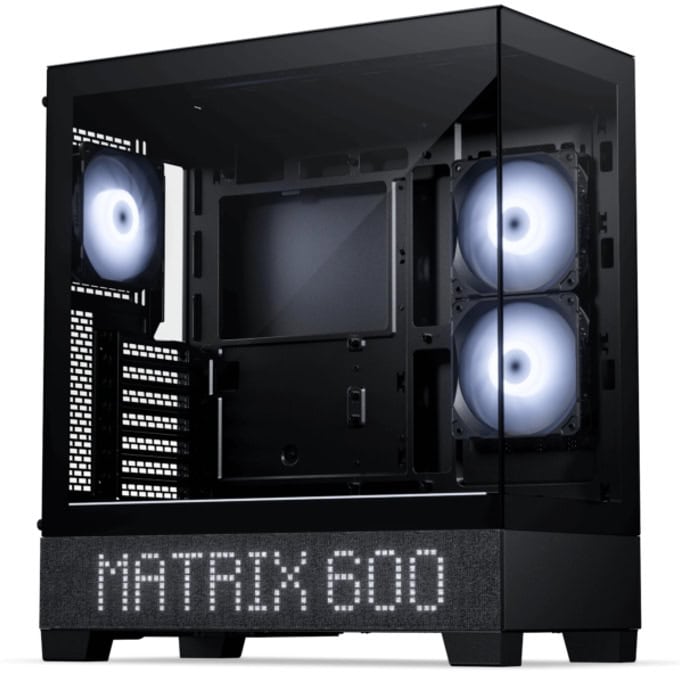

Matrix 600

• Integrated 600-LED Matrix screen hidden behind the fabric interior for a clean, seamless system display.
• Customize system stats, time, date, lighting effects, and animations through the NexLinq App for Windows.
• Fine mesh fabric covers the Matrix 600 to subtly diffuse the LED light for improved readability and visual depth.
• Hardware-driven Matrix operation ensures smooth visuals with minimal CPU impact.
• Designed as part of the Phanteks NexLinq ecosystem for unified system monitoring and control.

Computing with a View

Near-seamless glass panels.

Plenty of space for the most powerful graphics cards.

Highly durable wear- and UV-resistant fabric.

Cool and Powerful

Dedicated top 360 radiator space in the top.

Triple 120mm positions on the midplate for direct GPU cooling.

Supports a total of 9x 120mm fan locations.

Specifications

General

Case Dimensions: 454 × 228 × 588 mm (17.87 × 8.98 × 23.15 in)

Form Factor: Mid-Tower

Mainboard Support: E-ATX / ATX / Micro-ATX / Mini-ITX (up to 280 mm wide)

Materials: Steel chassis / Aluminum panels / Tempered glass window / ABS plastic / Mesh fabric

Color: Black

Expansion Slots: 7

Vertical GPU Support: Yes

Internal 2.5" Positions: 2 + 1 × 3.5" HDD

Internal 3.5" Positions: 2 + 0 × 2.5" SSD

Front I/O: 2 × USB 3.0, 1 × USB-C 3.2 Gen 2×2, 1 × Microphone/Headphone combo, D-RGB color button, D-RGB mode button, Power button, Reset button

Matrix Display

LED Amount: 600

Power Input: 5 V / 4.3 A

Fabric Material: Polyester

Connectors: Mainboard USB 2.0 header (500 mm), SATA (500 mm)

Fan Support

Total Fans (120 / 140 mm): 9 / 3

Top: 3 × 120 mm / 2 × 140 mm

Front: Not supported

Side: 2 × 120 mm / Not supported

Rear: 1 × 120 mm / 1 × 140 mm

Bottom: 3 × 120 mm / Not supported

Radiator Support

Top: Up to 360 mm / Not supported for 140 mm

Front: Not supported

Side: Up to 240 mm, only with vertical GPU bracket / Not supported for 140 mm

Rear: Not supported

Bottom: Not supported

Clearance

CPU Cooler Height: 184 mm (7.24 in)

GPU Length: 415 mm (16.33 in)

GPU Width: 184 mm (7.24 in)

Power Supply Length: 270 mm (10.62 in)

Top 360 mm Radiator Clearance: 415 × 138 × 60 mm (16.34 × 5.43 × 2.36 in)

Side 240 mm Radiator Clearance: 305 × 120 × 62 mm (12.00 × 4.72 × 2.44 in), only with vertical GPU bracket
