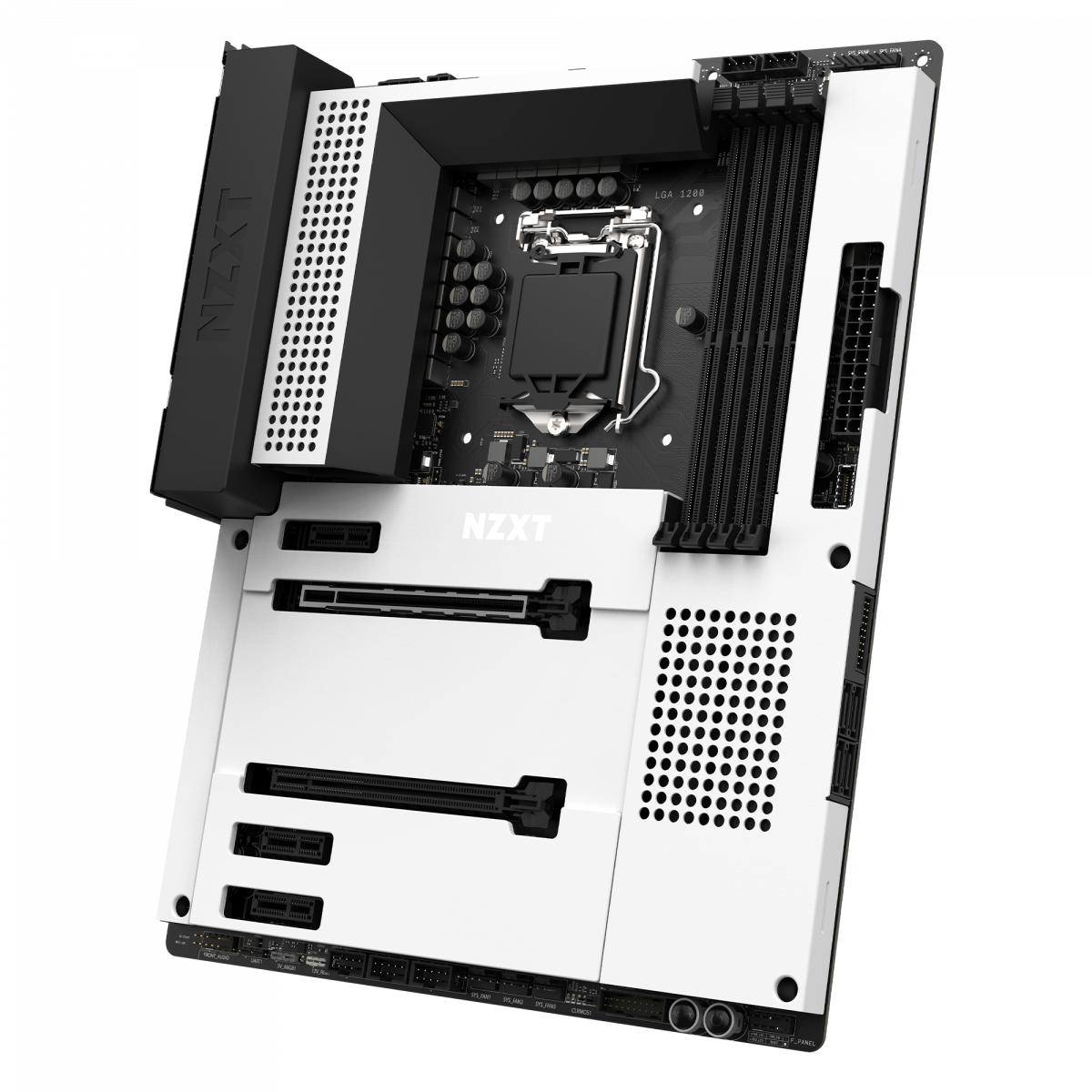

Дънна платка NZXT N7 Z590 Wi-Fi (N7-Z59XT-W1), Z590, LGA1200, DDR4, PCI-E 4.0 (HDMI)(CFX), 4x SATA 6Gb/s, 2x M.2, 1x USB 3.2 Gen 2x2 Type-C, Wi-Fi-, Bluetooth, ATX

• Digital RGB lighting control through NZXT CAM
• Digital fan control for fan profiles within NZXT CAM for seven independent fan channels
• Integrated rear I/O shield and efficient layout
• Compatible with Intel® 11th Generation Core™ i9, Core™ i7, Core™ i5, and Core™ i3 processors
• 12+2 DrMOS Power Phase Design
• Intel® Wifi 6E wireless connectivity and Bluetooth V5.2
• Intel® Optane™ Memory Ready
• Two M.2 connectors for storage devices
• Multi-GPU support with AMD CrossFireX™ Technology
• Supports memory overclocking up to 4266 MHz and Intel® XMP 2.0
• 8-channel high-definition audio

Tech Specs

CPU

• Intel® Socket LGA1200 for 10th and 11th Generation Processors: Intel® Core™ Processors. Please refer to CPU support list.

• Turbo Boost Max 3.0 Technology: Supported

Chipset

• Intel®: Z590

Memory

• DIMM Slots: 4

• Max Memory Support: 128GB

• Memory Architecture: Dual-Channel

• OC Frequency (11th Gen CPUs): 4600+ MHz

• OC Frequency (10th Gen CPUs): 4400+ MHz

• Base Frequency (11th Gen CPUs): 3200 / 2933 / 2800 / 2666 / 2400 / 2133 MHz

• Base Frequency (10th Gen CPUs): 2933 / 2800 / 2666 / 2400 / 2133 MHz

• Type: Non-ECC, Un-buffered Memory

• Intel® XMP 2.0 Support: Supported

Integrated Graphics

• Intel® Xe Graphics (11th Gen CPUs) / UHD (10th Gen CPUs): HDMI 2.0 / HDMI 1.4b

• HDMI Max Resolution: 4096x2160@60Hz

Multi-GPU Support

• AMD 2-Way CrossFireX™ Technology: Supported

Expansion Slots

• PCIe x16 (x16 mode): 1 (11th Gen CPUs - PCIe 4.0, 10th Gen CPUs - PCIe 3.0)

• PCIe x16 (x4 mode): 1

• PCIe 3.0 x1: 3

Storage (Chipset)

• M.2 Type 2242/2260/2280 (PCIe x4 mode): 1 (11th Gen CPUs - PCIe 4.0, 10th Gen CPUs - PCIe 3.0)

• M.2 Type 2242/2260/2280 (PCIe 3.0 x4 & SATA mode): 1

• SATA 6Gb/s: 4

• RAID 0/1/5/10 Support: Supported

• Intel® Smart Response Technology: Supported

• Intel® Rapid Storage Technology: Supported

• Intel® Optane Memory: Supported

LAN

• Realtek®: RTL8125BG 2.5G

Wireless

• Intel® Dual-Band Wireless: AX210 Wi-Fi 6E

• Protocol: 802.11 a/b/g/n/ac/ax

• Frequency Bands: 2.4 / 5 / 6 GHz

• MU-MIMO Support: Supported

• Bluetooth: V5.2

Audio

• Realtek®: ALC1220 Codec

• Channels: 8-Channel High Definition Audio

• Playback: 32-bit / 192kHz DAC

• Capacitors: Nichicon Fine Gold Series

Rear I/O

• USB 3.2 Gen 2x2 (Type-C): 1

• USB 3.2 Gen 2 (Type-A): 3

• USB 3.2 Gen 1 (Type-A): 4

• USB 2.0: 2

• HDMI™ 2.0: 1

• Wireless Antenna: 2 (2T2R)

• LAN (RJ45) Port: 1

• 5.1-Channel Audio Jacks: 1

• Optical S/PDIF: 1

• Clear CMOS Button: 1

Internal I/O

• M.2 (M Key), Type 2242/2260/2280: 1 (PCIe 4.0/3.0 x4 mode), 1 (PCIe 3.0 x4 & SATA mode)

• M.2 (E Key) (For wireless cards): 1

• SATA 6Gbps Ports: 4

• USB 3.2 Gen 2 Header (Type-C): 1

• USB 3.2 Gen 1 Header: 2 (Up to 4 ports)

• USB 2.0 Header: 3 (Up to 6 ports)

• Front Panel Audio: 1

• CPU_FAN Connector: 1 (Up to 24W)

• AIO_PUMP Connector: 1 (Up to 24W)

• SYS_FAN Connector: 5 (Up to 24W)

• NZXT RGB LED Header: 2

• 5V ARGB Header: 1

• 12V RGB Header: 1

• 24-pin EATX Power: 1

• 8-pin ATX 12V Power: 1

• 4-pin ATX 12V Power: 1

• Power Button: 1

• Reset Button: 1

• POST LEDs: 4

General

• Operating System: Windows® 10 64-bit

• Form Factor: ATX
