Дънна платка Asus N3150M-E, вграден четири-ядрен Intel Celeron N3150 1.6/2.08GHz, PCI-Е (HDMI), поддържа 2x DDR3 U-DIMM, Lan1000, 2x SATA 6Gb/s, 4x USB3.0, mATX

ASUS N3150M-E

• CPU
Intel® Celeron® Quad-Core N3150 SoC onboard Processors

• Memory
2 x U-DIMM, Max. 8GB, DDR3 1600/1066 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture

• Graphic
Integrated Graphics Processor
Multi-VGA output support : HDMI/RGB ports
- Supports HDMI with max. resolution 3840 x 2160 @ 30 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 512 MB

• Expansion Slots
1 x PCIe 2.0 x16 (x1 mode)
2 x PCIe 2.0 x1

• Storage
Built-in Controller :
2 x SATA 6Gb/s port(s), dark brown,
Supports Intel® Smart Connect Technology

• LAN
Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)

• Audio
Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC

• USB Ports
Built-in Controller :
4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board)
GL852G USB Hub :
4 x USB 2.0 port(s) (2 at back panel, , 2 at mid-board)

• Operating System Support
Windows® 8.1 , 64bit

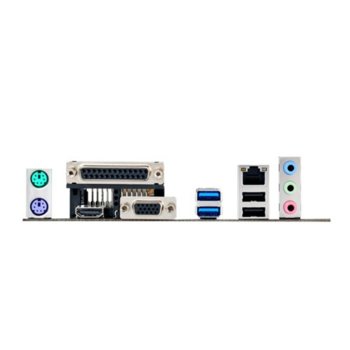

• Back I/O Ports
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.0 (blue)
2 x USB 2.0
1 x Parallel port(s)
3 x Audio jack(s)

• Internal I/O Ports
1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x COM port(s) connector(s)
2 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x System panel(s)

• Accessories
User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)

• BIOS
64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.8, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information

• Support Disc
Drivers
ASUS Utilities
EZ Update
Anti-virus software (OEM version)

• Form Factor
mATX
22.6 cm x 17.8 cm
