Дънна платка MSI Z97 PC Mate, Z97, LGA1150, DDR3, PCI-E(HDMI&DVI)(CF), SB7.1, Lan1000, 6x SATA 6Gb/s, RAID,0,1,5,10, 2x USB3.0, ATX

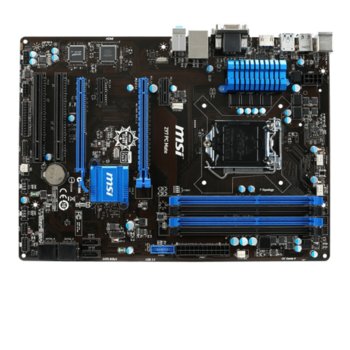

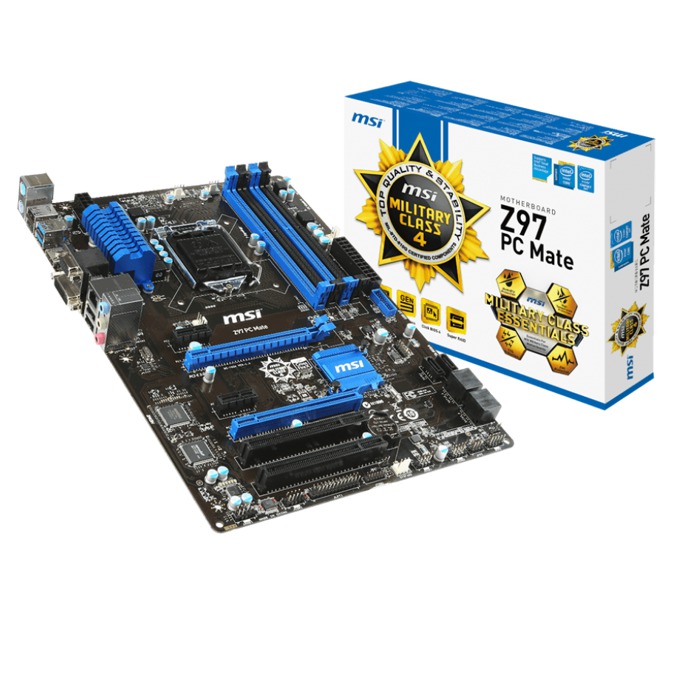

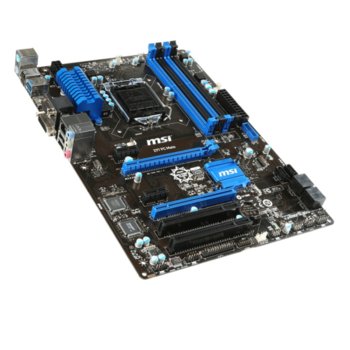

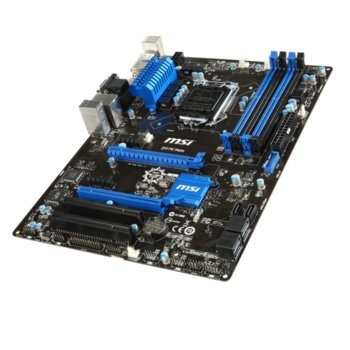

MSI Z97 PC Mate


- Supports 4th and 5th Gen Intel® Core™ / Pentium® / Celeron® processors for LGA 1150 socket
- Supports DDR3-3000(OC) Memory
- USB 3.0 + SATA 6Gb/s
- Military Class 4: Top Quality & Stability
- OC Genie 4: Overclock in 1 Second
- Click BIOS 4: Easily Fine-tune Your System
- 4K UHD Support: Ultra-high Definition Visual Experience
- Multi-GPU: AMD CrossFire Support
- Command Center: Control & Customize Your PC Settings
- Fast Boot: Quickly Boot Up & Enter OS in A Few Seconds
- Smart Utilities: Easily Setup & Configure Intel® Technologies

CPU

• Supports 4th and 5th Generation Intel® Core™ Processors, and Intel® Pentium® and Celeron® Processors for Socket LGA1150
Please refer to CPU Support for compatible CPU; the above description is for reference only.

Chipset

• Intel® Z97 Express Chipset


Main Memory

• Support four DDR3 DIMMs 1066/1333/1600/1866*/2000*/2133*/ 2200*/2400*/2600*/2666*/2800*/3000*(*OC) MHz, 32GB Max
- Dual channel memory architecture
- Supports non-ECC, un-buffered memory
- Supports Intel® Extreme Memory Profile (XMP)

Slots

• 2 x PCIe x16 slots
- PCI_E2 supports PCIe 3.0
- PCI_E4 supports PCIe 2.0
- Support x16, x4/x4 modes

• 2 x PCIe 2.0 x1 slots
• 2 x PCI slots

Multi-GPU Support

• 1x VGA port, supporting a maximum resolution of 1920x1200 @60Hz, 24bpp
• 1x DVI-D port, supporting a maximum resolution of 1920x1200 @60Hz, 24bpp
• 1x HDMI port, supporting a maximum resolution of 4096x2160@24Hz, 24bpp/ 2560x1600@60Hz, 24bpp/1920x1080@60Hz, 36bpp

Multi-GPU Support

• Supports AMD CrossFire™ Technology

On-Board SATA

• SATAIII controller integrated in Intel® Z97 chipset
- Up to 6Gb/s transfer speed.
- Supports six SATAIII ports (SATA1~6) by Z97

• RAID
- SATA1~6 support Intel® Rapid Storage Technology enterprise (AHCI/ RAID 0/ 1/ 5/ 10) by Intel® Z97
• Supports Intel Smart Response Technology, Intel Rapid Start Technology and Intel Smart Connect Technology*
* Supports Intel Core processors on Windows 7 and Windows 8.

USB

• Intel® Z97 Express Chipset
- 4x USB 3.0 ports (2 ports on the back panel, 2 ports available through the internal USB connectors)
- 8x USB 2.0 ports (4 ports on the back panel, 4 ports available through the internal USB connectors)

Audio

• Chipset integrated by Realtek® ALC887
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 Spec

LAN

• Supports one PCI Express LAN 10/100/1000 Fast Ethernet by Realtek® RTL8111G

Internal I/O Connectors


- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 6 x SATA connectors
- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1 x USB 3.0 connector (supports additional 2 USB 3.0 ports)
- 2 x 4-pin CPU fan connectors
- 1 x 4-pin system fan connector
- 2 x 3-pin system fan connectors
- 1 x Clear CMOS jumper
- 1 x Front panel audio connector
- 2 x System panel connectors
- 1 x Chassis Intrusion connector
- 1 x TPM module connector
- 1 x Serial port connector
- 1 x Parallel Port connector

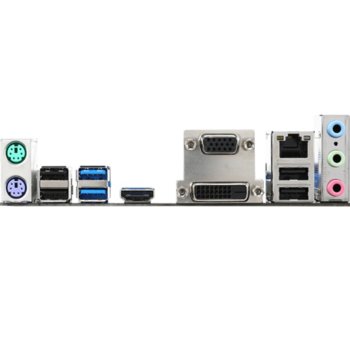

Back Panel I/O Ports

- 1 x PS/2 keyboard port
- 1 x PS/2 mouse port
- 4 x USB 2.0 ports
- 2 x USB 3.0 ports
- 1 x RJ45 LAN port
- 1 x 3 in 1 audio jacks
- 1 x VGA port
- 1 x DVI-D port
- 1 x HDMI port

BIOS

• The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
• The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.

Dimension

• 12 in. x 8.7 in. (30.5 cm x 22 cm) ATX Form Factor
