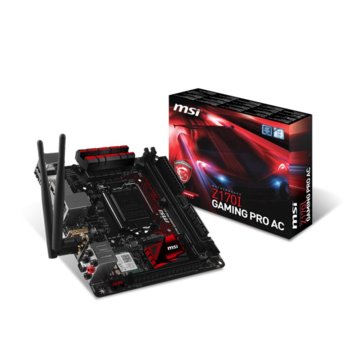

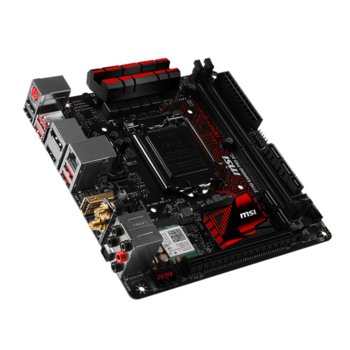

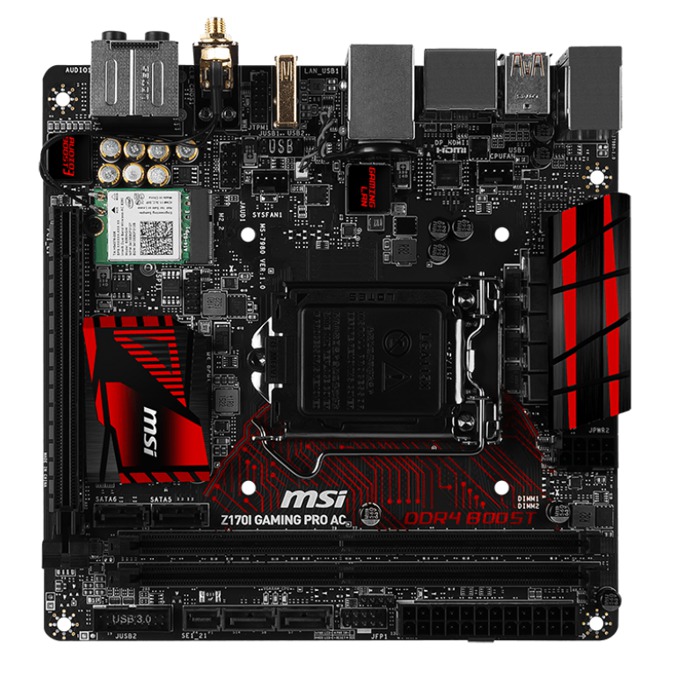

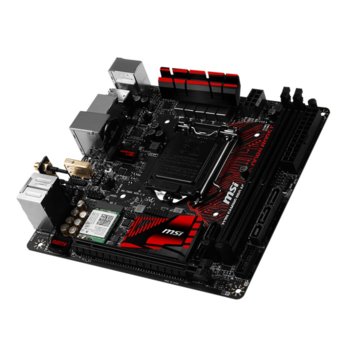

Дънна платка MSI Z170I GAMING PRO AC, Z170, LGA1151, DDR4, PCI-E (DP&HDMI), Wi-Fi 802.11ac, Bluetooth, 4x SATA 6Gb/s, 1x M.2 slot, 4x USB 3.1, mini-ITX

MSI Z170I GAMING PRO AC

CPU

• Supports 6th Gen Intel® Core™ i3/i5/i7 processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151
* Please refer to CPU Support for compatible CPU; the above description is for reference only.

Chipset
• Intel® Z170 Chipset

Main Memory
• 2 x DDR4 memory slots, support up to 32GB
- Supports DDR4 4200(OC)/4000(OC)/3866(OC)/3600(OC)/3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400/ 2133 MHz
• Dual channel memory architecture
• Supports non-ECC, un-buffered memory
• Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs


Slots
• 1 x PCIe 3.0 x16 slots

Onboard Graphics
• 1 x HDMI™ port, support a maximum resolution of 4096x2160@24Hz, 2560x1600@60Hz
• 1 x DisplayPort, support a maximum resolution of 4096x2304@60Hz, 2560x1600@60Hz, 3840x2160@60Hz, 1920x1200@60Hz

Storage
• Intel® Z170 Chipset
• 4 x SATA 6Gb/s ports
• 1 x M.2 slot (on the bottom of the motherboard)
• Supports PCIe 3.0 x 4 and SATA 6Gb/s standards, 4.2cm/ 6cm length M.2 SSD cards
• 1 x SATAe port (PCIe 3.0 x 2)*
• Supports RAID 0, RAID 1, RAID 5, RAID 10
• Supports Intel® Smart Response Technology for Intel Core™ processors
* SATAe port is backward compatible with SATA.


USB
• Intel® Z170 Chipset
- 6 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector)
- 5 x USB 2.0 (High-speed USB) ports (3 ports on the back panel, 2 ports available through the internal USB connectors)


Audio
• Realtek® ALC1150 Codec
- 7.1-Channel High Definition Audio
- Supports S/PDIF output

LAN
• 1 x Intel® I219-V Gigabit LAN controller

WLAN / Bluetooth
• Wi-Fi Bluetooth® expansion module with Intel® Dual Band Wireless-AC 8260 chip
• Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 867Mbps speed.
• Supports Dual Mode Bluetooth® 2.1, 2.1+EDR, 3.0, 4.0 BLE, 4.2

Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 4 x SATA 6Gb/s connectors
- 1 x SATAe connector
- 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports)
- 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
- 1 x 4-pin CPU fan connectors
- 1 x 4-pin system fan connectors
- 1 x Front panel audio connector
- 2 x Front panel connectors
- 1 x TPM module connector
- 1 x Chassis Intrusion connector
- 1 x Clear CMOS jumper

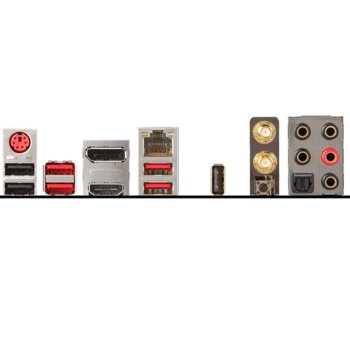

Back Panel I/O Ports
- 1 x PS/2 keyboard/ mouse port
- 3 x USB 2.0 ports
- 1 x DisplayPort
- 1 x HDMI™ port
- 1 x LAN (RJ45) port
- 4 x USB 3.1 Gen1 ports
- 1 x Clear CMOS button
- 2 x antenna connectors
- 1 x Optical S/PDIF OUT connector
- 5 x OFC audio jacks


Dimension
• 6.7 in. x 6.7 in. (17 cm x 17 cm)
• Mini-ITX Form Factor
