Дънна платка MSI Z170A TOMAHAWK, Z170, LGA1151, DDR4, PCI-E (HDMI&DVI)(CF), SB7.1, Lan1000, M.2 for Wi-Fi module, 6x SATA 6Gb/s, RAID 0, 1, 5, 10, 1x M.2 Slot, 4x USB 3.1, ATX

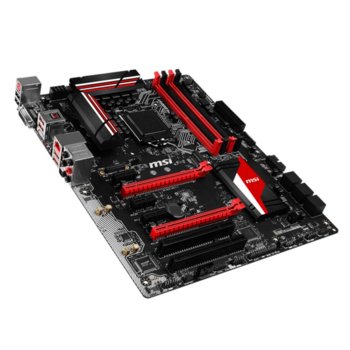

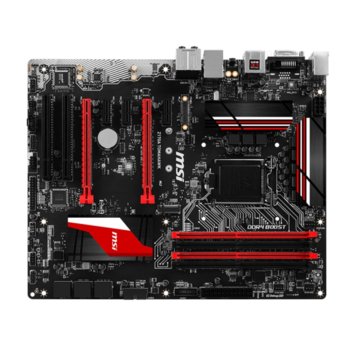

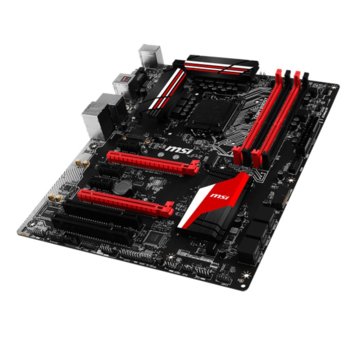

MSI Z170A TOMAHAWK


CPU

• Supports 6th Gen Intel® Core™ i3/i5/i7 processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151
* Please refer to CPU Support for compatible CPU; the above description is for reference only.


Chipset

• Intel® Z170 Chipset


Main Memory

• 4 x DDR4 memory slots, support up to 64GB
- Supports DDR4 3600(OC)/3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400/ 2133 MHz
• Dual channel memory architecture
• Supports ECC, un-buffered memory
-Supports ECC UDIMM 1Rx8/2Rx8 memory (non-ECC mode)
• Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs


Slots

• 2 x PCIe 3.0 x16 slots (support x16, x16/ x4 modes)
• 3 x PCIe 3.0 x1 slots
• 2 x PCI slots
• 1x M.2 Wi-Fi module slot (Key E)

* No support PCI wake-up on S3, S4 & S5


Onboard Graphics

• 1 x HDMI™ ports, support a maximum resolution of 4096x2160@24Hz,2560x1600@60Hz
• 1 x DVI-D port, support a maximum resolution of 1920x1200@60Hz


Multi-GPU

• Supports 2-Way AMD® CrossFire™ Technology

On-Board SATA

• Intel® Z170 Chipset
• 6 x SATA 6Gb/s ports*
• 1 x M.2 slot (Key M)
- Supports PCIe 3.0 x4 and SATA 6Gb/s standards,4.2cm/ 6cm/ 8cm length M.2 SSD cards
- Supports PCIe 3.0 x4 NVMe Mini-SAS SSD with Turbo U.2 Host Card***
• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
• Supports Intel® Smart Response Technology for Intel Core™ processors

* SATA5~6 ports will be unavailable when installing the M.2 module in M.2 (M2_1) slot.
*** The Turbo U.2 Host Card is not included, please purchase separately.


USB

• ASMedia® ASM1142 Chipset
- 2 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports onthe back panel

• Intel® Z170 Chipset
- 6 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 ports on the back panel, 4 ports available through the internal USB 3.1 Gen 1 connectors)
- 4 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 2 ports available through the internal USB 2.0 connectors)


Audio

• Realtek® ALC892 Codec
• 7.1-Channel High Definition Audio
• Supports S/PDIF ouput


LAN

• 1 x Realtek RTL8111H Gigabit LAN controller

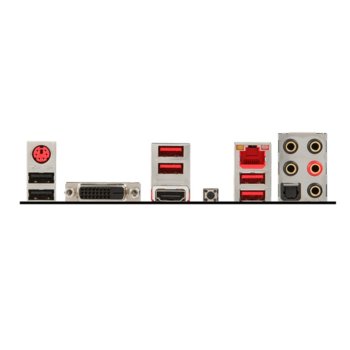

Back Panel I/O Ports

• 1 x PS/2 keyboard/ mouse port
• 2 x USB 2.0 ports
• 2 x USB 3.1 Gen2 ports
• 1 x DVI-D port
• 1 x HDMI™ port
• 1 x Clear CMOS button
• 1 x LAN (RJ45) port
• 2 x USB 3.1 Gen1 ports
• 1 x Optical S/PDIF OUT connector
• 5 x OFC audio jacks


Internal I/O Connectors

- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 6 x SATA 6Gb/s connectors
- 1 x USB 2.0 connector (support additional 2 USB 2.0 ports)
- 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
- 2 x 4-pin CPU fan connectors
- 3 x 4-pin system fan connectors
- 1 x Front panel audio connector
- 2 x Front panel connectors
- 1 x TPM module connector
- 1 x Chassis Intrusion connector
- 1 x Serial port connector
- 1 x Parallel port connector
- 1 x Clear CMOS jumper


Dimension

• 12 in. x 9.6 in. (30.4 cm x 22.4 cm) ATX Form Factor


Mounting

• 6 mounting holes
