Дънна платка MSI Z170A MPOWER GAMING TITANIUM, Z170, LGA1151, DDR4, PCI-E(DVI&HDMI)(SLI&CF), 6x SATA 6Gb/s, 2x M.2 Slot, 2x USB 3.1 Gen1, 1x USB 3.1 Type C Gen2, ATX

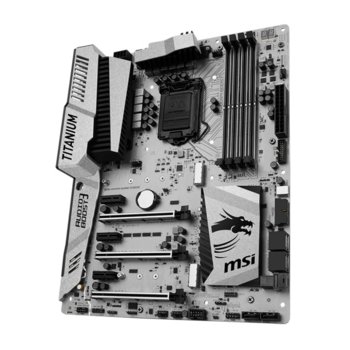

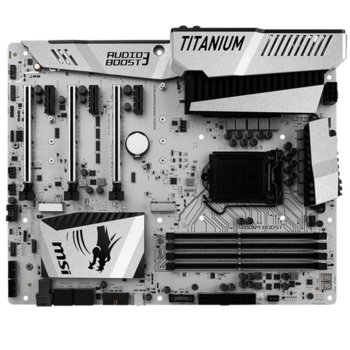

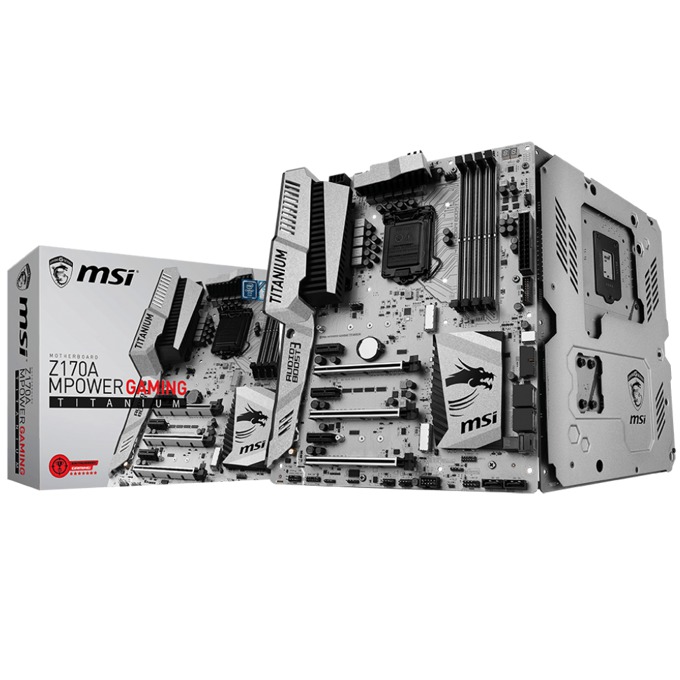

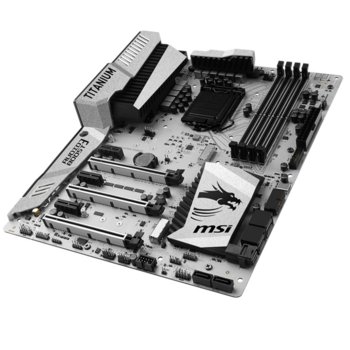

MSI Z170A MPOWER GAMING TITANIUM

MASTER THE GAME
To master the game you need a masterful system. The MSI Enthusiast GAMING motherboards are honored with the suffix “M for Master” to cite its truly outstanding design, ready to guide you to the next level in gaming.


CPU

• Supports 6th Gen Intel® Core™ i3/i5/i7 processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151


Chipset

• Intel® Z170 Chipset


Main Memory

• 4 x DDR4 memory slots, support up to 64GB
- Supports DDR4 3600(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400/ 2133 MHz
• Dual channel memory architecture
• Supports non-ECC, un-buffered memory
- ECC UDIMM memory (non-ECC mode)*
• Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support depends on the individual CPU physical characteristics
* For the latest information about memory, please visit http://www.msi.com


Slots

• 3 x PCIe 3.0 x16 slots*
• 3 x PCIe 3.0 x1 slots*

* PCI_E6 slot and PCIe x1 slots share the same bandwidth. Please refer to page 30 for PCIe slots bandwidth table.


Multi-GPU

• Supports 3-Way AMD® CrossFire™ Technology
• Supports 2-Way NVIDIA® SLI™ Technology


USB

• ASMedia® ASM1142 Chipset
• 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) port on the back panel
• 1 x USB 3.1 Gen2 (Super Speed USB 10Gbps) Type-C port on the back panel

• Intel® Z170 Chipset
- 6 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors)
- 1 x USB 3.1 Gen1 (SuperSpeed USB) Type-C port on the board
- 6 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector)


Storage

• Intel® Z170 Chipset
• 6 x SATA 6Gb/s ports*
- Support RAID 0, RAID 1, RAID 5 and RAID 10

• 2 x M.2 slots (Key M)*
- Supports up to PCIe 3.0 x4 and SATA 6Gb/s
- Supports 2242/ 2260/ 2280/ 22110 storage devices**
- Supports RAID 0 and RAID 1 for M.2 PCIe Storage devices***

• 1 x U.2 port*
- Supports PCIe 3.0 x4 NVMe storage
• Supports Intel® Smart Response Technology****

* M.2 SATAs and SATA1, 2, 5 and 6 share the same bandwidth. M2_2 slot and U.2 port share the same bandwidth. Please refer to page 36 for M.2/ U.2 & SATA combination table.
** Only M2_1 slot supports type 22110 storage device.
*** M.2 PCIe RAID volume can be created with UEFI BIOS.
****This function will be supported depend on the CPU.


Audio

• Realtek® ALC1150 Codec
- 7.1-Channel High Definition Audio
- Supports S/PDIF output


LAN

• 1 x Intel® I219 Gigabit LAN controller


Internal I/O Connectors

- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 6 x SATA 6Gb/s connectors
- 2 x M.2 slots
- 1 x U.2 port
- 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports)
- 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
- 1 x USB 3.1 Gen1 Type-C port
- 2 x 4-pin CPU fan connectors
- 3 x 4-pin system fan connectors
- 1 x Front panel audio connector
- 2 x Front panel connectors
- 1 x TPM module connector
- 1 x Chassis Intrusion connector
- 1 x RGB LED connector
- 1 x Clear CMOS jumper
- 1 x Slow mode booting jumper

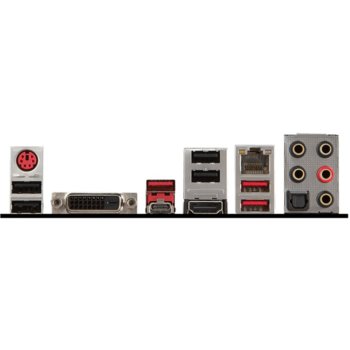

Back Panel I/O Ports

- 1 x PS/2 keyboard/ mouse combo port
- 4 x USB 2.0 ports
- 1 x DVI-D port
- 1 x USB 3.1 Gen2 port
- 1 x USB 3.1 Gen2 Type-C port
- 1 x HDMI port
- 1 x LAN (RJ45) port
- 2 x USB 3.1 Gen1 ports
- 1 x Optical S/PDIF OUT connector
- 5 x OFC audio jacks


Dimension

• 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
• ATX Form Factor


Mounting

• 9 mounting holes
