Дънна платка MSI Z170A KRAIT GAMING, Z170, LGA1151, DDR4, PCI-E(HDMI&DVI)(CF&SLI), SB7.1, Lan1000, 6x SATA 6Gb/s RAID 0,1,5,10, 1x M.2 Slot, 4x USB 3.1, ATX

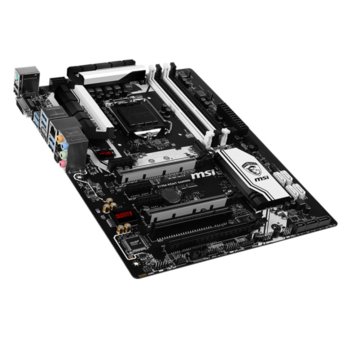

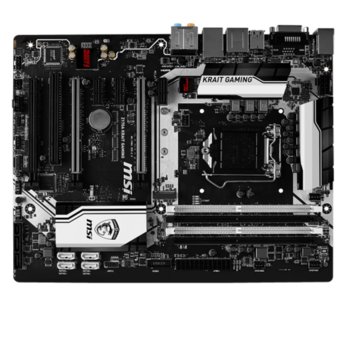

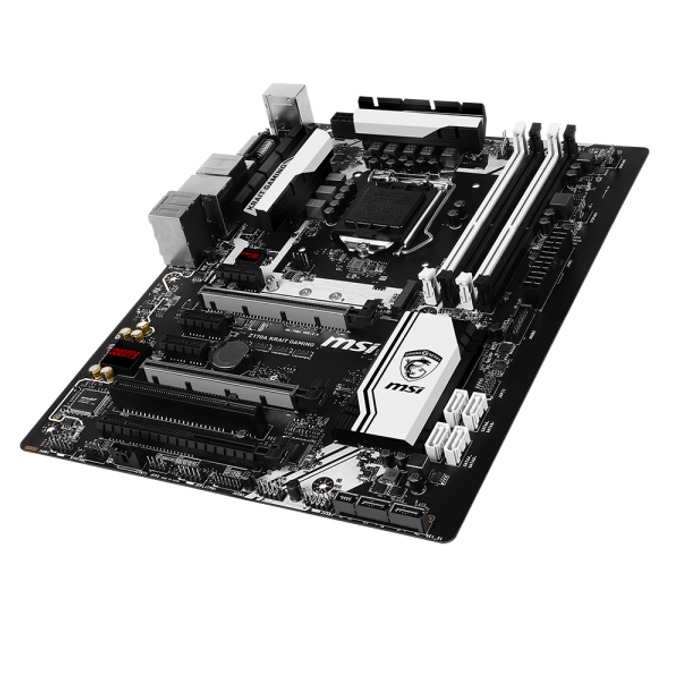

MSI Z170A KRAIT GAMING


- Supports 6th Gen Intel® Core™ / Pentium® / Celeron® processors for LGA 1151 socket
- Supports DDR4-3600+(OC) Memory
- DDR4 Boost: Give your DDR4 memory a performance boost/li>
- USB 3.1 Gen2 2X FASTER: USB 3.1 Gen2 offers performance twice as fast as a regular USB 3.0 connection
- Turbo M.2 32Gb/s + Turbo U.2 ready + USB 3.1 Gen2 Type-A + SATA Express 10 Gb/s
- GAMING LAN powered by Intel™: The best online gaming experience with lowest latency
- LAN Protect: 15KV Anti-surge protection
- Audio Boost 3: Reward your ears with studio grade sound quality
- Military Class 5: The latest evolution in high quality components featuring the brand new Titanium Chokes
- Guard-Pro: Improved Protection and Power Efficiency
- MULTI-GPU with Steel Armor: Steel Armor PCI-E slots. Supports NVIDIA SLI™ & AMD Crossfire™
- OBS Streaming software: Share your gaming achievements with the world!
- Game Boost: Generate more FPS in games with 1 push of a button
- EZ Debug LED: Easiest way to troubleshoot
- Overcurrent Protection:Prevent Unforeseen Damage
- GAMING Hotkey: Launch your favorite games with a single button
- Click BIOS 5: Award-winning brand new Click BIOS 5 with high resolution scalable font
- SteelSeries Certified: Optimized for SteelSeries gaming gear
- GAMING CERTIFIED: 24-hour on- and offline game testing by eSports players for the best gaming experience


CPU

• Supports 6th Gen Intel® Core™ i3/i5/i7 processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151
* Please refer to CPU Support for compatible CPU; the above description is for reference only.


Chipset

• Z170 Express Chipset


Main Memory

• 4 x DDR4 memory slots, support up to 64GB
- Supports DDR4 3600(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400/ 2133 MHz
• Dual channel memory architecture
• Supports ECC, un-buffered memory
• Supports Intel® Extreme Memory Profile (XMP)


Slots

• 3 x PCIe 3.0 x16 slots (support x16/x0/x4 or x8/x8/x4 modes)
• 3 x PCIe 3.0 x1 slots
• 1 x PCI slot


Onboard Graphics

• 1 x HDMI™ port, support a maximum resolution of 4096x2160@24Hz, 2560x1600@60Hz
• 1 x DVI-D port, support a maximum resolution of 1920x1200@60Hz


Multi-GPU Support

• Supports 3-Way AMD® CrossFire™ Technology
• Supports 2-Way NVIDIA® SLI™ Technology


Storage

• Intel® Z170 Express Chipset
• 6 x SATA 6Gb/s ports* (2 ports reserved for SATA Express port)
• 1 x M.2 slot*
- Supports PCIe 3.0 x4 and SATA 6Gb/s standards, 4.2cm/ 6cm/ 8cm length M.2 SSD cards
- Supports PCIe 3.0 x4 NVMe Mini-SAS SSD with Turbo U.2 Host Card**
- 1 x SATAe port (PCIe 3.0 x2)***
- Supports Intel® Smart Response Technology for Intel Core™ processors

* SATA5 and SATA6 ports will be unavailable when installing the M.2 module in M.2 slot.
** The Turbo U.2 Host Card is not included, please purchase separately.
*** SATAe port is backward compatible with SATA. SATA and SATAe ports maximum support 6x SATAs or 1x SATAe + 4x SATAs.

RAID

• Intel® Z170 Express Chipset
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices


USB

• ASMedia® ASM1142 Chipset
- 2 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports on the back panel

• Intel® Z170 Express Chipset
- 6 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 2 ports available through the internal USB 3.1 Gen1 connector)
- 6 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB 2.0 connectors)


Audio

• Realtek® ALC1150 Codec
- 7.1-Channel High Definition Audio
- Supports S/PDIF output


LAN

• 1 x Intel® I219-V Gigabit LAN controller


Internal I/O Connectors

- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 6 x SATA 6Gb/s connectors (2 ports reserved for SATA Express port)
- 1 x SATAe connector
- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
- 2 x 4-pin CPU fan connectors
- 3 x 4-pin system fan connectors
- 1 x Front panel audio connector
- 2 x Front panel connectors
- 1 x TPM module connector
- 1 x Chassis Intrusion connector
- 1 x Clear CMOS jumper

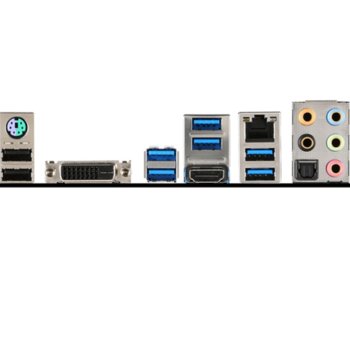

Back Panel I/O Ports

- 1 x PS/2 keyboard/ mouse port
- 2 x USB 2.0 ports
- 1 x DVI-D port
- 2 x USB 3.1 Gen2 ports
- 4 x USB 3.1 Gen1 ports
- 1 x HDMI™ port
- 1 x LAN (RJ45) port
- 1 x Optical S/PDIF OUT connector
- 5 x OFC audio jacks


BIOS

• The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
• The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.


Dimension

• 12 in. x 9.25 in. (30.5 cm x 23.4 cm)
• ATX Form Factor
