Дънна платка MSI X99A XPOWER GAMING TITANIUM, X99, LGA2011-3, DDR4, 5x PCI-E(SLI&CF), 1x SATA Express, 10x SATA3, 1x M.2 Slot, 6x USB 3.1 Gen1, 1x USB 3.1 Type C Gen2, E-ATX

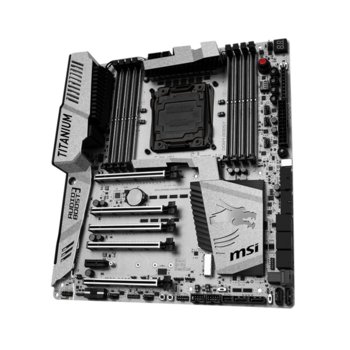

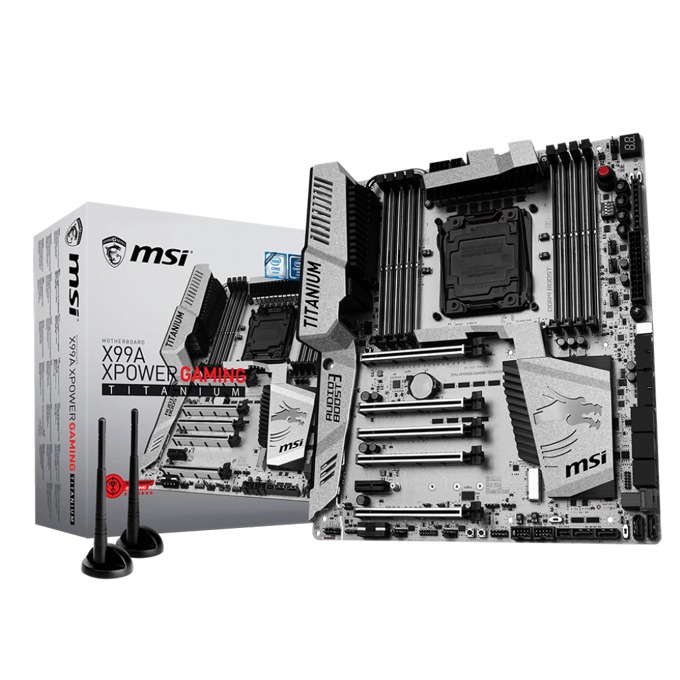

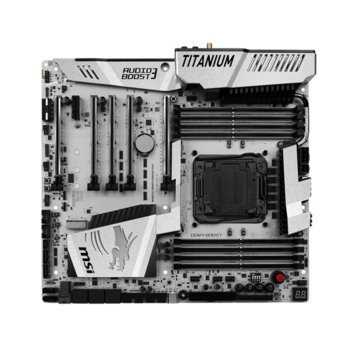

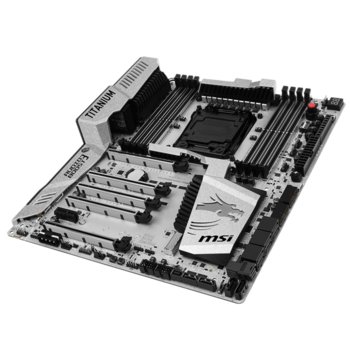

MSI X99A XPOWER GAMING TITANIUM

MASTER THE GAME
To master the game you need a masterful system. The MSI Enthusiast GAMING motherboards are honored with the suffix “M for Master” to cite its truly outstanding design, ready to guide you to the next level in gaming.

TITANIUM I/O Cover
BIOS Flashback+
USB 3.1 Gen2 Type A+C
Intel Wi-Fi AC
Audio Boost 3 / Dragon Armor
Mystic Light Extension
Ti Chock & Turbo Socket
DDR4 Boost with Steel Armor
Debug LED
GAME Boost
EZ Debug LED 2
Discharge Button
Direct USB Type-C
Front USB 3.1 Gen1
Turbo U.2
PCI-E Steel Armor
Turbo M.2 Steel Armor
Dual BIOS
OC Optimizer
SATA Express


CPU

• Supports New Intel® Core™ i7 Processor Extreme Edition for LGA2011-3 Socket
• Supports Intel® Turbo Boost Max Technology 3.0*
* This function will be supported depend on the CPU.


Chipset

• Intel® X99 Chipset


Main Memory

• 8 x DDR4 memory slots, support up to 128GB*
- Supports DDR4 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC)/ 3000(OC)/ 2933(OC)/ 2800(OC)/ 2666(OC)/ 2600(OC)/ 2400/ 2200(OC)/ 2133 MHz
• Quad channel memory architecture
• Supports non-ECC, un-buffered memory
• Supports Intel® Extreme Memory Profile (XMP)
• Supports RDIMM 1Rx8 memory module (Operates in non- ECC mode)
* Hyper DIMM support depends on the individual CPU physical characteristics
* For the latest information about memory, please visit http://www.msi.com


Slots

• 5 x PCIe 3.0 x16 slots (PCI_E1~PCI_E4 & PCI_E6*), support up to 4-way mode.
- 1-way mode: x16/x0/x0/x0/x0
- 2-way mode: x16/x0/x0/x16/x0**, x16/x0/x0/x8/x0***
ƒ- 3-way mode: x16/x0/x0/x16/x8** x8/x8/x0/x8/x0***
ƒ- 4-way mode: x8/x8/x0/x16/x8**, x8/x8/x0/x8/x4***
• 1x PCIe 2.0 x1 slot (PCI_E5)

* PCI_E6 slot, U.2 port and M.2 PCIe 3.0 x4 share the same bandwidth. Please refer to page 33 for PCIe bandwidth tables.
** For the CPU that supports 40 PCIe lanes
*** For the CPU that supports 28 PCIe lanes


Multi-GPU

• Supports 4-Way AMD® CrossFire™ Technology
• Supports 4-Way NVIDIA® SLI™ Technology


Storage

• Intel® X99 Chipset
• 10 x SATA 6Gb/s ports (2 ports from SATAe port)
• 1 x M.2 slot (Key M)
- Supports up to PCIe 3.0 x4 and SATA 6Gb/s
- Supports 2242/ 2260 /2280/ 22110 storage devices
• 1 x U.2 port*
- Supports PCIe 3.0 x4 NVMe storage
• 1 x SATAe port (compatible with 2 SATA ports)**
- Supports up to PCIe 2.0x2
• Supports Intel® Smart Response Technology***

*The U.2 port will be unavailable when installing the PCIe device in PCI_E6 slot.
** SATAe port is backward compatible with SATA.


RAID

• Intel® X99 Chipset
• SATA1~6 ports support RAID 0, RAID1, RAID 5 and RAID 10
• SATA7~10 ports only support IDE mode and AHCI mode.


USB

• ASMedia® ASM1142 Chipset
- 2 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-A port and 1 Type-C port on the board)
ƒ- 2 x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal JUSB4 connector.

• VIA® VL805 Chipset
- 4 x USB 3.1 Gen1 (SuperSpeed USB) ports on the back panel

• Intel® X99 Chipset
- 5 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 1 internal Type-C port on the board, 2 ports available through the internal JUSB3 connector)
- 7 x USB 2.0 (High-speed USB) ports (3 ports on the back panel, 4 ports available through the internal USB connectors)


Audio

• Realtek® ALC1150 Codec
- 7.1-Channel High Definition Audio
- Supports S/PDIF output


WLAN & Bluetooth

• Wi-Fi/ Bluetooth® expansion module with Intel® Dual Band Wireless-AC 8260 chip
- Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 867 Mbps speed.
- Supports Dual Mode Bluetooth® 2.1, 2.1+EDR, 3.0, 4.0, BLE, 4.2


LAN

• 1 x Intel® I218-V Gigabit LAN controller


Internal I/O Connectors

- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x 4-pin ATX 12V power connector
- 1 x flat 4-pin ATX 12V power connector*
- 10 x SATA 6Gb/s connectors
- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
- 1 x USB 3.1 Gen1 Type-C port
- 1 x 4-pin CPU fan connector
- 1 x 4-pin Water Pump connector
- 2 x 4-pin OPT fan connectors
- 3 x 4-pin system fan connectors
- 1 x Front panel audio connector
- 1 x RGB LED connector
- 1 x TPM module connector
- 1 x OC retry button
- 1 x OC force enter BIOS button
- 2 x Front panel connectors
- 1 x Chassis Intrusion connector
* Provides additional power to PCIe x16 slots

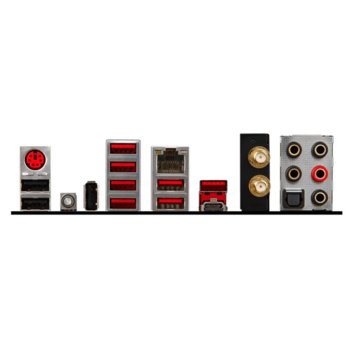

Back Panel I/O Ports

- 1 x PS/2 keyboard/ mouse combo port
- 3 x USB 2.0 ports
- 1 x BIOS FLASHBACK+ port
- 1 x Clear CMOS button
- 1 x USB 3.1 Gen2 port
- 1 x USB 3.1 Gen2 Type-C port
- 6 x USB 3.1 Gen1 ports
- 1 x LAN (RJ45) port
- 1 x Optical S/PDIF OUT connector
- 5 x OFC audio jacks


Dimension

• 12.0 in. x 10.7 in. (30.5 cm x 27.2 cm)
• ATX Form Factor


Mounting

• 9 mounting holes
