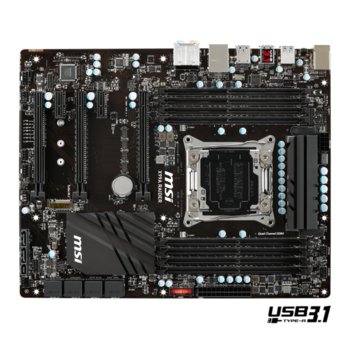

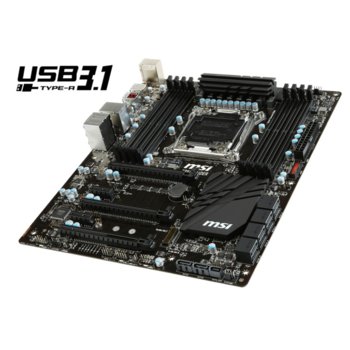

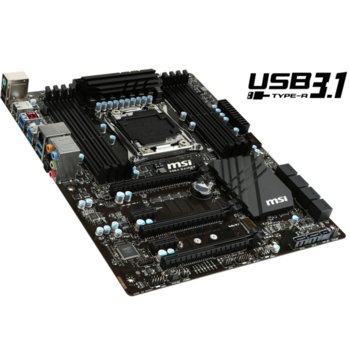

Дънна платка MSI X99A RAIDER, X99, LGA2011-3, DDR4, 3x PCI-E(SLI&CF), 2x SATA Express, 10x SATA 6Gb/s, 1x M.2 Socket, 2x USB 3.1, 4x USB 3.0, ATX

MSI X99A RAIDER

NVIDIA® QUADRO® OPTIMIZED

Unique and optimal PCI Express slot placement ensure perfect stability and compatibility for heavy duty computing. Designed and optimized for NVIDIA® Quadro® multi-GPU setups for the best rendering efficiency.

MSI USB 3.1 2X FASTER

USB 3.1 allows for speeds up to 10 Gbps, doubling the speed compared to USB 3.0 and 20x faster than legacy USB 2.0. USB 3.1 is even faster than SATAIII! Transferring your favorite games, music and movies over USB has never been faster.


CPU

• Supports New Intel® Core™ i7 Processor Extreme Edition for LGA2011-3 Socket.
• Support lntel® Turbo Boost Max Technology 3.0
* Please refer to CPU Support for compatible CPU; the above description is for reference only.


Chipset

• Intel® X99 Express Chipset


Main Memory

• Support eight DDR4 DIMMs 2133/2200(OC)/2400(OC)/2600(OC)/2666(OC)/2750(OC)/3000(OC)/3110(OC)/3333(OC) MHz, up to 128GB Max.
- Supports Quad-Channel mode
- Supports UDIMM ECC/ RDIMM memory modules
- Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support depends on the individual CPU physical characteristics


Slots

• 3 x PCIe 3.0 x16 slots (PCI_E1,3,5), support up to 3-way mode

- 1-way mode: x16/ x0/ x0
- 2-way mode: x16/ x16/ x0*, 16/ x8/ x0**
- 3-way mode: x8/ x16/ x8*, x8/ x8/ x8**

• 2 x PCIe 2.0 x1 slots(PCI_E2,4)

* For the CPU that supports 40 PCIe lanes
** For the CPU that supports 28 PCIe lanes


Multi-GPU Support

• Supports 3-Way NVIDIA® SLI™ Technology
• Supports 3-Way AMD® CrossFire™ Technology*
* Supports Windows 7 and Windows 8/ 8.1


On-Board SATA

• Intel® X99 Express Chipset

• 10 x SATA 6Gb/s ports (2 x ports compatible with 1 x SATA Express port)*

- SATA1~6 support RAID 0, RAID 1, RAID 5 and RAID 10

- SATA7~10 ports only support IDE mode and AHCI mode.

- Supports Intel® Smart Response Technology (Windows 7/ 8/ 8.1)

• 1 x SATA Express port*
• 1 x M.2 Key M Socket supports type 2280/2260/2242 storage devices in both PCIE Gen3 x4 & SATA mode**
- M.2 port supports 4.2cm/ 6cm/ 8cm length module
- M.2 PCIe interface does not support RAID 0, RAID1, RAID 5 and RAID 10.

* The SATA Express port or SATA5~6 ports will be unavailable when installing the M.2 (Gen2 x2 mode) module in the M.2 port.
** Intel RST does not support PCIe M.2 SSD with Legacy ROM.


USB


• Intel X99 Express Chipset

- 6 x USB 3.0 ports (4 ports on the back panel, 2 ports available through the internal USB 3.0 connectors*)

- 6 x USB 2.0 ports (4 ports on the back panel, 2 ports available through the internal USB 2.0 connectors)


• ASMedia ASM1142

- 2x USB 3.1 ports on the back panel


* Internal JUSB1 connector supports MSI Super Charger.


Audio

• Realtek® ALC892 Codec

- 7.1-Channel High Definition Audio

- Supports S/PDIF output


LAN

• 1 x Intel I218 Gigabit LAN


Internal I/O Connectors


- 1 x 24-pin AT x main power connector

- 1 x 8-pin AT x 12V power connector

- 10 x SATA 6Gb/s connectors

- 1 x SATA Express connector

- 1 x M.2 connector

- 1 x USB 2.0 connectors (supports additional 2 USB 2.0 ports)

- 1 x USB 3.0 connectors (supports additional 2 USB 3.0 ports)

- 2 x 4-pin CPU fan connectors

- 3 x 4-pin system fan connectors

- 1 x Front panel audio connector

- 2 x System panel connectors

- 1 x TPM module connector

- 1 x Chassis Intrusion connector

- 1 x Clear CMOS jumper

- 1 x Slow mode booting jumper

- 1 x Multi-BIOS switch

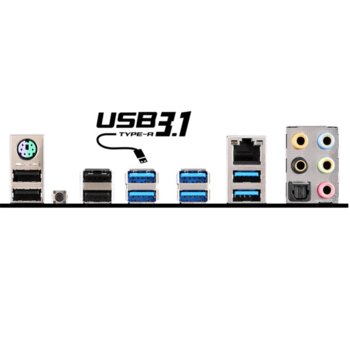

Back Panel I/O Ports


- 1 x PS/2 keyboard/ mouse combo port

- 4 x USB 2.0 ports

- 1 x Clear CMOS button

- 4 x USB 3.0 ports

- 2 x USB 3.1 ports

- 1 x LAN (RJ45) port

- 1 x Optical S/PDIF OUT connector

- 5 x OFC audio jacks


BIOS

• The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
• The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.


Dimension
• 12 in. x 9.6 in. (30.5 cm x 24.4 cm) ATX Form Factor

Mounting

• 9 mounting holes
