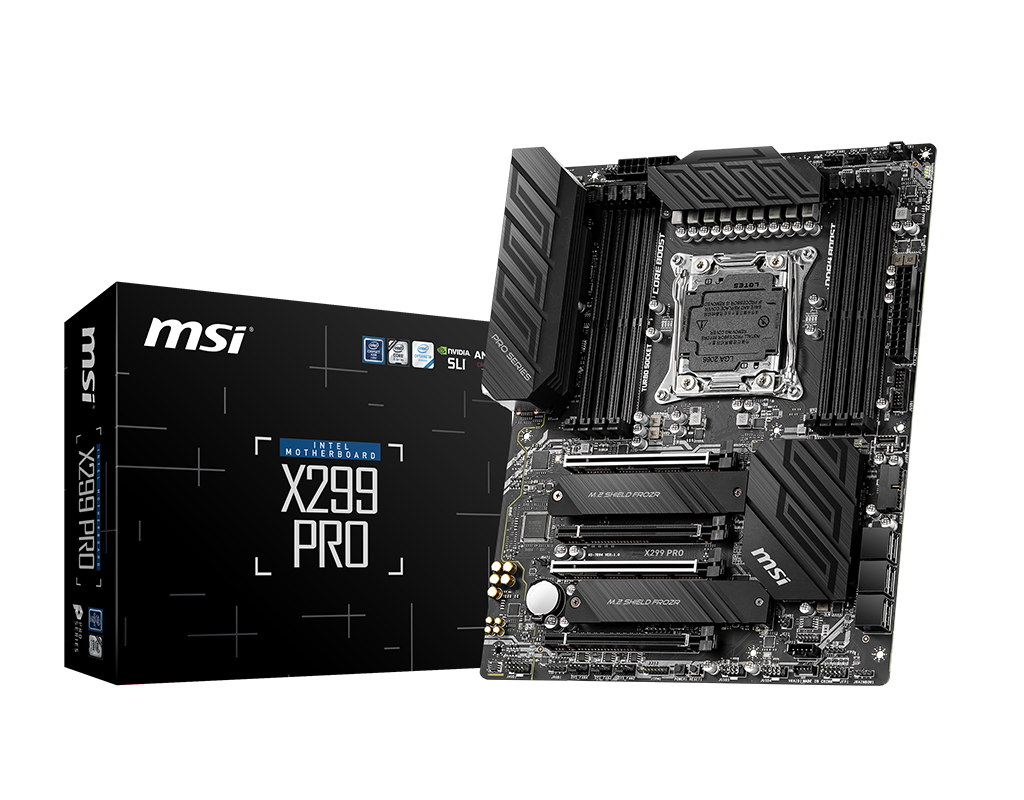

Дънна платка MSI X299 PRO, X299, LGA2066, DDR4, PCI-E 3.0 (CF/SLI), 6x SATA 6Gb/s, 2x M.2, 1x USB 3.2 Gen 2x2 Type-C, ATX

Inspired from architectural design with the extended heatsink for having better thermal solution; high speed USB 3.2 Gen2 x2 solution, Core Boost, DDR4 Boost, Dual LAN with 1x 2.5G LAN, Twin Turbo M.2 with M.2 Shield Frozr

• Supports Intel® Core™ X-series Processors 10000/9000/78xx(above)series for LGA2066 Socket
• Supports DDR4 Memory, 8 DIMMs, Quad Channel Max Frequency DDR4-4200+(OC)
• Lightning USB 20G: Powered by ASMedia ASM3242 USB 3.2 Gen2x2 controller, offers the fastest USB speeds with stability.
• Twin Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
• Set Core Power Free: Core Boost, 2x8 pin CPU power connector, Core Boost, DDR4 Boost
• Extended Heatsink Design: MSI extended PWM and enhanced circuit design ensures even high-end processors to run in full speed.
• Dual LAN: Premium network solution included 1x 2.5G LAN for professional and multimedia use. Delivers a secure, stable and fast network connection.
• Audio Boost 4: Reward your ears with studio grade sound quality.
• Multi-GPU: With Steel armor PCI-E slots. Supports 3-Way SLI / Crossfire™







Specifications:

PROCESSOR

Supports Intel® Core™ X-series 10000/ 9000/ 78xx (above) processors for socket LGA2066

See supported processors

CHIPSET

Intel® X299 Chipset

MEMORY

• 8 x DDR4 memory slots, support up to 256GB
  • Supports DDR4 4200+(OC)/ 4000(OC)/ 3800 (OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933/ 2666/ 2400/ 2133 MHz1,2
• Quad channel memory architecture
• Supports Intel® Extreme Memory Profile (XMP)
• Supports non-ECC UDIMM memory
• Supports un-buffered memory

1. For the latest information about memory, please visit http://www.msi.com
2. Please refer the DIMM Slots section for more details.

See supported memory

SLOTS

• 4x PCIe 3.0 x16 slots
  • Support x16/x8/x16/x8 mode with the 48-lane CPU.1
  • Support x16/x4/x16/x8 mode with the 44-lane CPU.1
  • Support x16/x4/x8/x0 mode with the 28-lane CPU.1

1. Please refer to user manual for PCIe 3.0 bandwidth table.

MULTI-GPU

• Supports 3-Way NVIDIA® SLI™ Technology
• Supports 3-Way AMD® CrossFire™ Technology

STORAGE

Intel® X299 Chipset

• 6 x SATA 6Gb/s ports1
• 2 x M.2 slot (Key M)
  • Support up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices2,3
  • Intel® Optane™ Memory Ready4

1. The SATA1 connector will be unavailable when a SATA M.2 SSD has been installed in the M2_1 slot.
2. The M2_2 default setting is CPU lane. However, when a PCIe expansion card is installed in the PCI_E2 slot, the M2_2 will be automatically switched to PCH lane.
3. The SATA2 connector will be unavailable when M2_2 uses PCH lanes and a M.2 SATA SSD is installed in the M2_2 slot.
4. M2_2 supports Intel® Optane™ Memory by switching to PCH lanes.

RAID

Intel® X299 Chipset

• Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices
• Supports RAID 0 and RAID 1 for M.2 PCIe storage devices

USB

ASMedia® ASM3242 Chipset

• 1 x USB 3.2 Gen2x2 (SuperSpeed USB 20Gbps) Type-C port on the back panel

ASMedia® ASM3142 Chipset

• 1 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-C internal connector

Intel® X299 Chipset

• 8 x USB 3.2 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 4 ports available through the internal USB connectors)
• 8 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 4 ports available through the internal USB connectors)

AUDIO

Realtek® ALC1220 Codec

• 7.1-Channel High Definition Audio
• Supports S/PDIF output

LAN

• 1 x Intel I219-V Gigabit LAN controller1
• 1 x Realtek RTL8125-CG 2.5G LAN controller

1. I219 LAN doesn’t support G3 to S5 Wake

INTERNAL CONNECTORS

• 1 x 24-pin ATX main power connector
• 2x 8-pin ATX 12V power connectors
• 6x SATA 6Gb/s connectors
• 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports)
• 1x USB 3.2 Gen2 Type-C port
• 1x 4-pin CPU fan connector
• 1x 4-pin Water Pump connector
• 4x 4-pin system fan connectors
• 1x Front panel audio connector
• 2x System panel connectors
• 1x TPM module connector
• 1x Chassis Intrusion connector
• 1x Virtual RAID on CPU connector
• 1x Thunderbolt Add-on Card Connector

BACK PANEL PORTS

1. Keyboard / Mouse
2. Gigabit LAN
3. 2.5G LAN
4. Audio Connectors
5. USB 2.0
6. Clear CMOS Button
7. USB 2.0
8. USB 3.2 Gen1 Type-A
9. USB 3.2 Gen1 Type-A
10. USB 3.2 Gen2x2 20G Type-C
11. Optical S/PDIF out

DIMENSIONS

• 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
• ATX Form Factor

MOUNTING

9 mounting holes

OPERATING SYSTEM

Support for Windows® 10 64-bit
