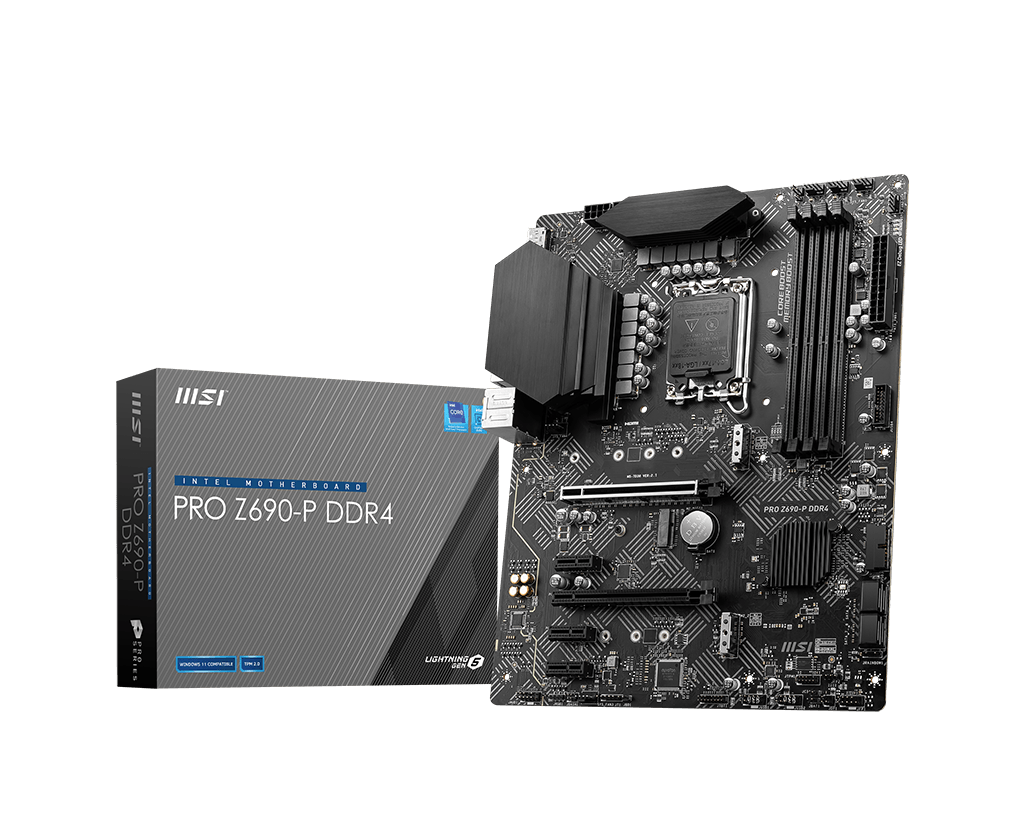

MSI PRO Z690-P DDR4

PRO series :   Helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

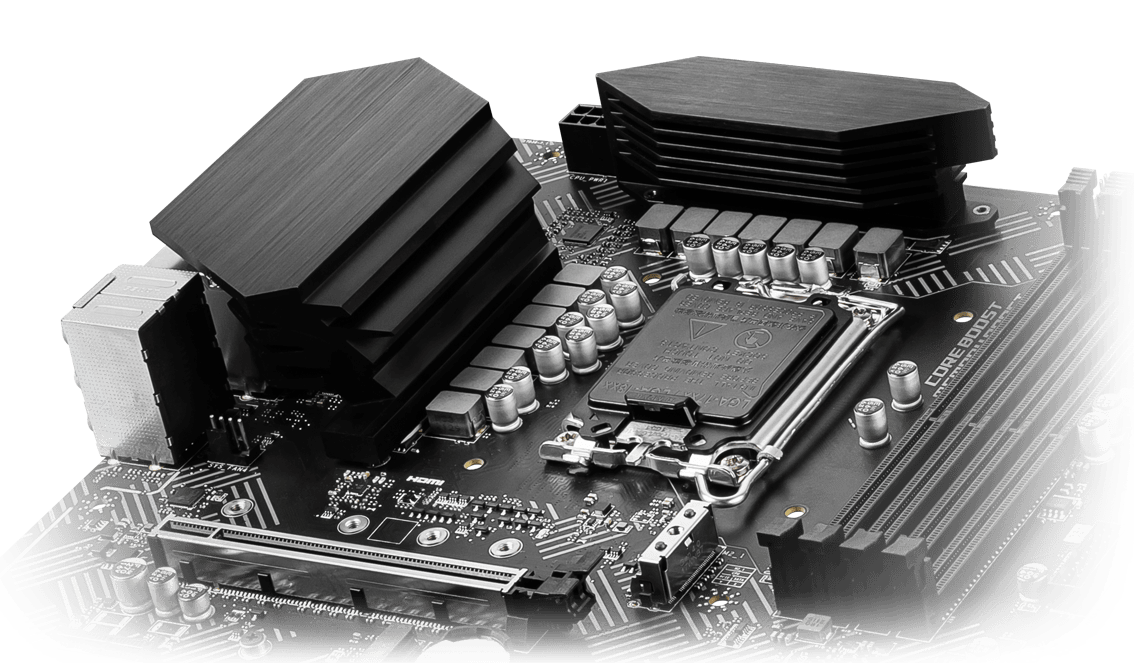

THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE: With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink with 7W/mK thermal pad ensures even high-end processors to run in full speed with MSI motherboards.

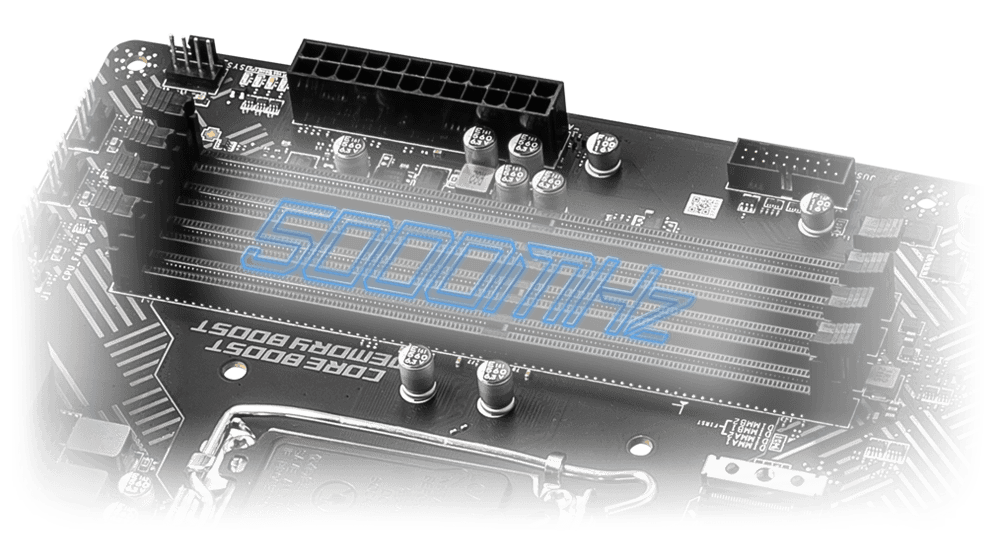

	A HUGE STEP OF DDR PERFORMANCE: MSI OC LAB does not merely work hard on extreme overclocking. The XMP memory profile has great improvement on performance and efficiency for Z690 . Easy to enable XMP profile with auto power settings to get the best memory speed and stability.

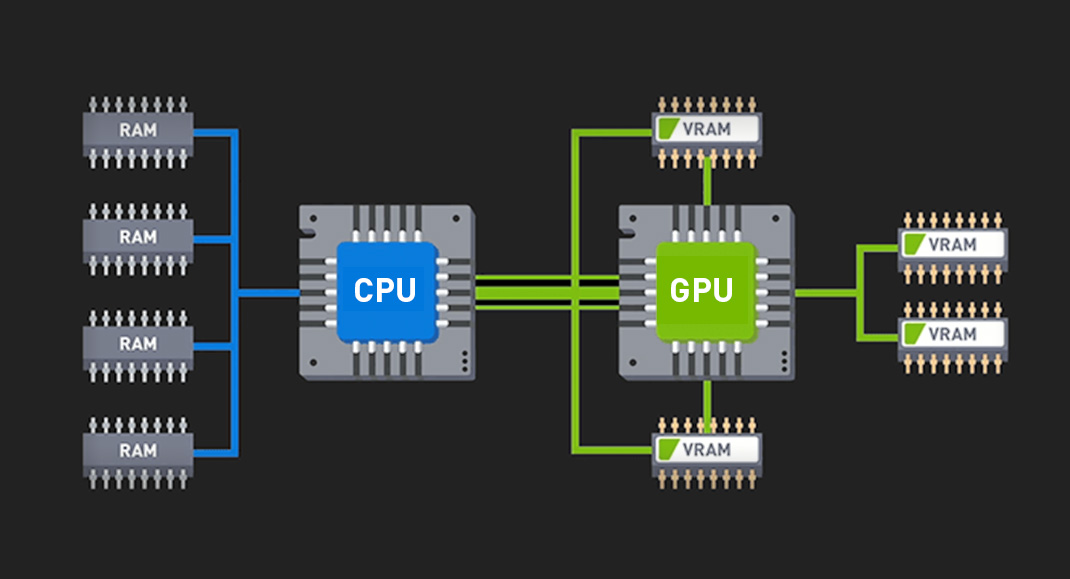

RESIZABLE BAR (RE-SIZE BAR): Resizable BAR (Re-Size BAR) is an advanced PCI Express feature that enables the CPU to access the entire GPU frame buffer at once and improve performance.

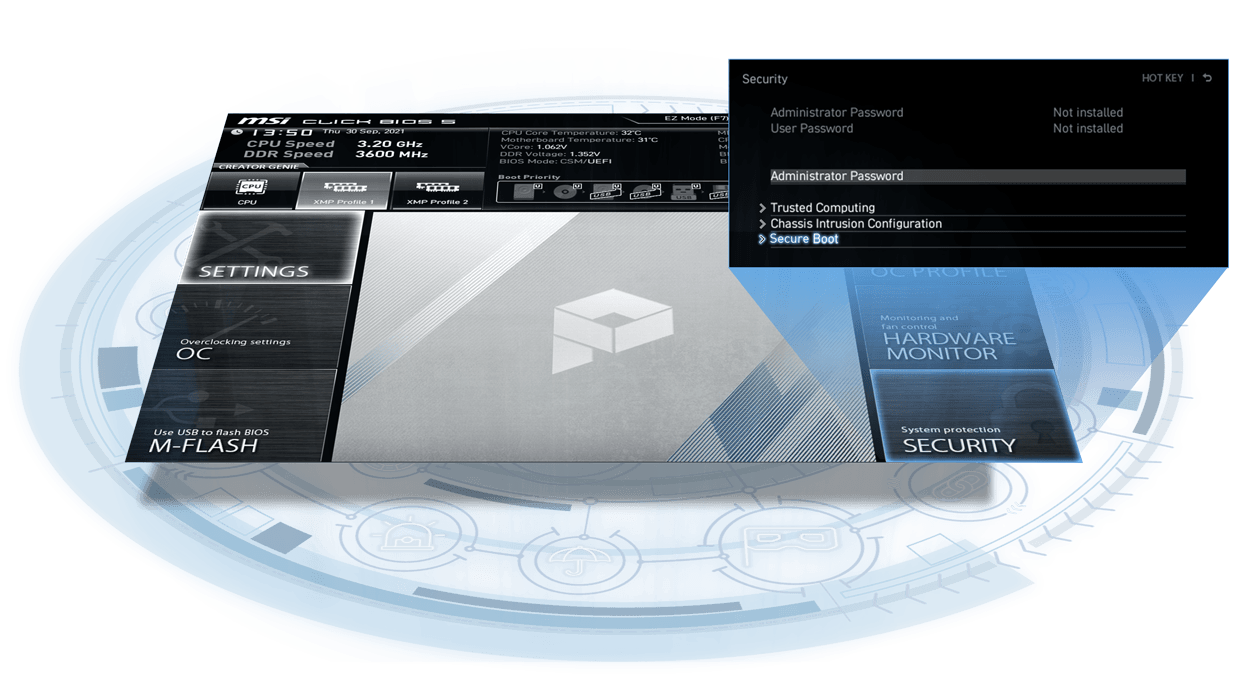

	SYSTEM SAFETY: Secure Boot Secure boot is a security standard to make sure that a device boots using only software that is trusted. When the PC starts, the firmware checks the signature of each piece of boot software, including UEFI firmware drivers, EFI applications, and the operating system. The PC boots while the signatures are valid

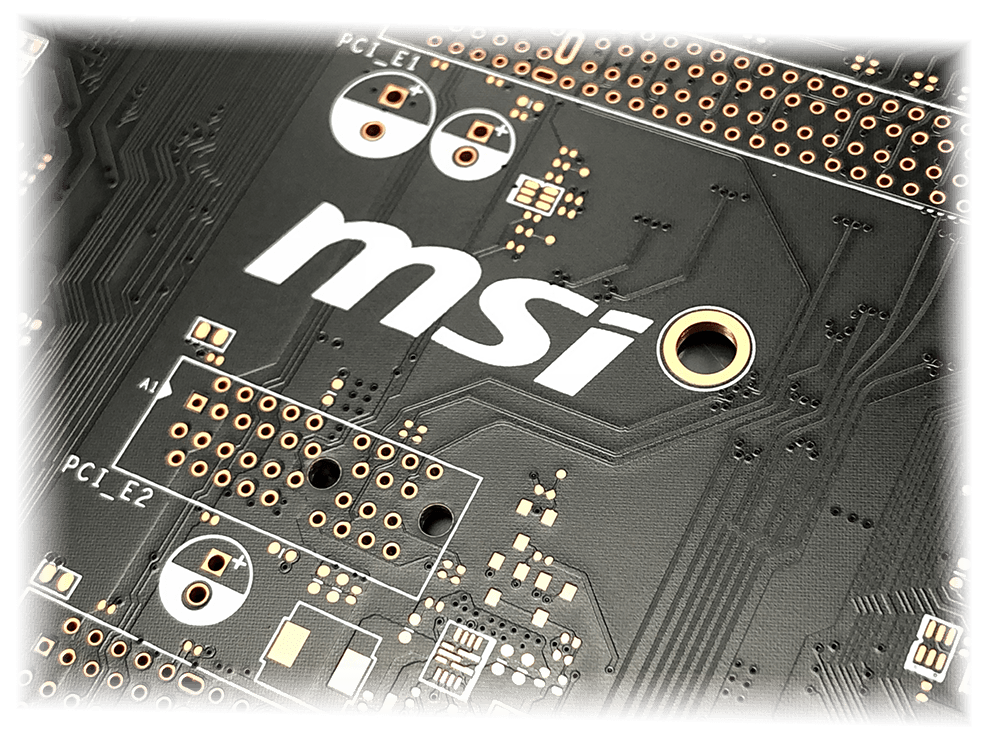

MORE RELIABLE CIRCUIT TRANSMISSION: 6-layer PCB allows for higher bandwidth and faster transfer speeds. This is also beneficial for reliable circuit transmission.





SPECIFICATIONS



Processor

Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors1

Processor socket LGA1700

    Please go to msi.com to get the newest support status as new processors are released.

Chipset

Intel® Z690 Chipset

Memory

    4x DDR4 memory slots, support up to 128GB 1
    Supports 2133/ 2666/ 3200 MHz (by JEDEC & POR)
    Max overclocking frequency:
        1DPC 1R Max speed up to 5000+ MHz
        1DPC 2R Max speed up to 4600+ MHz
        2DPC 1R Max speed up to 4400+ MHz
        2DPC 2R Max speed up to 4000+ MHz
    Supports Dual-Channel mode
    Supports non-ECC, un-buffered memory
    Supports Intel® Extreme Memory Profile (XMP)

See supported memory

Expansion Slot

    2x PCIe x16 slots
        PCI_E1 slot (From CPU)
            Support PCIe 5.0 x16
        PCI_E3 (From Z690 chipset)
            Support PCIe 3.0 x4
    3x PCIe 3.0 x1 slots (Fom Z690 chipset)
    1x M.2 slot with E key for Intel® Wireless-AX CNVi and PCIe WiFi module

Onboard Graphics

    1x HDMI 1.4b with HDR port, supports a maximum resolution of 4K 30Hz12
    1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz1

    Available only on processors featuring integrated graphics.
    Graphics specifications may vary depending on the CPU installed.

Multi-GPU

    Supports AMD CrossFire™ Technology

Storage

    4x SATA 6Gb/s ports (From Z690 chipset)
    2x M.2 slots (Key M)
        M2_1 slot (From CPU)
            Supports PCIe 4.0 x4
            Supports 2242/ 2260/ 2280/ 22110 storage devices
        M2_2 slot (From Z690 chipset)
            Supports PCIe 4.0 x4
            Supports SATA 6Gb/s
            Supports 2242/ 2260/ 2280 storage devices
            Supports Intel® Optane™ Memory

RAID

    Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
    Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB

    Intel® Z690 Chipset
        8x USB 3.2 Gen 1 5Gbps ports (4 Type-A port on the back panel and 4 ports available through the internal USB connectors)
        6x USB 2.0 ports (2 Type-A port on the back panel and 4 ports available through the internal USB connectors)
        1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel

Audio
Realtek®ALC897 Codec

    7.1-Channel High Definition Audio
    Supports S/PDIF output

LAN

    1x Realtek® RTL8125BG 2.5Gbps LAN controller

Internal connectors

    1x 24-pin ATX main power connector
    1x 8-pin ATX 12V power connector
    1x 4-pin ATX 12V power connector
    4x SATA 6Gb/s connectors
    2x M.2 slots (M-Key)
    2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
    2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
    1x 4-pin CPU fan connector
    1x 4-pin water-pump fan connector
    4x 4-pin system fan connectors
    1x Front panel audio connector
    2x System panel connectors
    1x Chassis Intrusion connector
    1x TPM module connector
    1x Clear CMOS jumper
    1x TBT connector (Supports RTD3)

LED FEATURE

    1x 4-pin RGB LED connector
    1x 3-pin RAINBOW LED connector
    4x EZ Debug LED

Back panel ports

    DisplayPort
    HDMI
    USB 2.0
    LAN port
    Audio Connectors
    USB 3.2 Gen 1 5Gbps Type-A
    USB 3.2 Gen 2x2 20Gbps Type-C
    USB 3.2 Gen 1 5Gbps Type-A
    Optical S/PDIF Out

Dimensions

    ATX Form Factor
    12 in. x 9.6 in. (30.5 cm x 24.4 cm)
