Дънна платка MSI PRO Z690-A WIFI, Z690, LGA1700, DDR5, PCI-E 5.0 (DP, HDMI)(CF), 6x SATA 6Gb/s, 4x M.2, 1x USB 3.2 Gen 2x2 Type C, Wi-Fi, Bluetooth, ATX

MSI PRO Z690-A WIFI

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

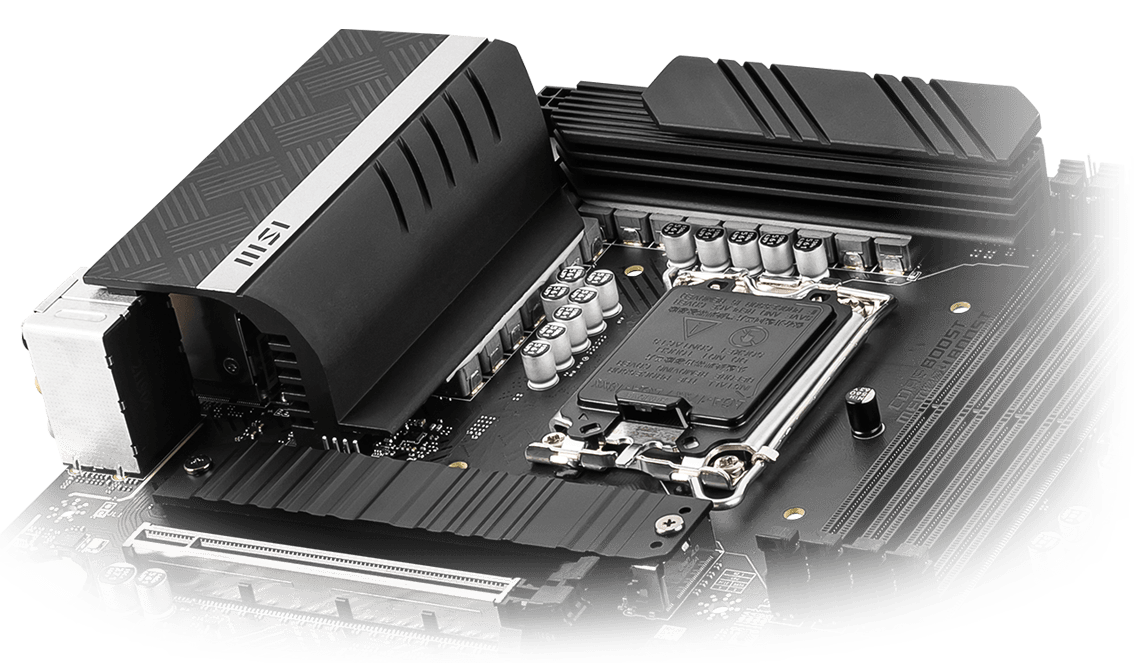

THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE

With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink with 7W/mK thermal pad ensures even high-end processors to run in full speed with MSI motherboards.

Specifications:

• CPU (Max Support) - i9
• Socket - 1700
• Chipset - Intel Z690
• Memory Channel - Dual
• DIMM Slots - 4
• Max Memory (GB) - 128
• PCI-E x16 - 3
• PCI-E x1 - 1
• SATAIII - 6
• M.2 Slot - 4
• RAID - 0/1/5/10
• TPM (header) - 1
• LAN - 1x Intel® I225-V 2.5Gbps LAN
• WiFi & Bluetooth - Intel® Wi-Fi 6E module
• USB 3.2 ports (Front) - 1(Gen 2, Type C), 4(Gen 1, Type A)
• USB 3.2 ports (Rear) - 1(Gen 2x2, Type C), 1(Gen 2, Type A), 2(Gen 1, Type A)
• USB 2.0 ports (Front) - 4
• USB 2.0 ports (Rear) - 4
• Audio ports (Rear) - Realtek® ALC897 Codec
• DisplayPort - 1
• HDMI - 1
• DirectX - 12
• Form Factor - ATX
• CrossFire - Y
• Operating System - Support for Windows® 11 64-bit, Windows® 10 64-bit
