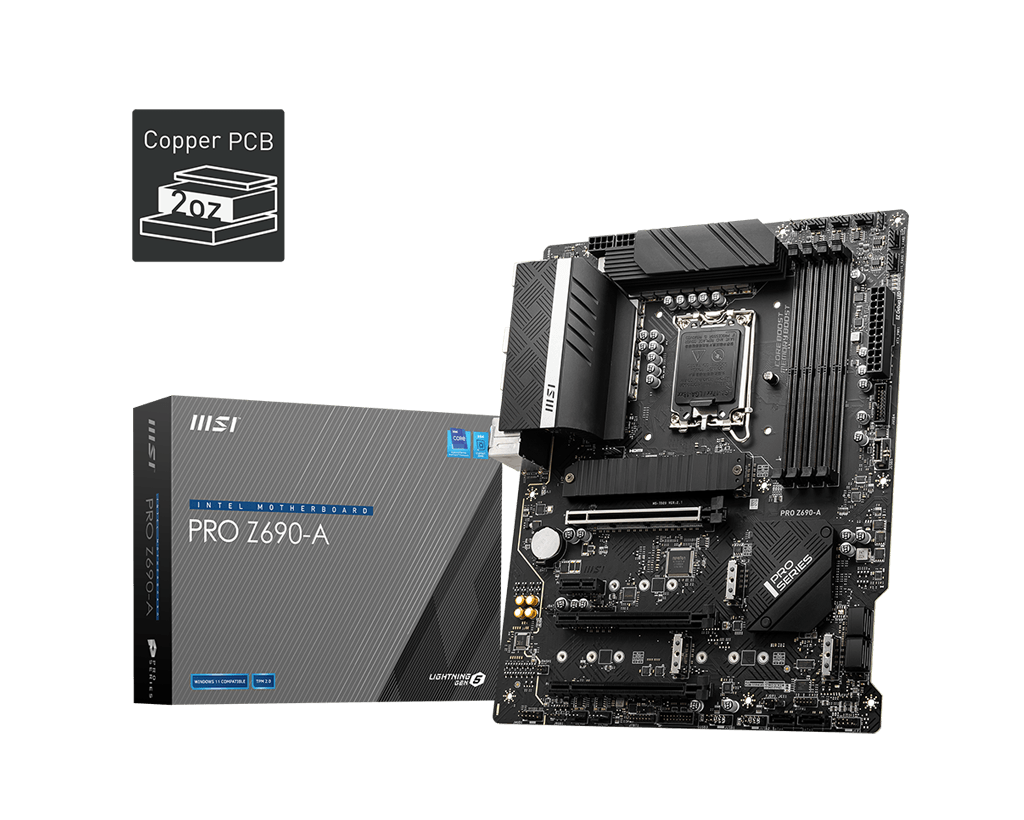

MSI PRO Z690-A

PRO series

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

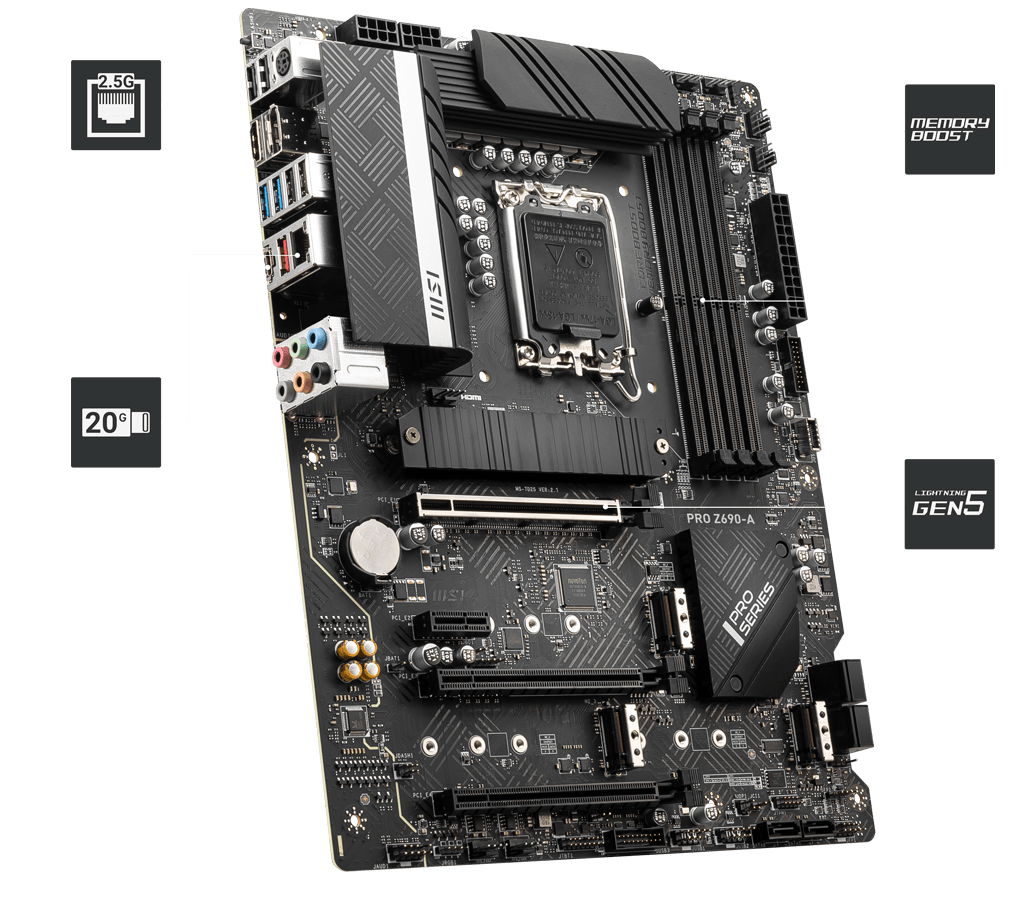

HIGH SPEED TRANSMISSION

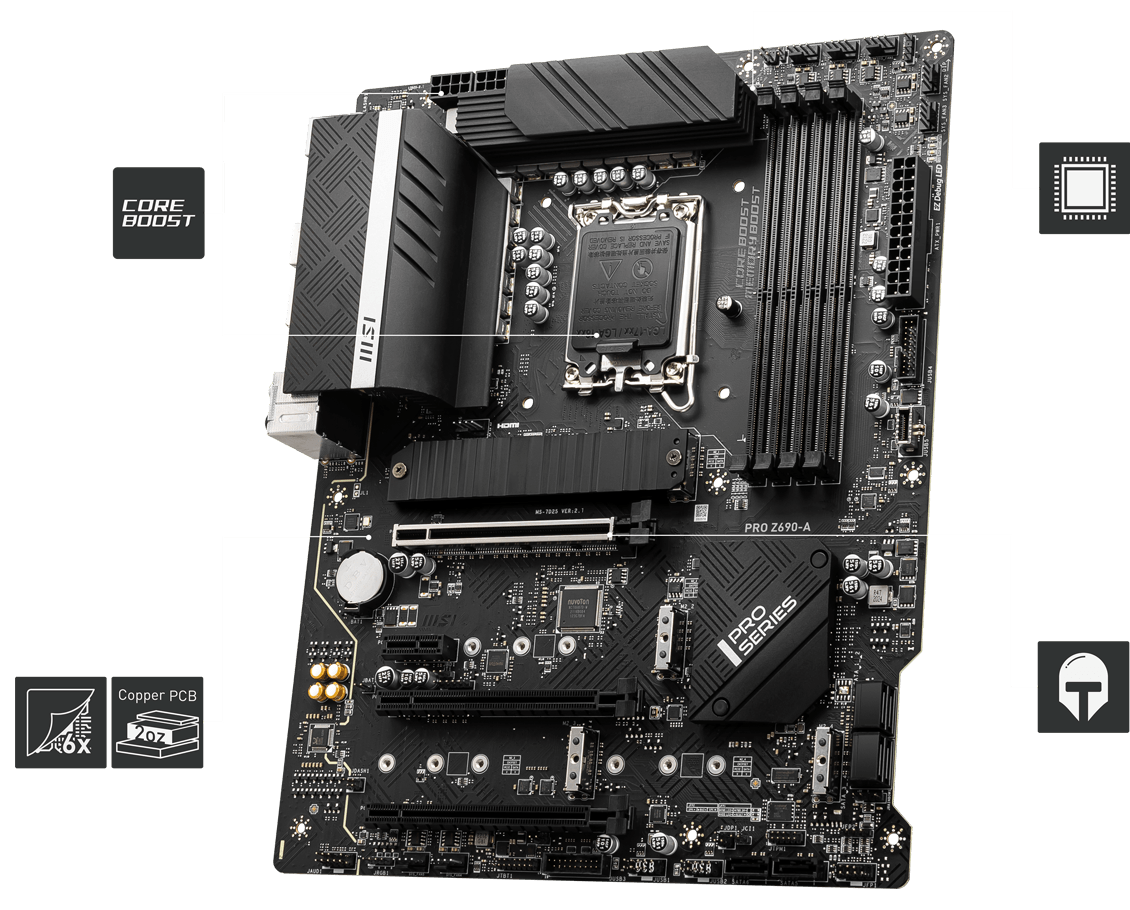

EXCLUSIVE FEATURE

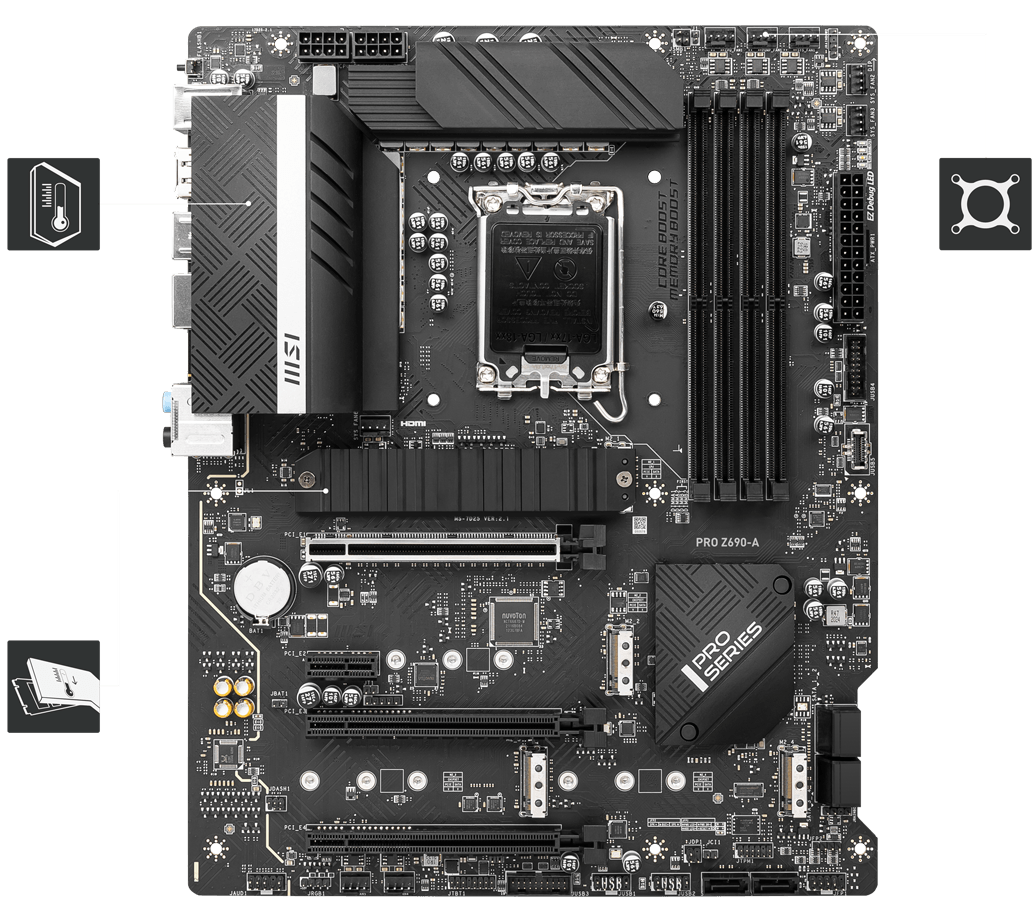

PREMIUM THERMAL SOLUTION

14 + 1 +1 POWER DESIGN

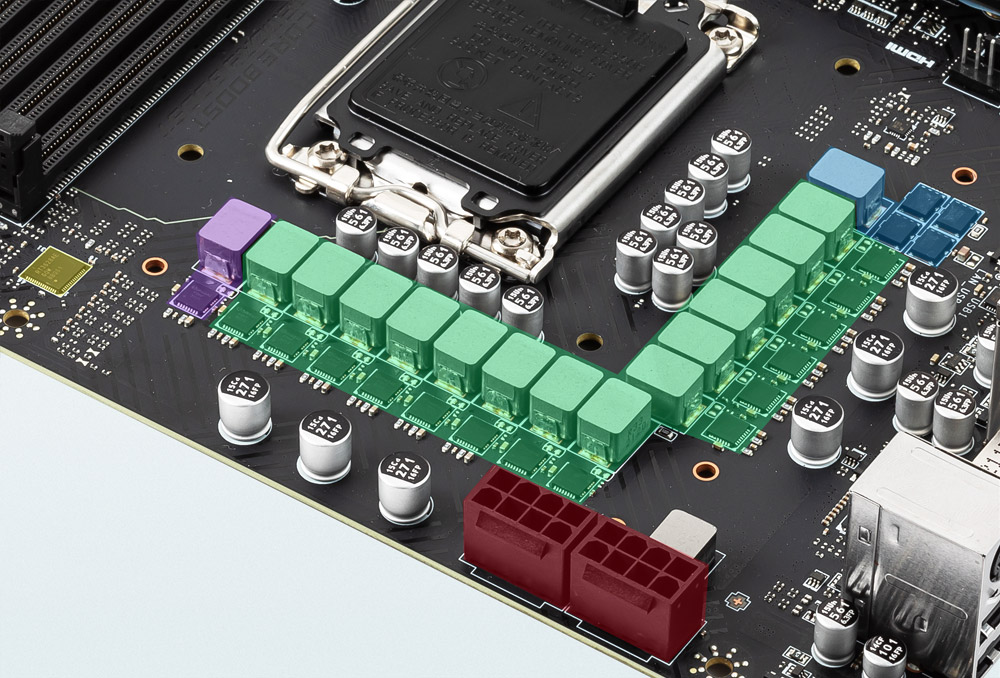

Unleash and sustain maximum performance with an aggressive VRM design built with a total of 14 digital CPU power phases. Combining 2x 8-pin power connectors and exclusive Core Boost technology, PRO series motherboard is ready to sustain heavy daily work.

THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE

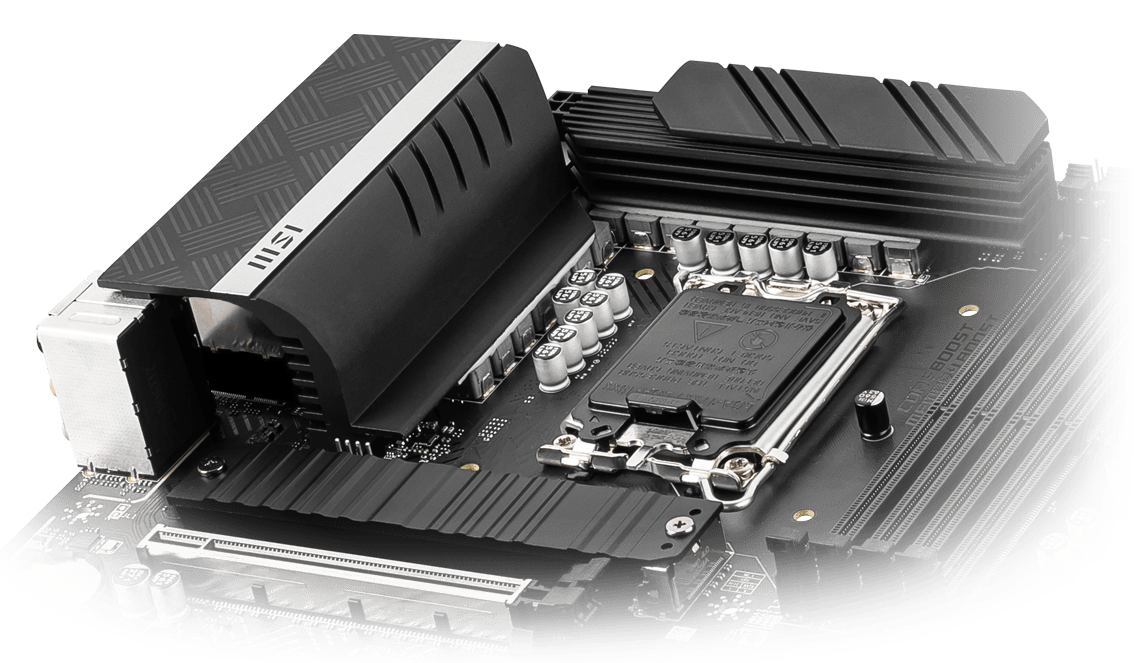

With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink with 7W/mK thermal pad ensures even high-end processors to run in full speed with MSI motherboards.

PCB Design

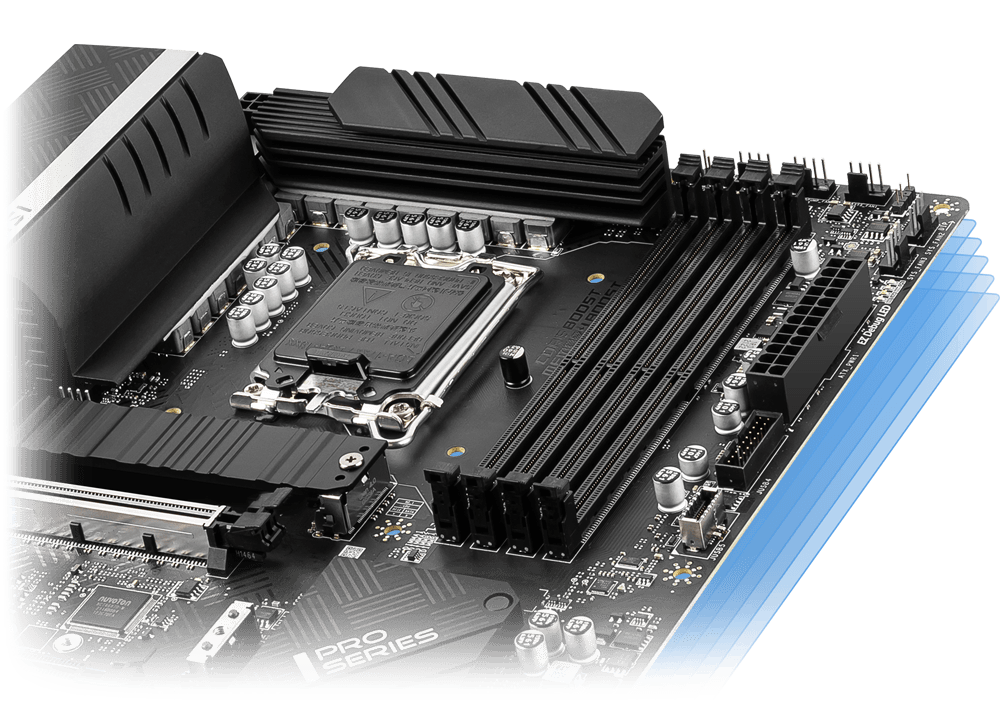

The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.

    6 PCB layers
    IT-150 Server-grade PCB material
    2oz Thickened Copp

MAXIMIZE YOUR USB DEVICE PERFORMANCE

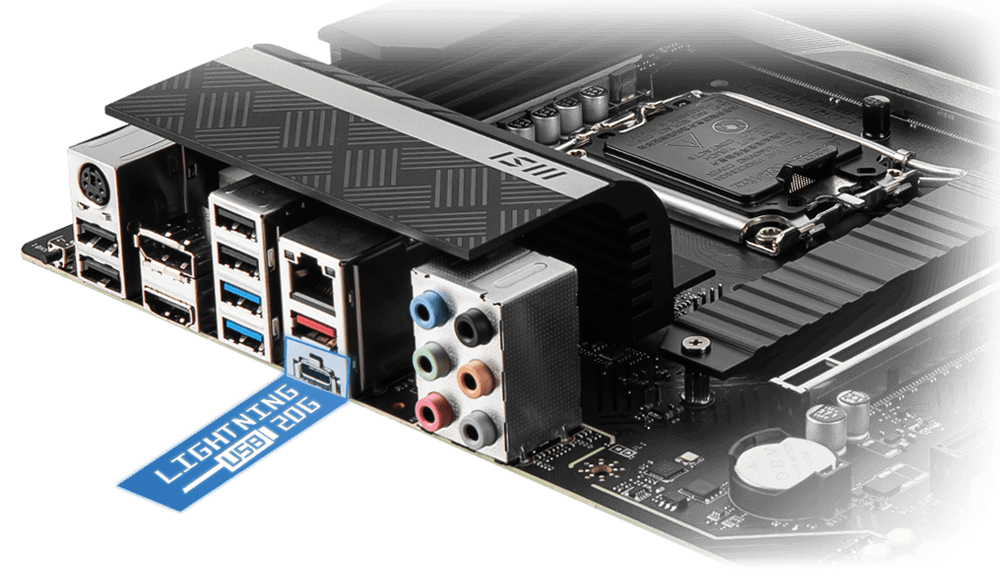

Read and write your files over USB faster than ever. MSI PRO series motherboards offer a wide variety of options to connect and boost your USB devices, delivering 20Gbps transferring speed by reversible Type-C.

SPECIFICATIONS

Processor:

Supports 12th Gen Intel^® Core™ , Pentium^® Gold and Celeron^® Processors¹

Processor socket LGA1700

Chipset : Intel^® Z690 Chipset

Memory:

    4x DDR5 memory slots, supporting up to 128GB 1
    Supports 1R 4800 MHz (by JEDEC & POR)
    Max overclocking frequency:
        1DPC 1R Max speed up to 6400+ MHz
        1DPC 2R Max speed up to 5400+ MHz
        2DPC 1R Max speed up to 4000+ MHz
        2DPC 2R Max speed up to 4000+ MHz
    Supports Intel® XMP 3.0 OC
    Supports Dual Controller Dual-Channel mode
    Supports non-ECC, un-buffered memory

Expansion Slot:

    3x PCIe x16 slots
        PCI_E1 (from CPU)
            Supports up to PCIe 5.0 x16
        PCI_E3 & PCI_E4 (from Z690 chipset)
            Supports up to PCIe 3.0 x4 & 3.0 x1
    1x PCIe 3.0 x1 slot (from Z690 chipset)

Onboard Graphics:

1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz
1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz

Multi-GPU: Supports AMD® CrossFire™ TechnologY

Storage:

    6x SATA 6Gb/s ports (from Z690 chipset)
    4x M.2 slots (Key M)
        M2_1 slot (from CPU)
            Supports PCIe 4.0 x4
            Supports 2242/ 2260/ 2280/ 22110 storage devices
        M2_2 slot (from Z690 chipset)
            Supports PCIe 4.0 x4
            Supports 2242/ 2260/ 2280 storage devices
        M2_3 slot (from Z690 chipset)
            Supports PCIe 3.0 x4
            Supports SATA 6Gb/s
            Supports 2242/ 2260/ 2280 storage devices
        M2_4 slot (from Z690 chipset)
            Supports PCIe 4.0 x4
            Supports SATA 6Gb/s
            Supports 2242/ 2260/ 2280 storage devices
        Intel® Optane™ Memory Ready for M.2 slots that are from Z690 Chipset
    Support Intel® Smart Response Technology for Intel Core™ processors

RAID:

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices

USB:

    Intel® Z690 Chipset
        1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel
        2x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 1 Type-A port on the back panel)
        6x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 4 ports are available through the internal USB connectors)
        4x USB 2.0 Type-A ports on the back panel
    USB Hub GL850G
        4x USB 2.0 ports are available through the internal USB connectors

Audio

Realtek® ALC897 Codec

7.1-Channel High Definition Audio

LAN:

1x Intel® I225-V 2.5Gbps LAN

Internal connectors:

1x 24-pin ATX main power connector
2x 8-pin ATX 12V power connector
6x SATA 6Gb/s connectors
4x M.2 slots (M-Key)
1x USB 3.2 Gen 2 10Gbps Type-C port
2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector

1x 4-pin water-pump fan connector
6x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x TPM module connector
1x Tuning controller connector
1x TBT connector (Supports RTD3)

LED Feature

    1x 4-pin RGB LED connector
    2x 3-pin RAINBOW LED connectors
    4x EZ Debug LED

Back panel ports

    Keyboard / Mouse
    DisplayPort
    USB 2.0
    LAN port
    Audio connector
    Flash BIOS Button
    USB 2.0
    HDMI
    USB 3.2 Gen 1 5Gbps Type-A
    USB 3.2 Gen 2x2 20Gbps Type-C
    USB 3.2 Gen 2 10Gbps Type-A

Dimensions

ATX Form Factor
12 in. x 9.6 in. (30.5 cm x 24.4 cm)

Виж още Дънни платки за Intel процесори MSI
Виж всички Дънни платки за Intel процесори в категорията

Технически характеристики

Процесор сокет:	LGA 1700
Чипсет:	Z690
Поддържана памет:	DDR5
Брой слотове за RAM памет:	4
Storage интерфейси:	SATA 6Gbit/s, M.2
RAID:	Да
Безжични мрежи:	Не
Bluetooth:	Не
Видео слот:	PCI-E
Multi-Graphics технология:	CrossFire
Видео изход:	DP HDMI
Форм фактор:	ATX
