PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

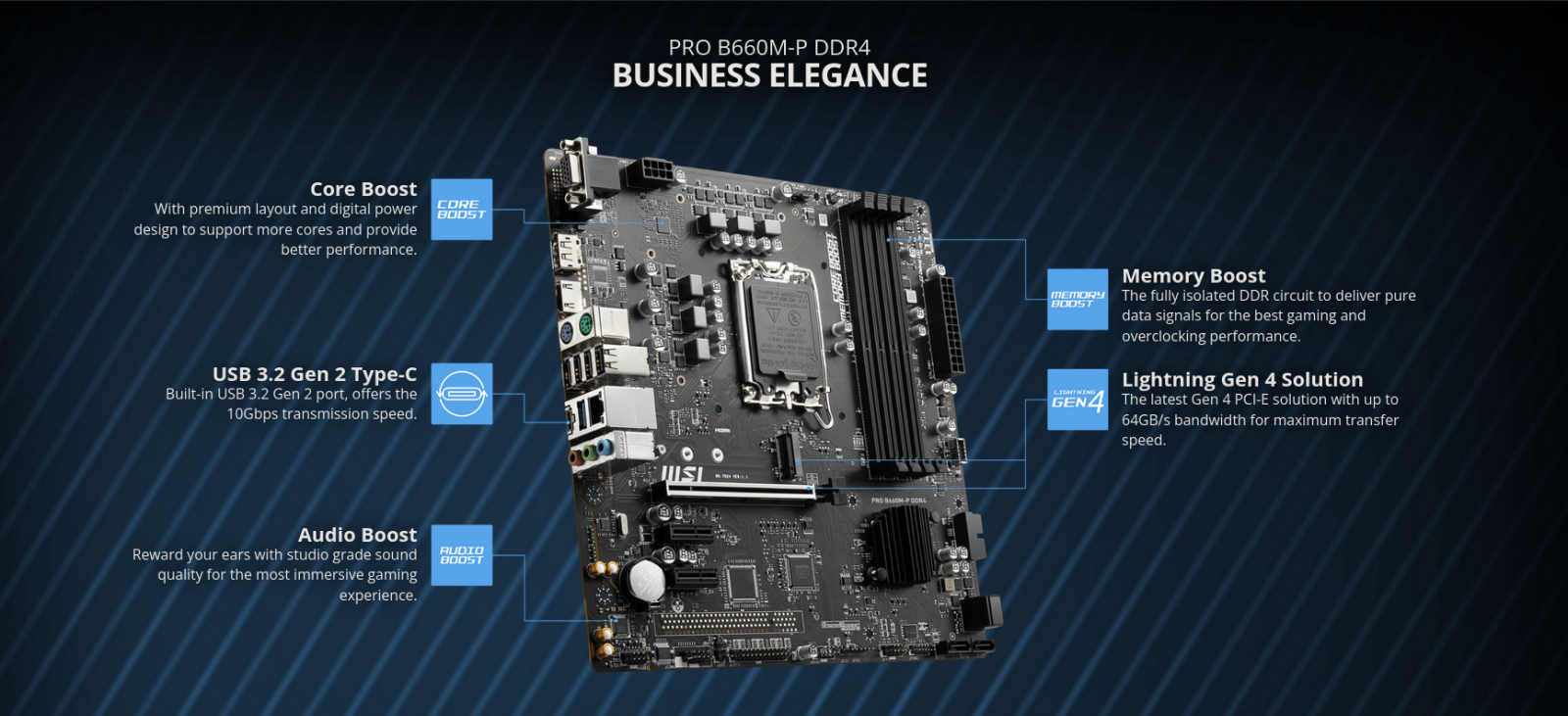

PRO B660M-P DDR4

Supports 12th Gen Intel^® Core™, Pentium^® Gold and Celeron^® processors for LGA 1700 socket
Supports DDR4 Memory, up to 4600+(OC) MHz
Core Boost : With premium layout and digital power design to support more cores and provide better performance
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2
Audio Boost: Reward your ears with studio grade sound quality
Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

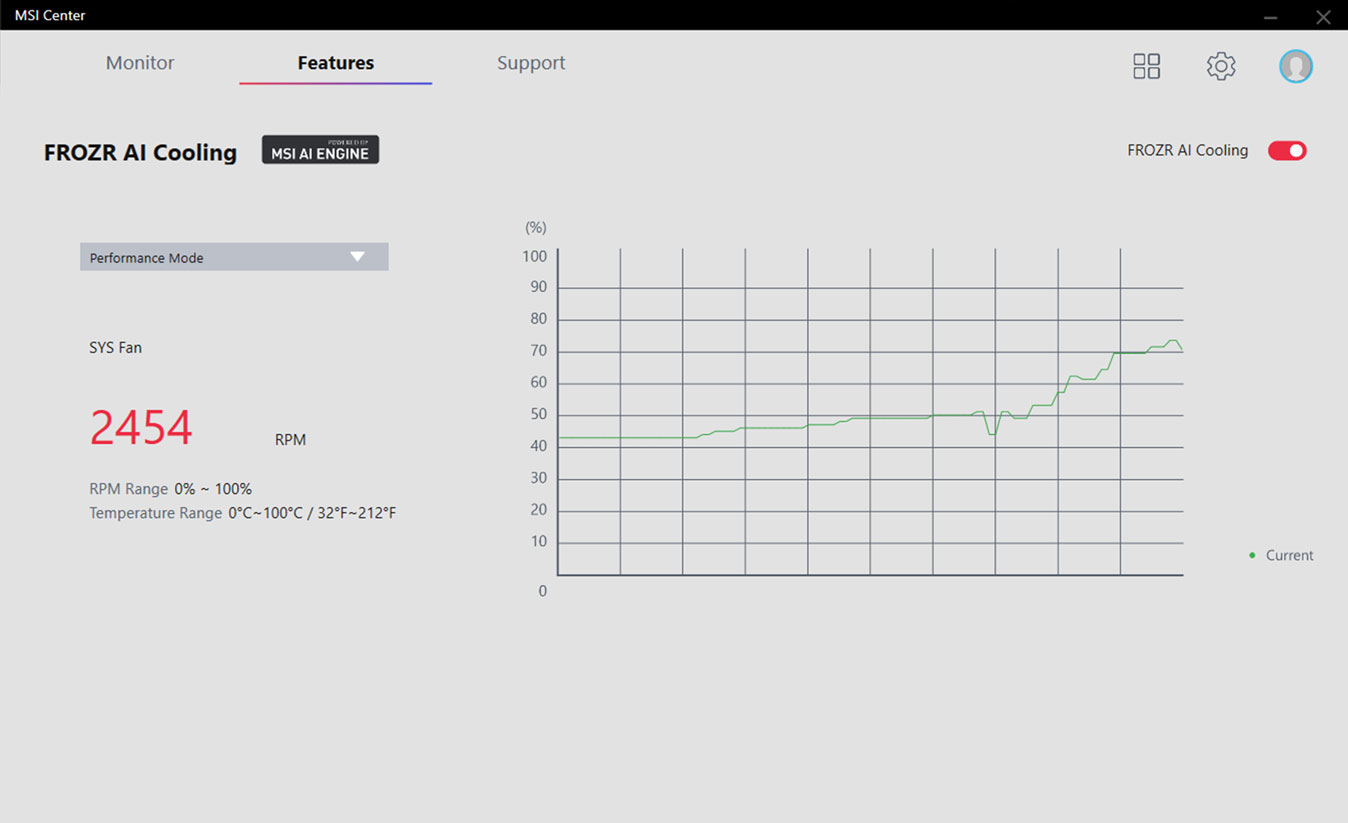

FROZR AI COOLING

Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.

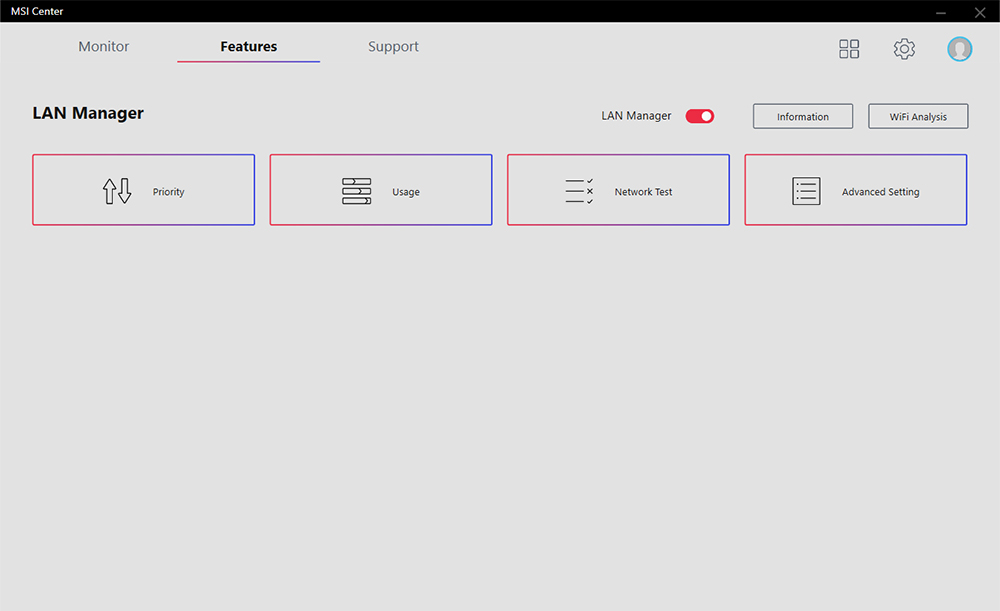

OPTIMIZE NETWORK FOR LOWER LATENCY!

MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications, giving you the best online experience with low latency.

MSI LAN MANAGER

- Allows you to change applications' traffic priority -
- Allows you to customize bandwidth for each application -

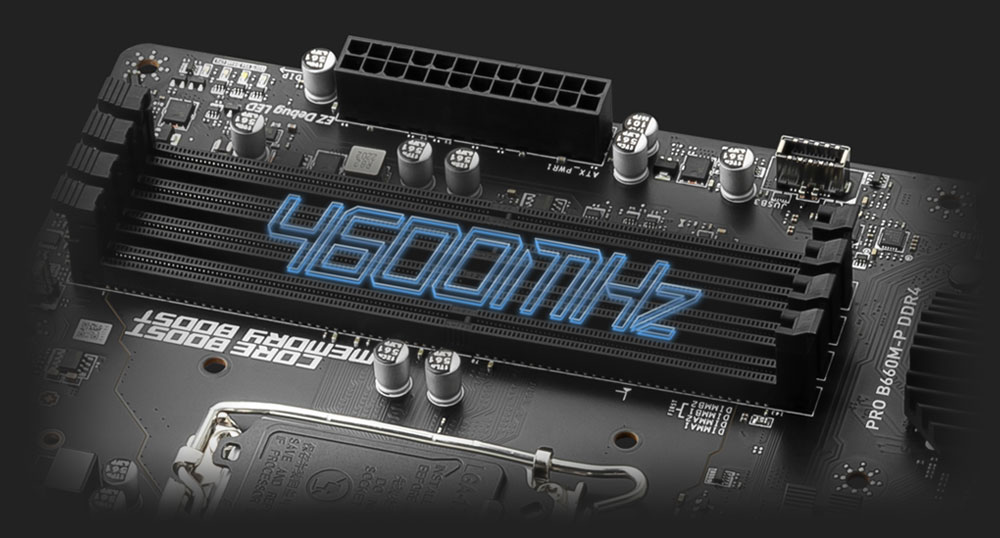

A HUGE STEP OF DDR PERFORMANCE

MSI OC LAB does not merely work hard on extreme overclocking. The XMP memory profile has great improvement on performance and efficiency for B660 . Easy to enable XMP profile with auto power settings to get the best memory speed and stability.

SPECIFICATIONS:

Model Name PRO B660M-P DDR4
CPU Support Supports 12th Gen Intel® Core™ Processors, Pentium® Gold
and Celeron® Processors
CPU Socket LGA 1700
Chipset Intel® B660 Chipset
Graphics Interface 1x PCIe 4.0 x16 slot
Display Interface Support 4K@30Hz as specified in HDMI 1.4, DisplayPort 1.4,
VGA – Requires Processor Graphics
Memory Support 4 DIMMs, Dual Channel DDR4-4600+MHz(OC)
Expansion Slots 2x PCIe 3.0 x1 slots
Storage 1x M.2 Gen4 x4 64Gbps slot, 4x SATA 6Gbps ports

USB Ports 1x USB 3.2 Gen 2 10Gbps (1 Type-C), 4x USB 3.2 Gen 1 5Gbps (3 Type-A + 1 Type-C), 6x USB 2.0
LAN Realtek® RTL8111H Gigabit LAN
Audio 8-Channel (7.1) HD Audio with Audio Boost

Виж още Дънни платки за Intel процесори MSI
Виж всички Дънни платки за Intel процесори в категорията

Технически характеристики

Процесор сокет:	LGA 1700
Чипсет:	B660
Поддържана памет:	DDR4
Брой слотове за RAM памет:	4
Storage интерфейси:	SATA 6Gbit/s, M.2
RAID:	Да
Безжични мрежи:	Не
Bluetooth:	Не
Видео слот:	PCI-E
Multi-Graphics технология:	Няма
Видео изход:	DP HDMI VGA (D-Sub)
Форм фактор:	Micro ATX
