Дънна патка MSI Pro B660-A DDR4, B660, LGA1700, DDR4, PCI-E 4.0 (DP&HDMI&VGA)(CF), 4x SATA 6Gb/s, 2x M.2, 1x USB 3.2 Type-C, ATX

MSI Pro B660-A DDR4

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

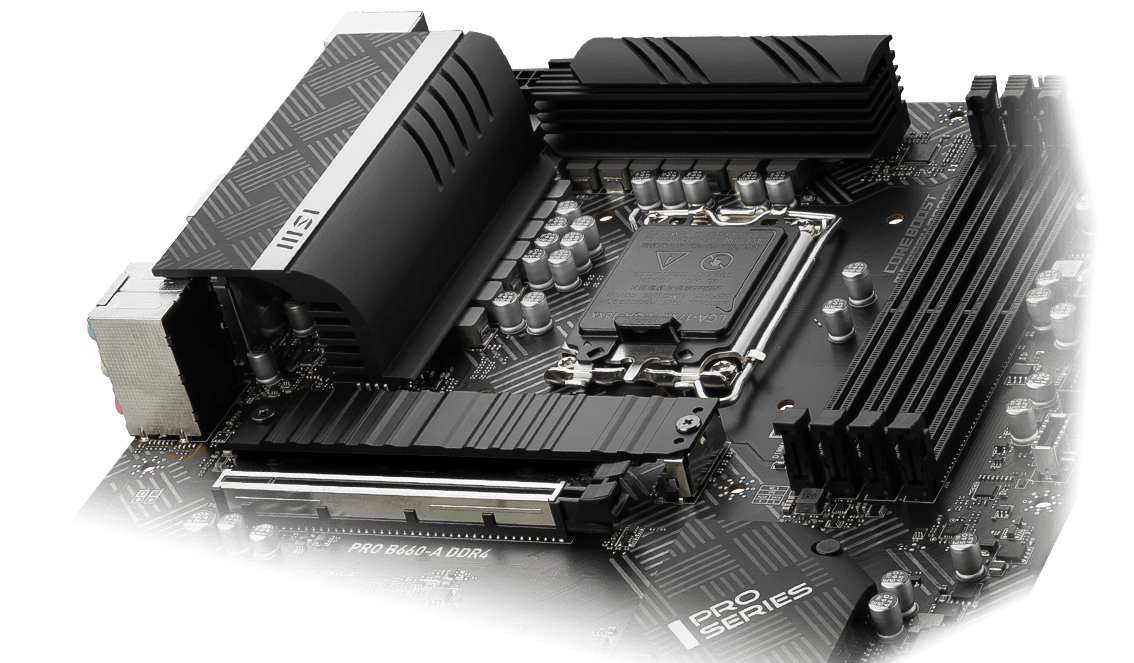

THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE

With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink with 7W/mK thermal pad ensures even high-end processors to run in full speed with MSI motherboards.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.

Specifications:

     CPU (Max Support): i9
    Socket: 1700
    Chipset: Intel® B660 Chipset
    DDR4 Memory: 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz
    Memory Channel: Dual
    DIMM Slots: 4
    Max Memory (GB): 128
    PCI-E x16: 2
    PCI-E x1: 3
    SATAIII: 4
    M.2 Slot: 2
    RAID: 0/1/5/10
    TPM (header): 1
    LAN: 1x Realtek® RTL8125BG 2.5Gbps LAN controller
    USB 3.2 ports (Front): 1(Gen 1, Type C), 2(Gen 1, Type A)
    USB 3.2 ports (Rear): 1(Gen 2, Type C), 2(Gen 2, Type A)
    USB 2.0 ports (Front): 2
    USB 2.0 ports (Rear): 4
    Audio ports (Rear): Realtek® ALC897 Codec
    DisplayPort: 1
    VGA: 1
    HDMI: 1
    DirectX: 12
    Form Factor: ATX
    CrossFire: Y
    Operating System: Support for Windows® 11 64-bit, Windows® 10 64-bit
