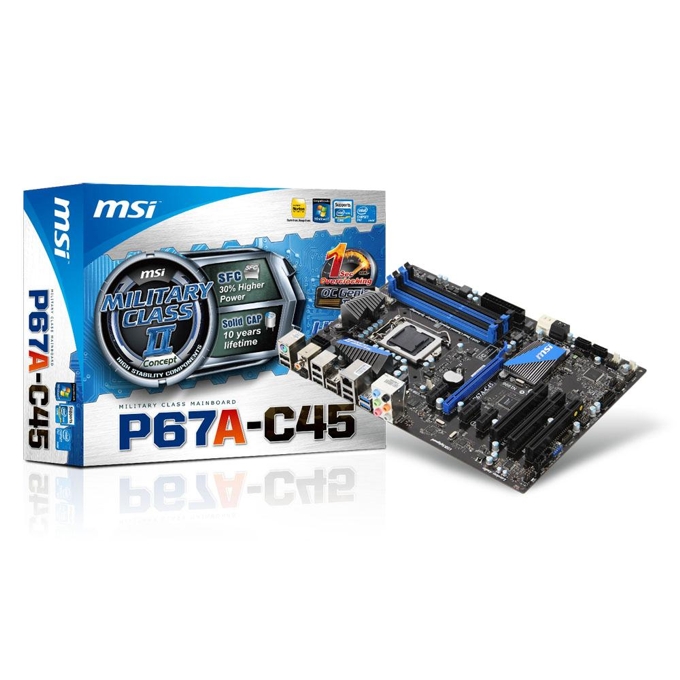

Дънна платка MSI P67A-C45, P67, LGA1155, DDR3, PCI-E, SB7.1, Lan1000, SATA 6Gb/s RAID 0,1, USB3.0, 1394, ATX

MSI P67A-C45

CPU
• Supports Intel® Sandy Bridge processors in LGA1155 package.
Please refer to CPU Support for compatible CPU; the above description is for reference only.

Chipset
• Intel® P67 (B3) Chipset

Main Memory
• Supports four unbuffered DIMM of 1.5 Volt DDR3 1066/1333/1600*/2133*(OC) DRAM, 32GB Max
- Supports 1GB/ 2GB/ 4GB/ 8GB DRAM size
- Supports Dual channel mode

Slots
• 1 PCI Express gen2 x16 slot
• 3 PCI Express gen2 x1 slots
• 3 32-bit v2.3 master PCI bus slots.
- Support 3.3v/5v PCI bus interface.

On-Board SATA
• SATAII controller integrated in Intel® P67 (B3) chipset
- Up to 3Gb/s transfer speed.
- Supports four SATAII ports (SATA3~6) by P67 (B3) PCH
- SATA3~6 ports support RAID 0/1/5/10 mode by Intel P67 (B3) PCH

• SATAIII controller integrated in Intel® P67 (B3) chipset
- Up to 6Gb/s transfer speed.
- Supports two SATAIII ports (SATA1~2) by P67 (B3) PCH
- SATA1~2 ports support RAID 0/1 mode by Intel P67 (B3) PCH

USB 3.0
• 4 USB 3.0 ports(2 by back panel, 2 by interanl ports) by NEC® uPD720200F1

Audio
• Chipset integrated by Realtek® ALC892
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 Spec
- Meet Microsoft Vista Premium spec

LAN
• Supports one PCI Express LAN 10/100/1000 Fast Ethernet by Realtek 8111E.

IEEE1394 / FireWire
• VIA® VT6315N chipset
- Supports up to two 1394 ports. (Rear panel x1, pinheader x1)
- Transfer rate is up to 400Mbps.

Internal I/O Connectors
- ATX 24-Pin power connector
- 8-pin ATX 12V power connector
- CPU x 1 / System x 4 FAN connectors
- CD-in connector
- Front panel audio connector
- Front panel connector
- 1 x chasis intrusion connector
- 1 x USB 2.0 connector
- 1 x USB 3.0 connector
- 4 x Serial ATAII connectors
- 2 x Serial ATAIII connectors
- 1 x IEEE1394 connector
- 1 x Clear CMOS jumper
- 1 x SPDIF-out connector
- 1 x TPM module connector
- 1 x Serial port connector

Back Panel I/O Ports
- 1 x PS/2 Mouse/Keyboard port
- 8 x USB 2.0 ports
- 1 x Clear CMOS button
- 1 x Coaxial SPDIF port
- 1 x Optical SPDIF port
- 1 x IEEE1394 port
- 1 x RJ45 LAN Jack
- 2 x USB 3.0 ports
- 1 x 6 in 1 audio jack

BIOS
• The mainboard BIOS provides ""Plug & Play"" BIOS which detects the peripheral devices and expansion cards of the board automatically.
• The mainboard provides a Desktop Management Interface(DMI) function which records your mainboard specifications.

Dimension
• 30.5cm(L) x 21.5cm(W) ATX Form Factor
