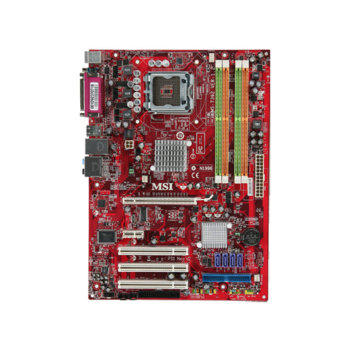

MSI P31 NEO-F V2
CPU
• Supports Intel® Core 2 Quad/Core 2 Duo based processors in LGA775 package.
• Supports Intel® Yorkfield, Wolfdale.
• Supports FSB 1333/1066/800 MHz.
Please refer to CPU Support for compatible CPU; the above description is for reference only.
Chipset
• Intel® P31 Chipset
- Supports FSB 800/1066/1333MHz.
- Supports dual channel, DDR2 667/800.
• Intel® ICH7 Chipset
- Hi-Speed USB (USB2.0) controller, 480Mb/sec, up to 8 ports.
- 4 SATAII ports with transfer rate up to 3Gb/s.
- PCI Master v2.3, I/O APIC.
- ACPI 2.0 compliant.
Main Memory
• Supports four unbuffered DIMM of 1.8 Volt DDR2 SDRAM
• Supports up to 4GB memory size.
• Supports dual channel DDR2 memory architecture.
• Supports DDR2 667/800 memory interface.
Slots
• One PCI Express 16X slot (PCI Express Bus SPEC V1.0a compliant)
• One PCI Express x1 slots. (support PCI Express Bus specification v1.0a compliant)
• Three 32-bit PCI v2.3 master PCI bus slots.
- Support 3.3v/5v PCI bus interface.
On-Board IDE/SATA
• One Ultra DMA 66/100 IDE controller integrated in ICH7
- Supports PIO, Bus Master operation modes.
- Can connect up to two Ultra ATA drives.
• SATAII controller integrated in ICH7
- Up to 3Gb/s transfer speed.
- Supports four SATAII ports.
Audio
• Chip integrated by Realtek® ALC888
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 spec.
LAN
• Supports PCI Express LAN 10/100/1000 Fast Ethernet by Realtek 8111C.
Internal I/O Connectors
- ATX 24-Pin power connector
- ATX 4-pin ATX power connector
- CPU x1/ System x 2 FAN connectors
- CD-in connector
- Front panel audio connector
- Front panel connector
- 1 x SPDIF-out pinheader
- 1 x chasis intrusion connector
- 2 x USB 2.0 connectors
- 1 x Floppy disk drive connector
- 4 x Serial ATAII connectors
- 1 x ATA100 connector
MSI Reminds You...
• The floppy disk cable will be optional.
Back Panel I/O Ports
- 1 x PS/2 keyboard
- 1 x PS/2 mouse
- 1 x 3/6 in 1 audio jack (optional)
- 4 x USB 2.0 ports
- 1 x RJ45 LAN jack
- 1 x Serial port
- 1 x Parallel port
BIOS
• The mainboard BIOS provides ""Plug & Play"" BIOS which detects the peripheral devices and
expansion cards of the board automatically.
• The mainboard provides a Desktop Management Interface(DMI) function which records your
mainboard specifications.
Dimension
• 30.5cm(L) x 22.0cm(W) ATX Form Factor
