MSI MSI MPG Z790 Edge WIFI 7D91-008R
Икона в кампания
НазадMSI MSI MPG Z790 Edge WIFI 7D91-008RMSI MSI MPG Z790 Edge WIFI 7D91-008RMSI MSI MPG Z790 Edge WIFI 7D91-008RMSI MSI MPG Z790 Edge WIFI 7D91-008RНапред

Дънна платка MSI MSI MPG Z790 Edge WIFI, Z790, LGA1700, DDR5, PCI-E 5.0, (DP&HDMI), 7x SATA 6Gb/s, 5x M.2, 1x USB3.2 Gen2x2 Type-C, Wi-Fi 6, Bluetooth v5.3, ATX

id 250462 Код: MBIMSI7D91008R
  • Модел: MSI MPG Z790 Edge WIFI
  • Марка: MSI
  • Код на продукта: 7D91-008R
  • Поддържана памет: DDR5
  • RAID: Да
  • Безжични мрежи: Wi-Fi 6 (802.11ax)
  • Bluetooth: Да
  • Видео слот: PCI-E
  • Multi-Graphics технология: Няма
  • Гаранция: 36 месеца
  • Наличност: Стар продукт
    ОписаниеХарактеристикиРевюта / Въпроси

    Specifications

    Chipset INTEL Z790
    CPU SUPPORT Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
    LGA 1700
    Memory 4x DDR5, Maximum Memory Capacity 192GB
    Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
    Max. overclocking frequency:
    • 1DPC 1R Max speed up to 7200+ MHz
    • 1DPC 2R Max speed up to 6600+ MHz
    • 2DPC 1R Max speed up to 6400+ MHz
    • 2DPC 2R Max speed up to 5600+ MHz

    Supports Intel® XMP3.0 OC
    Supports Dual-Controller Dual-Channel mode
    Supports non-ECC, un-buffered memory
    Onboard Graphics 1x HDMI™
    Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
    1x DisplayPort
    Support DP 1.4, maximum resolution of 8K 60Hz*
    *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
    EXPANSION SLOT 2x PCI-E x16 slot
    1x PCI-E x1 slot

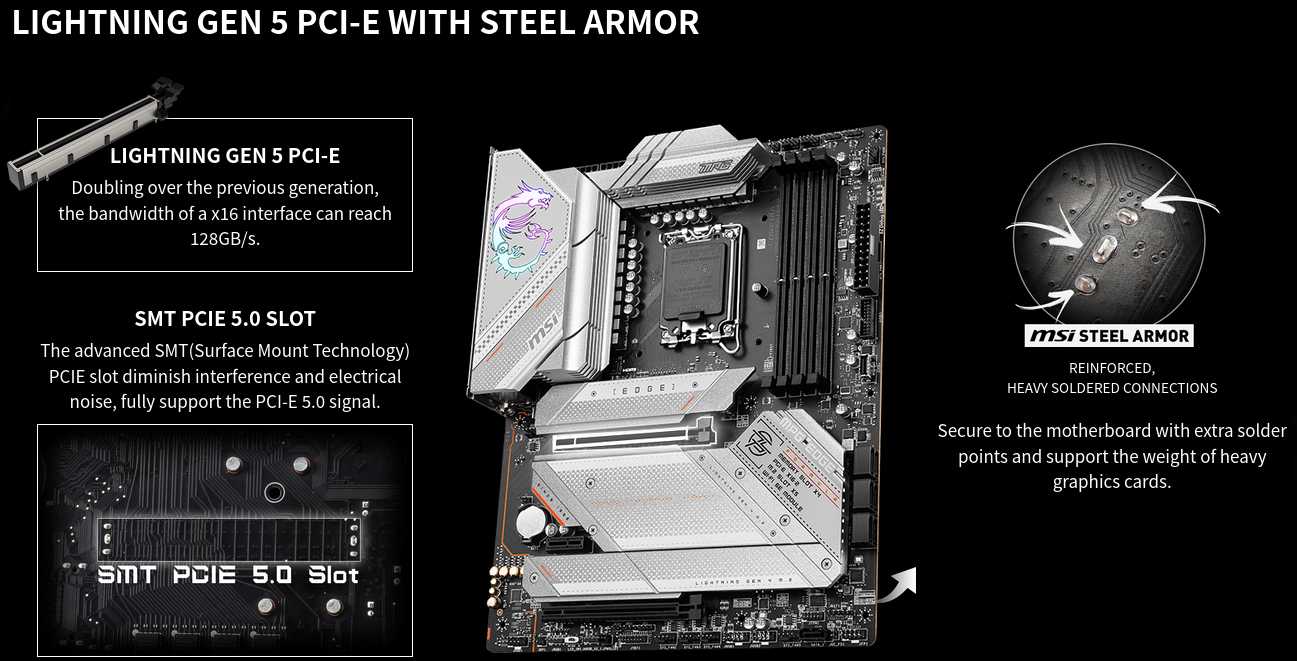

    PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
    PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
    PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
    Storage 5x M.2
    M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
    M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
    M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
    M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
    M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
    7x SATA 6G
    RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
    Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
    * SATA_A1~A2 do not support RAID function.
    USB 4x USB 2.0 (Front)
    4x USB 3.2 Gen1 Type A (Rear)
    2x USB 3.2 Gen1 Type A (Front)
    4x USB 3.2 Gen2 Type A (Rear)
    1x USB 3.2 Gen2 Type C (Rear)
    1x USB 3.2 Gen2 Type C (Front)
    1x USB 3.2 Gen2x2 Type C (Rear)
    LAN Intel® 2.5Gbps LAN
    WIRELESS / BLUETOOTH Intel® Wi-Fi 6E
    The Wireless module is pre-installed in the M.2 (Key-E) slot
    Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
    Supports 802.11 a/ b/ g/ n/ ac/ ax

    Supports Bluetooth® 5.3**, FIPS, FISMA

    * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
    ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
    Audio Realtek® ALC4080 Codec
    7.1-Channel USB High Performance Audio
    Supports up to 32-Bit/384 kHz playback on front panel
    Internal I/O 1x Power Connector(ATX_PWR)
    2x Power Connector(CPU_PWR)
    1x CPU Fan
    1x Pump Fan
    6x System Fan
    2x Front Panel (JFP)
    1x Chassis Intrusion (JCI)
    1x Front Audio (JAUD)
    1x TBT connector (JTBT, supports RTD3)
    1x Tuning Controller connector(JDASH)
    3x Addressable V2 RGB LED connector (JARGB_V2)
    1x RGB LED connector(JRGB)
    1x TPM pin header(Support TPM 2.0)
    4x USB 2.0 ports
    2x USB 3.2 Gen1 Type A ports
    1x USB 3.2 Gen2 Type C ports
    LED FEATURE 4x EZ Debug LED
    1x EZ LED Control switch
    BACK PANEL PORTS
    1. Display Port
    2. USB 3.2 Gen 1 5 Gbps (Type-A)
    3. USB 3.2 Gen 2 10Gbps (Type-A)
    4. 2.5G LAN
    5. Wi-Fi / Bluetooth
    6. Audio Connectors
    7. HDMI™
    8. Clear CMOS / Flash BIOS
    9. USB 3.2 Gen 2 10Gbps (Type-A)
    10. USB 3.2 Gen 2 10Gbps (Type-C)
    11. USB 3.2 Gen 2x2 20Gbps (Type-C)
    12. Optical S/PDIF Out
    OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
    PCB Dimension ATX
    243.84mmx304.8mm
    BOX CONTENT




    Виж още Дънни платки за Intel процесори MSI
    Виж всички Дънни платки за Intel процесори в категорията
    Технически характеристики
    Процесор сокет:  LGA 1700
    Чипсет:  Z790
    Поддържана памет:  DDR5
    Брой слотове за RAM памет:  4
    Storage интерфейси:  SATA 6Gbit/s, M.2
    RAID:  Да
    Безжични мрежи:  Wi-Fi 6 (802.11ax)
    Bluetooth:  Да
    Видео слот:  PCI-E
    Multi-Graphics технология:  Няма
    Видео изход:  DP HDMI
    Форм фактор:  ATX
