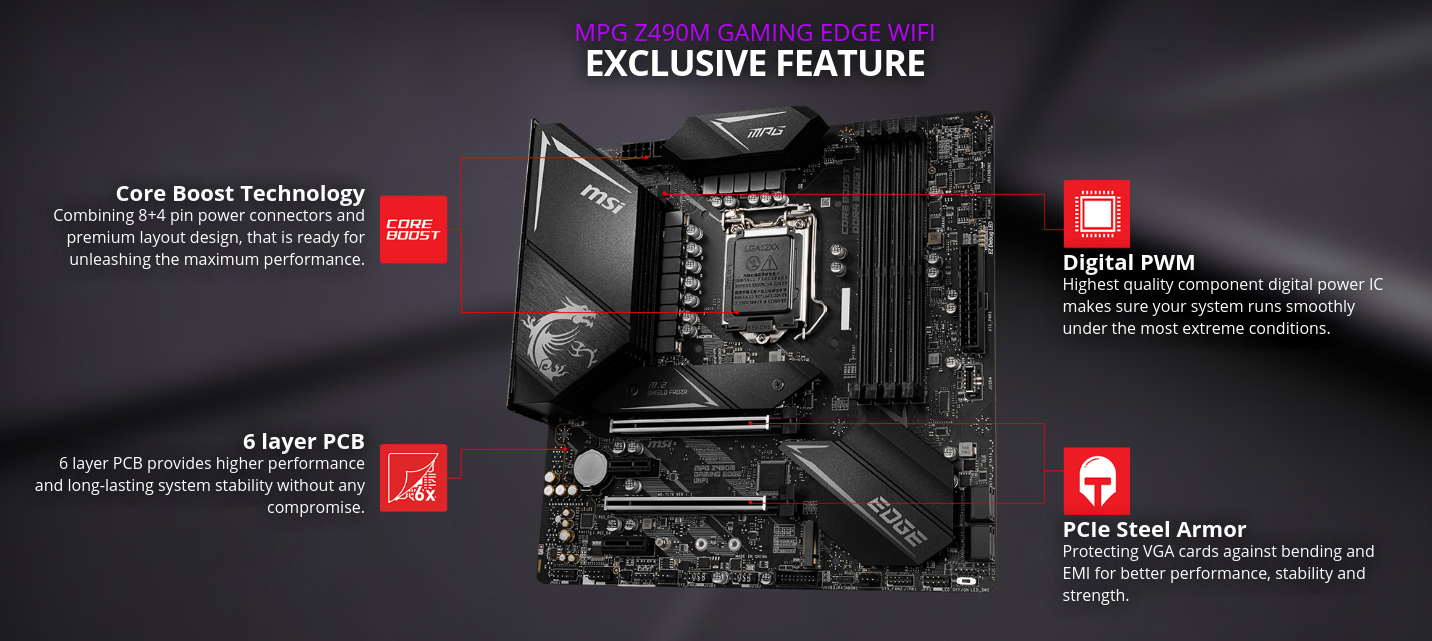

MPG Z490M GAMING EDGE WIFI
- Supports 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
- Supports DDR4 Memory, up to 5000(OC) MHz
- Ready 4 the Future: Support Lightning Gen 4 Solution for the future
- Enhanced Power Design: 12+1+1 Duet Rail Power System, 8+4 pin CPU power connectors, Core Boost, DDR4 Boost
- Premium Thermal Solution: Aluminum Cover with Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- 2.5G LAN with LAN Manager and Intel Wi-Fi 6 AX Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip
- Pre-installed I/O Shielding: Better EMI protection and more convenience for installation
- Audio Boost: Reward your ears with studio grade sound quality

Specifications:
PROCESSOR
Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA1200 socket 1 2
- Please go to intel.com for compatibility information.
- Onboard graphics output are disabled when using the F SKU processors.
CHIPSET
Intel® Z490 Chipset
MEMORY
- 4x DDR4 memory slots, support up to 128GB1
- Supports 1R 2133/2666/2933 MHz*
- 1DPC 1R Max speed up to 5000+ MHz
- 1DPC 2R Max speed up to 4500+ MHz
- 2DPC 1R Max speed up to 4400+ MHz
- 2DPC 2R Max speed up to 4000+ MHz
- Supports Dual-Channel mode
- Supports non-ECC, un-buffered memory
- Supports Intel® Extreme Memory Profile (XMP)
- Please refer www.msi.com for more information on compatible memory
EXPANSION SLOTS
- 2x PCIe 3.0 x16 slots*, support x16/ x0 or x8/ x8 mode
- 2x PCIe 3.0 x1 slots
ONBOARD GRAPHICS
- 1x HDMI port, supports a maximum resolution of 4096x2160 @30Hz
- 1x DisplayPort, supports a maximum resolution of 4096x2304 @60Hz
- Maximum shared memory is 1GB
MULTI-GPU
- Supports 2-Way NVIDIA® SLI™ Technology
- Supports 2-Way AMD® CrossFire™ Technology
STORAGE
Intel® Z490 Chipset
- 4x SATA 6Gb/s ports 1
- 2x M.2 slots (Key M)
- SATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
- Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
RAID
Intel® Z490 Chipset
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
- Supports RAID 0 and RAID 1 for M.2 PCIe storage devices
USB
Intel® Z490 Chipset
- 3x USB 3.2 Gen 2 10Gbps ports (1 Type-A port and 1 Type-C port on the back panel, 1 Type-C internal connector)
- 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports through the internal USB 3.2 Gen 1 connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
AUDIO
Realtek® ALC1220 Codec
- 7.1-Channel High Definition Audio
- Supports S/PDIF output
LAN
- 1x Realtek® RTL8125B 2.5Gbps LAN controller
WIFI & BLUETOOTH
Intel® AX201
- Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps
- WiFi 6 Pre-Certified
- Supports Bluetooth® 5.1 , FIPS, FISMA
- The Wireless module is pre-install in the M2 (Key-E) slot
- Only support windows 10 64-bit
INTERNAL CONNECTORS
- 1x 24-pin ATX main power connector
- 1x 8-pin ATX 12V power connector
- 1x 4-pin ATX 12V power connector
- 4x SATA 6Gb/s connectors
- 2x M.2 slots (M-Key)
- 1x USB 3.2 Gen 2 10Gbps Type-C port
- 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
- 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1x 4-pin CPU fan connector
- 1x 4-pin water-pump fan connector
- 3x 4-pin system fan connectors
- 1x Front panel audio connector
- 2x System panel connectors
- 1x Chassis Intrusion connector
- 2x 4-pin RGB LED connector
- 2x 3-pin RAINBOW LED connectors
- 1x Serial port connector
- 1xTPM module connector
- 1x Clear CMOS jumper
BACK PANEL PORTS
- PS/2 Combo Port
- DisplayPort
- USB 3.2 Gen 2 10Gbps (Type-A)
- LAN Port
- HD Audio Connectors
- USB 2.0
- HDMI Port
- USB 3.2 Gen 2 10Gbps (Type-C)
- USB 3.2 Gen 1 5Gbps (Type-A)
- Wi-Fi / Bluetooth
- Optical S/PDIF OUT
DIMENSIONS
- Micro-ATX Form Factor
- 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
MOUNTING
8 mounting holes
OPERATING SYSTEM
- Support for Windows® 10 64-bit
Виж още Дънни платки за Intel процесори MSI
Виж всички Дънни платки за Intel процесори в категорията
| Процесор сокет: | LGA 1200 |
|---|---|
| Чипсет: | Z490 |
| Поддържана памет: | DDR4 |
| Брой слотове за RAM памет: | 4 |
| Storage интерфейси: | SATA 6Gbit/s, M.2 |
| RAID: | Да |
| Безжични мрежи: | Wi-Fi 6 (802.11ax) |
| Bluetooth: | Да |
| Видео слот: | PCI-E |
| Multi-Graphics технология: | CrossFire & SLI |
| Видео изход: | DP HDMI |
| Форм фактор: | E-ATX |
